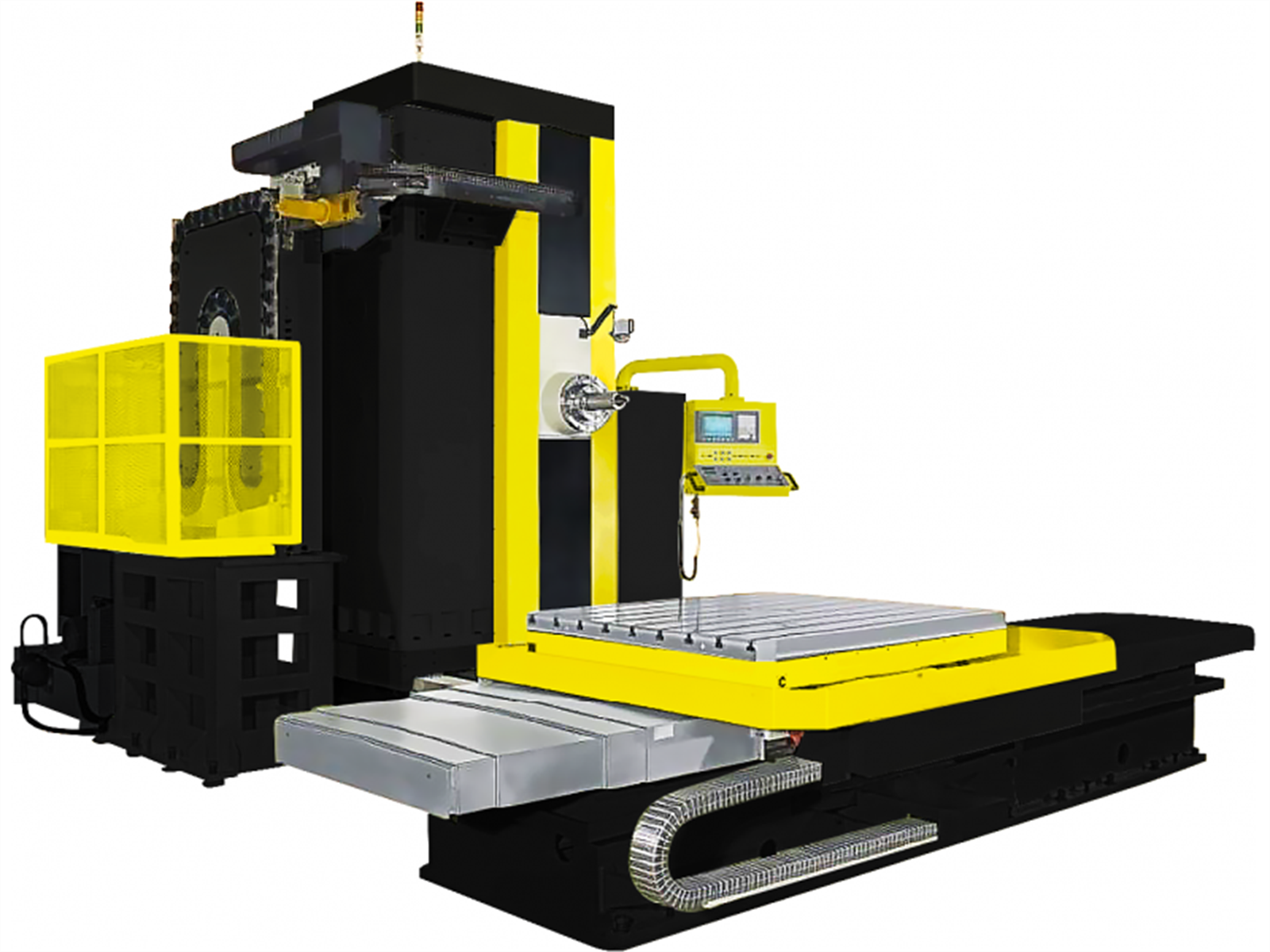

Prompt HBM-110-P3 Horizontal Boring &Milling Machine (HBM-110-P3)

Horizontal Boring & Milling Machine - HMB Series

Features:
Moving column construction
X/Y/Z box ways or X/Z Linear ways+Y box way
X,Y,Z-axis are equipped with linear scales
Gear-drive type spindle head is excellent for heavy cutting
0,001-degree servo-drive rotary table
Table rotation is transmitted through double worm/ double worm gear units to eliminate gear-backlash problem
W axis extension is free of deformation
Go tools chain type magazine
During machine assembly, all foundation bolts have been locked into the foundation to ensure the consistency of leveling accuracy

Fanuc - 0i MF Controller
Tools and Tool Box
Foundation Screws and Bolts
Spindle Oil Cooler
Working Lamp
ATC Chain Type 60 Tools (BHG 110 - T3/T3 only)
Spindle Support 250 mm (BHB 110 - T2/T3 Std only)
Linear Scale
X axis Dust Cover
Y axis Dust Cover
MPG (Manual Pause Generator)
Auto Lubrication System
Steel Belt Chip Conveyor with Cart
Transformer (Export only)


Heidenhain/ Siemens Controller
ATC (90/120 Tools)
CTS 20/30/50/70 Bar Coolant Trough Spindle
Spindle Support (BHB 125 - T3/T4)
Coolant Trough Ball Screw System
Turning Use Face Palate
Air Conditioner for Electric Cabinet
Angular Milling Head
Universal Milling Head
Fully Splash Guard
Splash Guard for Operator
Work Piece and Tool Length Measuring Device
CE Norm


Model		HBM-110-P3
Spindle
Min Motor (30min/cont.)		22/26 kw
Speed (Max.)		2500 rpm
Tapper		BT-50 / ISO 50
Diameter		Ø110 mm
Max. Torque		1500 Nm
Travel
Work Table Travel X axis (Horizontal)		3000 mm
Spindle Travel Y axis (Vertical)		2100 mm
Column Moving Travel Z axis		1800
Spindle Travel W1 axis		500 mm
Rotary Table
Table Dimension		1440 x 1600 (op: 1600*1800) mm
T-Slot		24 x 9 mm
Max. table loading  weight		8500 (max: 12000) kg
Lindes		0.001°
Max. Rotation Diameter		2480 mm
ATC
Tool Shank		BT50
Max. Tool Diameter x Length		120/250 mm
Max. Tool Weight		25 kgs
Tool Change Time		16 sec.
Tool Clamping Farce		60±5 Nm
Capacity		60T pcs
Feed
Rapid Feed Rate		XYZ axis: 10 mm/min W axis: 6 mm/min
Specifications
Water Tank Capacity		500 L
Power Capacity		55 KVA
Air Pressure Require		6 kg/cm²
Machine Dimension		7500 x 7800 x 4100 mm
Machine N.W/ G.W		27500/30500 kg
Shipment Advice		40" x 2 container HQ

*Rotary table adopt Heidenhain encoder (Accuracy ±10")
* The above specifications subject to change without prior notice.
