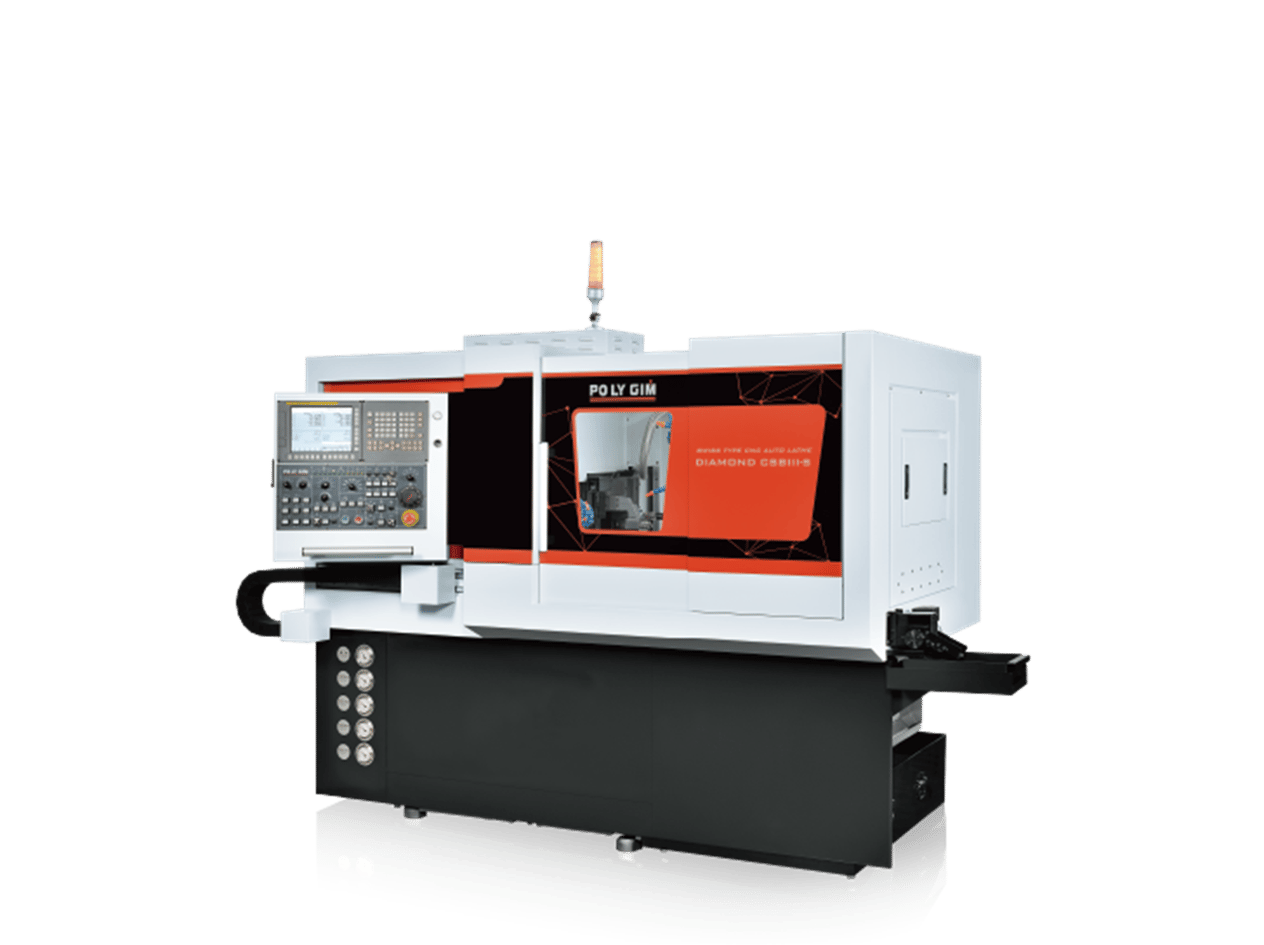

Polygim DIAMOND 12 CSB III-S Swiss Type CNC Lathe

Polygim DIAMOND 12 CSB III-S Swiss Type CNC Lathe

Brand : Polygim

Stock Code (DIAMOND 12 CSB III-S)

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InChina

Min. Order Qty.1 Pcs.

Warranty1 Year

Stock Amount : 0

Note: The prices shown here are retail sales prices. SPECIAL DISCOUNT MAY APPLY FOR BULK PURCHASES . Additionally, discounted prices offered to dealers may differ.

Import duties, customs charges, and value-added taxes for products originating outside of Turkey are not included in the listed prices. This is applicable to customers purchasing from within Turkey.

The prices mentioned here do not include door-to-door delivery. Buyers purchasing from other countries are responsible for customs duties and any other taxes applicable under their local commercial laws.

For orders under 13,000 Euros, if the product value is below this, the total order value must either reach 13,000 Euros or a 150 Euro customs fee will be added to your final invoice value.

Price : 0,00 EURO(Vat included)

Item is out of stock.

Contact Via WhatsApp

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

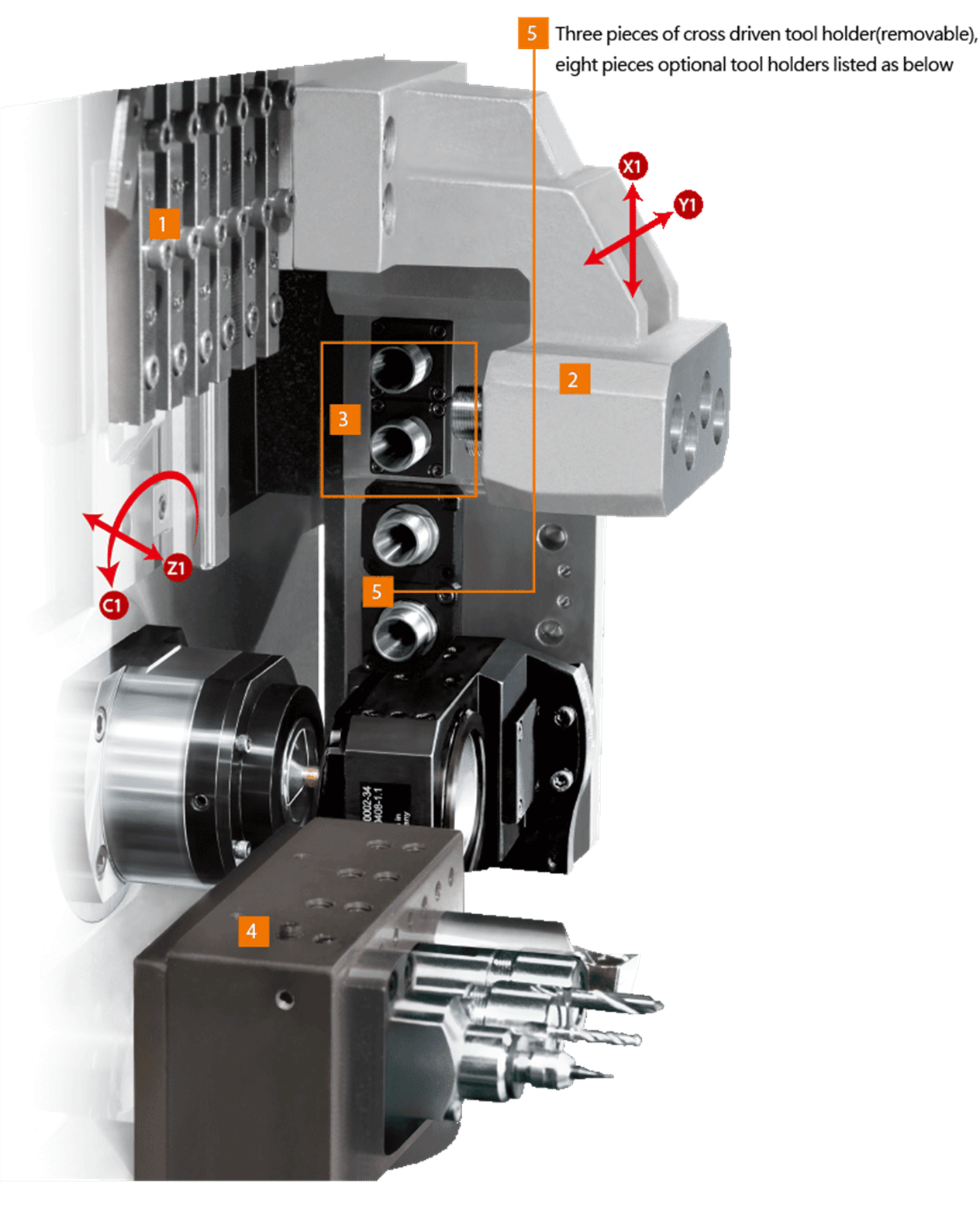

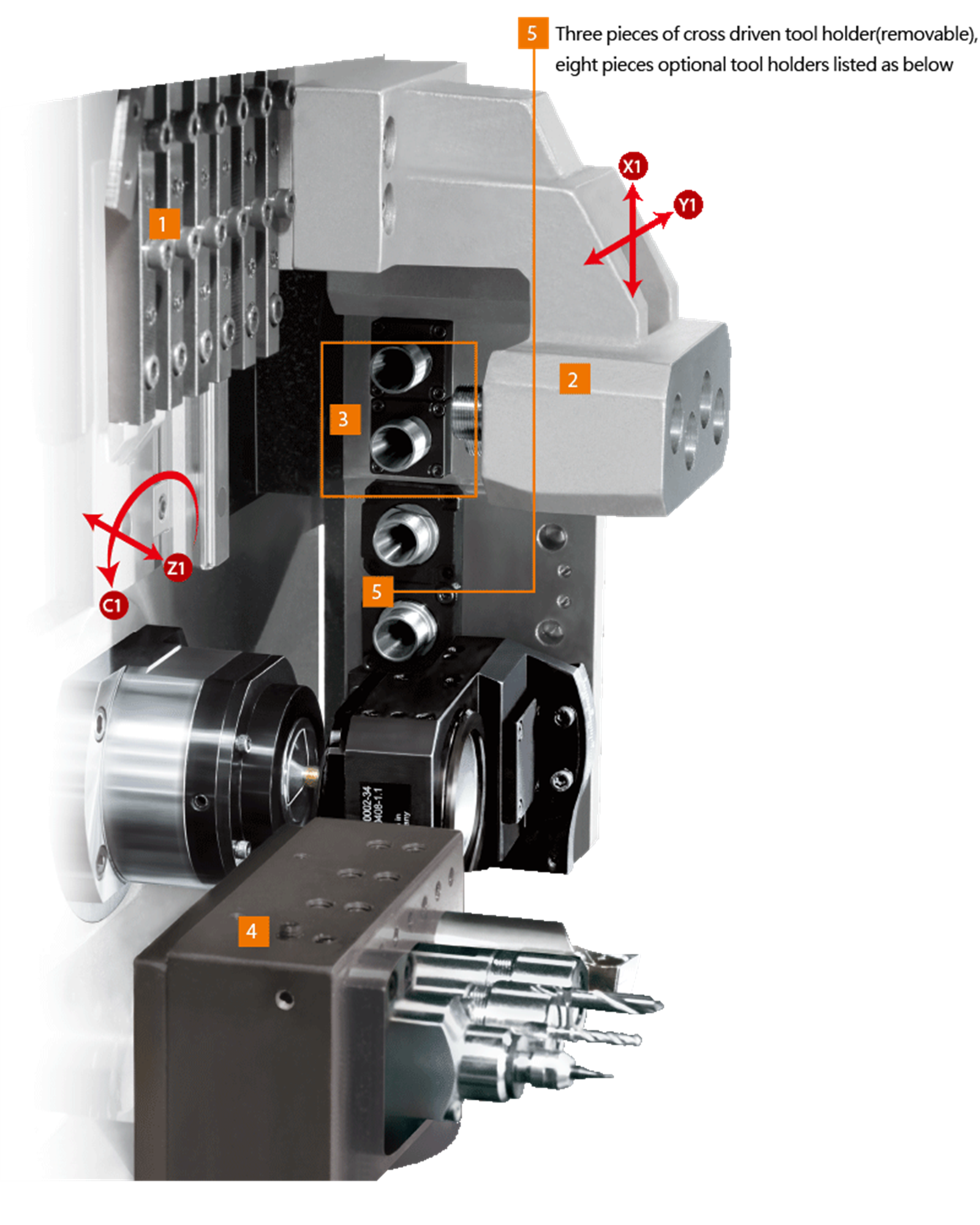

Cross Travel Sub-spindle Cross travel sub spindle design. The main and sub spindles can work either one at a time or simultaneously for reduced machining duration. This design brings multi-function front and rear machining.
Short Remnant Material With the optional Rough Material Bushing, the remnant material can be 50mm (depending on the parts length).
Raw Material Machining 0.1mm material tolerance can be achieved by using the Rough Material Bushing.

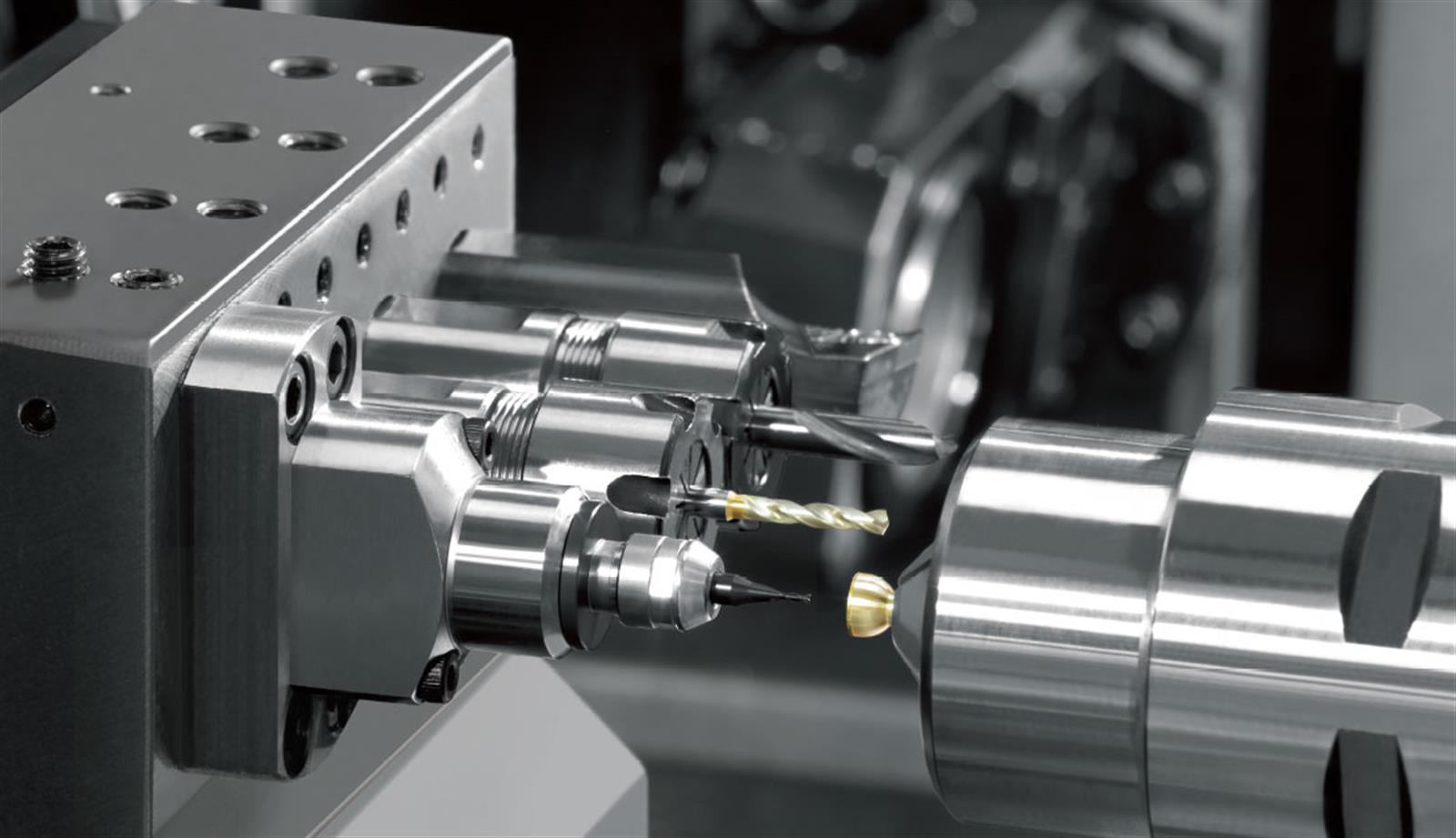

Replaceable Fixed/Driven Toolholder Set The 4 pc back stationary/driven tool holder is replaced by the newly designed replaceable fixed tool holder or driven tool holder. This enables increased tooling flexibility.

Controller: Fanuc 0I-TF PLUS
Main Spindle
Back Spindle
Working Light
Coolant System
Part off Detection Sensor
Part Catcher
Live Bushing
Fixed Bushing (Except 25CSBIII-S)
6 pcs O.D. Turning Tool Holder
4 pcs I.D. Stationary Tool Holder
4 pcs Back I.D. Stationary Tool Holder
4 pcs Back I.D. Stationary Tool Holder
2 pcs+3 pcs Cross Working Driven Tool Holder

Controller: Fanuc 31i-B or Mitsubishi M70
CS Axis (0.001° Orientation)
Chip Conveyor + Bucket
4 pcs Back Working Driven Tool Holder
(If choose Y2 axis need to option)
Y2 axis with 4 pcs Back Working Driven Tool Holder

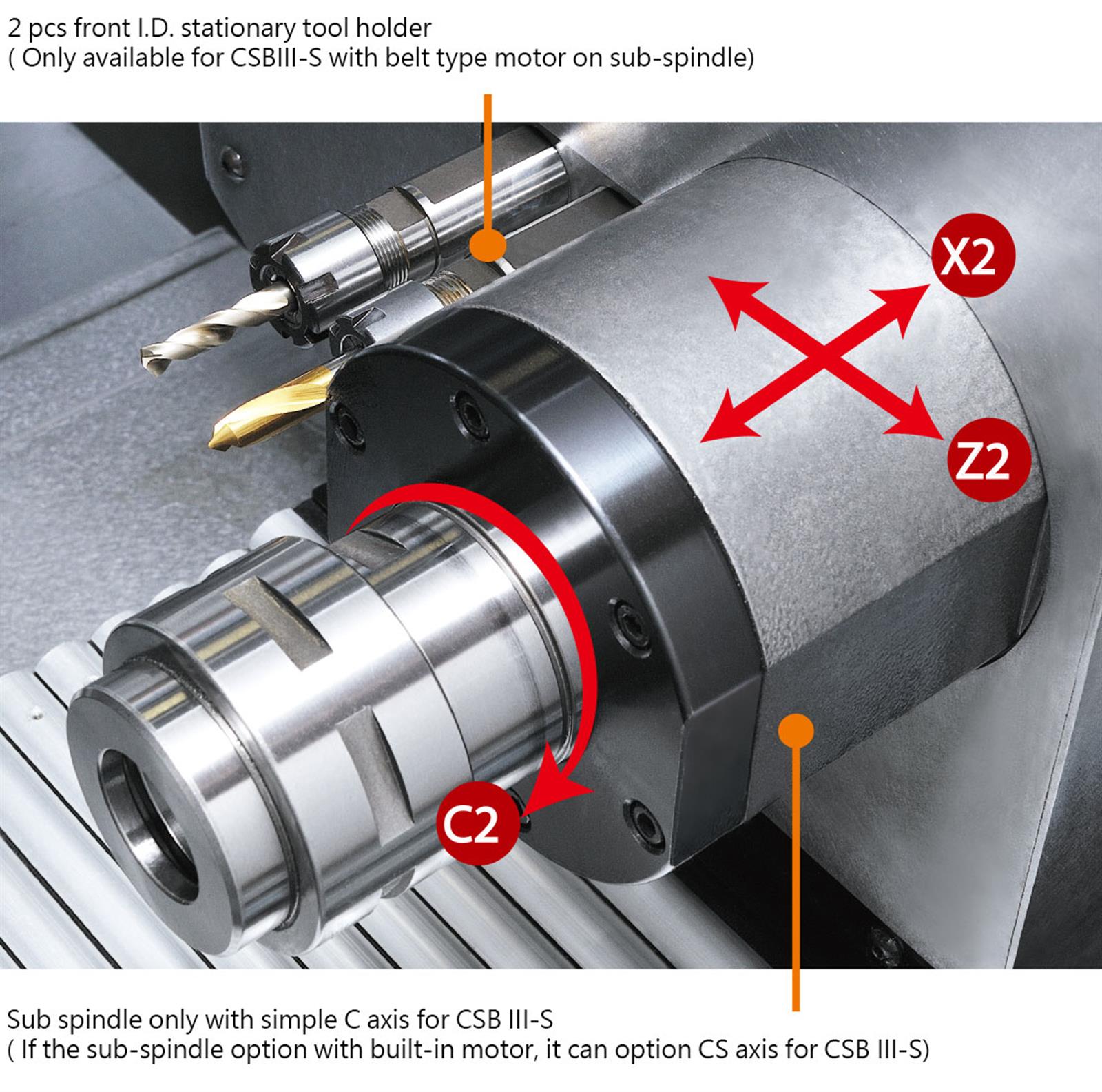

2 pcs Front I.D. Stationary Tool Holder
(sub-spindle with belt type motor)

Model		DIAMOND 12 CSB III-S
Working Range	Max. Machining Dia	Ø12.7 mm
	Max. Machining Length Per Chucking	200 mm
	Max. Drilling Dia. (Main Spindle)	Ø7 mm
	Max. Drilling Dia. (Sub Spindle)	Ø7 mm
	Max. Tapping Dia. (Main Spindle)	M6
	Max. Tapping Dia. (Sub Spindle)	M6
O.D. Tooling	Number of Tools	6
O.D. Tooling	Dimension	□12 ×12 × 120
I.D. Tooling	Number of Tools	4
I.D. Tooling	Dimension	10 mm (ER16)
Cross Working Driven Tooling	Number of Tools	2+3
	Dimension	10 mm (ER16)
	Speed	200~6,000rpm
Back I.D. Tooling	Number of Tools	4 + 4
Back I.D. Tooling	Dimension	10 mm (ER16)
Back Working Driven Tooling (Option)	Number of Tools	4
	Dimension	10mm (ER16)
	Speed	5,000rpm
Spindle	Spindle Hole Dia.	ø13 mm
	Spindle Speed	200~12,000rpm
	Main Spindle Indexing Angle	C-axis
Back Spindle	Spindle Hole Dia.	ø13 mm
	Spindle Speed	200~6,000 rpm
	(Option built-in motor)	200~12,000rpm
	Max. Length for Front Ejection	50 mm
	Sub Spindle Indexing Angle	C-axis
Rapid Traverse	X1, Y1, Z1, X2, Z2	30 m / min
Motor	Built-in Spindle Motor	1.5 / 2.2 kW
	Back Spindle Motor	1.1 / 3.7 kW
	(Option built-in motor)	1.5 / 2.2 kW
	Y1, Z1, X2, Z2 Axes Motor	1 kW
	X1 Axis Motor	1.6 kW
	Y2 Axis Motor (Option)	1.6 kW
	Coolant Pump Motor	1 HP
	Lubrication Motor	4 w
	Cross Driven Tool Motor	2.2 kW
	Back Driven Tool Motor (Option)	1 kW
	Y2 Axis with Back Driven Tool Motor (Option)	2.2 kW
	Center Height	890 mm
Machine Dimensions	Weight	2,020 kg
	(Option Y2 Axis)	2,400 kg
	Machine Dimensions	2,440 x 1,430 x 1,650 mm
	(Option Y2 Axis)	2,690 x 1,495 x 1,890 mm
Air	Air Pressure	5 kg / cm
Air	Air Supply	10 L / min
