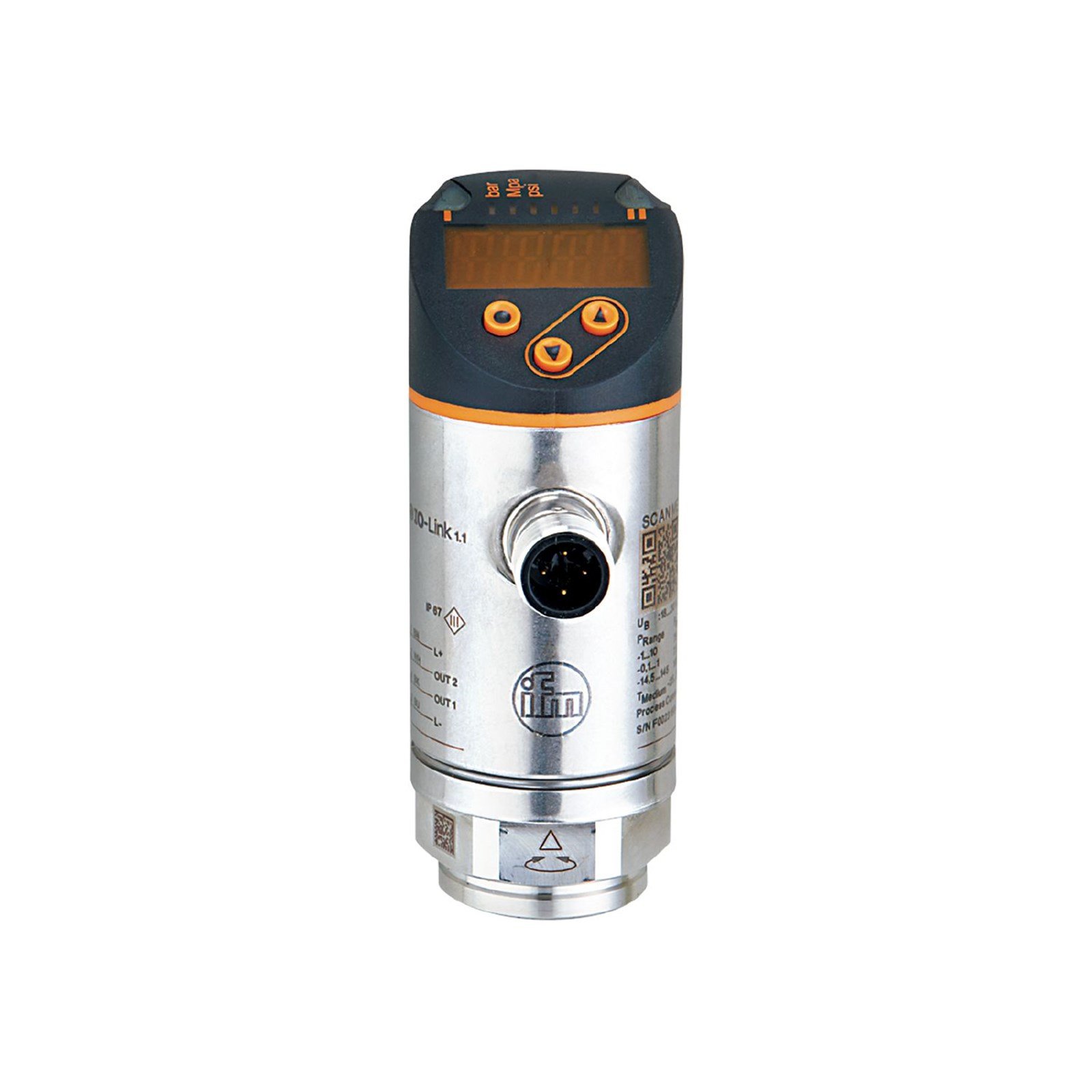

PN7071 PN-250-SER14-QFRKG/US/ /V Pressure sensor with display (PN7071 PN-250-SER14-QFRKG/US/ /V)

Brand : Ifm

Stock Amount : 0

Estimated Delivery Time75 Days After Order

Shipment Place Turkiye

Payment Terms%30 On Order, %70 Before Shipment

Made InTürkiye

Minimum Order Quantity1000 Pcs.

Warranty1 Year

Notify me when the price goes down

Notify me when it is in stock

Two switching outputs, one of them with IO-Link communication interface
Red/green display for clear identification of the acceptable range
The process connection can be rotated for optimum alignment
With long-term stability thanks to high overload protection
Robust design for use in harsh industrial environments

Product characteristics

Number of inputs and outputs

Number of digital outputs: 2

Measuring range

0...250 bar

0...3620 psi

0...25 MPa

Process connection

threaded connection G 1/4 internal thread

Application

Special feature

Gold-plated contacts

Measuring element

metallic thin film cell

Application

for industrial applications

Media

liquids and gases

Medium temperature [°C]

-25...80

Min. bursting pressure

1100 bar

15950 psi

110 MPa

Pressure rating

500 bar

7250 psi

50 Mpa

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure

Electrical data
Operating voltage [V]	18...30 DC; (to SELV/PELV)
Current consumption [mA]	< 35
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	< 0.3
Integrated watchdog	yes

Inputs / outputs
Number of inputs and outputs	Number of digital outputs: 2

Outputs
Total number of outputs	2
Output signal	switching signal; IO-Link; (configurable)
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	150; (200 (...60 °C) 250 (...40 °C))
Switching frequency DC [Hz]	< 170
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring range

0...250 bar

0...3620 psi

0...25 MPa

Factory setting / CMPT = 2

Set point SP

2...250 bar

40...3620 psi

0.2...25 MPa

Reset point rP

1...249 bar

20...3600 psi

0.1...24.9 MPa

Min. difference between SP and rP

2 bar

20 psi

0.2 MPa

In steps of

1 bar

20 psi

0.1 MPa

Status_B High Resolution / CMPT = 3

Set point SP

2...250 bar

30...3626 psi

0.2...25 MPa

Reset point rP

1...249 bar

12...3608 psi

0.1...24.9 MPa

Min. difference between SP and rP

2 bar

19 psi

0.2 MPa

In steps of

1 bar

1 psi

0.1 MPa

Accuracy / deviations
Switch point accuracy [% of the span]	< ± 0,5
Repeatability [% of the span]	< ± 0,1; (with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]	< ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation [% of the span]	< ± 0,25
Long-term stability [% of the span]	< ± 0,05; (per 6 months)
Temperature coefficient zero point [% of the span / 10 K]	0,2; (-25...80 °C)
Temperature coefficient span [% of the span / 10 K]	0,2; (-25...80 °C)

Response times
Response time [ms]	< 3
Delay time programmable dS, dr [s]	0...50

Software / programming
Parameter setting options	hysteresis / window; normally open / normally closed; switching logic; switch-on/switch-off delay; Damping; Display unit

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

SIO mode

yes

Required master port type

A; (when pin 2 not connected: B)

Process data analogue

Process data binary

Supported DeviceIDs

Type of operation	DeviceID
Factory setting / CMPT = 2	400
Status_B High Resolution / CMPT = 3	598
PN7001	308

Note

For further information please see the IODD PDF file under "Downloads"

Factory setting / CMPT = 2

Profiles

Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis

Min. process cycle time [ms]

2.3

IO-Link resolution pressure [bar]

IO-Link resolution pressure [MPa]

0.1

IO-Link process data (cyclical)

function	bit length
pressure	14
binary switching information	2

IO-Link functions (acyclical)

application specific tag

Status_B High Resolution / CMPT = 3

Profiles

Smart Sensor ED2: Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000)

Min. process cycle time [ms]

IO-Link resolution pressure [bar]

0.1

IO-Link resolution pressure [MPa]

0.01

IO-Link process data (cyclical)

function	bit length
pressure	16
device status	4
binary switching information	2

IO-Link functions (acyclical)

application specific tag

Operating conditions
Ambient temperature [°C]	-25...80
Storage temperature [°C]	-40...100
Protection	IP 65; IP 67

Tests / approvals

EMC

DIN EN 61000-6-2
DIN EN 61000-6-3

Shock resistance

DIN EN 60068-2-27

50 g (11 ms)

Vibration resistance

DIN EN 60068-2-6

20 g (10...2000 Hz)

MTTF [years]

214

UL approval

UL Approval no.

J003

Pressure Equipment Directive

Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data
Weight [g]	239.2
Materials	1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC
Materials (wetted parts)	1.4542 (17-4 PH / 630)
Min. pressure cycles	100 million
Tightening torque [Nm]	25...35; (recommended tightening torque; depends on lubrication, seal and pressure rating)
Process connection	threaded connection G 1/4 internal thread
Restrictor element integrated	no (can be retrofitted)

Displays / operating elements

Display

Display unit	3 x LED, green (bar, psi, MPa)
switching status	2 x LED, yellow
measured values	alphanumeric display, red/green 4-digit

Remarks
Pack quantity	1 pcs.

Electrical connection
Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PN7071-02 — 27.11.2019 —
