Pilous K System Bandsaws (Pilous K System Bandsaws)

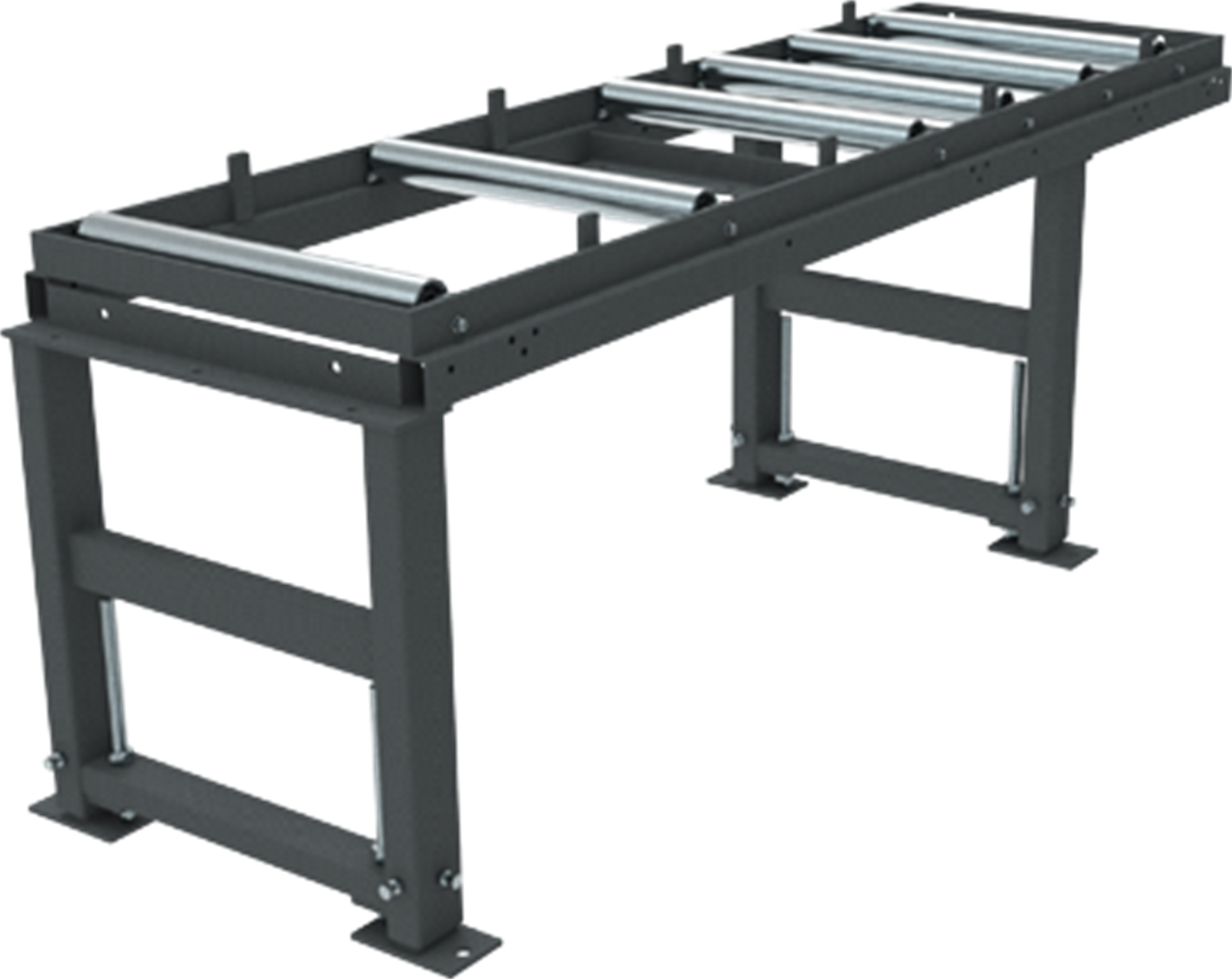

• Exceptionally solid and stable welded construction consisting of full sections and fitted with thick-walled lathe-manufactured steel rollers.
• The greater the width of the conveyor, the bigger and tougher the overall construction, and the larger the diameter of the rollers as well as the shafts. Roller shafts are stored in adjustable steel sleeves with bearings.
• The individual modules, 1 or 2 m long, are mutually connectable and enable for adjustment of the optimal conveyor length.
• The massive pull-out system allows for adjustable leg height in the range of 760 mm to 960 mm.
• Wide range of accessories and connection components.

KS – Extension to K conveyor

• Module length 2 m.
• The same frame is fitted with fewer rollers.
• The conveyor KS 400 and 520 are equipped with one leg, the conveyor KS 650 and 750 are for the maximum load-carrying capacity equipped with two legs.

KO – Manual measuring device​

• A simple and effective measuring of the required material length.
• This massive system with a robust cast iron housing of the slide stop moves on precise steel guiding and ensures great accuracy of the setting and a long service life.
• You can set the required length manually on an analogue (millimeter) scale.
• The system of movable side stop is retractable in order to prevent gripping of the material and consequent damage to the saw band.
• Can be installed on all types of K conveyors. It is manufactured in two sizes for the roller width 400, 520 mm and for the width 650 and 750 mm.


(includes the slide stop system, feed system and an analogue scale of the appropriate length, not the conveyor itself)

KOD – Digital measuring device

• Ensures precise and simple setting of the required length as well as display of the position on the digital display with the accuracy of 0.1 mm.
• This massive system with a robust cast iron housing of the slide stop moves on precise steel guiding and ensures great accuracy of the setting and a long service life.
• The required length is set manually and arrested. The system is fed by batteries with a long service life.
• Exceptionally stable system of movable slide stop is retractable in order to prevent gripping of the material and consequent damage to the saw band.
• Can be installed on all types of K conveyors. It is manufactured in two sizes for the roller width 400, 520 mm and for the width of 650 and 750 mm.


(includes the slide stop system with a digital measuring device, the feed system and a magnetic tape of the appropriate length, not the conveyor itself)

KO-NC Automated NC Gauging device

• Automated NC Gauging device is designed for measuring profile materials and light solid materials of small diameters.
• The base comprises of massive roller conveyor K 400 or K 520, with attached quality industrial linear axle.
• Servo motor ensures high speed and measuring accuracy of 0,1 mm.
• Backstop trolley moves along linear guiding system.
• User´s friendly device control is done via large HI-RES colour touch screen, located on self-standing control panel.
• Capability of storing frequently used length in memory, ability of backstop to jump aside off the material before cutting.
• Intelligent gauging device with NC control enables the backstop to jump aside and back to set position when the material hits the backstop extensively (when overloaded).
• Gauging device KO-NC could be mounted on the roller conveyors types K 400 and K 520.
• It serves as an ideal device to accompany our semiautomatic bandsaw machines Pilous ARG 300 - ARG 500.


(The package includes backstop system with Automated NC Gauging, feeding system of appropriate length, control panel. The price of the Conveyor itself is not included in the price.)

KX-NC Automated NC Material Pusher

• Automated NC Material Pusher device is designed for precise feeding of profile materials and light solid materials of small diameters into the saw.
• The base comprises of massive roller conveyor K 400 or K 520, with attached quality industrial linear axle.
• Servo motor ensures high speed and measuring accuracy of 0,1 mm.
• Feeding trolley moves along linear guiding system.
• The system allows precise feeding of the materials up to 500 kg of weight. For example: solid material dia 110 mm, length 6m, or HEB profile 400, length 6m.
• User´s friendly device control is done via large HI-RES colour touch screen, located on self-standing control panel.
• Capability of storing frequently used length in memory.
• It´s an intelligent device which regulates feeding speed in harmony with material weight and prevents destruction of feeding device by overloading.
• Feeding jaw can be attached by Magnetic fixture KXM (accessory), to prevent material movement during feeding process.
• Material Pusher KX – NC could be mounted on the roller conveyors types K 400 and K 520.
• It serves as an ideal device to accompany our semiautomatic bandsaw machines Pilous ARG 300 - ARG 500.

(The package includes the feeding system with Automated NC Gauging, feeding system of appropriate length, control panel. The price of the Conveyor itself is not included in the price).

KP - Conveyor with drive powered rollers

• Motor-driven rollers enable for an easy and precise feed of heavy material.
• Smooth speed adjustment by a frequency converter allows for a smooth start and accurate landing of the material fed.
• Portable control unit allows for optimum position of the operator during precise feeding into the desired length.
• Extremely stable construction as in all K system conveyors.
• The conveyors are fitted with thick-walled lathe-manufactured steel rollers 520 or 750 mm wide with corresponding diameters.
• Roller shafts are stored in adjustable steel sleeves with bearings. The massive pull-out system allows for adjustable leg height in the range of 760 mm to 960 mm.
• Individual modules in the length of 2 m are mutually connectable. To achieve maximum stability, the 2 m conveyor is equipped with two legs.


KPS – Extension to KP conveyor

• ​Module length 2 m.
• The same frame is fitted with fewer rollers.
• The conveyor KPS 520 is equipped with one leg, the conveyor KPS 750 is for the maximum load-carrying capacity equipped with two legs.
• The conveyors are fitted with a chain feed system that is connected to the basic KP conveyor.


KPO 520 NC – Automated Gauging System

• Ideal for the loading and measuring of longer beams and profiles.
• The machine should be complemented with driven conveyors before cutting, in order to guarantee an ideal conveyance path of the material to the required length.
• After pressing a single button, the material is automatically conveyed to the required length, the stop moves away of the material and is set to its starting position.
• The movable stop system is automatically tiltable to prevent material jamming and possible saw band damage.
• The desired length is set via the touch screen on an independent control panel.
• From the control panel, material movement can be controlled independently on both the loading and unloading roller tracks by switching over the respective control. Alternatively, material movement can be controlled on both the loading and unloading sides simultaneously.
• Massive system with a robust stop body, guided by precise rack and pinion guide system, ensures stop travel accuracy and long service life.

KB –vertical idle rollers Enable precise guiding of the material into the vice and prevent the material from falling off of the conveyor.

KV – Console with a sliding vertical idle roller An indispensable help when cutting material in bundles. Only for conveyors in KB version with vertical idle rollers.

KN – Additional conveyor leg

KZ – hoist roller A manual, eccentric system installed on the roller allows for hoisting of the material above the loading surface of the machine and thus its easier feed.

KT – intermediate piece for connecting of the conveyors to the individual machines Only for ARG 380, 400, 500 plus S.A.F.

KR – Height-adjustable leg with roller

• The massive and stable welded construction is fitted with thick-walled lathe-manufactured steel roller.
• Adjus adjustable leg height ranging from 760 mm to 960 mm.


KRT – Height adjustable leg with an eccentric roller

• Eccentrically stored roller allows for simple manual lift of the material onto the loading area of the vice and for its smooth movement as well.
• The roller height is adjustable in the range from 760 mm to 960 mm.
