Frequency converter - Standard equipment
Enables continuous blade speed regulation between 15–90 m/min. and thus setting the optimum cutting conditions for the given material.
Electrical cleaning brush - Standard equipment
Steel circular brush powered by and industrial motor with worm gearbox. Used to remove chips from the saw band behind the cut.
Pressure regulation - Standard equipment
Hydraulically controlled double-side automatic regulation of saw band feed into cut according to the resistance of the material to be cut. Significantly reduces the cutting time and service life of the saw band.
Rinse spray gun - Standard equipment
For cleaning working space of the machine.
LED Light - Standard equipment
High-quality lighting of the work area by a line of powerful LESs with a cover. An invaluable tool especially when the lighting at the workplace is insufficient.

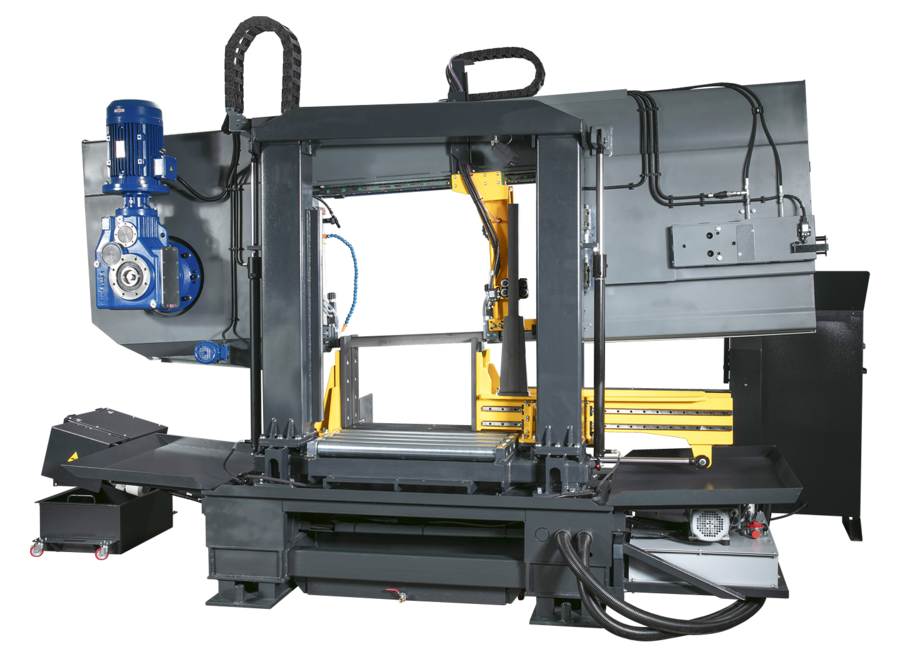

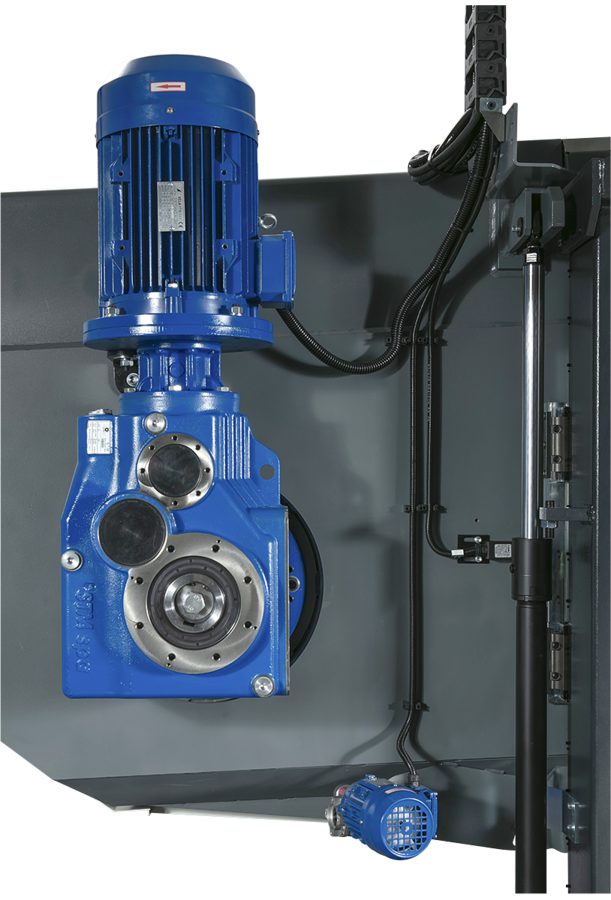

Bevel gearbox with 7,5 kW motor - Standard equipment
Bevel gearbox with motor 7,5 kW increases cutting power. Efficient for highly productive cutting of tough metal, e.g. stainless steel.

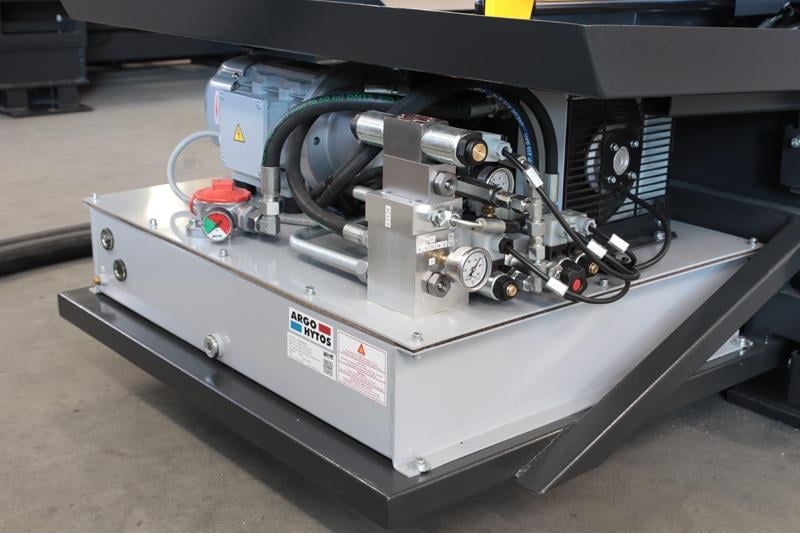

Hydraulic tensioning - Standard equipment

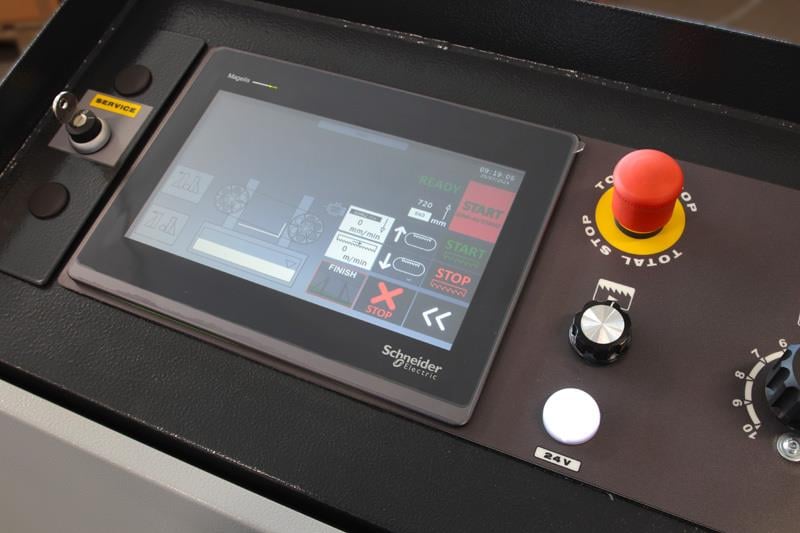

Ensures convenient tensioning of the saw band via the central control panel. Optimum tensioning of the saw band is essential for its service life and cutting accuracy.
Hydraulic pressure device HVP
The massive full-stroke pressure device ensures optimum vertical clamping when cutting workpieces in bundles. Hydraulics-controlled pressure plate with adjustable lifting height is guided through linear guidance and it clamps the workpiece along the full length of the vice. The lifting height according to the size of the workpiece is simply adjustable through a touchscreen and the clamping is synchronized with vertical vice.
Material chute KL 640
Continuously joins the vice behind the cut and allows for easy slide of cut pieces into a container when cutting larger series.
Oil mist lubrication MM
Creates an oil mist that is sprayed onto the cutting edge. It replaces the use of a classic coolant, especially when cutting sections during which leakages may occur. Possibility of using organic oils.
Laser alignment LS
High-quality industrial laser projects the cutting line on the material to be cut. Makes the setting of the required material length simpler, faster and more accurate.
Signalling beacon M2
Signalling beacon is designed for a remote check of the working status of the machine. Dichromatic beacon is fitted with LED lights of a high luminosity and visibility from all directions, thanks to a unique shape of lenses.
Green light – indication of a working mode of the machine, sawblade is in the cut. After cutting operation and sawblade stopping the light switches off signalling that a next cut can be started.
Red light – indication of malfunction, e.g. broken sawblade, main motor overload, opened safety cover and other failures leading to the stop of the machine.

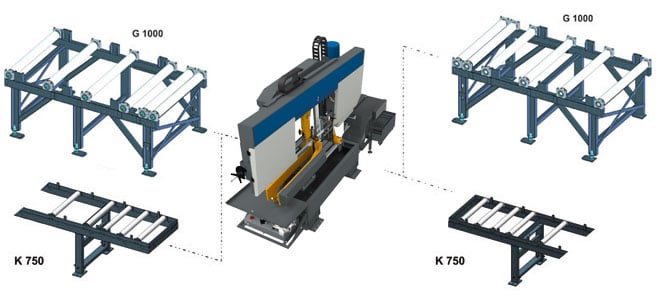

Additional roller PV
To be installed instead of the slide behind the cut. Facilitates the feed of the material when cutting long workpieces.
Additional vice behind the cut ADV
The double-sided workpiece clamping prevents unwanted movement of the workpiece during cutting, reduces vibrations and spares the saw blade.
Scraper chip conveyor SDA
Ensures smooth removal of chips from the machine. Reduces the time needed for the cleaning of the machine especially when cutting series of full materials producing large amount of chips. Ideal for small brittle chips and cast iron chips.
Plate Chip Conveyor SDC
The plate chip conveyor is equipped with a steel plate conveyor belt on which the chips fall and are carried by transverse scrapers into a prepared collection container. This full plate belt with protrusions prevents chips from sticking to the belt. The solid plates of the belt, on the other hand, prevent small chips from flowing through the belt. This type is also suitable for aluminum chips.
Chip container SDB
For easy handling is chip container equiped with wheels and swivel chip bin.
