Pilous ARG 130 Bandsaws

A universal “small” bandsaw is appraised for general use in various workshops (work on locks, maintenance), at plants with machinery and in field installations. Robust framework of the machine is made of grey cast iron. The feed into cut is manual, against the pressure of the spring.

Modern concept of the bandsaw arm allows for large cutting ranges in both upright and angular cutting.
Continuous adjustment of the cutting angle within the range 90°–60° when the workpiece is clamped tight.
Simple locking and adjusting of the desired cutting angle on the angle scale.
Maximum cutting accuracy and sawblade service life in this category of bandsaws.
High-precision three-side hardmetal bandsaw guidance.

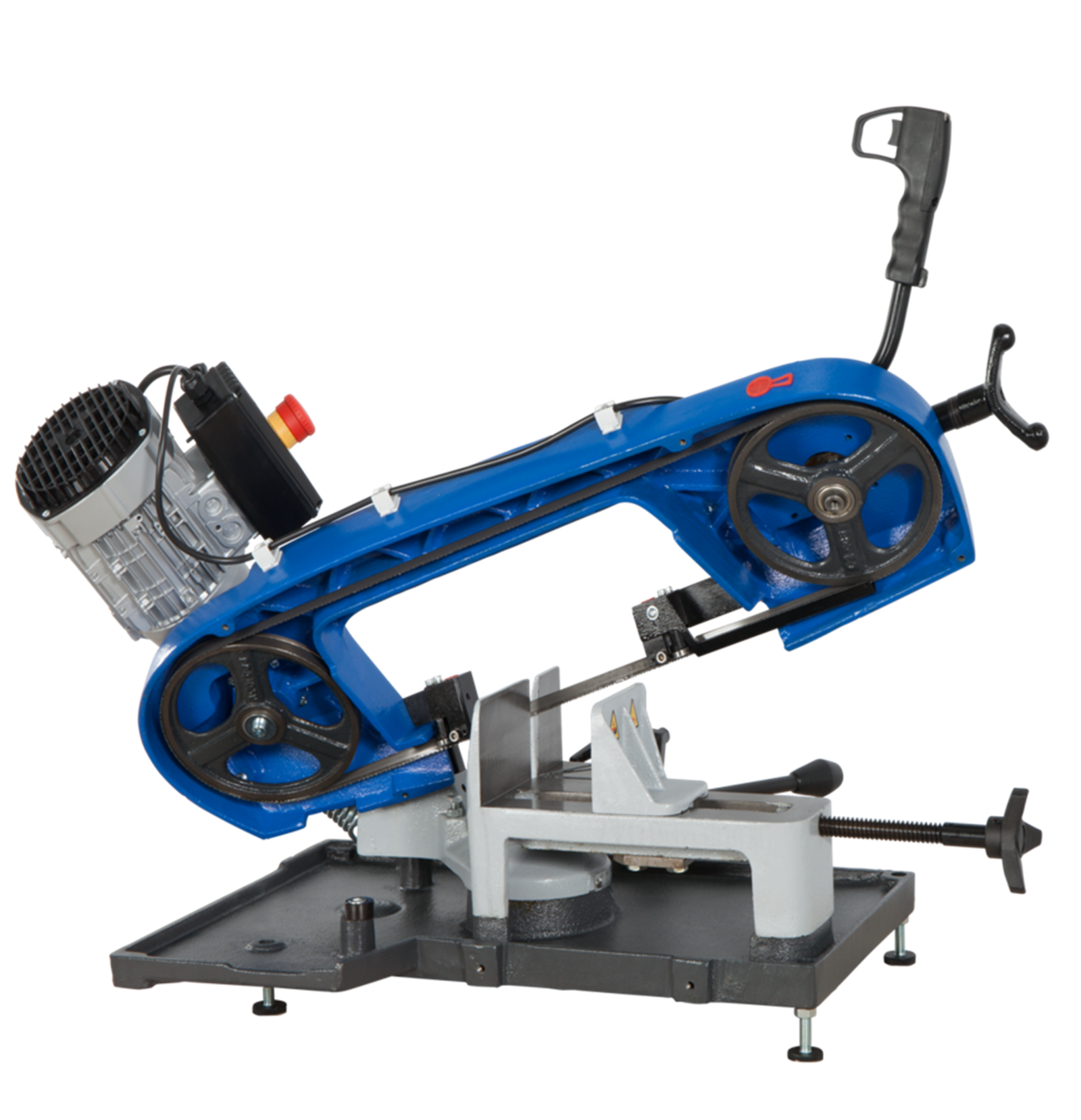

Manufactured bearing of running wheels, tensioning wheel system and all rotary parts are the same as in big professional machines.
Professional, noiseless and maintenance-free blade drive is provided by an industrial electric motor with worm gearbox.
The machine can be equipped with two types of motors.
Single-phase motor (230 V) with universal sawblade speed of 75 m/min. facilitates easy mains connection. Three-phase two-speed motor (400 V) with sawblade speed of 40 and 80 m/min. is suitable for frequent cutting of full sec-tions and thick-walled sections.
The machine is equipped with a 250 mm workpiece stop.

ARG 130 bandsaws are manufactured in the following versions:

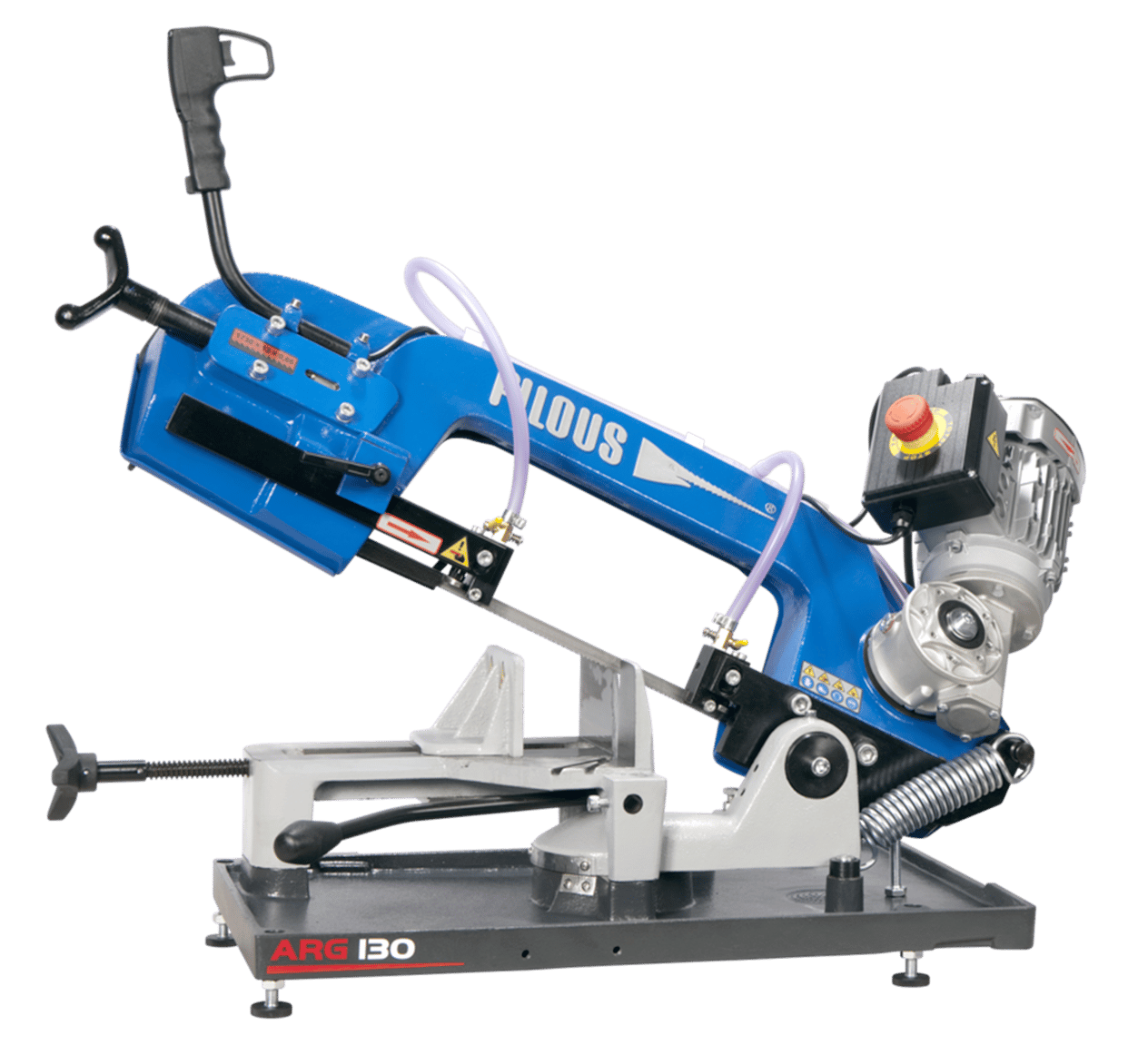

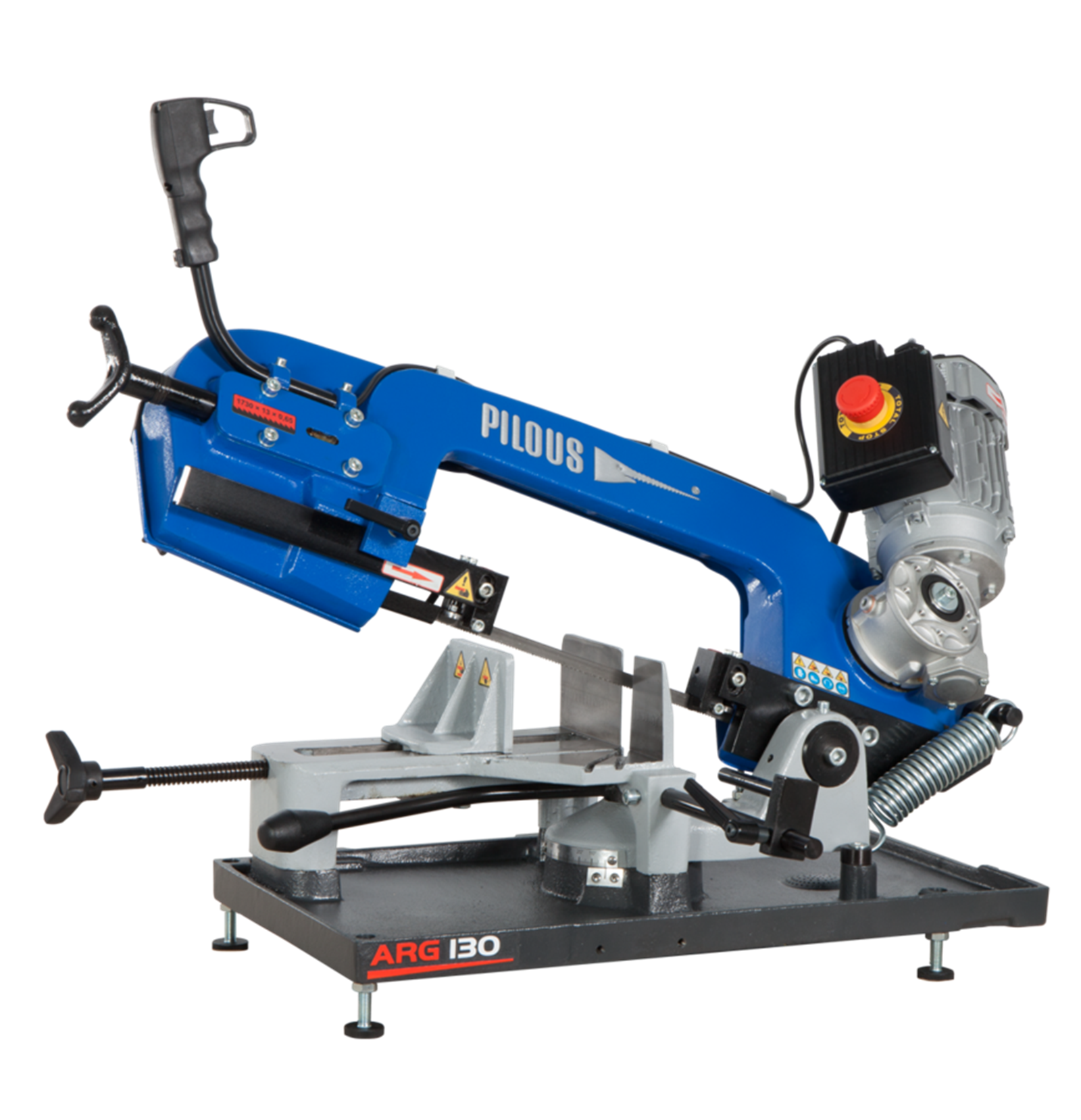

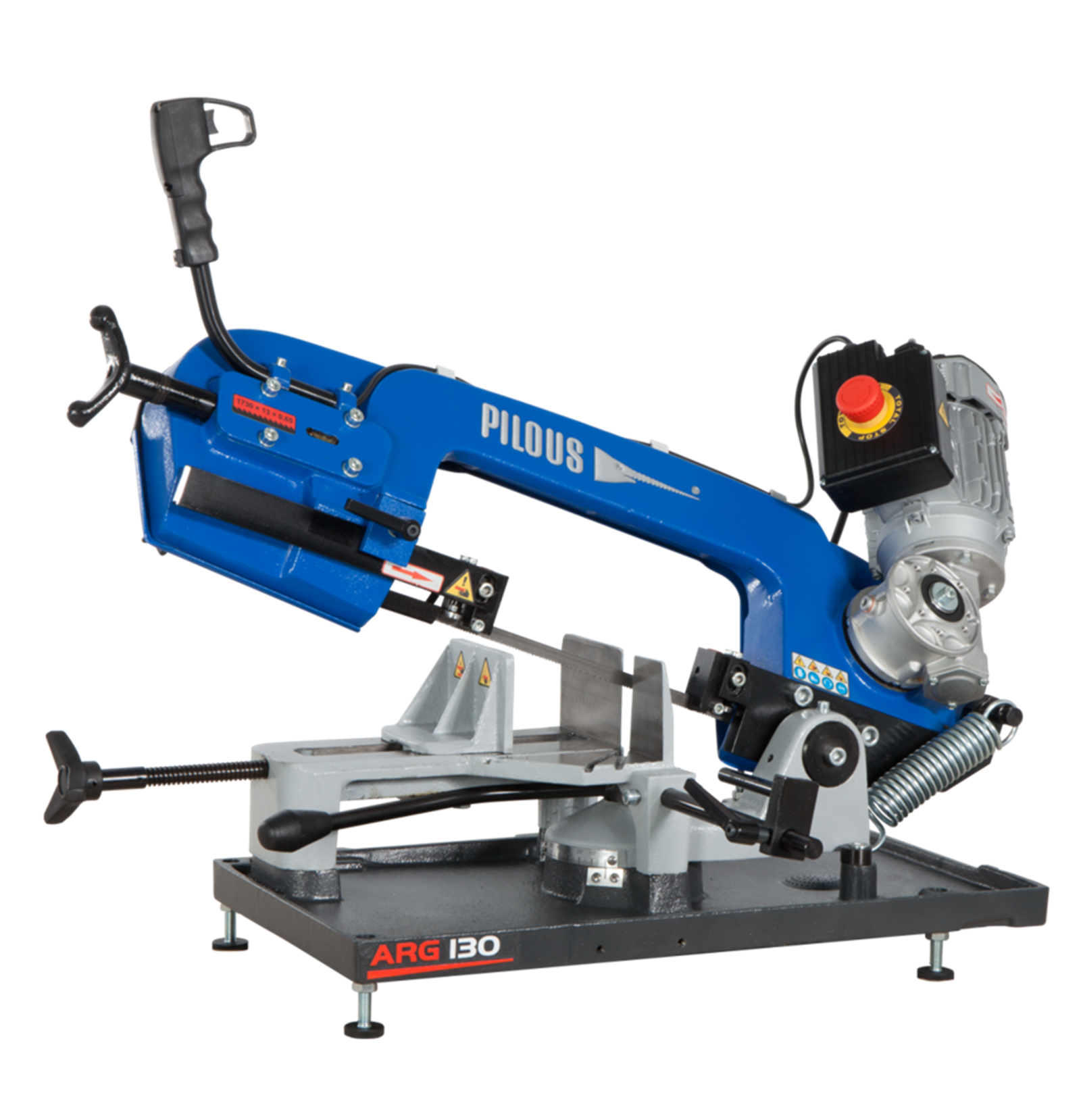

ARG 130

Bench bandsaw without cooling.

ARG 130 TK

Bench bandsaw with cooling. The machine is connected to a complete cooling system with a professional high-performance pump and possibility of regulating the flow on both guiding heads.

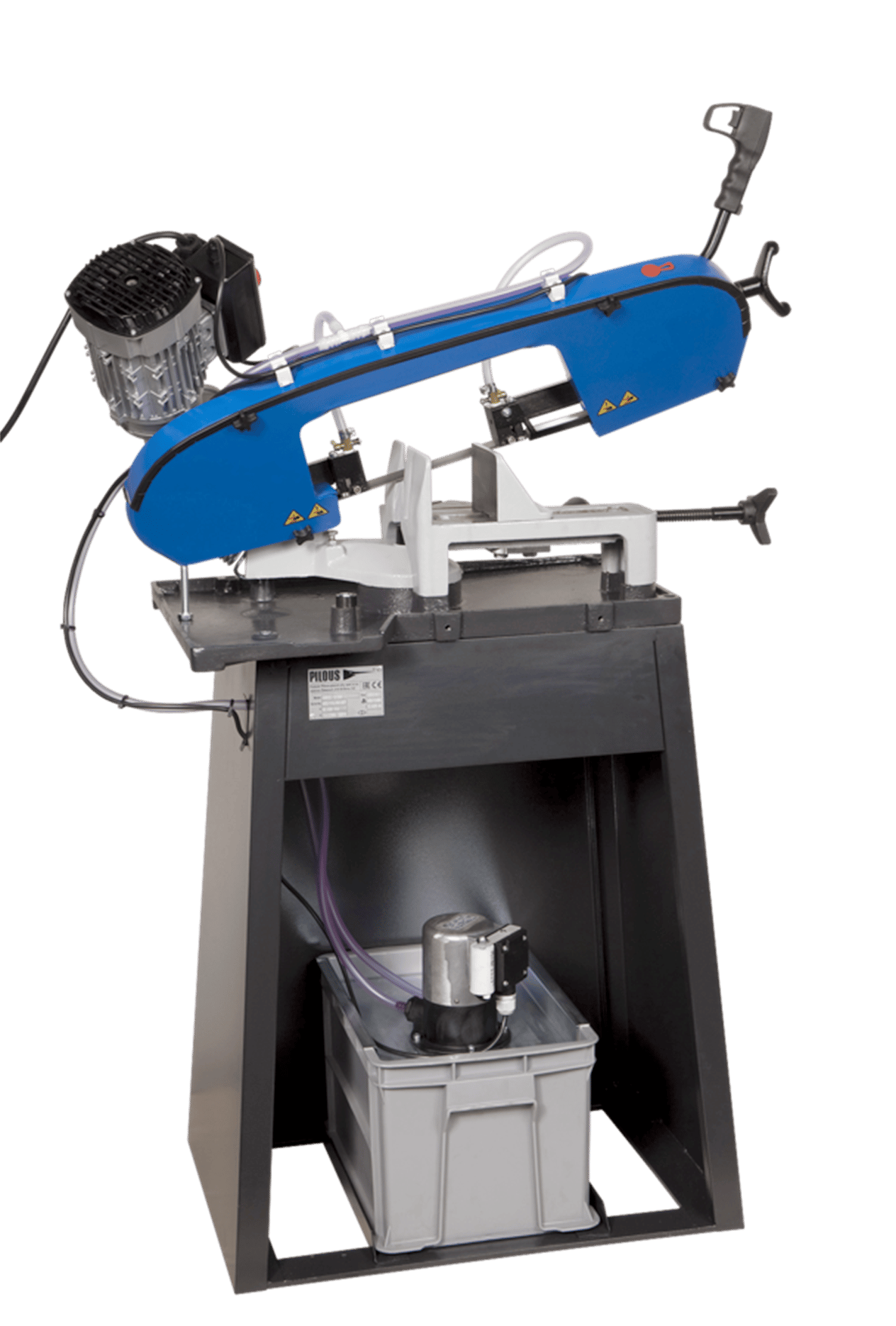

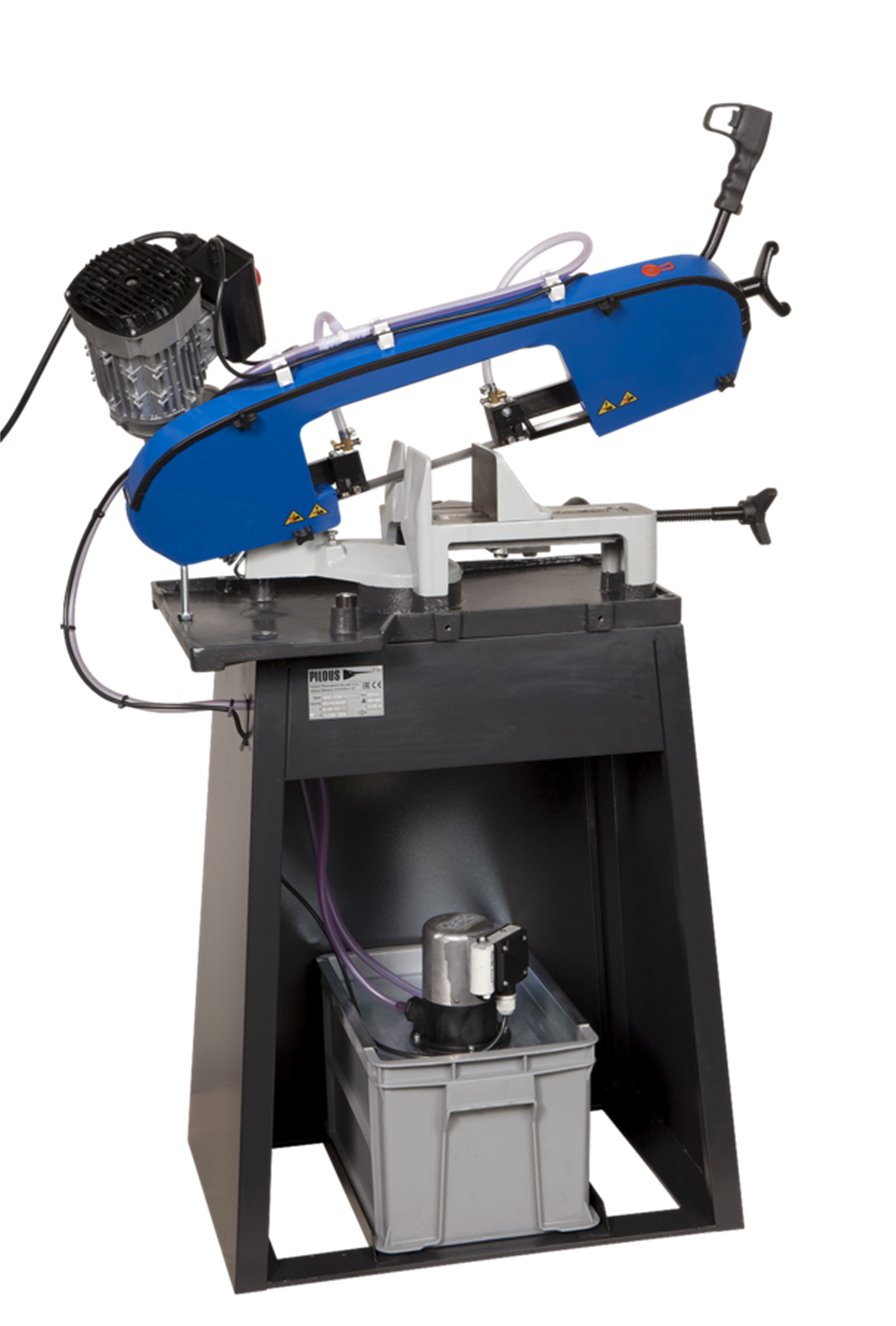

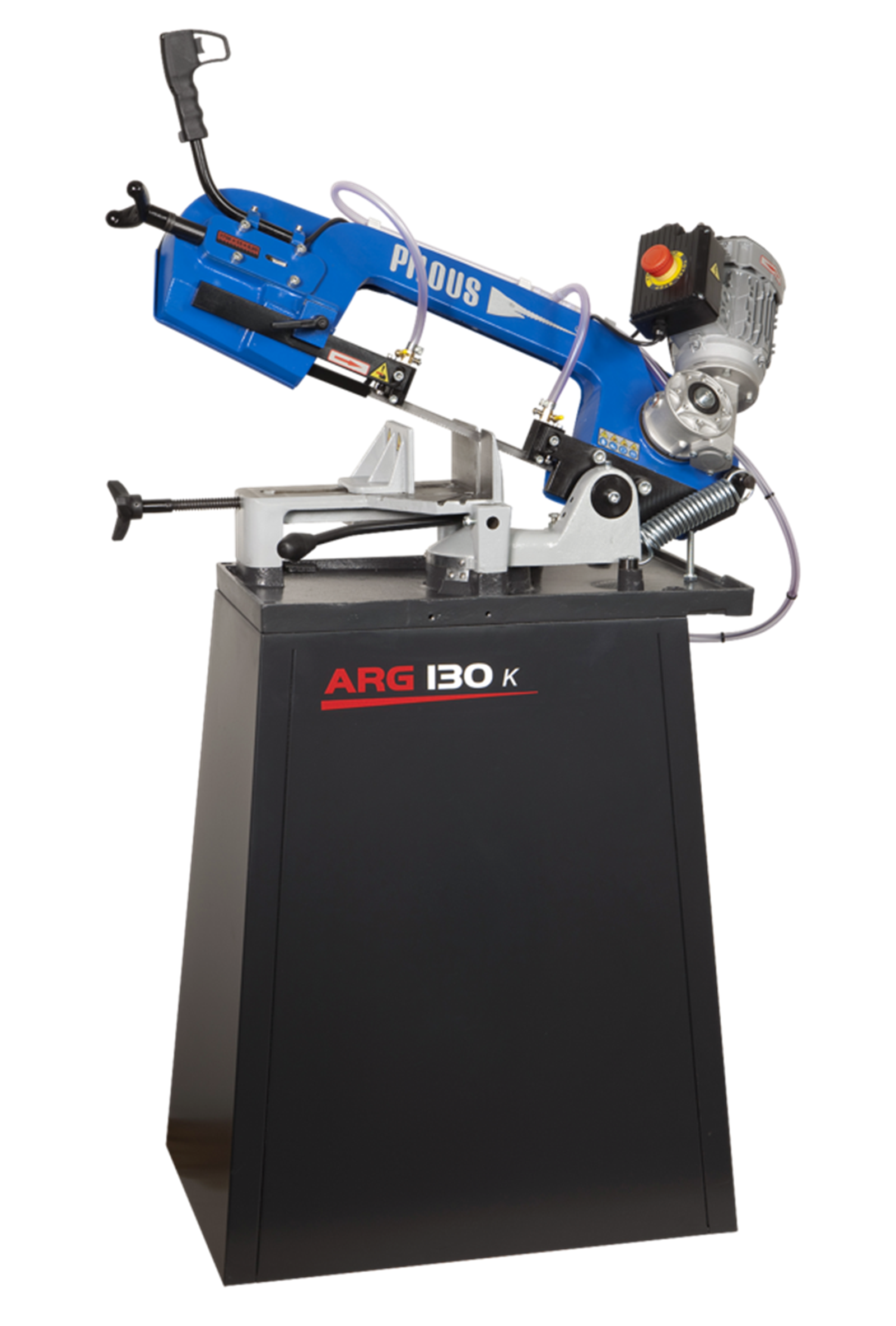

ARG 130 K

Bandsaw with a base and cooling. The machine is connected to a complete cooling system with a professional high-performance pump and possibility of regulating the flow on both guiding heads. Coolant tank is placed in the base of the machine. This version allows you to install conveyors both before and after the cut.

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

90°	+45°	+60°
130	115	70
130	105	60
180 x 100	115 x 75	70 x 60

Main motor	230 V, 50 Hz, 0,55 kW / 400 V, 50 Hz, 0,37/0,55 kW
Pump motor	230 V, 50 Hz, 0,065 kW / 400 V, 50 Hz, 0,05 kW
Saw blade speed	65 m/min. / 35/65 m/min.
Working height of vice (with base)	900 mm
Coolant tank	cca 15 l
Machine dimensions (min.)	450 x 950 x 550 mm
Machine dimensions (max.)	830 x 1100 x 1538 mm
Machine weight	70 / 77 / 100 kg

Workpiece stop - Standard equipment

Simple stop for setting the required length of the material to be cut.
Two-speeds three-phase motor

Three phase motor (400 V) with blade speed of 40 and 80 m/min recommended when full material or thick wall profile material cutting is needed frequently.
