1-Phase Power Meter PCE-PA6000 with RS-232 interface and software to analyse power consumption
The PCE-PA6000 ammeter is a tabletop device for measuring effective power, apparent power, power factor, energy consumption, current, continuous voltage, resistance and frequency. The power meter also offers the possibility to connect industrial current converters with a transmission relation of 100/5A or 1000/5A. Its large 93 x 52mm LCD is easy to read and provides a variety of results, including Watts, cos φ, ACV and ACA. With the optional PCE-PA ADP current adaptor with ground wire (up to 10ACA) it can safely and quickly measure and analyse with the help of the ammeter.
Measurement of current and power can be done directly with test cables that come with the device or indirectly using the clamps. The device has an RS-232 interface, and software* to analyse results and transfer data to a computer. This makes it the ideal device for any workshop or for measuring power to determine faults in devices.
*Soft-lut-usb software is available in the accessories tab
- Multimeter function - Measurement of direct current connecting a sensor head or current clamp - Measures effective and apparent power - Measures power factor - Measures energy consumption (kWh) - Data hold / Peak hold - Function Hold / Alarm function High / Low - Interface RS-232 - Powered by mains adaptor or batteries - Safety standards: IEC-1010-1; CAT II 600V

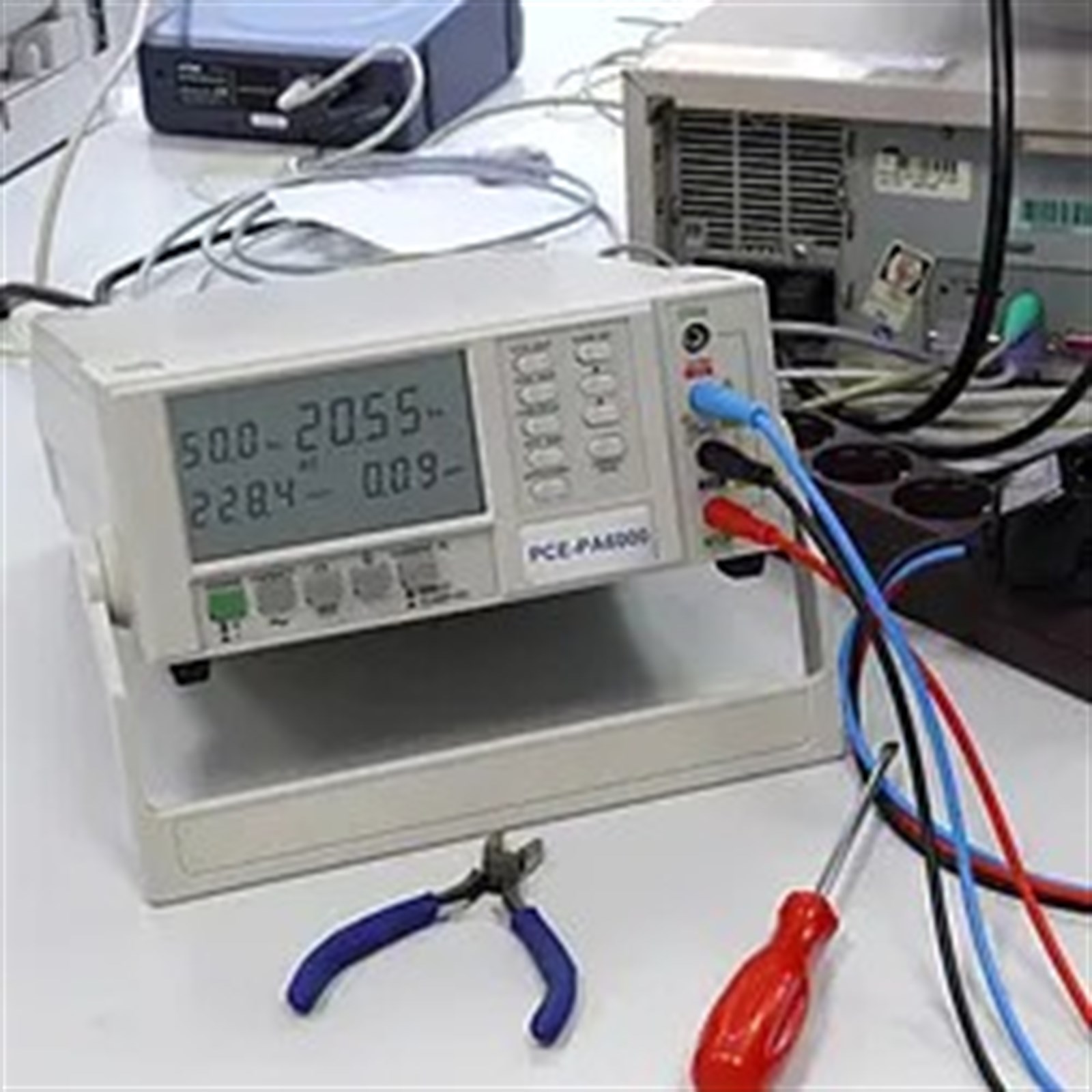

In the following image there is a PCE-PA 6000 being used to repair a computer. Using the current adaptor, it can quickly take measurements of consumption and measurements of power without the need to use too many cables.

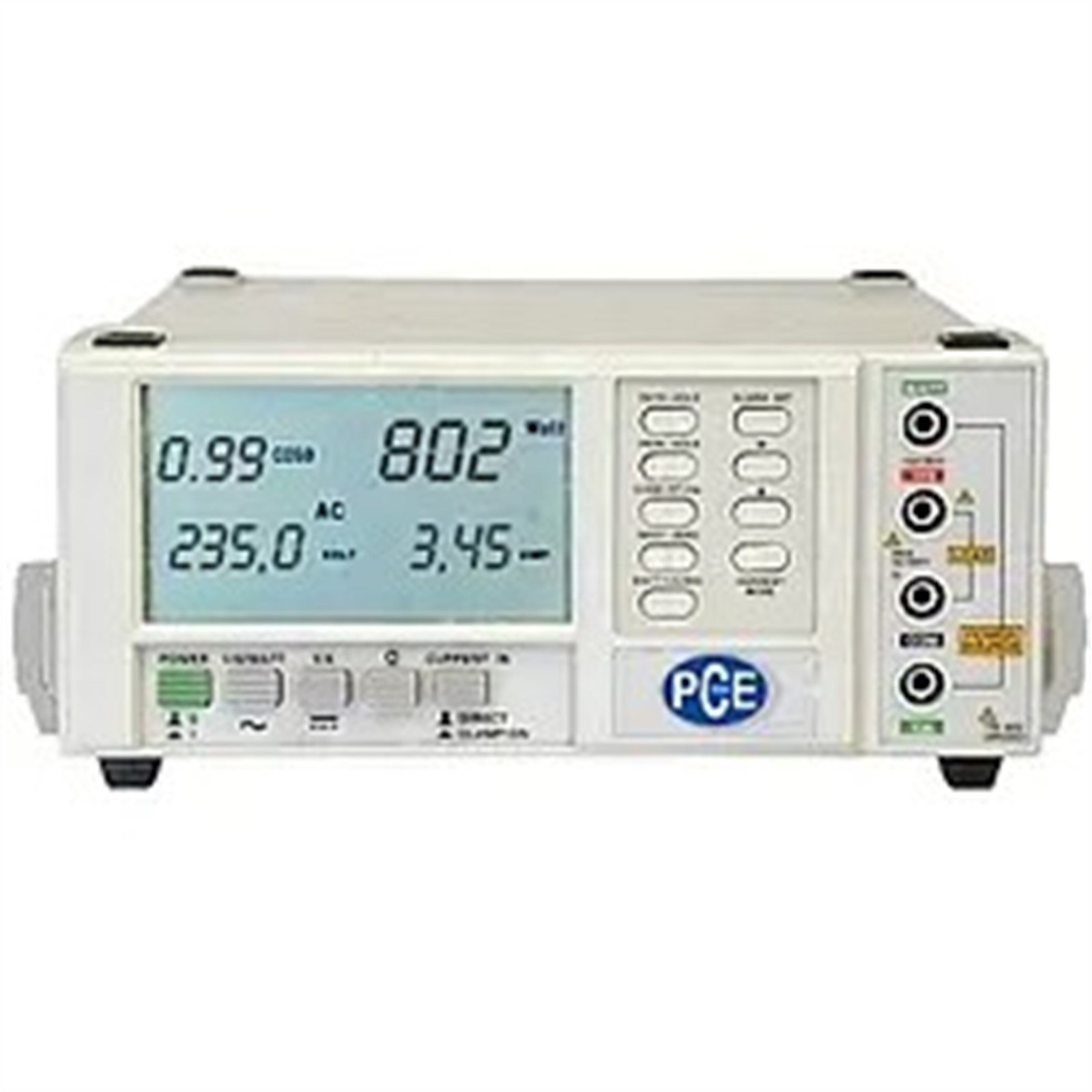

Here is an image of the power meter's large LCD that can show four different readings simultaneously. The display mode depends on the function setting. It can also show readings taken by the current adaptor. It just needs to be connected to the device with the grounding wire of the adaptor.

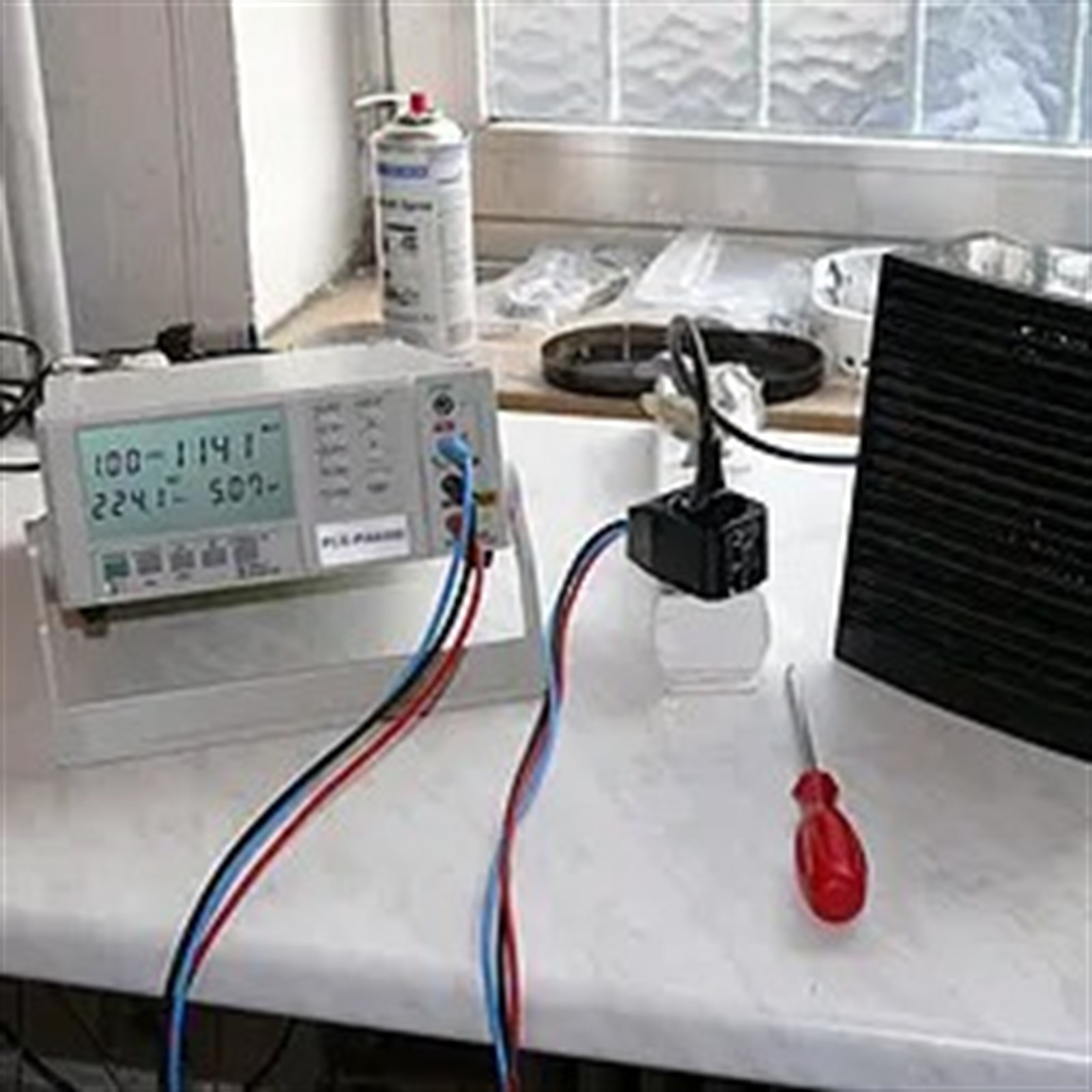

In this instance, the device is being used to test the thermal value of an electronic thermal ventilator once repaired with our PCE-PA 6000 power meter. The usefulness of the current adaptor can be appreciated here, and it is easy to attach safely without the mess of external cables. With the power meter, tests can be done easily, safely and accurately an all types of small electrical appliances up to 10A, including high consumer electronics.
1 x PCE-PA6000 power Analyser 1 x Set of test cables 1 x RS-232 cable 6 x Batteries 1 x User's manual
Soft-lut-usb software is available in the accessories tab
