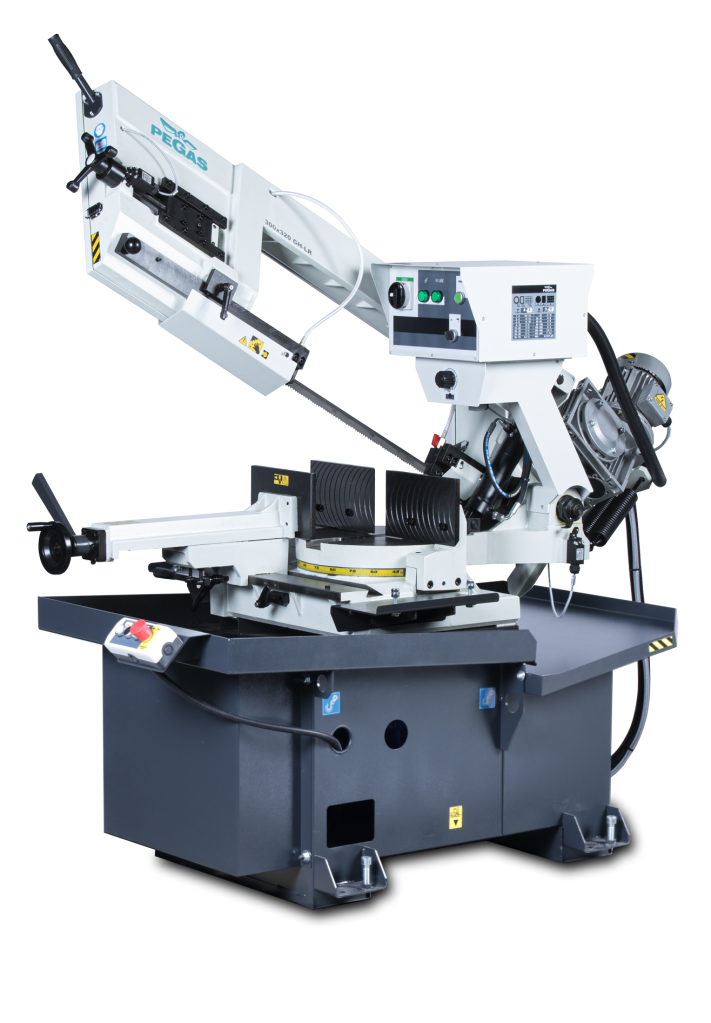

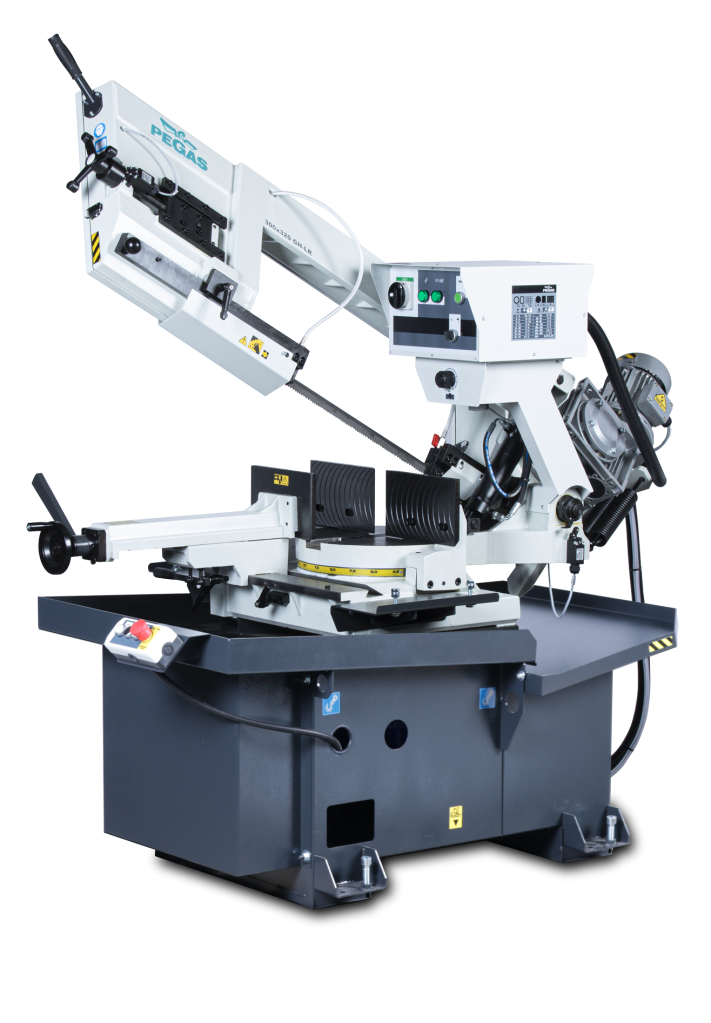

Pegas-Gonda 300x320 GH-LR Gravitational Band Saw Machine (Pegas-Gonda 300x320 GH-LR)

Gravitational band saw machine.
Working movement of the arm is caused by the weight of the arm itself, speed is regulated by a hydraulic cylinder. The machine is designed for cutting material in vertical and angle cuts. Angle cuts can be set fluently from 0° to 60° to the right and from 0° to 45° to the left using a quick clamping handle. It is suitable for piece production and small series production. Thanks to its robust construction, it enables cutting a wide range of materials including stainless steels, tool steels, profiles and solid materials.

Construction

• All carrying parts are made as cast-iron castings for strength, vibration absorption and shock resistance.
• Arm, vice and turn table are made of cast iron.
• The arm is inclined by 25°, increasing blade lifetime.
• Down working position of the arm is controlled by cam and microswitches.
• The arm stops automatically at the lower position and is lifted manually by the operator.
• Cast iron vice with jaws ensuring secure clamping of the material.
• Vice is placed in an adjustable dovetail groove.
• Moving jaw is manually operated with wheel and trapeze thread.
• Speedy jaw adjustment using lever, spring and trapeze half-nut.
• Vice base moves according to angle cut setting and is fixed by handle.
• Cast iron turn table providing stable material support.
• Manual table rotation for angle cuts with quick fixation handle.
• Auto-arresting turntable every 15° using spring groove.
• Fine angle adjustment via nonius scale.

Basic equipment of machine

• Band blade guided in hardmetal plates and leading bearings.
• Guide on firm beam at drive side and moving beam at tightening side.
• Adjustable guide beams across entire working range.
• Guide beam moves in sliding guide.
• Saw band guard protecting operator from chips and cutting emulsion.
• Mechanical blade tightening.
• Automatic blade tension indication.
• Passive driven blade cleaning brush.
• Worm gearbox with permanent oil filling.
• Three-phase motor with double winding and two cutting speeds.
• Thermal motor protection.
• Cooling system distributing emulsion to band guides.
• Base with integrated chip tank.
• Indication of blade tightening and cover opening.
• 24 V control system.

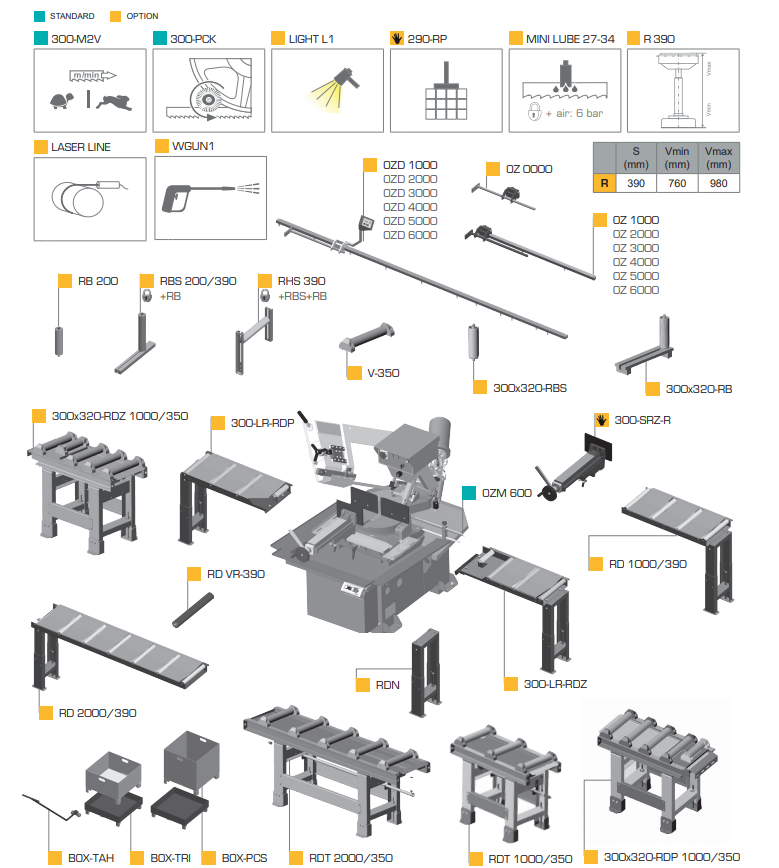

Basic accessories of machine

• Measuring end stop.
• Band saw blade.
• Set of spanners for common service.
• Electronic manual instructions (CD).

Operating cycle

Manually controlled quick clamping vice. Cutting speed is regulated by a hydraulic damper and restrictor choke valve. After finishing the cut, the machine stops automatically and the operator lifts the arm manually to the start position. Feeding of material is manual.

Cutting capacity (mm)

Profile	0°	45°	60°	-45°	-60°	Bundle	Solid
O Round	300	300	200	270	x	x	x
▭ Rectangular	320 × 290	300 × 280	190 × 200	270 × 200	x	320 × 160	280 × 135

* Recommended values for maximum blade performance.

Technical data

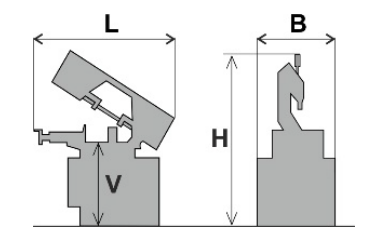

Machine dimensions
