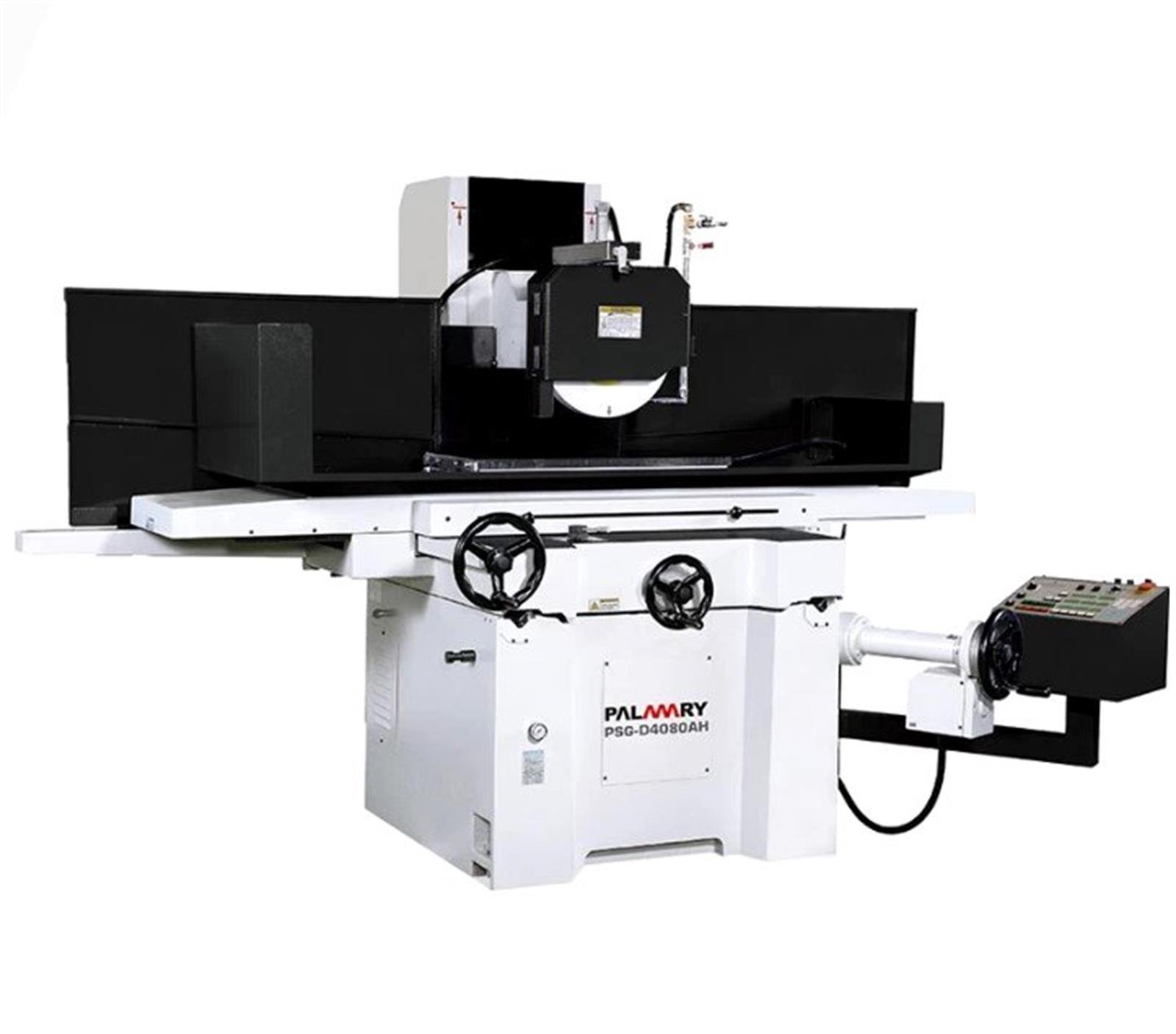

Palmary PSG-D4080AH Surface Grinder (PSG-D4080AH)

Work lamp (PSG-15/20/25/30/40 only) x 1
Wheel balancing stand x 1
Wheel dresser with diamond x 1
Tools (Leveling pad) and tool box x 1
Flange extractor x 1
Grinding wheel x 1
Wheel flange x 1
Wheel balancing arbor x 1
Leveling screw and plates x 1

Coolant system
Dust suction system
Paper filter
Auto. down feed AD5 (NC function)
Auto. demagnetizer for magnetic chuck
Parallel dresser
Dust suction with coolant system
Magnetic coolant separator
Power rapid for vertical
Micro feed for vertical / cross feed
Electro / Permanent magnetic chuck
NC auto. dressing and compensation

Model	PSG-D4080AH
Working surface of table	400 x 800 mm (16" x 32")
Max. surface ground	400 x 800 mm (16" x 32")
Max. distance center of spindle to table	550 mm (22")
Table speed	5~25 m/min (200" ~ 1000"/min)
Table guideway	V & flat way
Auto. cross feed increment (approx.)	0.5~20 mm (0.02" ~ 0.8")
Rapid power cross feed (approx.)	1100 mm/min (44"/min) (60 Hz) 900 mm/min (36"/min) (50 Hz)
Cross feed on hand wheel (1 rev) Cross feed on hand wheel (1 gra)	5 mm (0.2") 0.02 mm (0.001")
Rapid power head elevation (60 Hz) approx (opt.) (50 Hz)	550 mm/min (13"/min) (60 Hz) 450 mm/min (11"/min) (50 Hz)
Vertical feed on hand wheel (1 rev) Vertical feed on hand wheel (1 gra)"	2 mm (0.05") 0.01 mm (0.0002")
Auto. down feed (opt.)	0.001 mm ~ 0.999 mm/time (0.0001" ~ 0.0999"/time) (opt.)
Wheel speed	1750 r.p.m. (60 Hz) / 1450 r.p.m. (50 Hz)
Wheel dimension	405 x 50 x 127 mm (16" x 2" x 5")
Spindle motor	5 HP
Hydrauilc pump motor	2 HP
Auto. cross feed motor	1/5 HP
Rapid head elevation motor	1/5 HP (opt.)
Coolant pump	1/8 HP (opt.)
Machine net weight	3250 kgs (7150 Lbs)
Machine floor space	3450 x 2050 mm (118" x 79")
