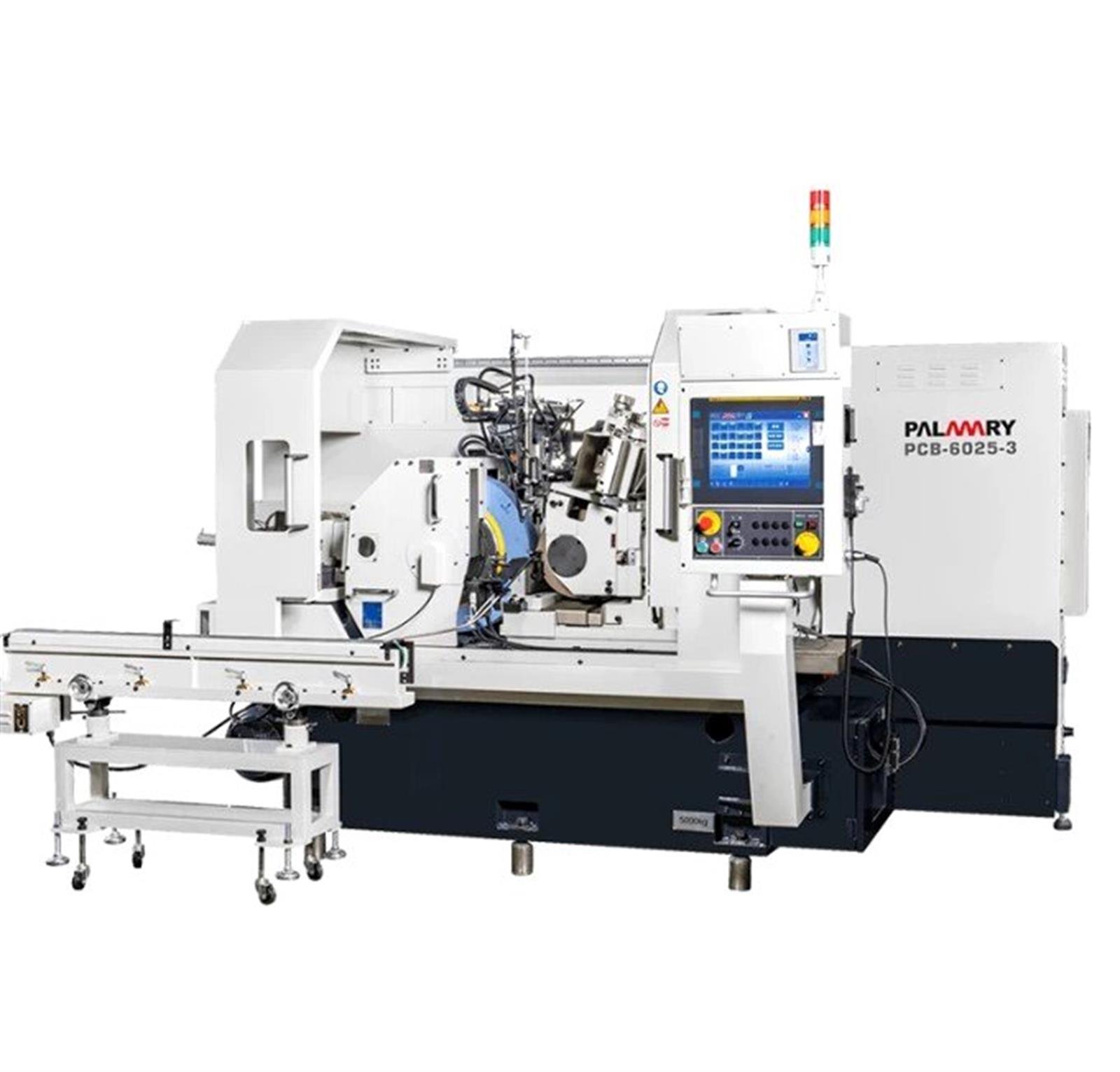

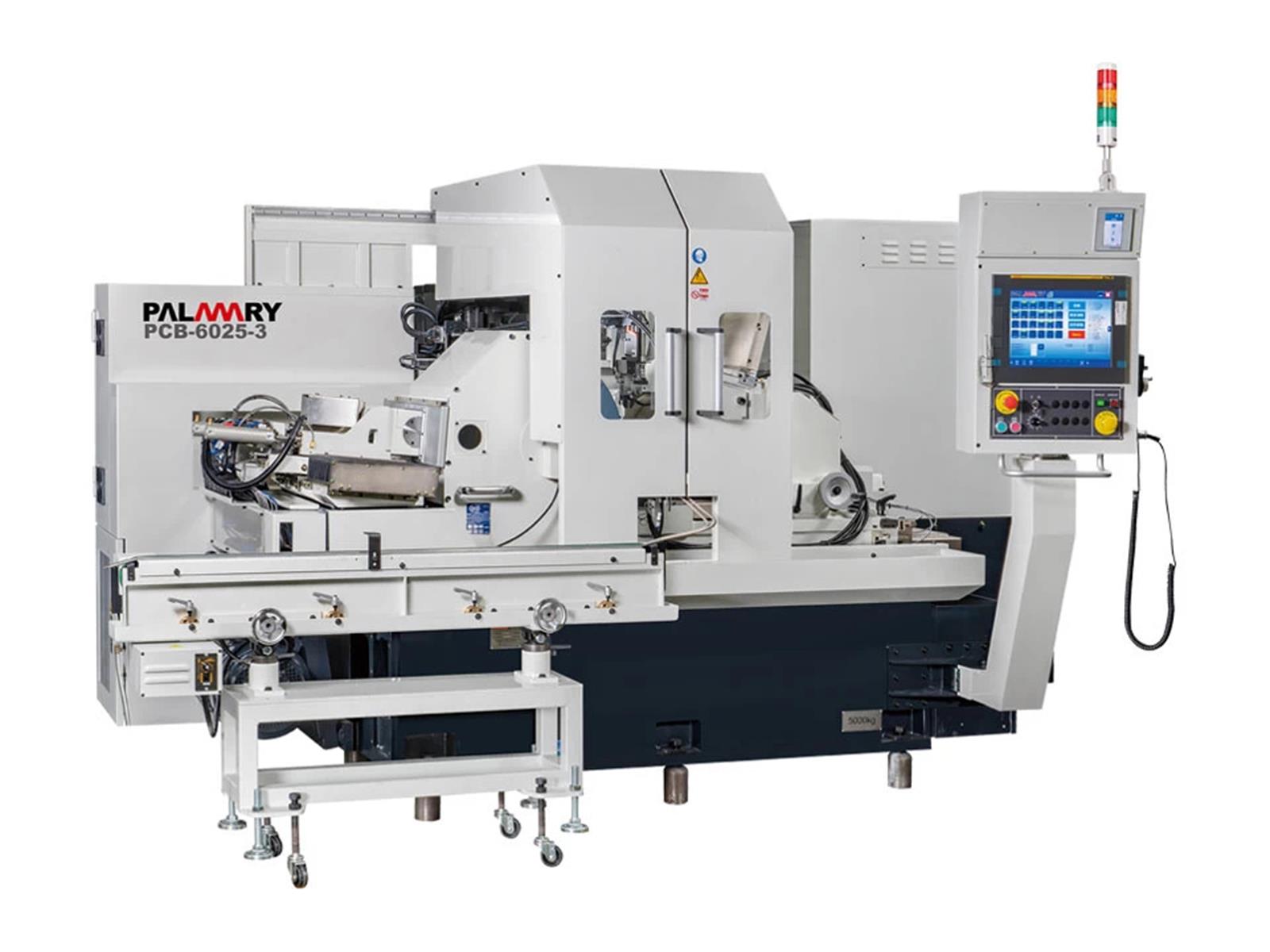

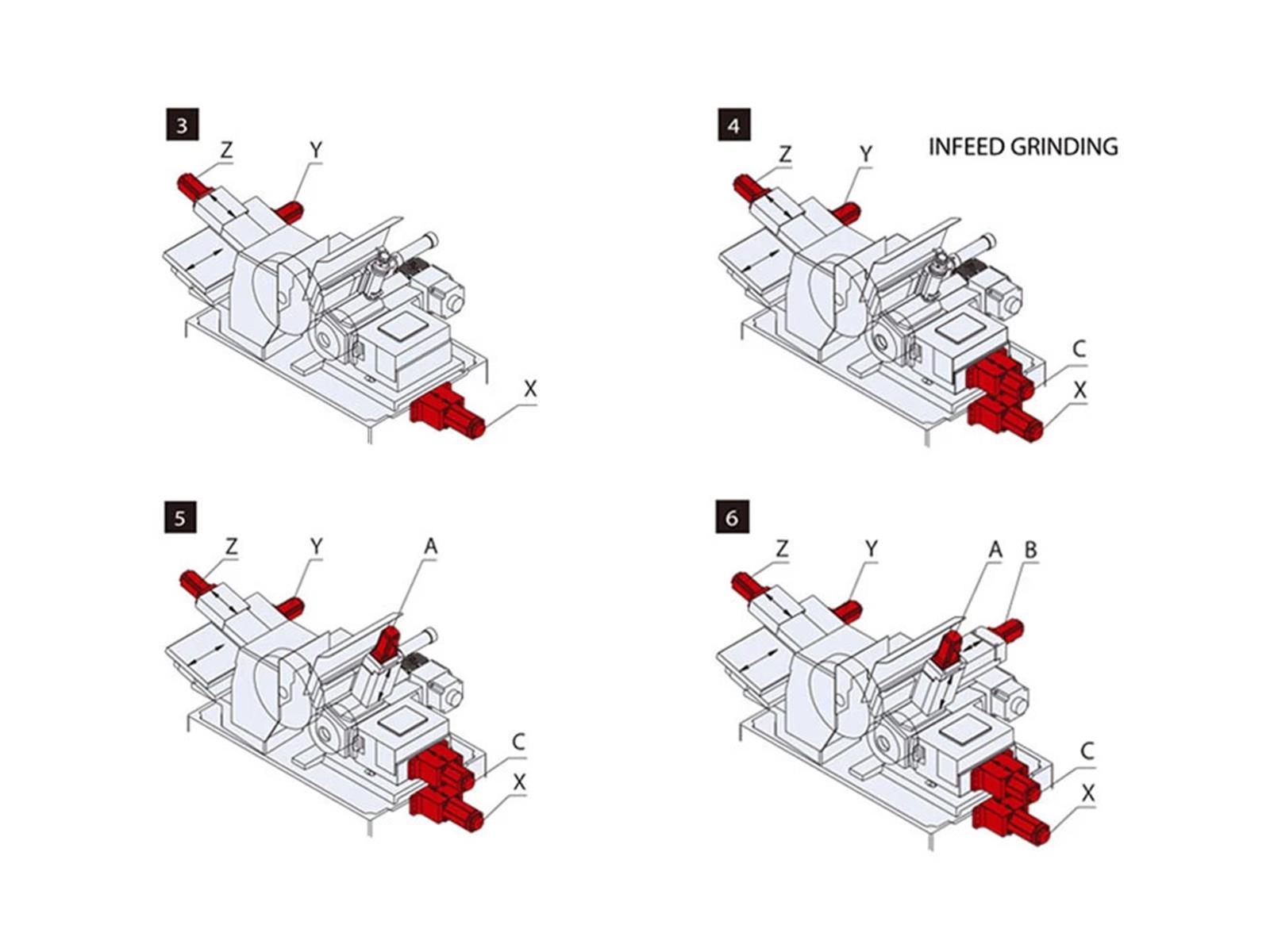

Palmary PCB-6020-3 CNC Centerless Grinder (PCB-6020-3)

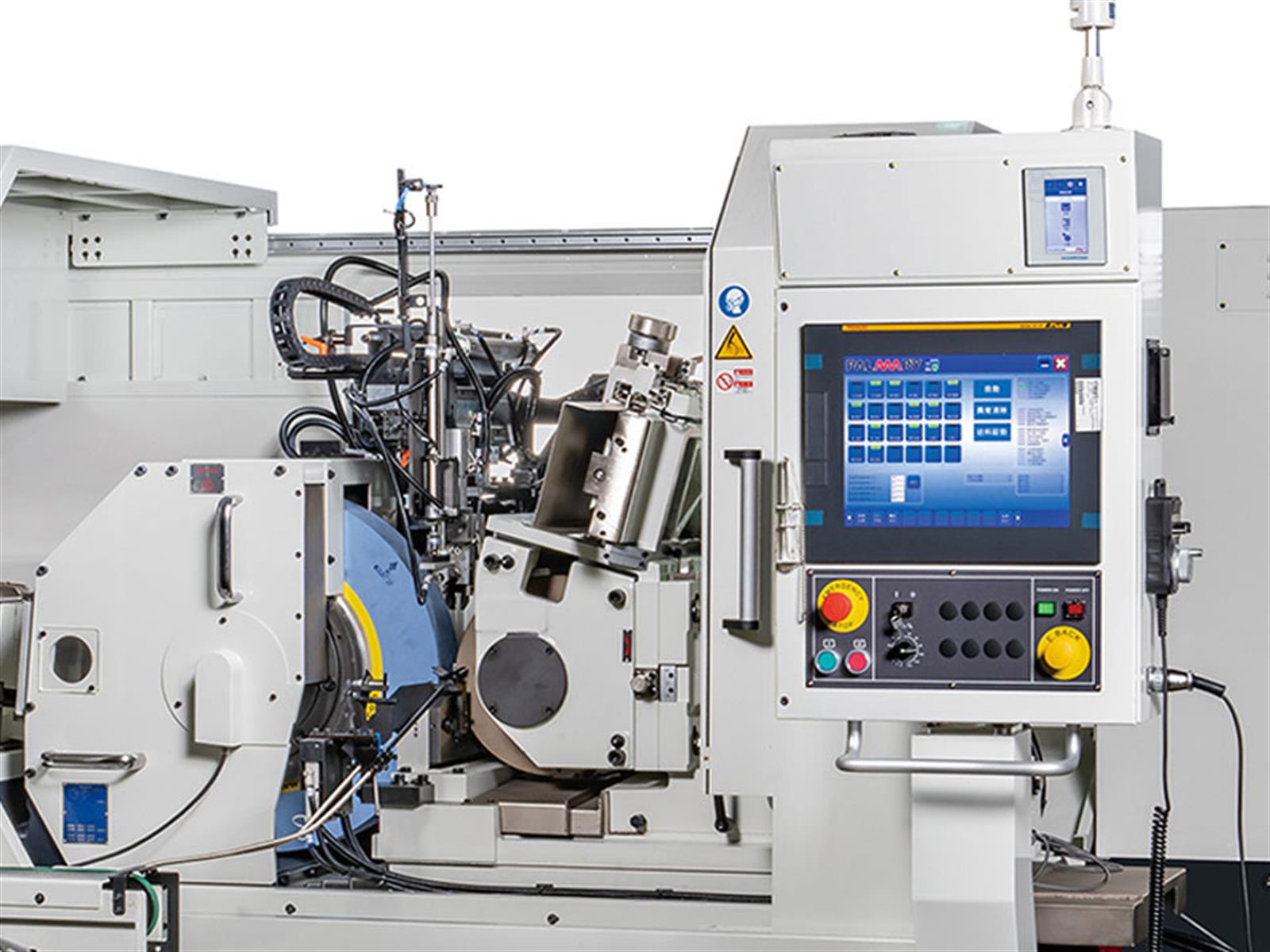

FANUC CNC controller x 1
Regulating wheel and flange x 1
Grinding wheel and flange x 1
Thrufeed work rest x 1
Thrufeed carbide blade x 1
Infeed work rest x 1
Infeed carbide blade x 1
Diamond tools (4 pcs/set) x 1
Electric system x 1
Lubrication system for spindle x 1
Coolant tank with pump x 1
Work lamp x 1
Tools (Leveling pad) and tool box x 1

Diamond roller device
Diamond roller
Fully enclosed splash guard
Wheel balancing stand and arbor
JIB crane for grinding wheel change
Linear scale
Auto in-process gauge
Auto loading and unloading system
Magnetic coolant separator
Paper filter
Hydrocyclone coolant separator
Oil mist collector
Water cooler



Model	PCB-6020-3

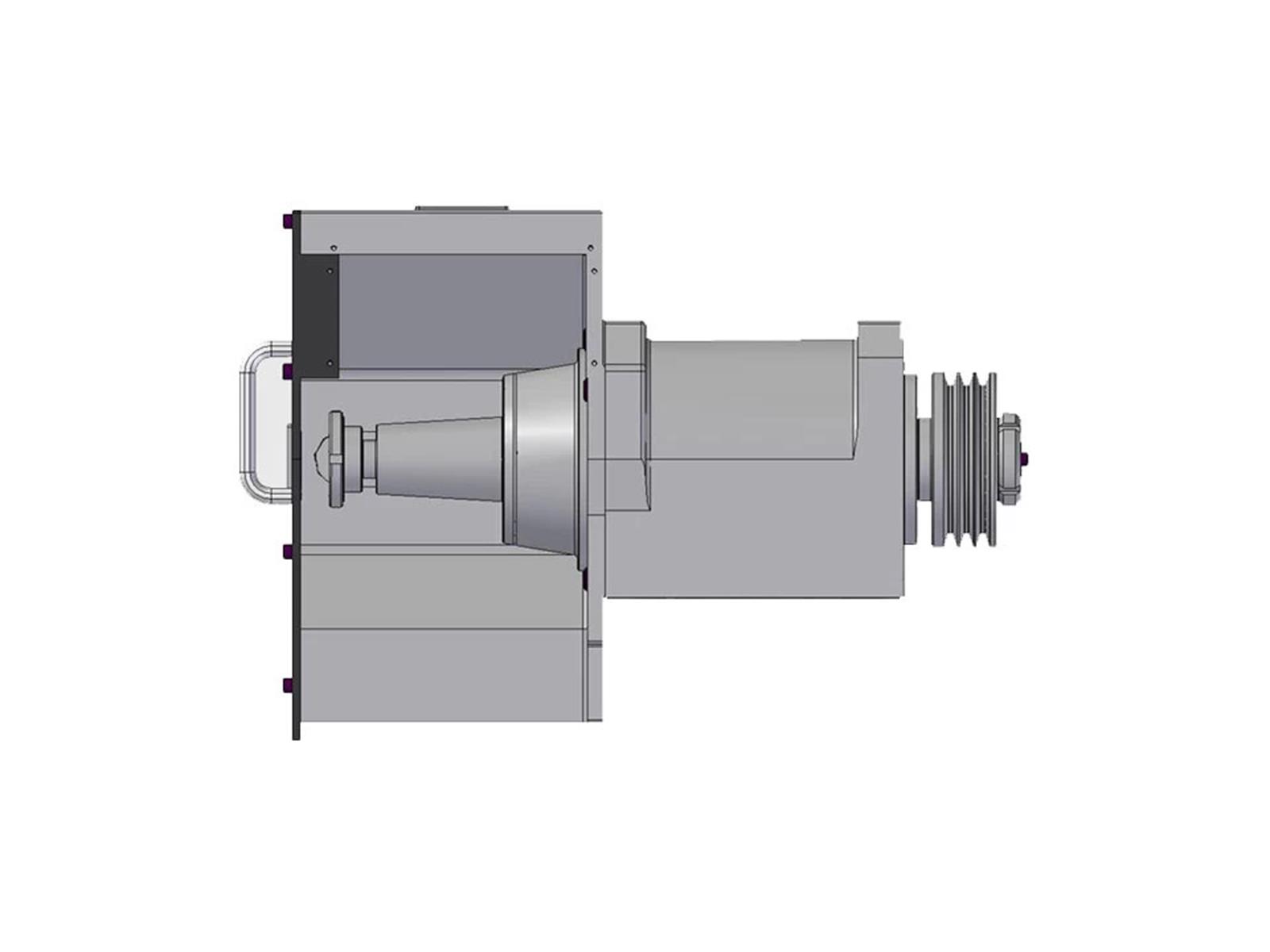

Grinding Wheel
Standard grinding range (dia.)	Ø2~Ø80 mm (OPT. Ø70~Ø150 mm)
Grinding wheel size (O.D. x width x I.D.)	Ø610 x 205 x Ø304.8 mm
Linear velocity	45 M/s
Dressing device	Single-point dressing device / (opt.) Diamond roller dressing device
Regulating Wheel
Regulating wheel size (O.D. x width x I.D.)	Ø330 x 205 x Ø152.4 mm
Regulating wheel speed	10~200 r.p.m. (variable speed)
Regulating wheel tilt angle	±5°
Regulating wheel swivel angle	±0.5°
Regulating wheel dressing device swivel angle	±5°
Dressing device OFFSET	0～15 mm

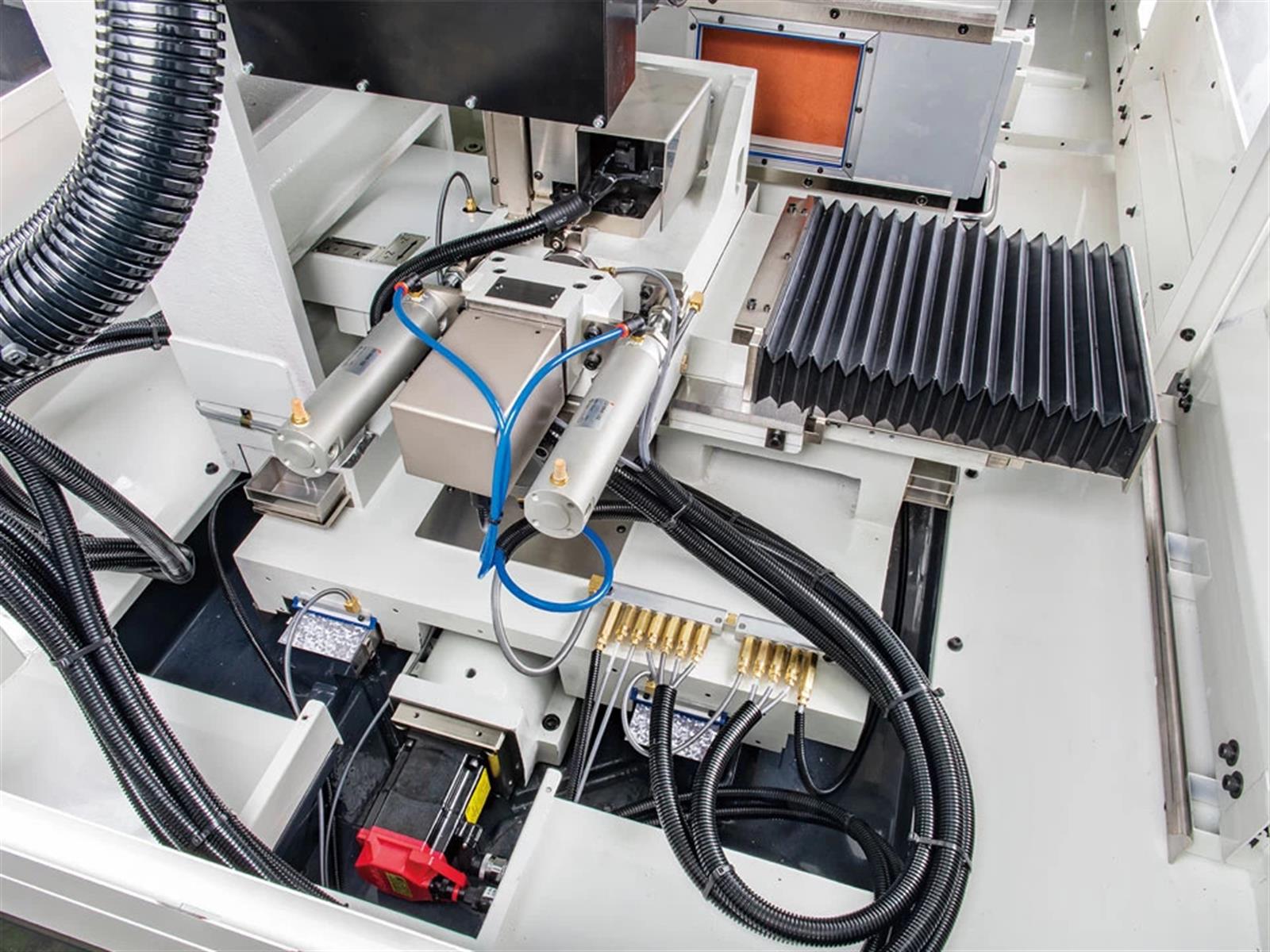

Slider
Lower and upper slider	Square slider, Ball screw + reducer
Motor
G.W. lubrication	20HP x 4P (15 kW) / OPT. 30HP x 4P (22 kW)
R.W. lubrication	2 kW servo motor
Coolant motor	0.186 (wheel cooling) / 0.093 (dressing cooling)
Lubrication
G.W. lubrication	Oil mist type
R.W. lubrication	Oil grease type
Slide lubrication	Auto lubricator (LUBE)
Controller
Brand	FANUC
Tank
Coolant tank	125 L
Grinding wheel spindle lubrication system	1.0 L
Table slide lubrication	4 L
Weight
New weight	5800 kgs
