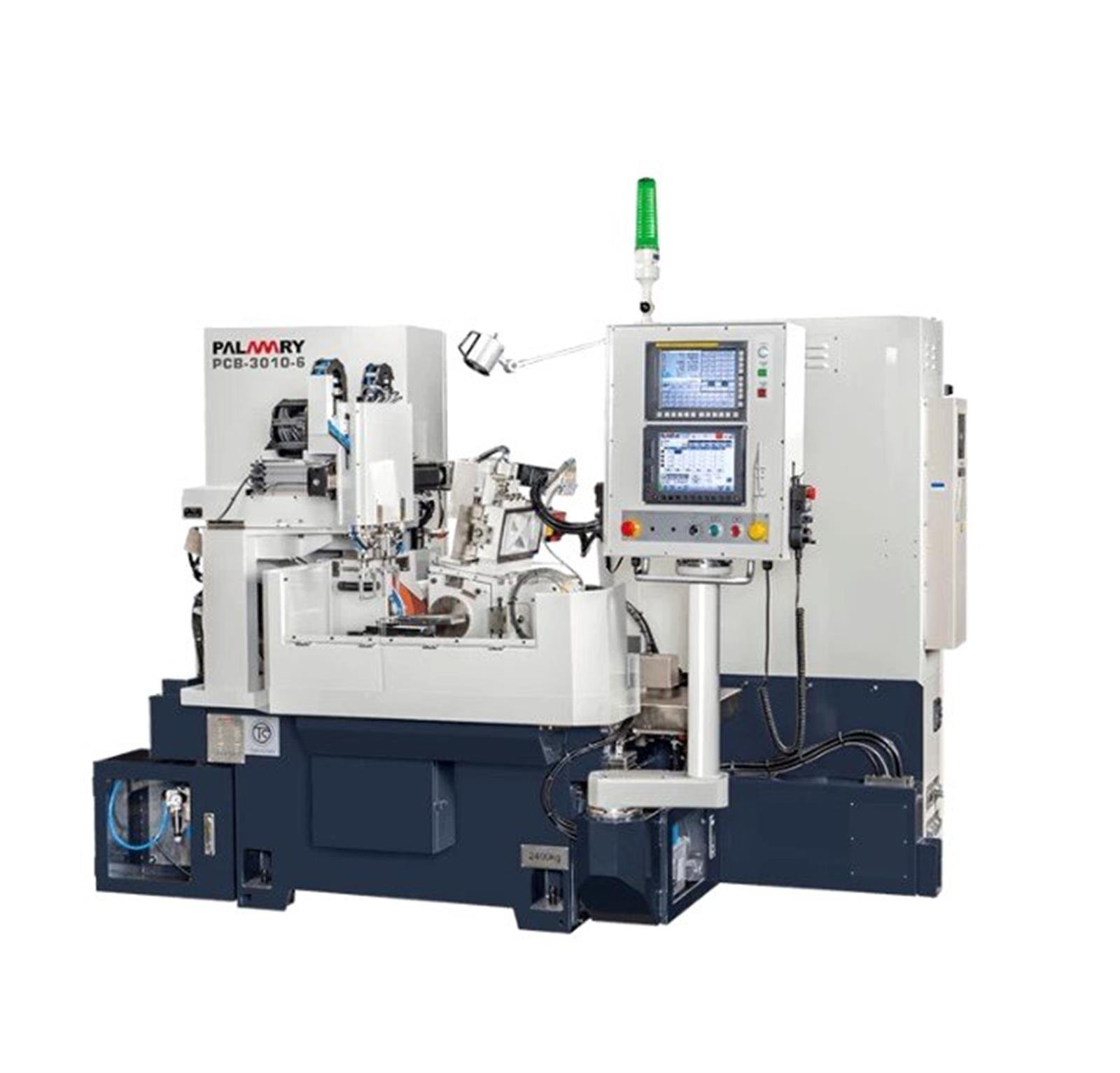

Palmary PCB-3010 CNC Centerless Grinder (PCB-3010)

FANUC CNC controller x 1
Regulating wheel and flange x 1
Grinding wheel and flange x 1
Thrufeed work rest x 1
Thrufeed carbide blade x 1
Infeed work rest x 1
Infeed carbide blade x 1
Diamond tools (2 pcs/set) x 1
Electric system x 1
Lubrication system for spindle x 1
Coolant tank with pump x 1
Work lamp x 1
Tools (Leveling pad) and tool box x 1



Diamond roller dressing device
Diamond roller
Fully enclosed splash guard
Wheel balancing stand and arbor
JIB crane for grinding wheel change
Linear scale
Auto in-process gauge

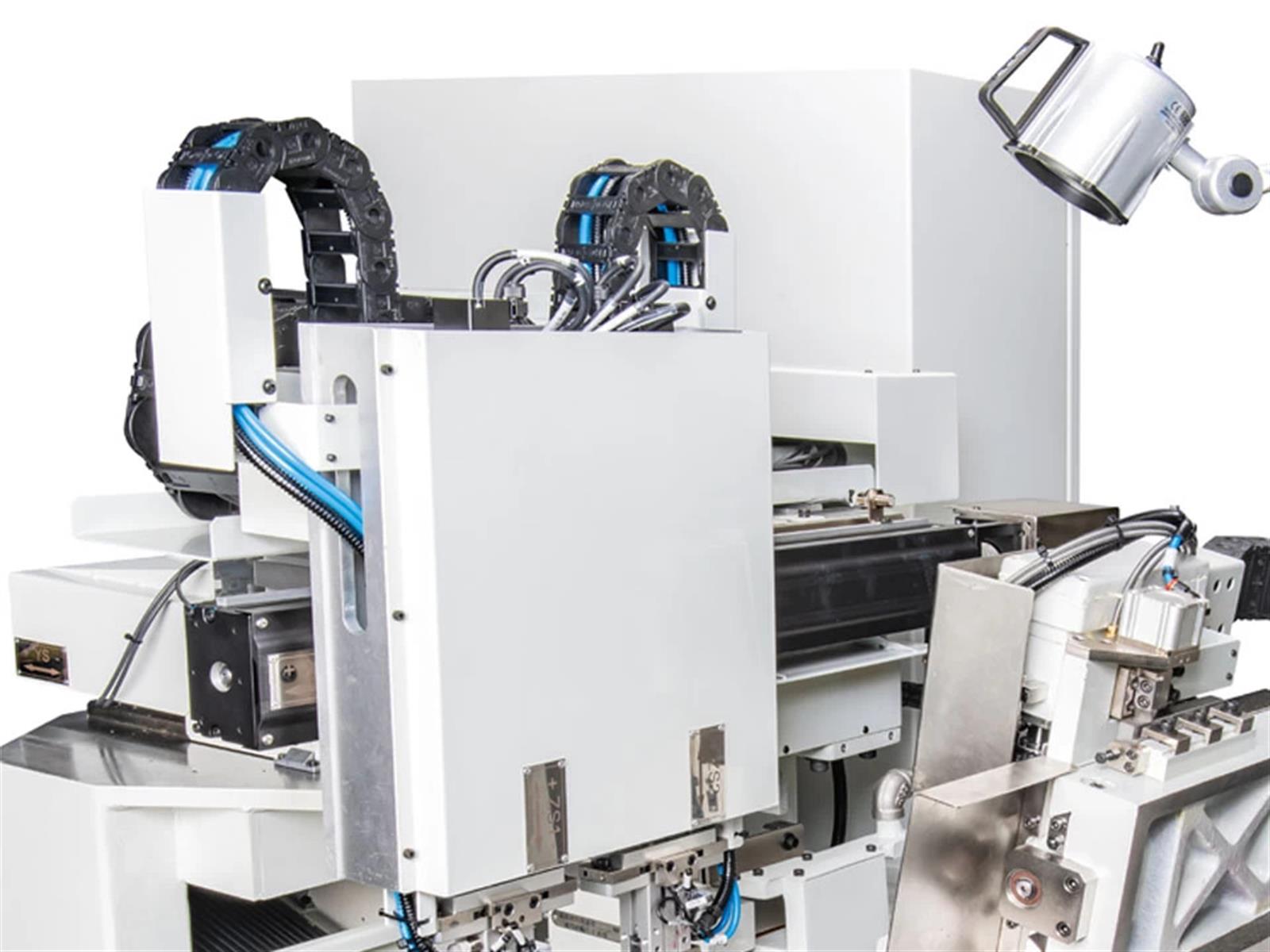

Auto loading and unloading system
Magnetic coolant separator
Paper filter
Hydrocyclone coolant separator
Oil mist collector
Water cooler



Model	PCB-3010
Grinding Wheel
Standard grinding range (dia.)	Ø0.3~Ø25 mm
Grinding wheel size (O.D. x width x I.D.)	Ø305 x 100 x Ø177.8 mm
Linear velocity	45 M/s
Dressing device	Single-point dressing device / (opt.) Diamond roller dressing device
Regulating Wheel
Regulating wheel size (O.D. x width x I.D.)	Ø205 x 100 x Ø90 mm
Regulating wheel speed	10~200 r.p.m. (variable speed)
Regulating wheel tilt angle	± 5°
Regulating wheel swivel angle	±0.5°
Regulating wheel dressing device swivel angle	±5°
Dressing device OFFSET	0~5 mm
Slider
Lower and upper slider	Square slider, Ball screw + reducer
Motor
Grinding wheel	3.7 kW
Regulating wheel	0.75 kW
Coolant pump	0.093 kW (wheel cooling) / 0.093 kW (dressing cooling)
Lubrication
G.W. lubrication	Oil mist type
R.W. lubrication	Oil grease type
Lubrication	Auto lubricator (LUBE)

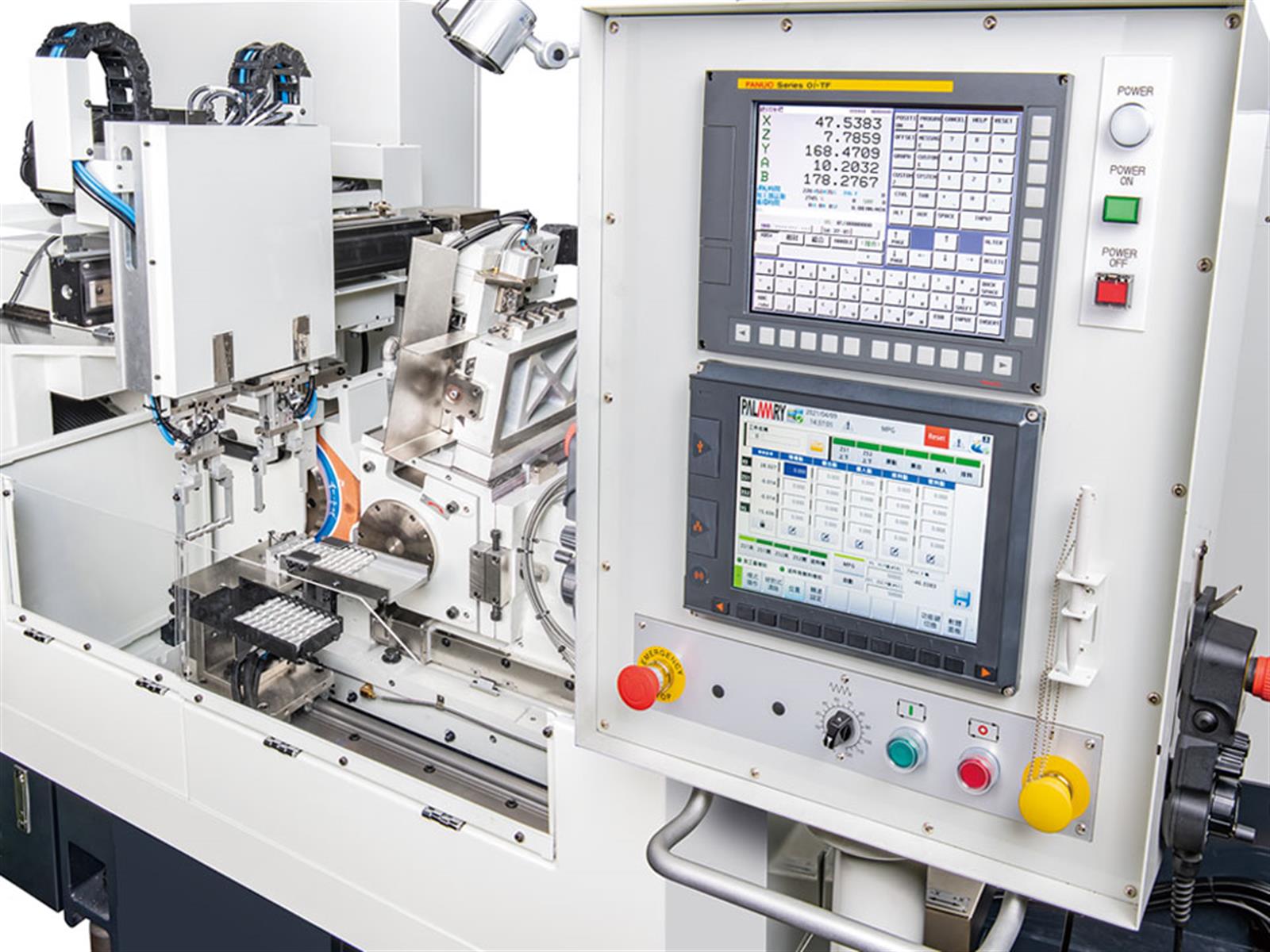

Controller
Brand	FANUC
Tank
Coolant tank	100 L
Grinding wheel spindle lubrication system	1.0 L
Table slide lubrication	4.0 L
Weight
New weight	2100 kg
