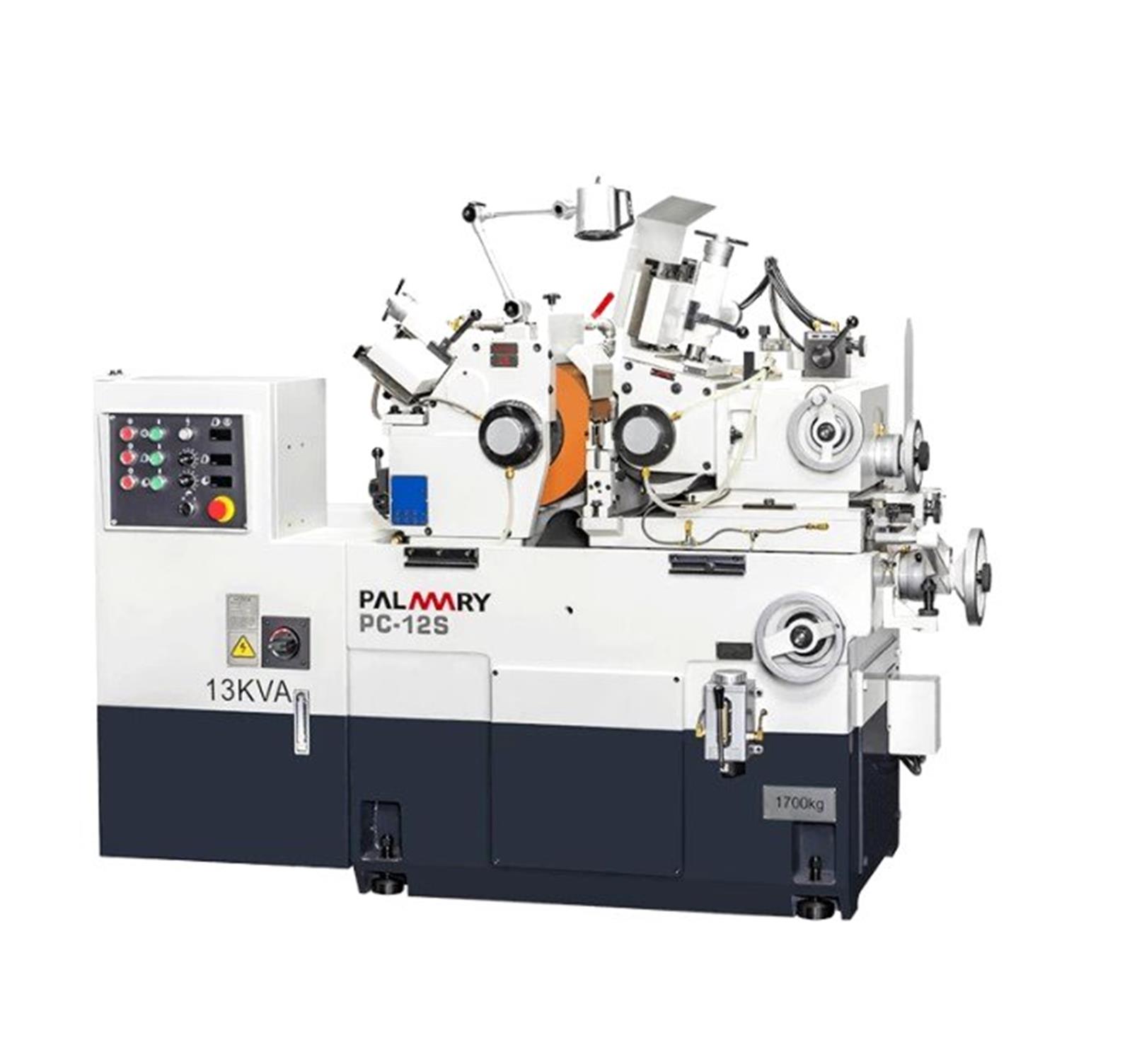

Palmary PC-12S Centerless Grinder (PC-12S)

Regulating wheel and flange x 1
Grinding wheel and flange x 1

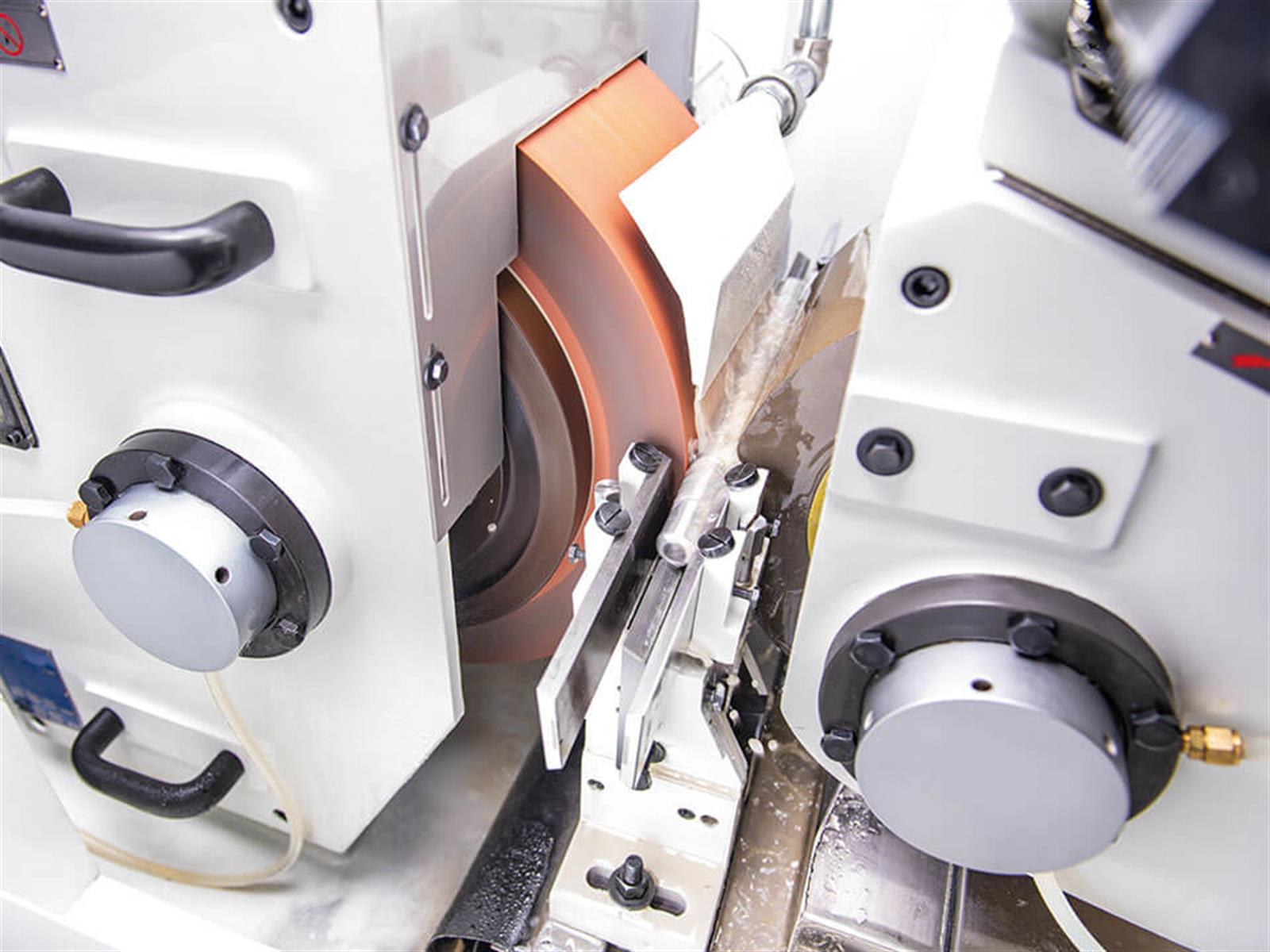

Infeed work rest and carbide blade x 1
Thrufeed work rest and carbide blade x 1
Electric system x 1Hydraulic tank with pump x 1
Coolant tank with pump x 1,
Diamond tools (2 pcs/set) x 1
Work lamp x 1
Tools (Leveling pad) and tool box x 1



Spare grinding wheel flange
Spare regulating wheel flange
Wheel balancing stand and arbor
Profile grinding attachment
Auto. infeed attachment
Manual feeder for infeed grinding (up and down)
Hydraulic work ejector (infeed grinding)
Auto. loading and unloading attachment (infeed grinding)
Auto. loading attachment (thrufeed grinding) (Ø5~20 mm, L100~600 mm)
Auto. unloading attachment (thrufeed grinding)
Auto. feeder for thrufeed grinding (hopper type) (Ø2~8 mm, L50~180 mm)
Vibratory feeder (thrufeed grinding)
V type supporter for long bar grinding (Ø2~14 mm)
Magnetic coolant separator
Paper filter
Hydrocyclone coolant separator



Model	PC-12S
Grinding Wheel
Standard grinding range (dia.)	Ø1~Ø40 mm
Capacity increases with special arrangement	Ø30~Ø60 mm
Grinding wheel size (O.D. x width x I.D.)	Ø305 x 150 x Ø120 mm
Linear velocity	33 M/s
Grinding wheel motor	7.5HP x 4P (5 kW)
Regulating Wheel
Regulating wheel size (O.D. x width x I.D.)	Ø205 x 150 x Ø90 mm
Regulating wheel speed	10~300 r.p.m. (variable speed)
Regulating wheel motor	1.5 kW servo motor
Regulating wheel tilt angle	±5°
Regulating wheel swivel angle	±5°
Handwheel Graduation
Upper slide feed graduation	4 mm/rev / 0.025 mm/graduation
Upper slide micro-feed graduation	0.1 mm/rev / 0.001 mm/graduation
Lower slide feed graduation	7 mm/rev / 0.05 mm/graduation
Lower slide micro-feed graduation	0.2 mm/rev / 0.001 mm/raduation
Trimming device graduation	1.25 mm/rev / 0.01 mm/graduation
Motor
Hydraulic pump motor	1HP x 4P
Coolant motor	1/8HP x 2P

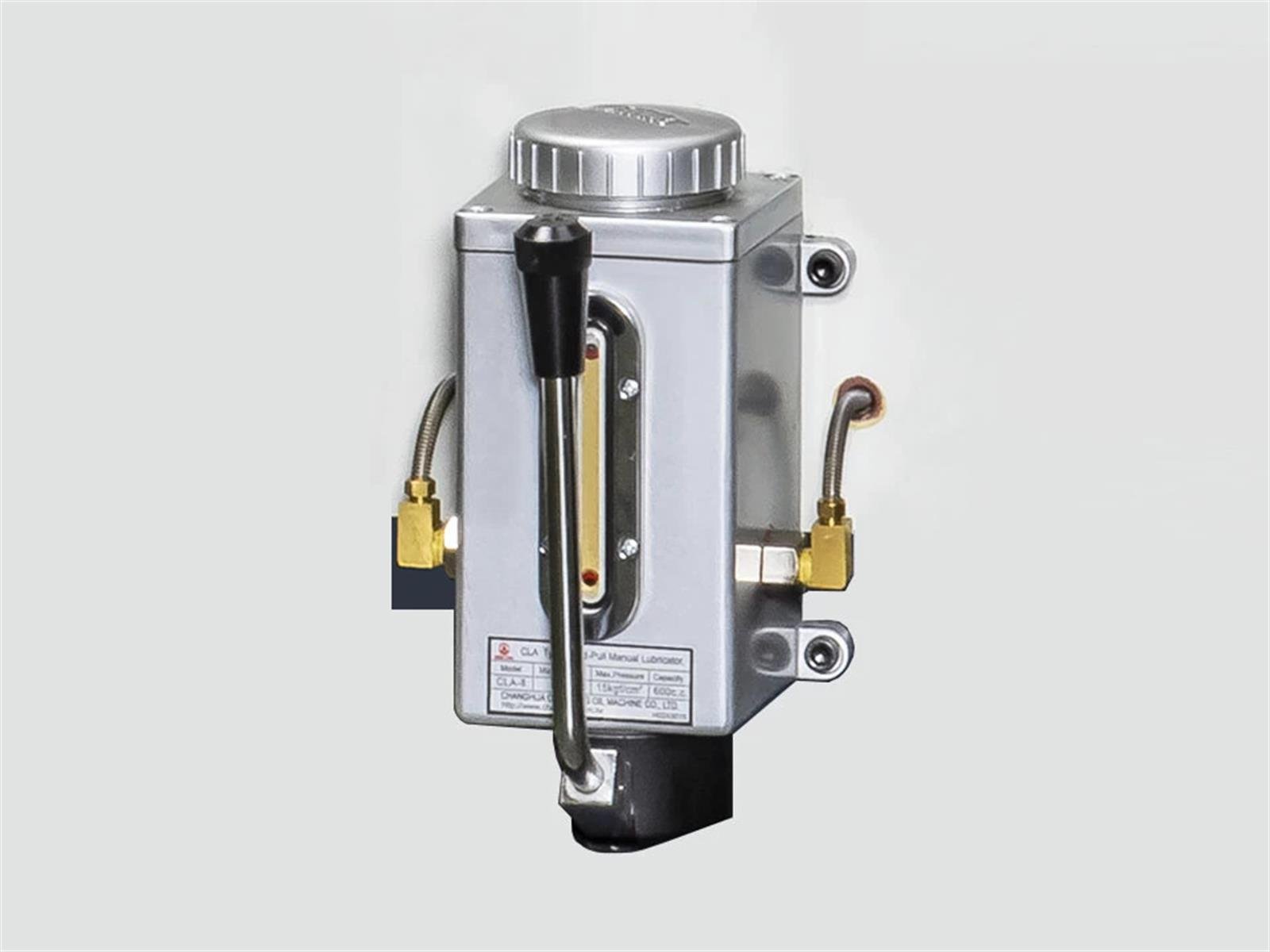

Lubrication	Manual Lubricator
Tank
Coolant tank	100 L
Hydraulic tank	53 L
Lubrication	0.6 L
Weight
New weight	1700 kgs
