Palmary OCD-32130P Cylindrical Grinder

Brand : Palmary

Stock Code (OCD-32130P)

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InTaiwan

Min. Order Qty.1 Pcs.

Warranty1 Year

Stock Amount : 0

Note: The prices shown here are retail sales prices. SPECIAL DISCOUNT MAY APPLY FOR BULK PURCHASES . Additionally, discounted prices offered to dealers may differ.

Import duties, customs charges, and value-added taxes for products originating outside of Turkey are not included in the listed prices. This is applicable to customers purchasing from within Turkey.

The prices mentioned here do not include door-to-door delivery. Buyers purchasing from other countries are responsible for customs duties and any other taxes applicable under their local commercial laws.

For orders under 13,000 Euros, if the product value is below this, the total order value must either reach 13,000 Euros or a 150 Euro customs fee will be added to your final invoice value.

Price : 0,00 EURO(Vat included)

Item is out of stock.

Contact Via WhatsApp

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

FANUC CNC controller x 1
Fully enclosed splash guard x 1
Grinding wheel and flange x 1
Diamond tool holder (tailstock mounted type) x 1
Micro adjustment tailstock x 1
Linear scale (for X axis) x 1
Carbide tipped work centers (2 pcs/set) x 1
Electric system x 1
Hydraulic tank with pump x 1
Coolant tank with pump x 1
Work lamp x 1
Tools (Leveling pad) and tool box x 1

Spare grinding wheel and grinding wheel flange
Hydraulic tailstock
Internal grinding attachment
Cam locked driving dogs (6 pcs/set)
Work holder (2 pcs/set)
2-point steady rest
Adjustable 3-point steady rest
Adjustable 3-jaw scroll chuck
Adjustable 4-jaw chuck
Wheel balancing stand and arbor
Auto. grinding wheel balancer
Touch probe gauge
Auto. matic in-process gauge
Magnetic coolant separator
Magnetic and paper filter
Oil mist collector

Model	OCD-32130P
Capacity
Swivel over table	Ø320 mm
Distance between centers	1300 mm
Max. external grinding diameter	Ø300 mm
Max. load of centers	150 kgs

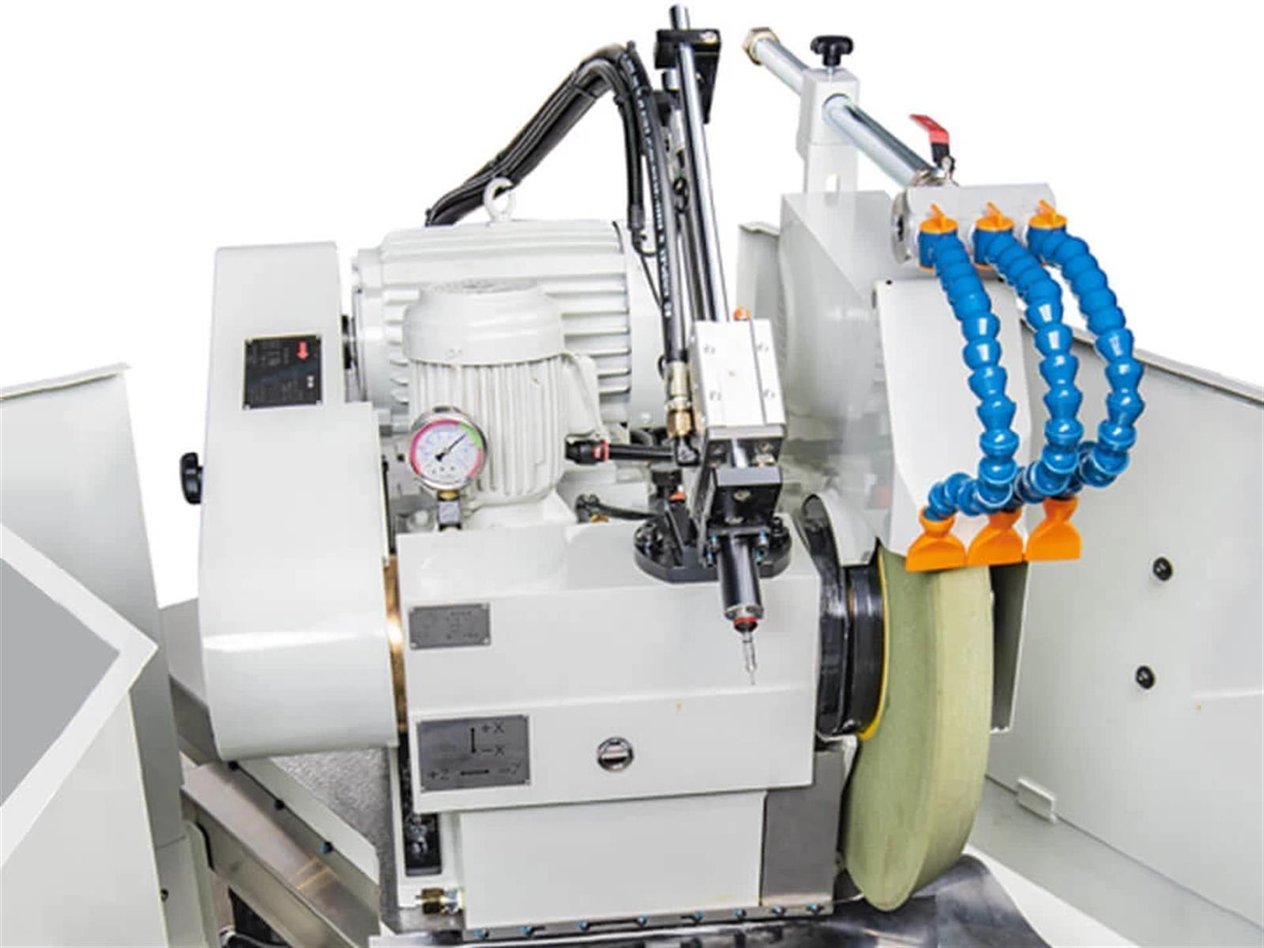

Grinding wheel
O.D. x width x I.D.	Ø455~510 x 50~80 x Ø127 mm
Linear velocity	45 M/s
Grinding wheel - X axis
Auto. rapid advance	10 m/min
Max. stroke	260 mm
Min. setting unit	0.001 (0.0001) mm
Table - Z axis
Auto. rapid advance	10 m/min
Max. stroke	1800 mm
Min. input increment	0.001 (0.0001) mm
Swivel angle	-3° , +8°

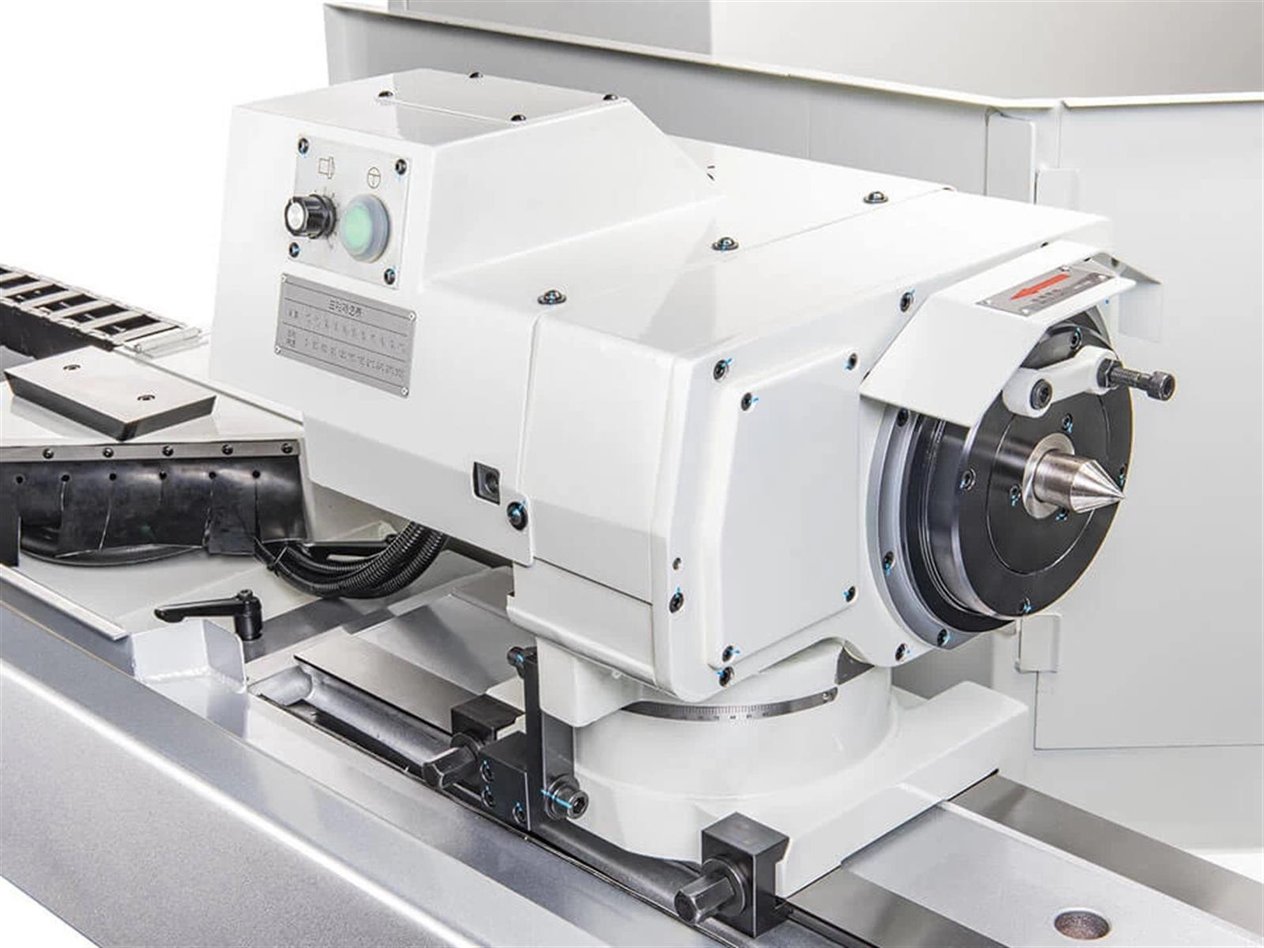

Work spindle head
Swivel angle	-30° ~ +90°
Center taper	M.T. No. 4
Spindle speed (variable)	10~300 r.p.m.
Max. load of spindle (tool holder included)	35 kgs (max. length: 150 mm)

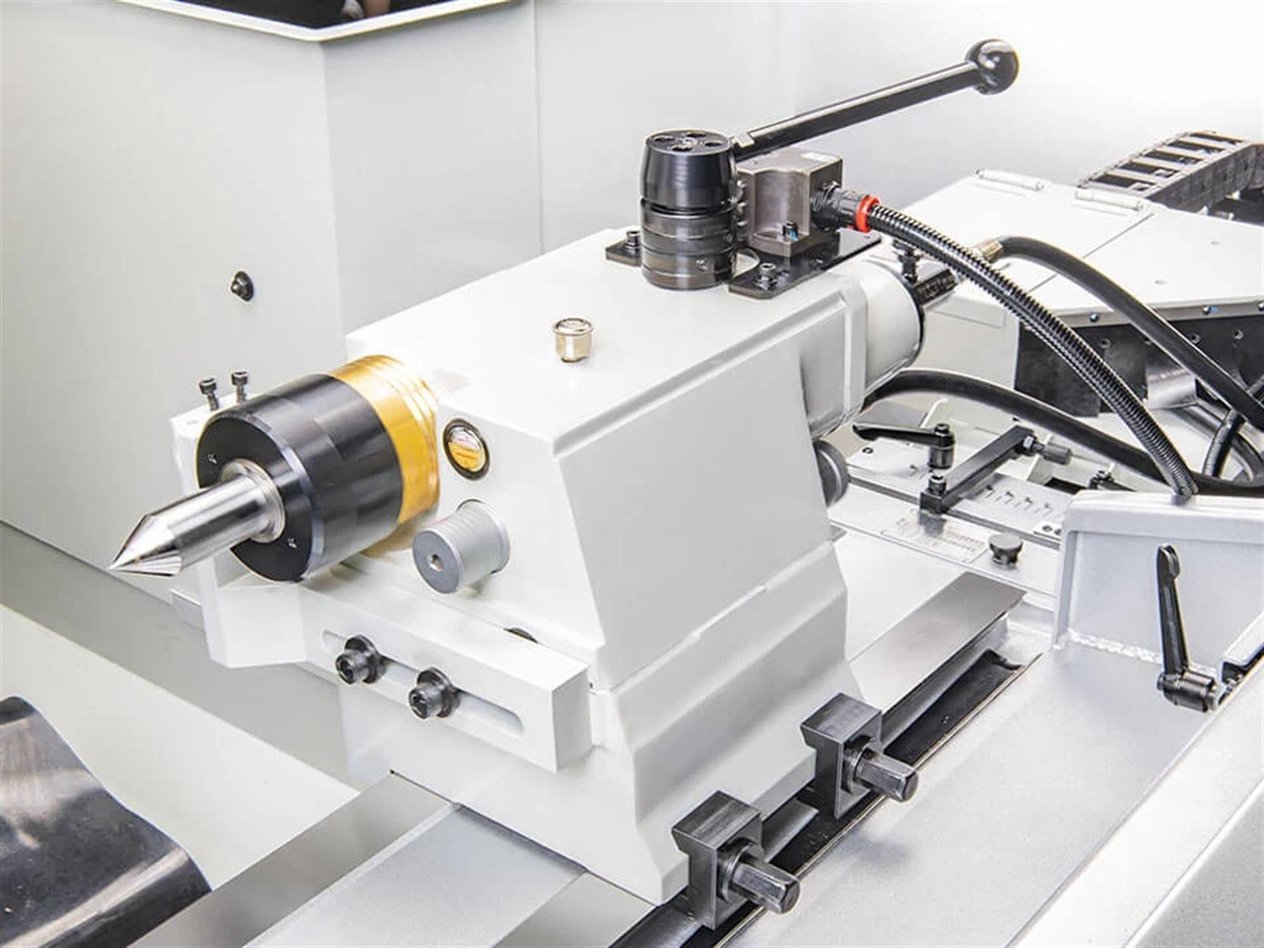

Tailstock
Center taper	M.T. No. 4
Stroke	25 mm
Fine adjustment range	±0.03 mm
Motor
Wheel spindle	5.5 kW (6P)
Workhead spindle (AC Servo Motor)	1.5 kW kW (4P) Frequency
Wheelhead feed (AC Servo Motor)	1.2 kW
Table feed (AC Servo Motor)	1.8 kW
Hydro-static hydraulic pump	0.37 kW (4P)
Wheel spindle lubrication pump	0.37 kW (4P)
Coolant pump	0.18 kW (2P)
Ballscrew lubrication	Auto lubricator (LUBE)
Power
Total voltage	18 KVA
Tank
Wheel spindle lubrication tank	31 L
Lubrication tank	31 L
Hydraulic tank	31 L
Ballscrew lubrication tank	0.7 L
Coolant tank	120 L
Machine weight
New weight	4300 kgs
