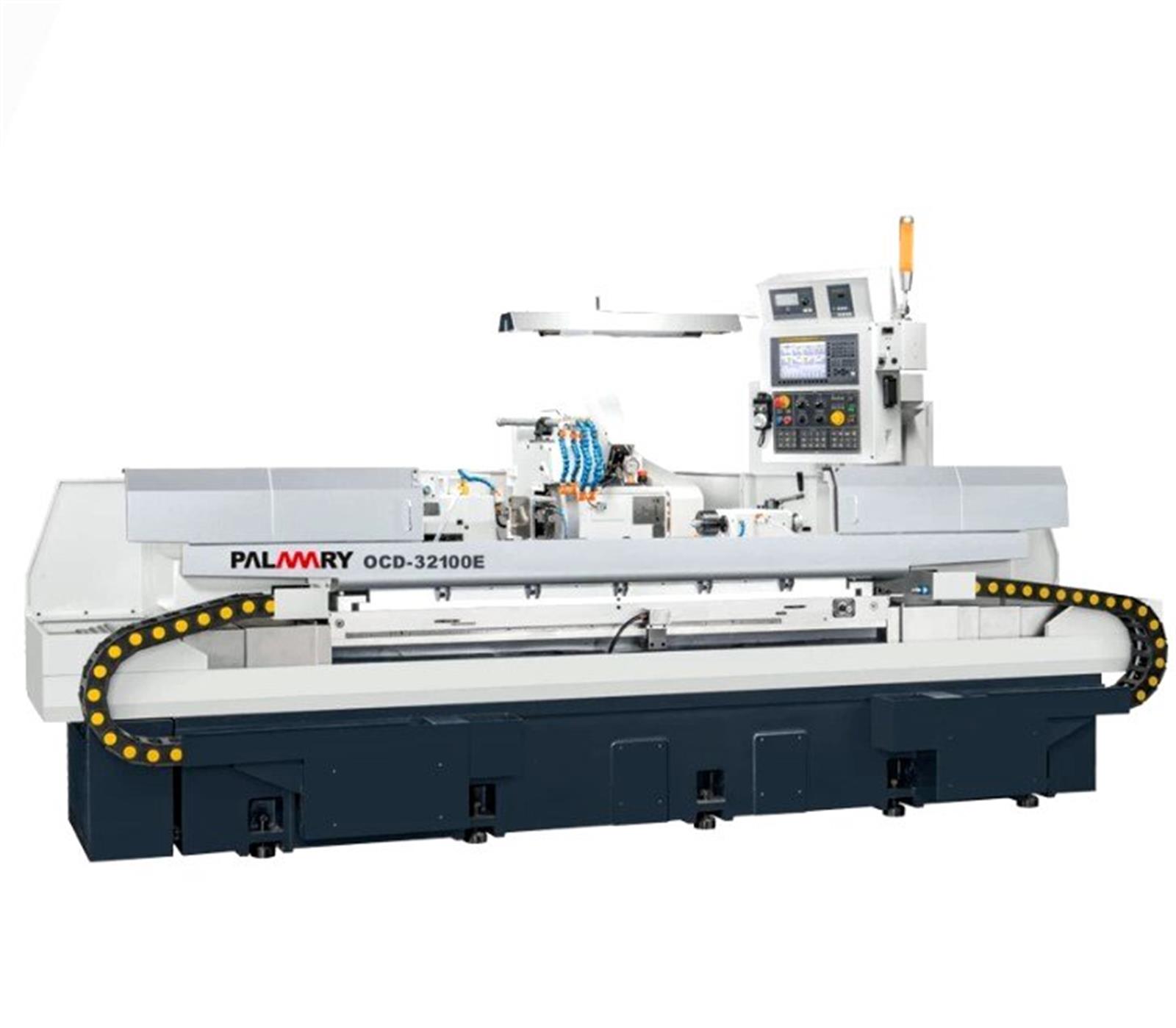

Palmary OCD-32100E Special Purpose Cylindrical Grinder (OCD-32100E)

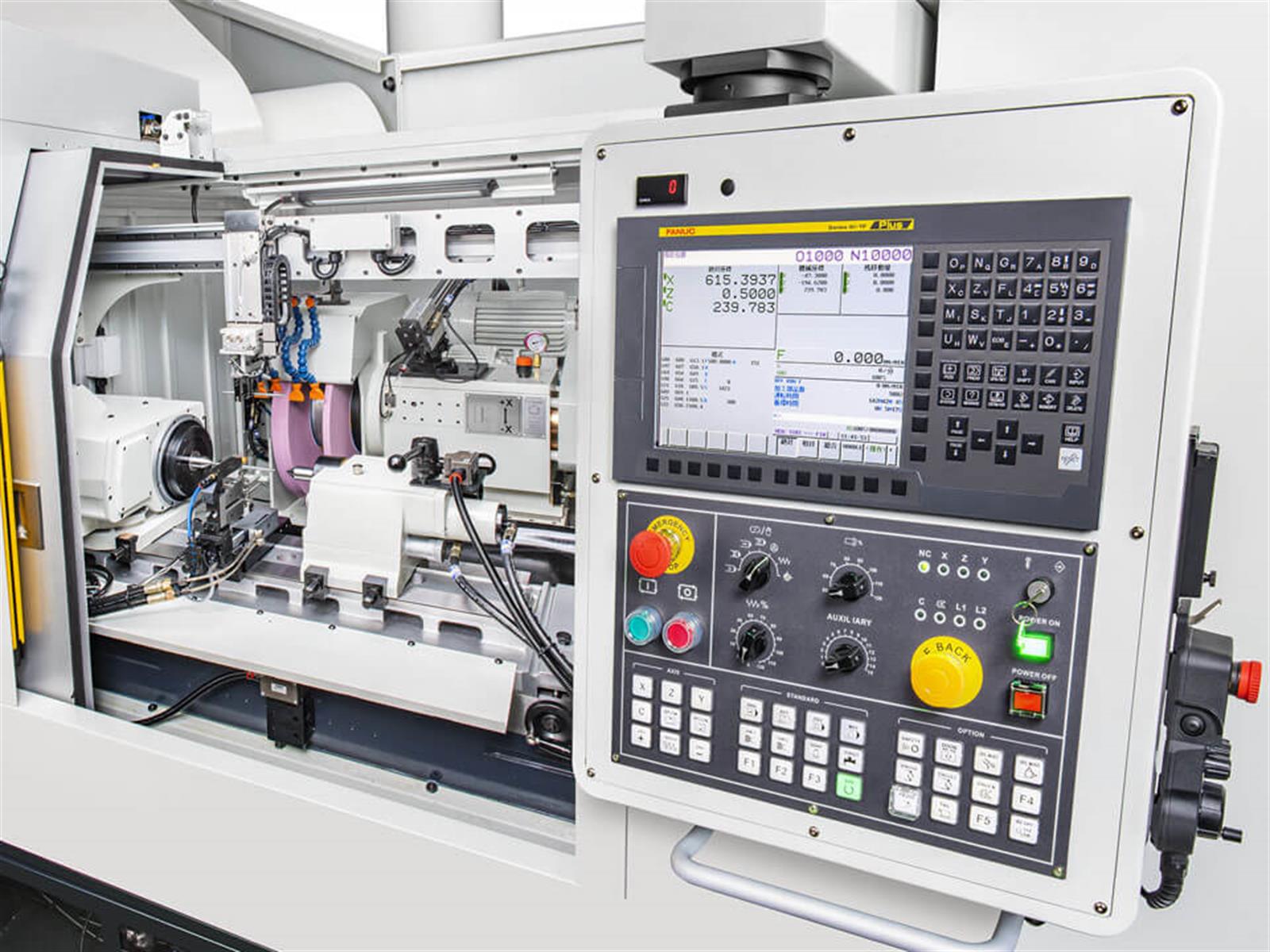

FANUC CNC controller x 1
Grinding wheel and flange x 1
Diamond tool holder (tailstock mounted type) x 1
Micro adjustment tailstock x 1
Linear scale (for X axis) x 1
Carbide tipped work centers (2 pcs/set) x 1
Electric system x 1
Hydraulic tank with pump x 1
Coolant tank with pump x 1
Work lamp x 1
Tools (Leveling pad) and tool box x 1

Spare grinding wheel and grinding wheel flange
Fully enclosed splash guard x 1
Internal grinding attachment
Hydraulic tailstock
Cam locked driving dogs (6 pcs/set)
Work holder (2 pcs / set)
2-point steady rest
Adjustable 3-point steady rest
Adjustable 3-jaw scroll chuck
Adjustable 4-jaw chuck
Wheel balancing stand and arbor
Auto. grinding wheel balancer
Touch probe gauge
Auto. matic in-process gauge
Gap control
Magnetic coolant separator with paper filter
Paper filter
Oil mist collector

Model	OCD-32100E
Capacity
Swivel over table	Ø320 mm
Distance between centers	1000 mm
Max. external grinding diameter	Ø300 mm
Max. load of centers	500 kgs
Grinding wheel
O.D. x width x I.D.	Ø510 x 50 x Ø203.2 mm
Linear velocity	33 M/s
Grinding wheel - X axis
Auto. rapid advance	6 m/min
Max. stroke	400 mm
Min. setting unit	0.0001 mm
Table - Z axis
Auto. rapid advance	6 m/min
Max. stroke	1400 mm
Min. input increment	0.0001 mm
Swivel angle	-2°～9°
Work spindle head
Swivel angle	0° (Fixed Type)
Center taper	M.T. No. 4
Spindle speed (variable)	0~300 r.p.m.
Max. load of spindle (tool holder included)	500 kgs
Tailstock
Center taper	M.T. No. 4
Stroke	60 mm
Fine adjustment range	±0.03
Motor
Wheel spindle	7.5 kW (10HP x 4P)
Workhead spindle (AC Servo Motor)	1.5 kW (2HP x 4P)
Wheelhead feed (AC Servo Motor)	1.8 kW (β12-3000is)
Table feed (AC Servo Motor)	1.8 kW (β12-3000is)
Hydro-static hydraulic pump	0.37 kW (1/2HP x 2P)
Wheel spindle lubrication pump	0.18 kW (1/2HP x 2P)
Coolant pump	0.75 kW (1/2HP x 2P)
Ballscrew lubrication	Auto lubricator (LUBE)
Power
Total voltage
Tank
Wheel spindle lubrication tank	31 L
Lubrication tank	31 L
Hydraulic oil tank for opt. accessory	31 L
Coolant tank	60 L
Machine weight
New weight	4500 kgs
