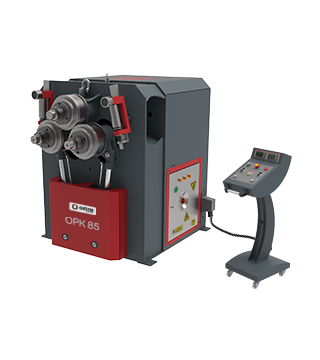

Ostas OPK-85 3 Rolls Hydraulic Profile Bending Machine (Ostas OPK-85)

Brand : Ostas

Price : 12.375,00 EURO(Vat included)

Stock Amount : 0

Delivery Time 45-60 Days After O.C.

Shipment Place Turkiye

Payment Terms % 50 T/T On O.C., % 50 T/T B.S.

Made In Turkiye

Min. Order Qty. 1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Artır Azalt

• Steel construction welded body
• 3 rollers driven
• Hardened rolls
• Shafts hardened and ground from special high-quality material
• Movable control panel separate from the body
• Horizontal and vertical working position
• 2 axis mechanical by hand lateral angle guide rolls
• Digital display 2 pieces
• Precise bending with braked motor

• Pipe and Profile curling rolls
• Double speed

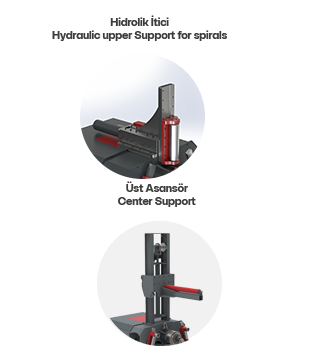

• Hydraulic movable side supports (3-axis)
• Automation with NC control

Model	OPK-85
Engine Power (kw)	4
Roll Rolls (Ø mm)	245
Shaft/Shaft (Ø mm)	80
Working Speed (m/min)	6
Machine Size W X L	1030x1460x1350
Weight (kg)	1550

BENDING CAPACITIES
NO	Profile Type	OPK 85		Note
		Size	Min Dia.
1		100X20	2000	Standard Rolls
		80X20	800
		30X10	300
2		125X25	600	Standard Rolls
		60X5	300
3		45X45	500	Standard Rolls
		15X15	380
4		Ø50	500	Optional Rolls
		Ø15	380
5		Ø100X2,5	1200	Optional Rolls
		Ø15X1	380
6		Ø3"X5,48 Ø1/2"X2,77	800	Optional Rolls
			380
7		80X25X3	1200	Optional Rolls
		25X15X2	350
8		70X3	1400	Optional Rolls
		25X2	350
9		80X80X8	800	Optional Rolls
		30X30X3	400
10		70X70X7	700	Optional Rolls
		30X30X3	450
11		80X9	800	Standard Rolls
		25X3,5	450
12		70X8	800	Standard Rolls
		25X3,5	280
13		80X9	800	Optional Rolls
		30X4	280
14		UPN 140	1600	Standard Rolls
		UPN 120	900
		UPN 100	800
15		UPN 140	1600	Standard Rolls
		UPN 120	1000
		UPN 100	800
16		IPN 120	600	Optional Rolls
		IPN 80	400
