• 2 roller balls were driven by the gear system from the reducer.
• Steel construction body
• Upper shaft moves idle
• Roller balls are hardened
• Roller shafts are hardened and ground from special steel
• Standard 1 set of roller balls
• Adjustable side supports
• Horizontal and vertical working
• Mobile control panel
• Compliance with CE standards

• Special rolls for Pipe and Profile
• Double speed
• Angle bending rolls
• Special side supports for angle iron
• Precise bending with braked motor

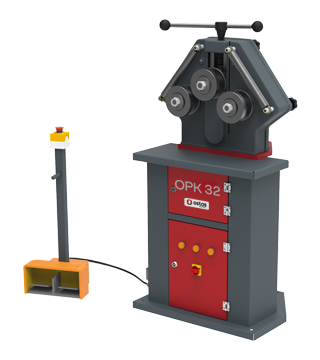

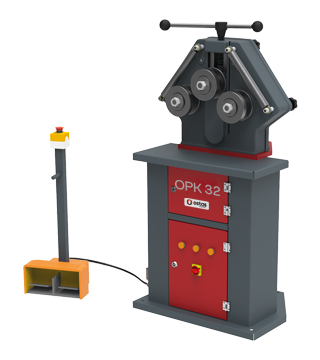

Model	OPK-32
Engine Power (kw)	0.75
Roll Rolls (Ø mm)	138
Shaft/Shaft (Ø mm)	30
Working Speed (m/min)	4
Machine Size W X L (mm)	676x526x1400
Weight (kg)	210

BENDING CAPACITIES
NO	Profile Type	OPK 32		Note
		Size	Min Dia.
1		5 0 x 1 0	1800	Standard Rolls
		2 0 x 6	300
2		8 0 x 1 5	900	Standard Rolls
		3 0 x 6	4 0 0
3		25 x 25	900	Standard Rolls
		1 0 x 1 0	2 0 0
4		Ø 3 0	1000	Optional Rolls
		Ø 1 0	2 0 0
5		Ø 6 0 x 1,5	1000	Optional Rolls
		Ø 2 5 x 1 , 5	6 0 0
6		1 1 / 2 ” x 2 , 9	700	Optional Rolls
		1 / 4 ” x 1 , 8	3 0 0
7		5 0 x 3 0 x 3	1 2 0 0	Optional Rolls
		4 0 x 2 0 x 2	8 0 0
8		4 0 x 3	1 2 0 0	Optional Rolls
		3 0 x 2	8 0 0
9		4 0 x 4 0 x 5	700	Optional Rolls
		3 0 x 3 0 x 4	400
10		40 x 40 x 5	700	Optional Rolls
		3 0 x 3 0 x 4	400
11		5 0 x 6	700	Standard Rolls
		2 0 x 3	4 0 0
12		5 0 x 6	700	Standard Rolls
		2 0 x 3	4 0 0
13		5 0 x 6	700	Standard Rolls
		2 0 x 3	4 0 0
