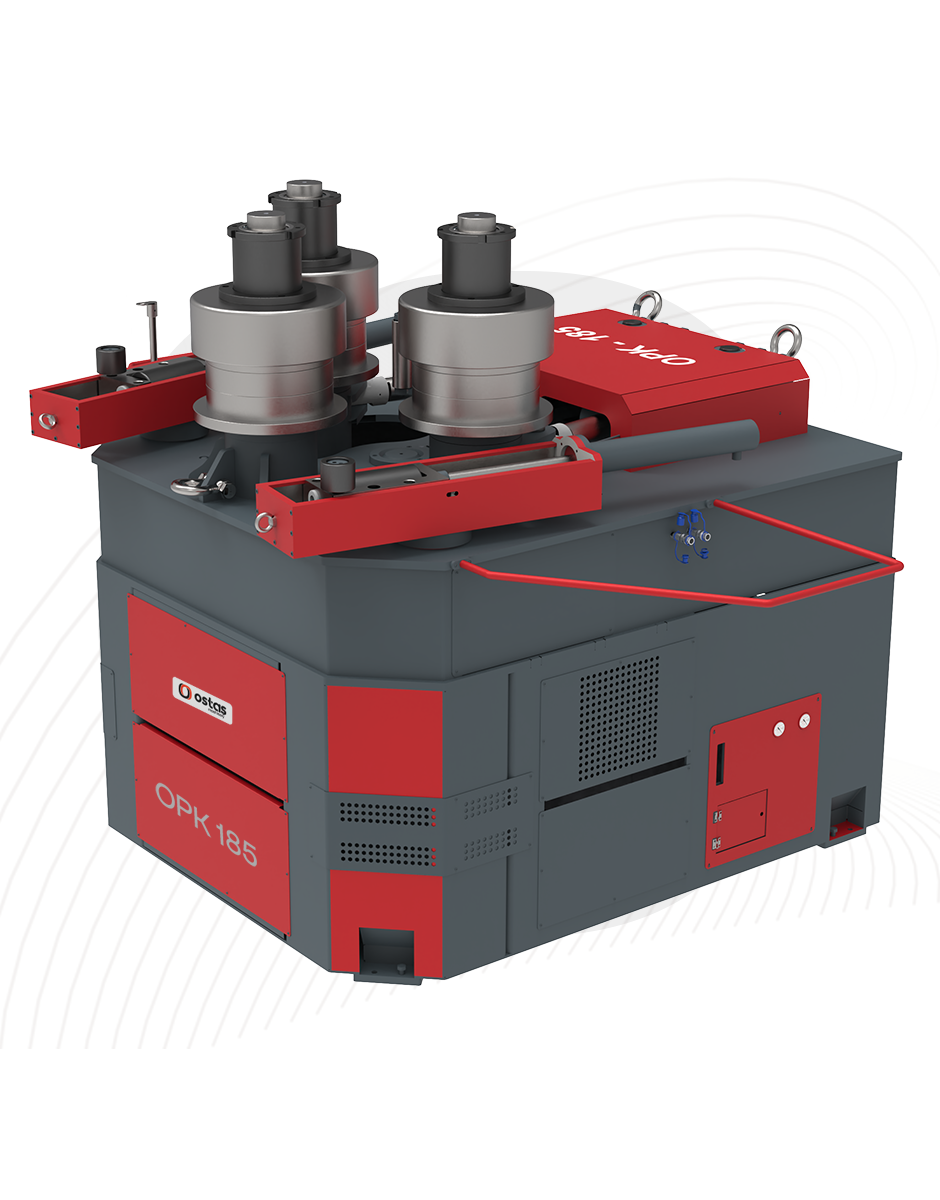

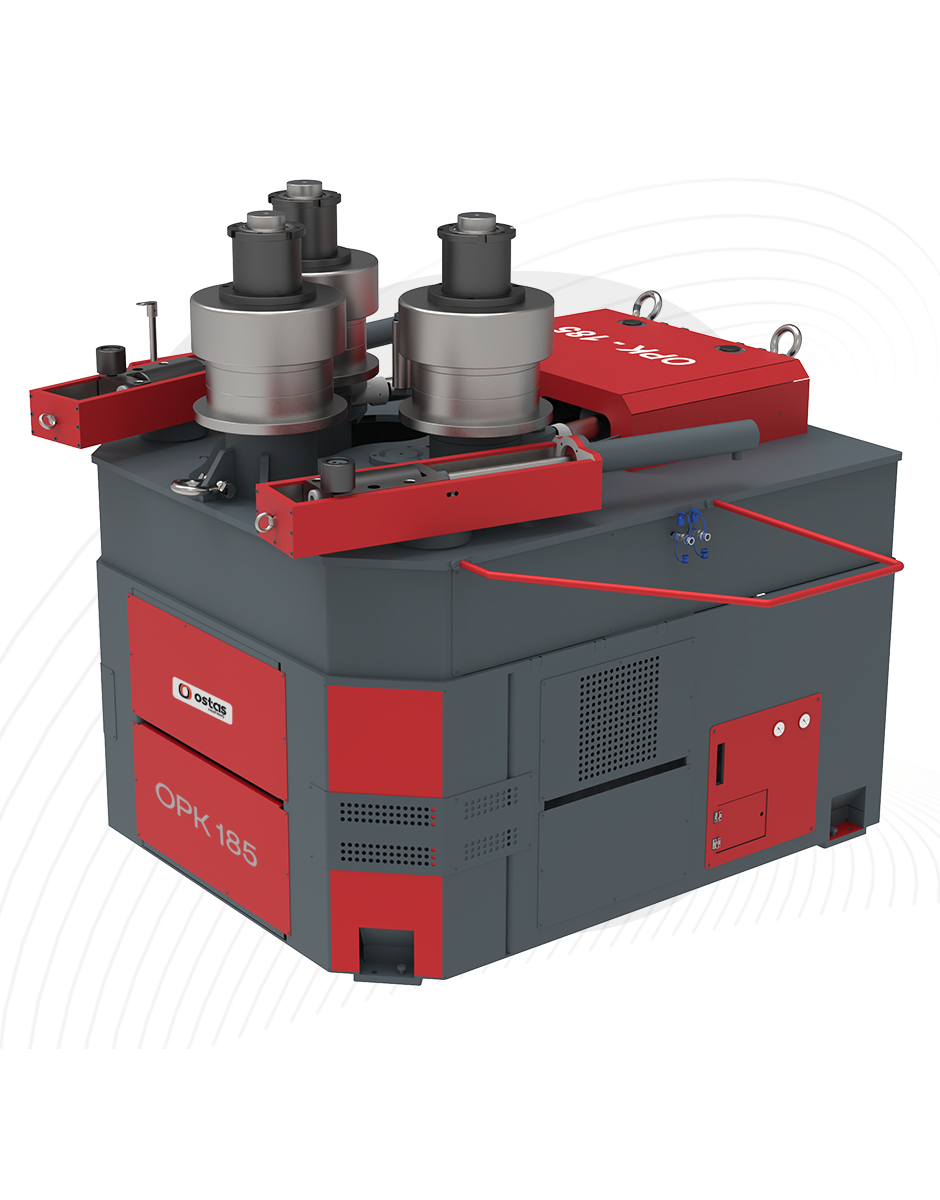

Ostas OPK-165 Rolls Hydraulic Profile Bending Machine (Ostas OPK-165)

Brand : Ostas

Price : 75.600,00 EURO

Stock Amount : 0

Delivery Time 45-60 Days After O.C.

Shipment Place Turkiye

Payment Terms % 50 T/T On O.C., % 50 T/T B.S.

Made In Turkiye

Min. Order Qty. 1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Artır Azalt

• Steel construction welded body
• 3 roller balls are driven by hydromotor and planetary reducers (Each ball is driven by 3 separate planetary reducers)
• Hardened rolls
• Hardened and ground products made of special high quality materials
• Movable control panel separate from the body
• 3-way hydraulic side supports
• Digital display 2 pieces
• Double speed operating system
• Horizontal working position only

• Automation with NC control
• Pulling apparatus
• Rolls for pipes and special profiles
• Stepless hydraulic speed adjustment system

Model	OPK-165
Engine Power (kw)	22
Roll Rolls (Ø mm)	500
Shaft/Shaft (Ø mm)	160
Working Speed (m/min)	3-6
Machine Size W X L	2400x2550x2650
Weight (kg)	9680

BENDING CAPACITIES
NO	Profile Type	OPK 165		Note
NO	Profile Type	Size	Min Dia.	Note
1		150x50	1500	Standard Rolls
2			1500	Standard Rolls
2		270X50	1500	Standard Rolls
3			1500	Standard Rolls
3		90x90	1500	Standard Rolls
4		Ø90	1800	Optional Rolls
5		Ø150X4	6000	Optional Rolls
6		Ø6"X7,11	3500	Optional Rolls
7		150x50x5	4500	Optional Rolls
8		120X6	4000	Optional Rolls
9		150X150X18	4000	Optional Rolls
10		140X140X14	5000	Optional Rolls
11		150X15	2000	Standard Rolls
12		130X15	2500	Standard Rolls
13		150X15	2000	Optional Rolls
14		UPN 280	2000	Standard Rolls
15		UPN 280	3000	Standard Rolls
16		IPN 300	3000	Optional Rolls
17		HEB 180	3000	Optional Rolls
18		UPN 180	11000	Optional Rolls
19		IPN 180	4500	Optional Rolls
20		HEB 120 HEA 160	4000 6000	Optional Rolls
