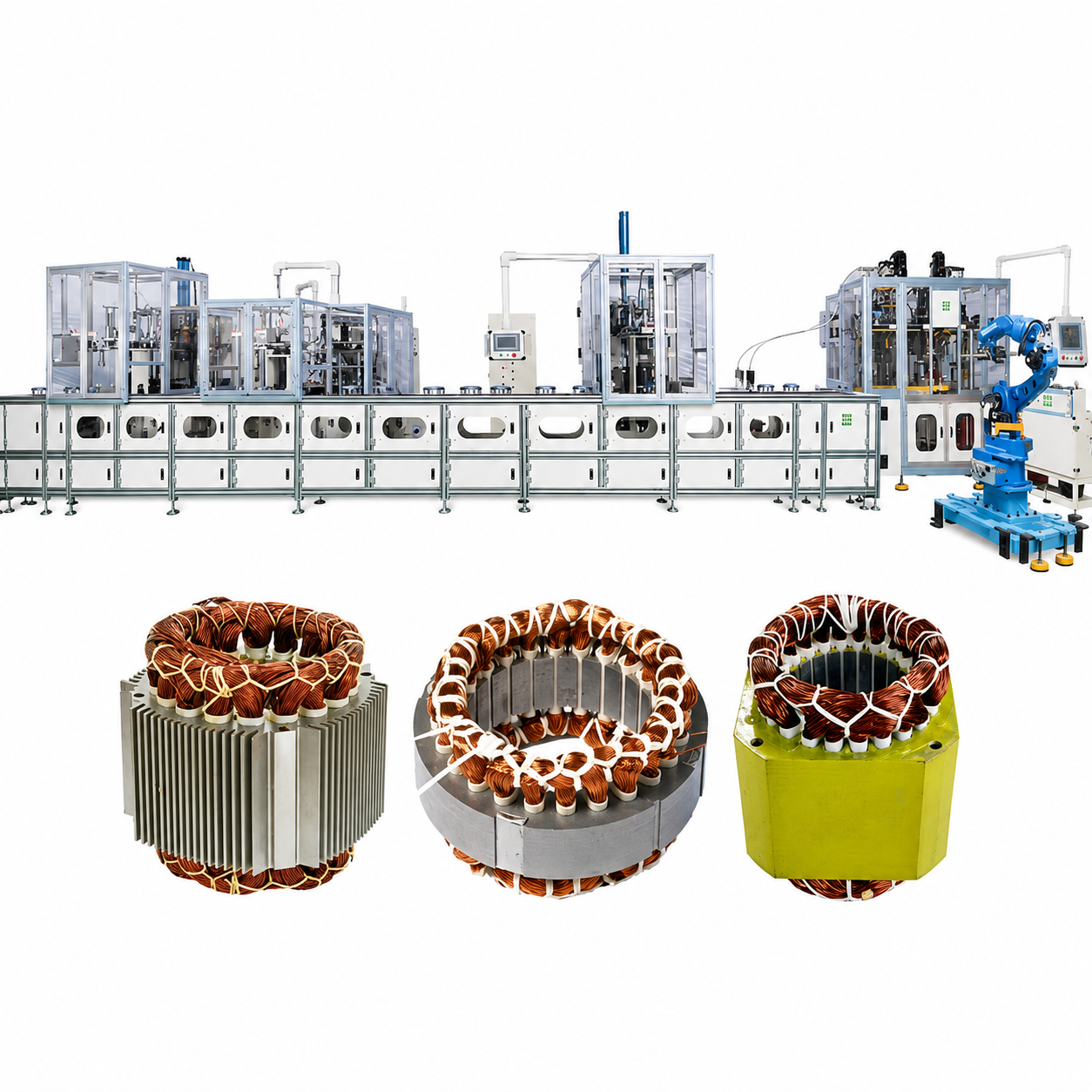

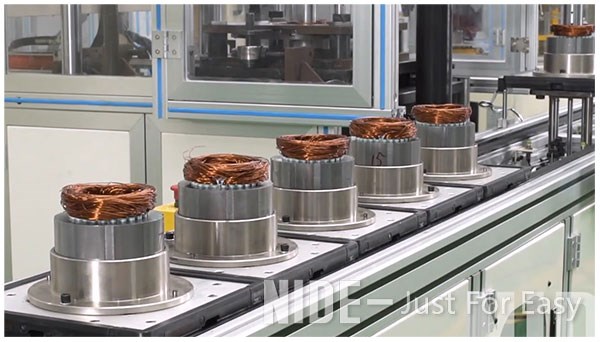

The Fully Automatic Three-Phase Motor Stator Production Line offers a cutting-edge solution for modern motor manufacturers seeking automation, efficiency, and scalability. The integration of mobile app-based remote control enables real-time monitoring and operational adjustments from anywhere, enhancing flexibility and ease of use.
This automated line is especially suitable for high-volume washing machine stator assembly, table fan stators, BLDC stators, and other three-phase motor stator applications.
Fully Automated Workflow: Includes insulation paper inserting, coil winding and inserting, lacing, and forming—streamlining production and reducing labor dependency.
Mobile App Control: Enables remote monitoring, fault diagnosis, and real-time parameter settings via smartphone.
High Production Efficiency: Optimized for mass production with fast cycle times and minimal downtime.
Precision Manufacturing: Servo-driven systems ensure coil accuracy, clean insertion, and consistent quality.
Customizable Operation: Parameters adjustable per stator model through a user-friendly HMI interface.

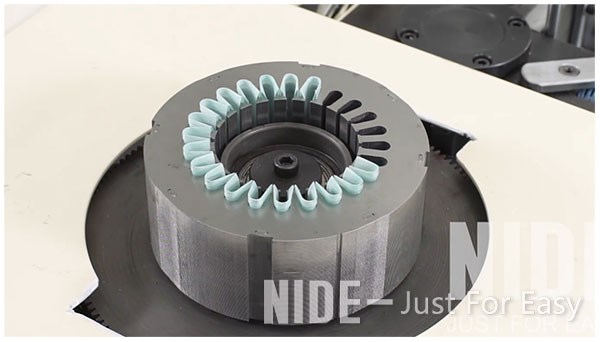

Slot Paper Inserting Machine Inserts insulation paper into stator slots with high precision.

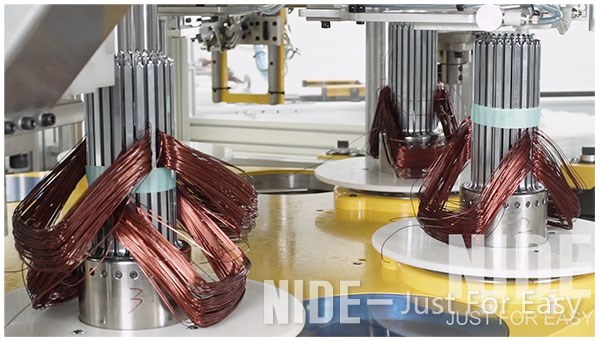

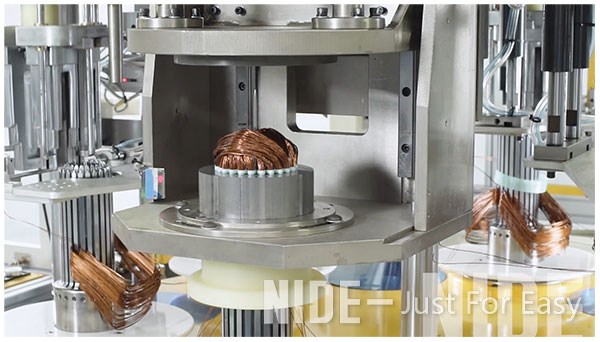

Coil Winding and Inserting Machine Performs automated coil winding and insertion, supporting parallel wires and multiple pole configurations.

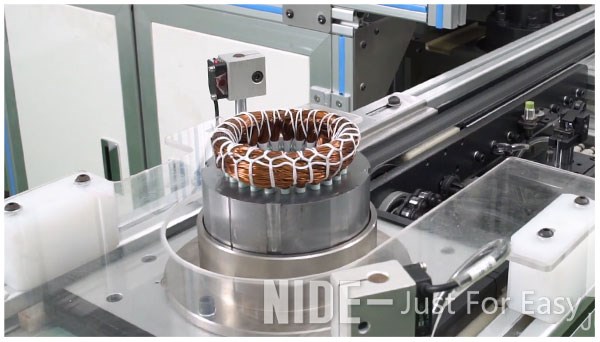

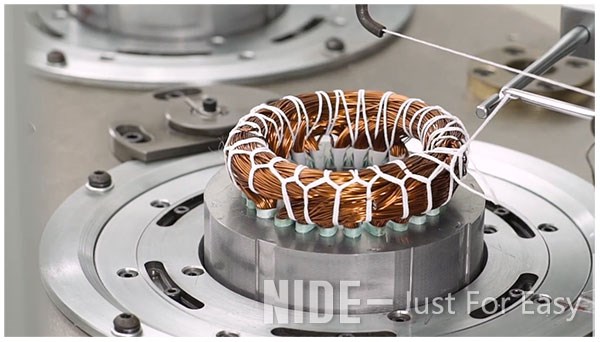

Stator Coil Lacing Machine Secures the windings using Mylar wedges with programmable spacing.

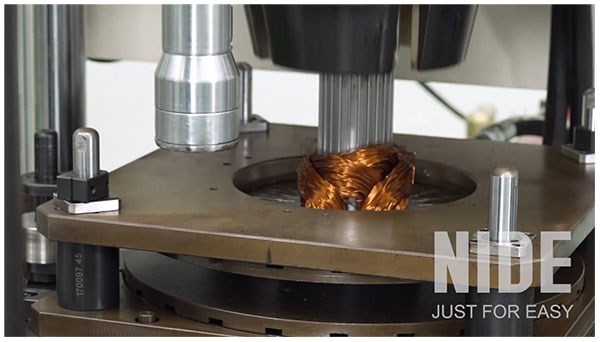

Stator Coil Forming Machine Shapes the stator to exact specifications without damaging the winding.
Flyer Swing Diameter: 240 mm
Stack Length: ≤90 mm
Stator Outer Diameter: ≤150 mm
Winding Speed: ≤2200 RPM
Number of Wire Jumps: 2–4 Sections
Wire Diameter: 0.18–1.2 mm
Parallel Winding Wire Number: ≤2
Air Pressure Requirement: 0.5–0.6 MPa
Power Consumption: 14 kW
Machine Weight: 4000 kg
Operating Temperature: -10°C to 60°C
Machine Dimensions: 2700 mm (L) × 2300 mm (W) × 2200 mm (H) (Including Wire Barrel)
1. Automatic Stator Coil Winding and Inserting Machine
2. Automatic Coil Lacing Machine
3. Automatic Coil Forming Machine
This production line is ideal for:
