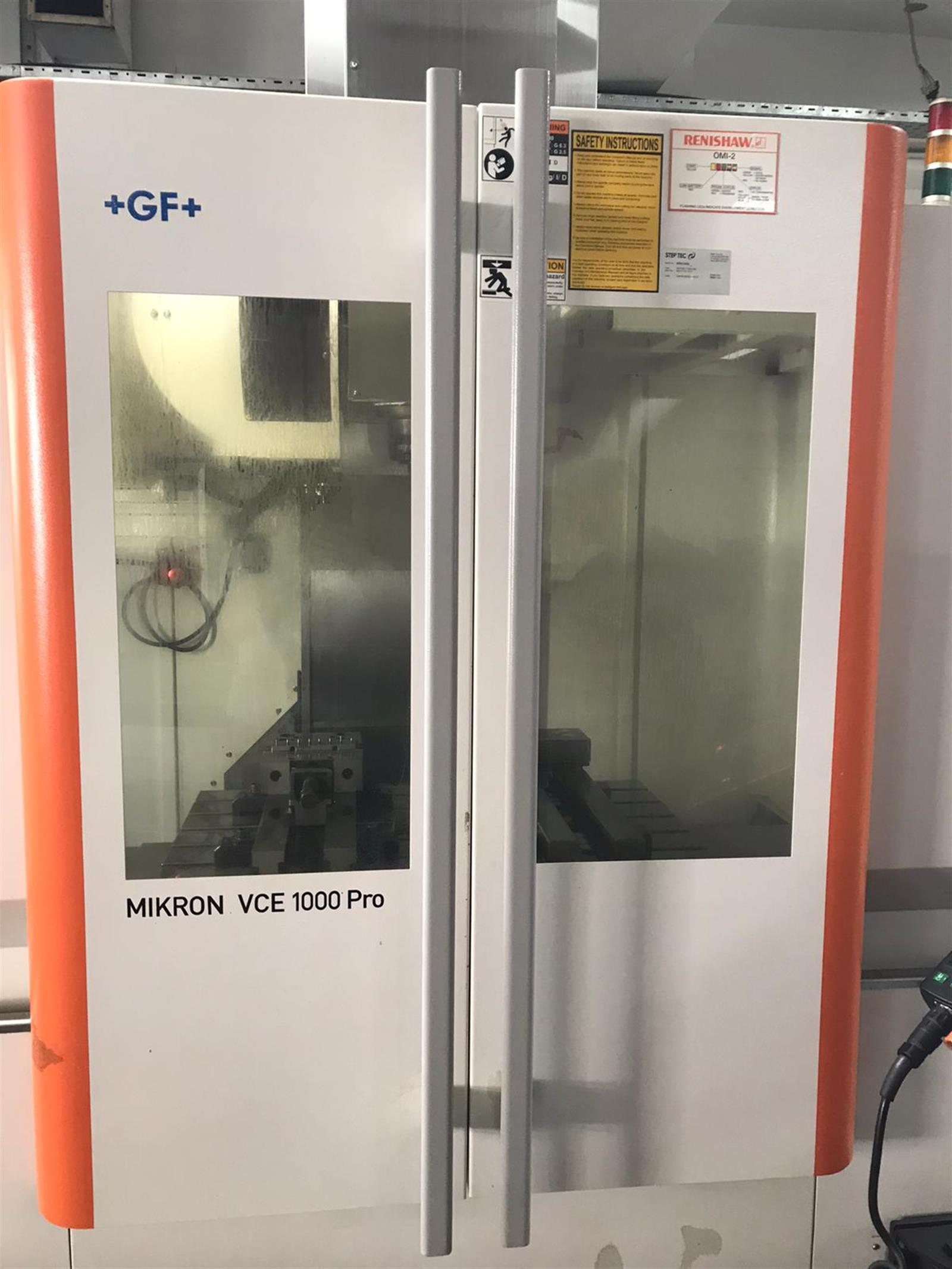

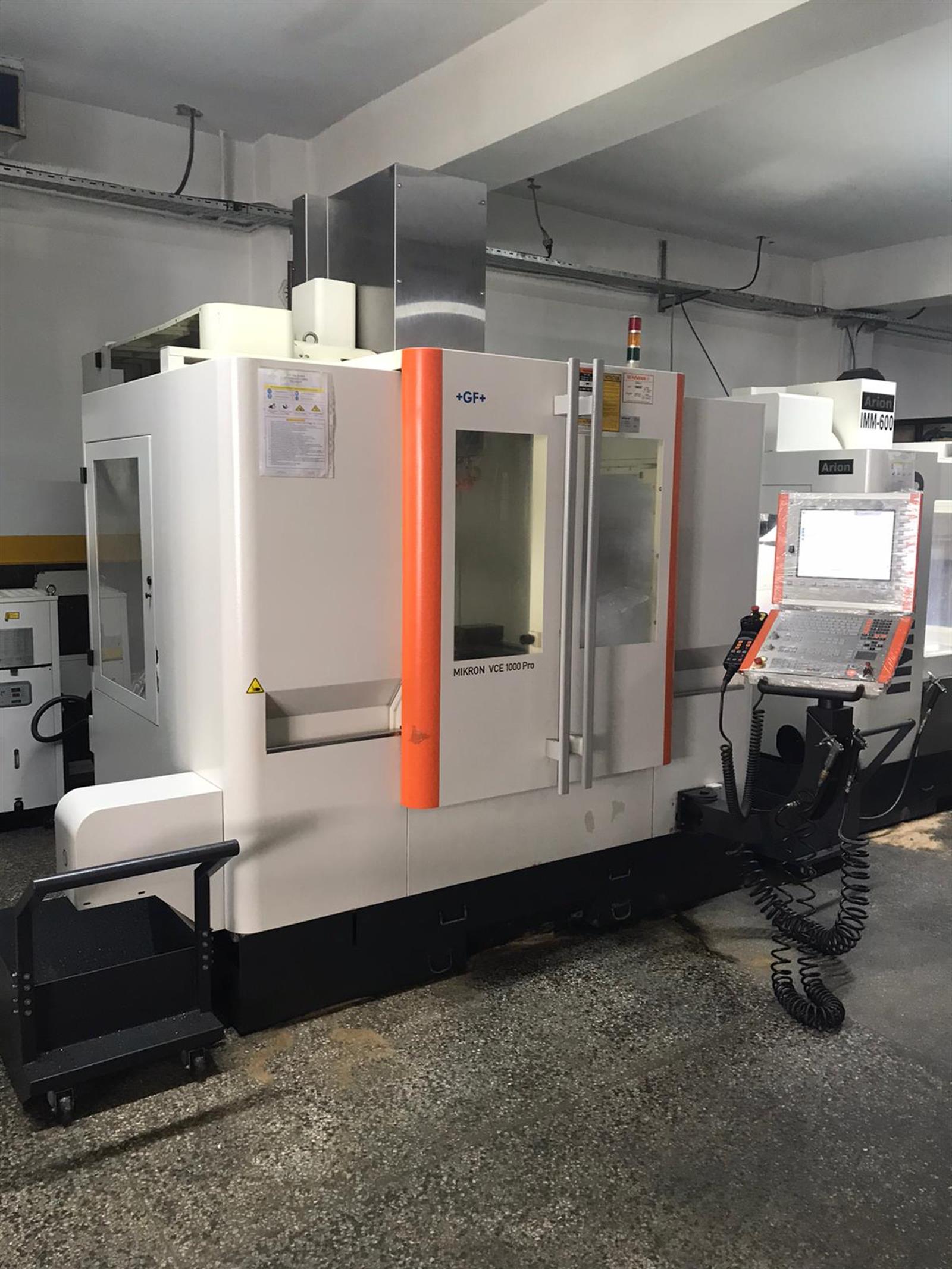

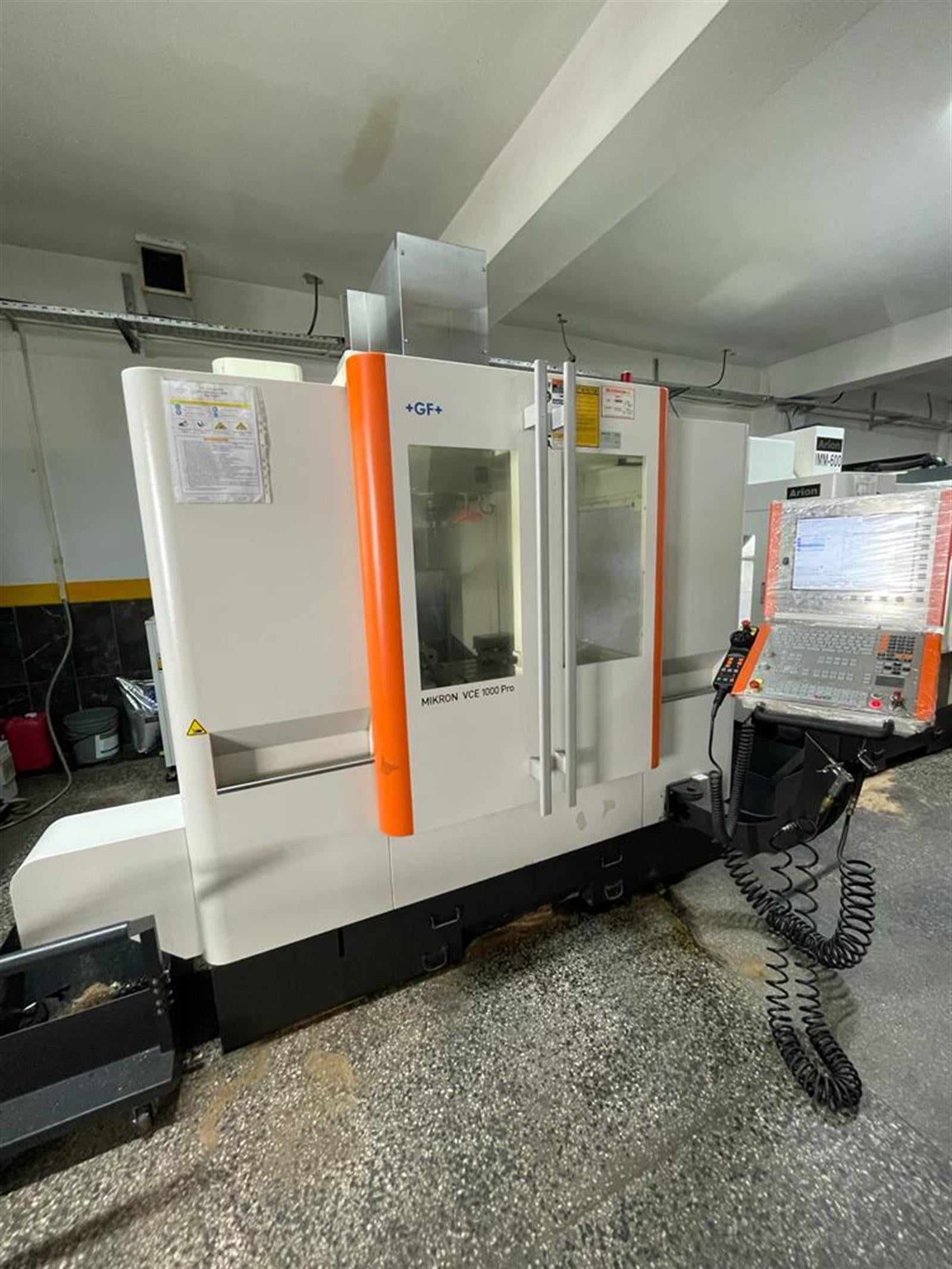

Mikron VCE 1000 Pro CNC Vertical Machining Center (Mikron VCE 1000 Pro CNC Vertical Machining Center)

spindle speed: 16,000 rpm(steptec switzerland)
spindle taper: hsk-a63
x axis movement mm : 1020
y axis movement mm : 560
z axis movement mm : 600
x-y axis fast progress(m/min): 40
z axis fast feed (m/min): 40
table dimension (mm): 1000x560
tool magazine: 40 pieces (6 missing ports)

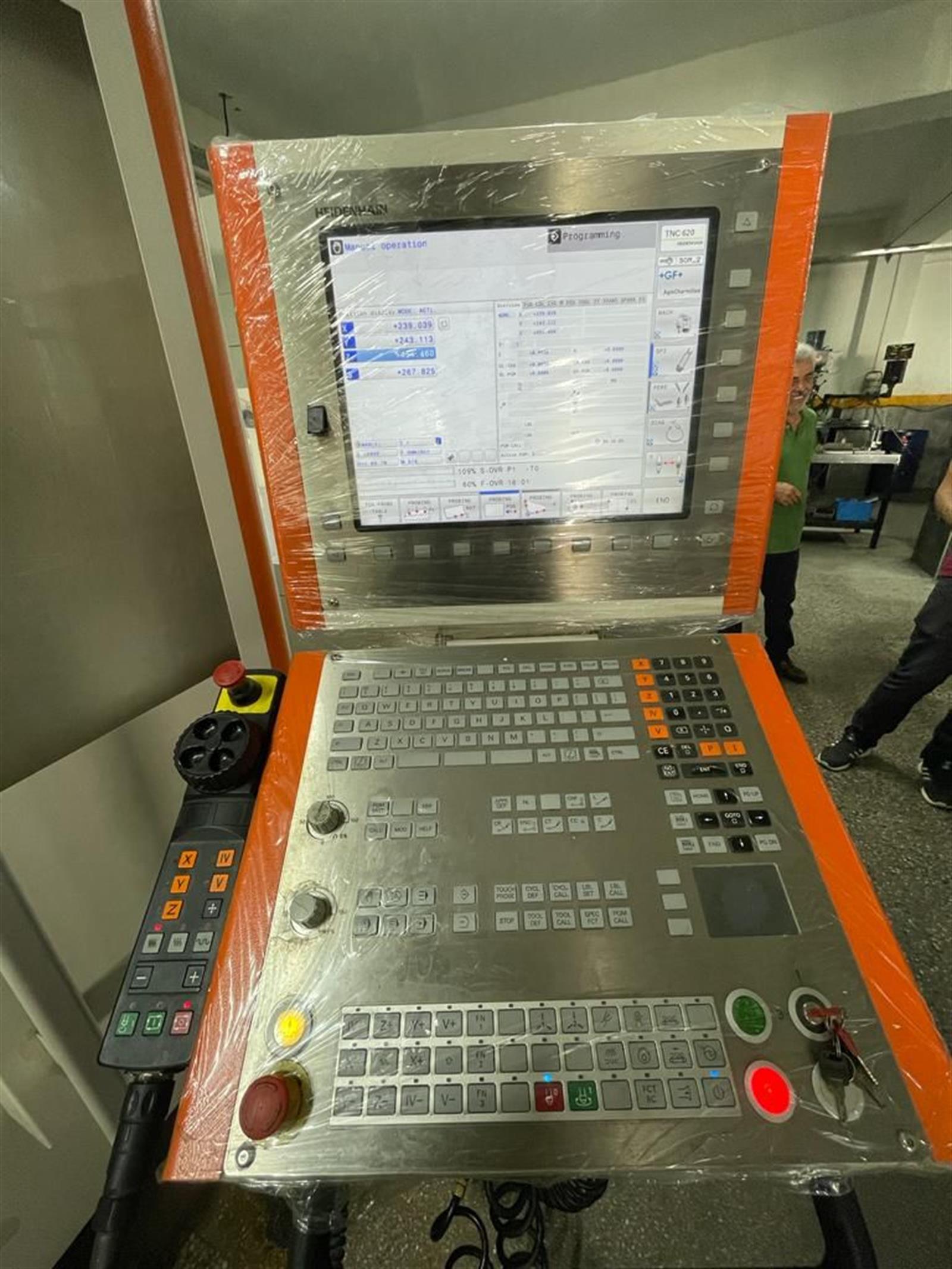

controller: hei̇denhai̇n tnc 620
slide structure: lineal slide (glass table reader)
maximum table load kg : 1350

it has the feature of watering into the tool, it has the feature of air into the tool, there is a renishaw probe
machine spindle working time is 23000 hours. there has not been any release to date. there was no major faults. axis bearings have changed at certain times. the springs inside the spindle have changed. leaf springs have changed. it is original and zero precision like the day it was purchased with spindle. the machine was not into rough chip, precision and finish works have been done. the machine has been maintained on time today. minor problems occuring problems such as valve air leak, hose leakage, lubrication hose oil leakage have been fixed by the service.

Axis X	1020 mm
Axis Y	560 mm
Axis Z	600 mm
Rotary table (4th axis)	no
Type of CNC	Heidenhain
Table length	1000 mm
Table width	560 mm
Max. part weight	1350 kg
Spindle taper	HSK-A63
Max. spindle speed	16000 rpm
-------------------
Weight	6500 kg
Worked hours
Hours under power
State	good
At local norms	yes
Status
