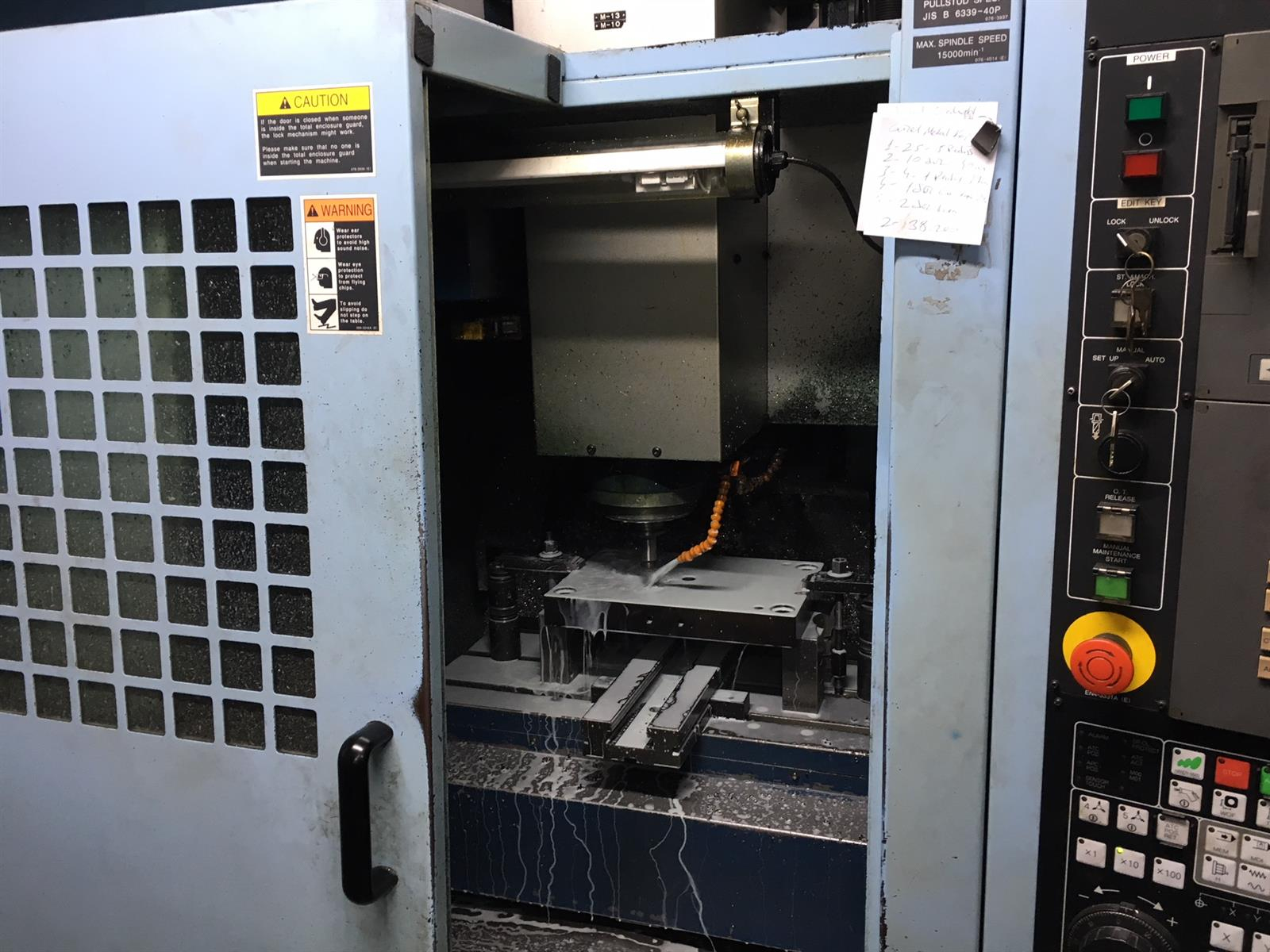

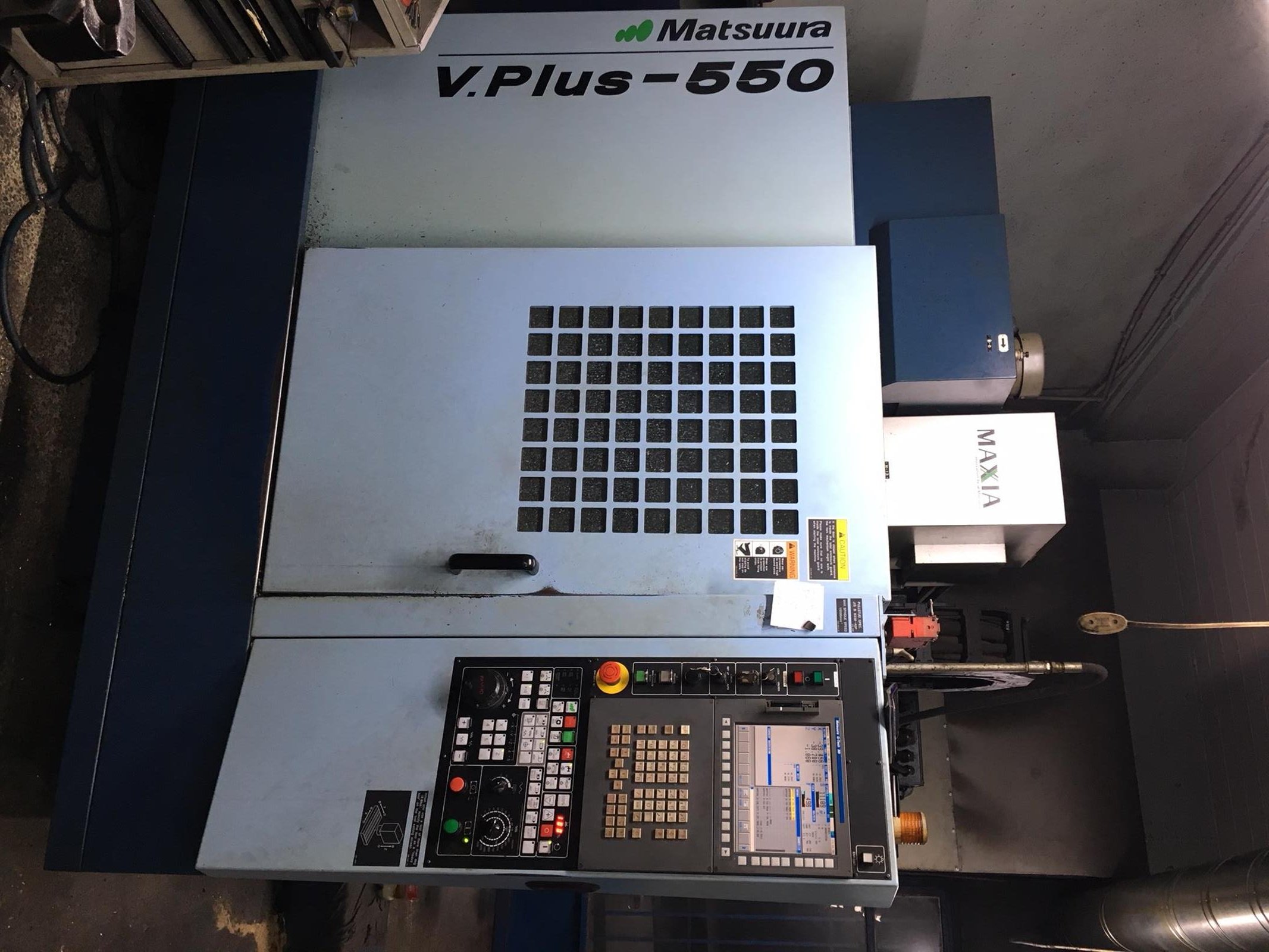

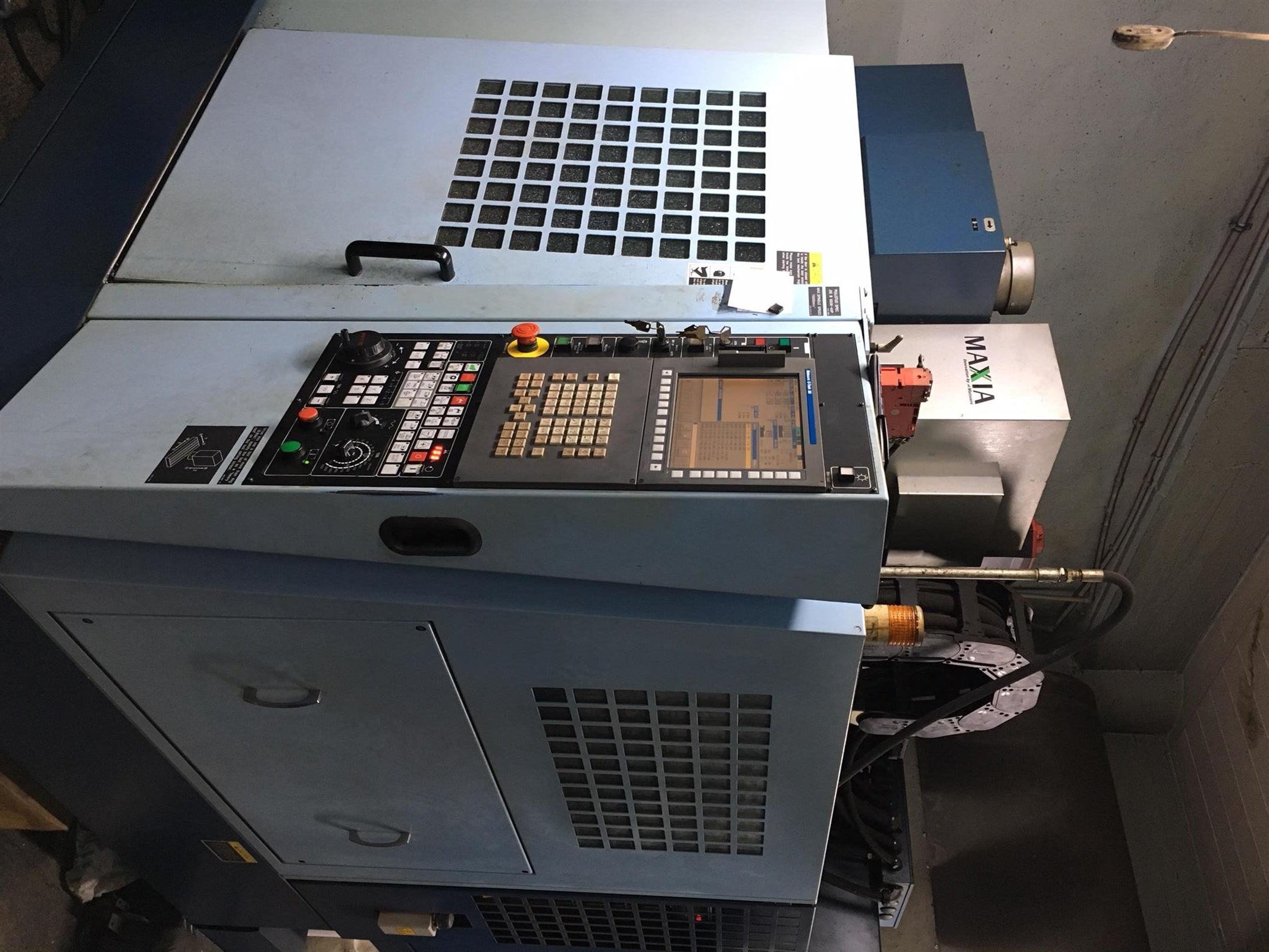

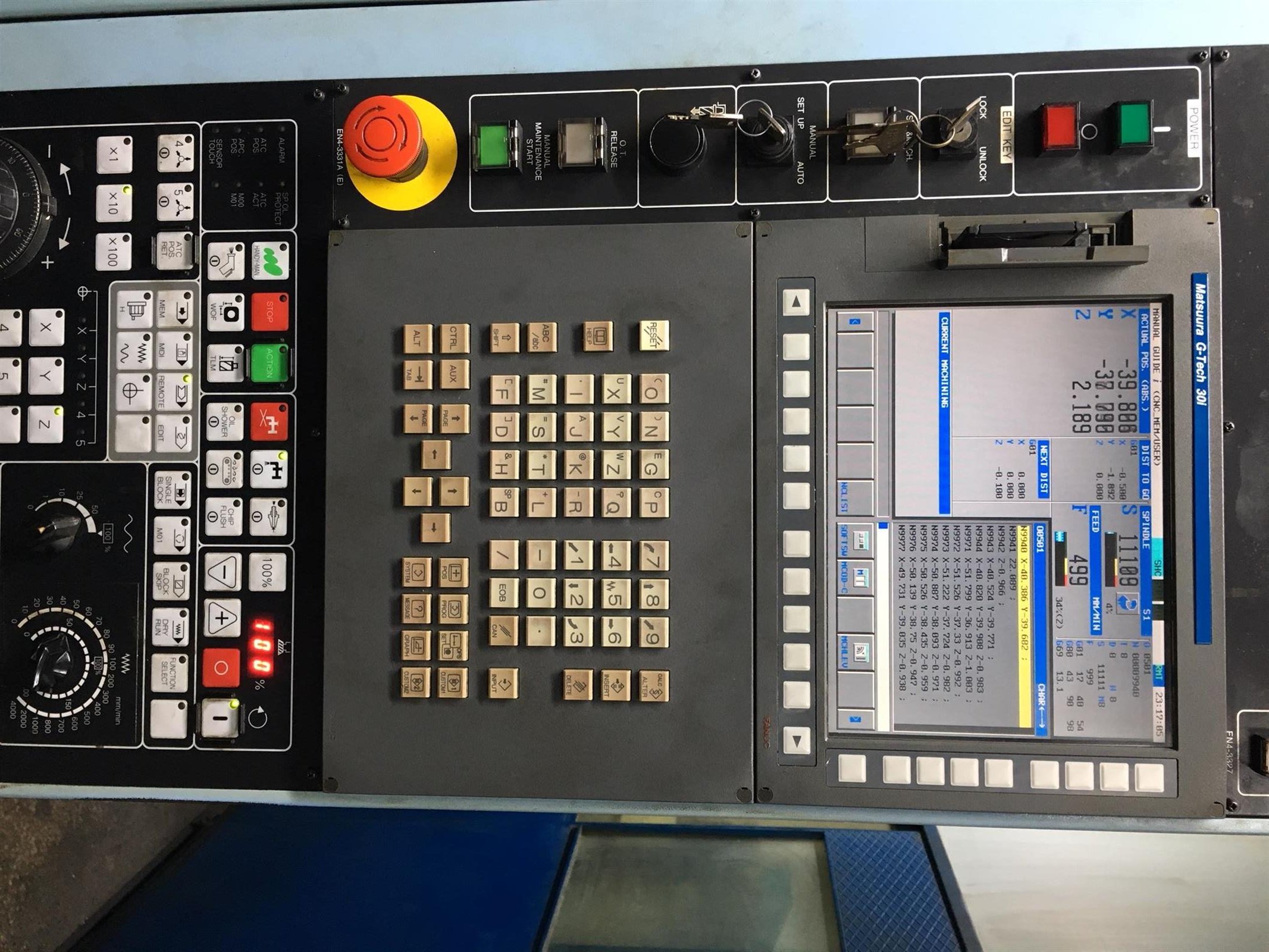

Matsuura V-plus 550 Machining center - vertical

Matsuura V-plus 550 Machining center - vertical (Matsuura V-plus 550 Machining center - vertical)

Brand : Matsuura

Stock Amount : 0

Est. Delivery TimeReady In Stock

Shipment Place Turkiye

Payment Terms% 100 T/T On Order Confirmation

Made In Japan

Min. Order Qty.1 Pcs.

WarrantyNo Warranty

Notify me when the price goes down

Notify me when it is in stock

X: 550
Y : 410
Z : 560
15000 rpm
Machine is in good condition

Axis X	550 mm
Axis Y	410 mm
Axis Z	560 mm
Rotary table (4th axis)	no
Type of CNC
Table length	870 mm
Table width	400 mm
Max. part weight	400 kg
Number of tool pockets	30
Spindle taper	Bt 40
Max. spindle speed	15000 rpm
-------------------
Length x width x height	400.0 × 550.0 × 500.0
Weight	6000 kg
Worked hours
Hours under power
State	in working conditions
At local norms	---------
Status
