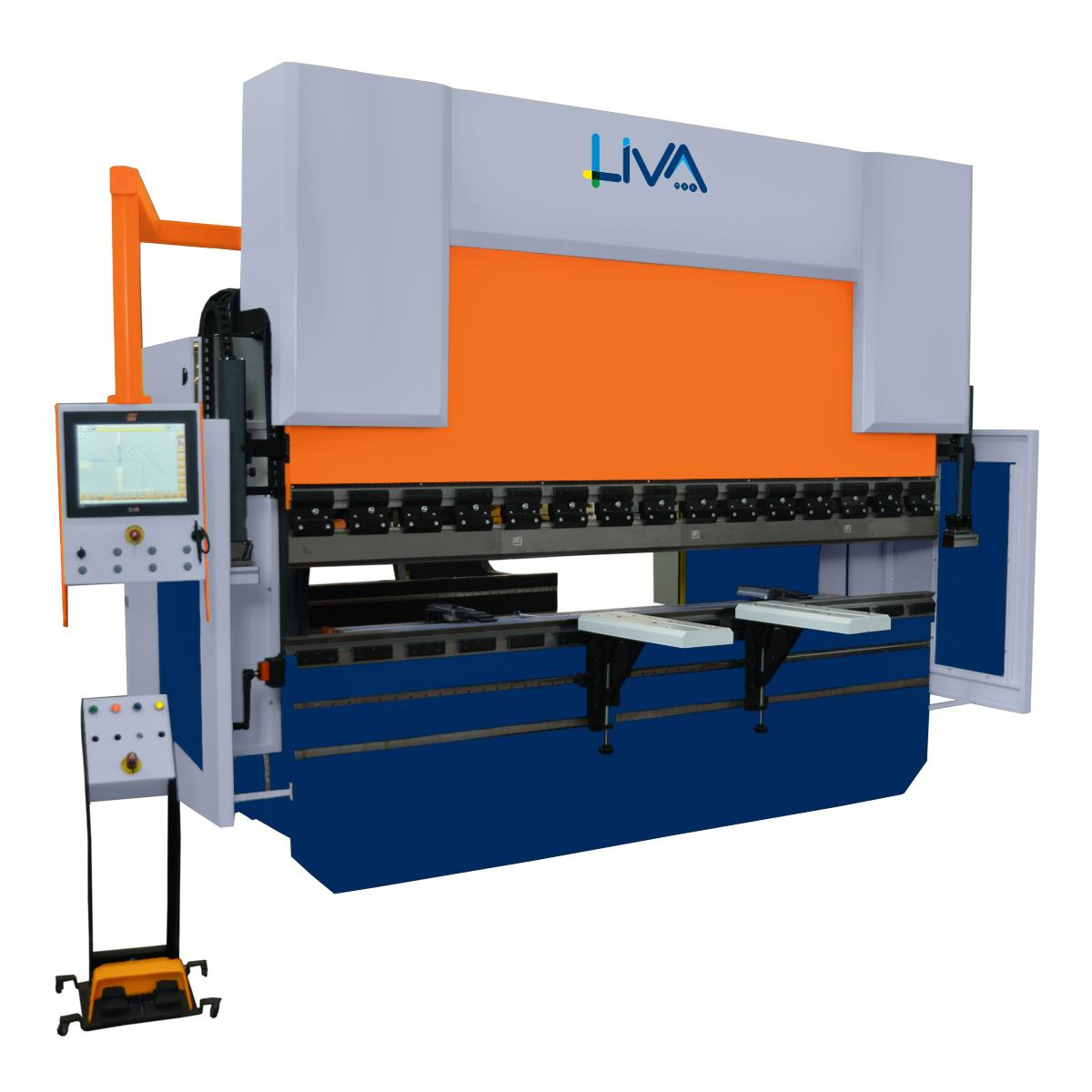

Liva Upgraded 2100x40 Ton Hydraulic Press Brake (Liva Upgraded 2100x40 Ton )

Brand : Liva

Price : 32.754,00 EURO

Stock Amount : 0

Note: The prices shown here are retail sales prices. SPECIAL DISCOUNT MAY APPLY FOR BULK PURCHASES . Additionally, discounted prices offered to dealers may differ.

Import duties, customs charges, and value-added taxes for products originating outside of Turkey are not included in the listed prices. This is applicable to customers purchasing from within Turkey.

The prices mentioned here do not include door-to-door delivery. Buyers purchasing from other countries are responsible for customs duties and any other taxes applicable under their local commercial laws.

For orders under 13,000 Euros, if the product value is below this, the total order value must either reach 13,000 Euros or a 150 Euro customs fee will be added to your final invoice value.

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Artır Azalt

Delivery Time 45 Days After O.C.

Shipment Place Turkiye

Payment Terms % 50 T/T On O.C., % 50 T/T B.S.

Made In Turkiye

Min. Order Qty. 1 Pcs.

Warranty1 Year

Liva Upgraded with standard equipments and functions (described below in detail) and any optional equipment requested by you is presented below for your consideration.

Liva Upgraded is designed and built for production environments that process high volume/low mix products. Liva Upgraded shares the same modular structure with Liva Expanded so customers purchasing Liva Upgraded enjoy a rigid frame machined to 0,01 mm accuracy in single piece with a deep throat and high stroke/daylight that can form large format plates as well as deep box/panels.

Whether you want to form a part by air bending, bottoming or hemming, Liva Upgraded's advanced angle calculation formula, precise servo hydraulic system and electronic linear scales ensure you get the right part every time.

The editable material database on Liva Upgraded lets you add as many material as you want and even allows you to enter the springback of the material so the control can autocorrect angles to compensate for springback

Rigid frame designed on SolidWorks with stress and deflection analysis, welded by certified welders and machined to 0,01 mm precision in single piece.
NexT 2.0 15" 2D graphic touchscreen control with PC Software
High Safety PLC system
500 mm Throat depth
High Stroke and Daylight
Dependable servo hydraulic system provided by Hoerbieger / Hawe
Honed, chrome covered cylinders with high precision ground pistons
Y1-Y2 synchronized hydraulic cylinders running on dual ram guides on each side for smooth ascend and descend.
2 axis premium Servo motorized backgauge (X,R) running on ballscrews and double linear guides with servo motors to easily gauge parts.
European and/or American style quick release punch clamps
European die holder with quick change mechanism.
Side Guards and back photocells for safety
Manual Crowning System (Starting from 2100 mm)
High resolution linear scales with an accuracy of 0,01 mm for precise bending.
Front support arms sliding on linear guides to easily gauge small parts.
Siemens electrical system

We have designed and built Liva Upgraded to have a delicate balance between your budget and your production requirements. With its high stroke and daylight, manual bed crowning, 2D graphic control and two axis backgauge (X+R), it is a very capable press brake from very simple to very complex parts. Easy to set up with its Quick-release punch clamps and sliding front support arms on linear guides, easy to program with its 10” touchscreen 2D control, NexT, Liva Upgraded streamlines your production and helps you make more parts. Please have a look at the following features we have designed and implemented on Liva Expanded and see how we can help you make more parts on your press brake!
Liva Upgraded comes with NexT 2.0, a full fledged 2D graphic control with 15" touchscreen that is very easy to program and to run. After you put in flange lengths and angles of the part you want to bend, NexT will tell you the exact dimension of the sheet you need to cut on your shear or laser and will simulate the optimum bending sequence with minimum rotation of the part and avoiding any collision with tools or the machine

Other notable features of NexT 2.0 are; DXF Tool Import : Every press brake operator knows entering new tools to a CNC control is time consuming and tedious process. We have a solution! Just ask your tool supplier a 2D DXF drawing of the tool you purchase, put it on a USB flash drive and NexT will pull that in and put your new tooling in the tool library. Ten seconds and you are good to go!
You can also easily define multiple tooling station for stage bending and choose which station to use in each bend to realize complex parts with ease.

Production Reports : NexT will keep a production report for each operator defined with details like the duration machine ran for and number of bend cycles performed by the operator. This way production manager can control the productivity level of the press brake just with a glance!
Liva Upgraded 's hand operated bed crowning system ensures even angles along the full length of the bed and can be upgraded to CNC controlled bed crowning on request. (Not available on 1500 mm model)

Auto start-stop function stops all the electric motors when the machine is left idle for a specified time and starts right back when the pedal or start button is pressed. This feature not only reduces your electric bill and help preserve the environment but also prevents the hydraulic oil from reaching high temperatures because of constant oil loop, therefore keeps the angles consistent from the start of the day to the end.

State of the art hydraulics with servo proportional valves, honed and chrome covered cylinders with precision ground pistons with high quality seals ensure decades of trouble-free operation.

All NexT controls are equipped with remote diagnostic feature and in the unlikely event of an issue, our engineers can remotely connect to your machine and diagnose any issues you might have.

Servo driven two axis (X,R) premium backgauge runs on ballscrews and double linear guide for maximum precision. It has two precision machined gauging fingers that can be moved along the backgauge bar on linear guides. Complete frame of the backgauge is machined out of aluminum for rigidity and fast speed operation. With this frame, X axis can operate at 500 mm/sec and with an accuracy of up to +-0,05 mm and repeatability up to +-0,02 mm

Liva Upgraded comes with full length, sectioned, hardened and ground high quality punch and 4V die. Liva Upgraded’s tool clamps are European style and can accommodate a large selection of punches and dies from various tool builders. An American tool clamping system is available on request.

TYPE	VA 2100-40
Bending Length	2100
Bending force	40
Stroke	140
Daylight	380
Distance between frames	1650
Y axis freefall speed	180
Y axis bending speed	10
Y axis return speed	160
X axis stroke	800
R axis stroke	250
X axis speed	500
R axis speed	170
Motor	5,5
Oil tank	100
Length	2800
Machine width	1950
Height	2200
Width	2100
Throat depth	300
Table height	860
Table width	90
Weight	4050

Length: 2800 mm

Machine width: 1950 mm

Height: 2200 mm

Width: 2100 mm

Throat depth: 300 mm

Table height: 860 mm

Table width: 90 mm

Weight: 4050 kg

Cnc Controller Options

Delem 58T 2D Cnc

Delem 66T 2D Cnc

Crowning Systems

Manual Bed Crowning

Automatic Bed Crowning

Extra Axis

Z1-Z2 Servo Axis

Safety

Lazersafe Front Laser Guard (6 Mm Mute Point)

Lazersafe Iris Guard (0 Mm Mute Point)

Lazersafe Motorized Brackets (Auto Tool Alignment-Req.Iris System)

Dsp+Mcs Front Lazer Guard Dsp Single Beam Front Laser (Non-Ce Safety)

European Tooling

Ps.135.85.R08 (One Piece Is Segmented With Horns)

M460.R 4V Die (One Piece Is Segmented)

Wila Systems

Nscl I Pro Hyd. Punch Clamping

Ob-I Pro Hyd. Die Clamping

Hydraulic Power Pack - Manual Operation With Remote Controller

Other Options

Oil Coolant

Oil Heater

Tool Cabinet

Additional Backgauge Finger

Second Foot Pedal

Central Lubrication (Mot.)

Special Color
