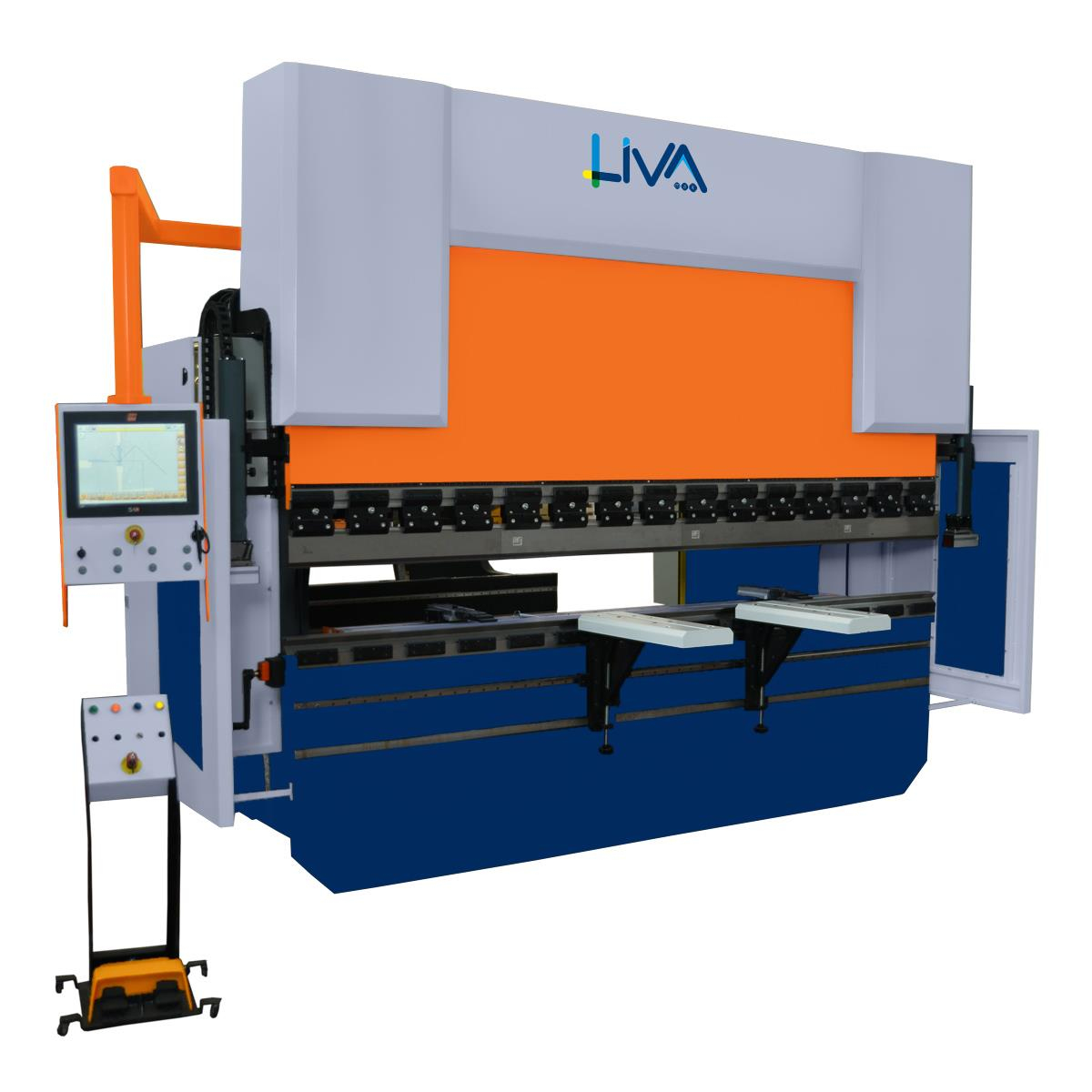

Liva Eco 3100x175 Ton Hydraulic Press Brake (Liva Eco 3100x175 Ton)

Brand : Liva

Price : 35.020,00 EURO

Stock Amount : 0

Note: The prices shown here are retail sales prices. SPECIAL DISCOUNT MAY APPLY FOR BULK PURCHASES . Additionally, discounted prices offered to dealers may differ.

Import duties, customs charges, and value-added taxes for products originating outside of Turkey are not included in the listed prices. This is applicable to customers purchasing from within Turkey.

The prices mentioned here do not include door-to-door delivery. Buyers purchasing from other countries are responsible for customs duties and any other taxes applicable under their local commercial laws.

For orders under 13,000 Euros, if the product value is below this, the total order value must either reach 13,000 Euros or a 150 Euro customs fee will be added to your final invoice value.

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Artır Azalt

Delivery Time 45 Days After O.C.

Shipment Place Turkiye

Payment Terms % 50 T/T On O.C., % 50 T/T B.S.

Made In Turkiye

Min. Order Qty. 1 Pcs.

Warranty1 Year

Liva Eco with standard equipments and functions (described below in detail) and any optional equipment requested by you is presented below for your consideration.

Liva Eco is designed and built for customers who process simple parts and do not require frequent set up changes for different jobs. Easy to use control and simple operation of Liva Eco makes it convenient for customers who require a budget solution for their simple bending requirements.

Liva Eco is an entry level press brake but by sharing the same modular structure with Liva Upgraded, it makes no compromise on quality, consistency and dependability. Customers that choose Liva Eco will enjoy a large throat depth, high stroke and daylight for deep box bendings, dependable hydraulic system and high precision linear scale system.

Rigid frame designed on SolidWorks with stress and deflection analysis, welded by certified welders and machined to 0,01 mm precision in single piece.
NexT 1.0 10” ( 2D graphic) Color Touchscreen CNC Control
HAWE Hydraulics
Dependable servo hydraulic system.
Honed, chrome covered cylinders with high precision ground pistons
Y1-Y2 synchronized hydraulic cylinders running on dual ram guides on each side for smooth ascend and descend.
Single axis backgauge (X) with manual height adjustment, running on ballscrews for maximum accuracy .
European and/or American style punch clamps
European die holder with quick change mechanism.
Quick release tool clamps with European type fitting
High stroke and daylight for deep box/panel bending.
300 mm throat depth to utilize full length and deep bends.
280 mm Stroke and 515 mm Daylight
AC motor X axis backgauge on ballscrew
High resolution linear scales with an accuracy of 0,01 mm for precise bending.
Front support arms sliding on linear guides to easily gauge small parts.
Siemens electrical system

Liva Eco comes with NexT 1.0, easiest press brake control you can find in the market for basic forming needs. In a single, well designed screen, you can input all your flange lengths and angles to create a part program. It literally takes seconds to bend a part on Liva Eco thanks to NexT 1.0. Graphic tool library and graphical visualization of the part enables NexT 1.0 to avoid collision of the part with the tools. (Requires NexT Offline Software for graphical visualization and collision detection)
		NexT will keep a production report for each operator defined with details like the duration machine ran for and number of bend cycles performed by the operator. This way production manager can control the productivity level of the press brake just with a glance!

Auto stop-start function stops all the electric motors when the machine is left idle for a specified time and starts right back when the pedal or start button is pressed. This feature not only reduces your electric bill and help save the environment but also prevents the hydraulic oil from reaching high temperatures therefore keeps the angles consistent from the start of the day to the end.

Liva Eco’s large throat depth (500 mm) will allow you to bend full length, deep plates without any hassle.

Single axis 800 mm stroke X axis runs on ballscrews for maximum precision. It has two precision machined, height adjustable gauging fingers that can be moved along the backgauge bar for precise positioning.

State of the art Hoerbieger hydraulics with servo proportional valves, honed and chrome covered cylinders with precision ground pistons with high quality seals ensure decades of troublefree operation.

All NexT controls are equipped with remote diagnostic feature and in the unlikely event of an issue, our engineers can remotely connect to your machine and diagnose any issues you might have.

Bending Length	A	mm	3100
Bending Tonnage		Ton	175
Stroke	I	mm	280
Daylight	J	mm	515
Distance Between Frames	B	mm	2550
Y Axis Freefall Speed		mm/sec	170
Y Axis Bending Speed		mm/sec	8
Y Axis Return Speed		mm/sec	140
X Axis Stroke		mm	800
R Axis Stroke		mm	200
X Axis (Backgauge) Speed		mm/sec	250
Main Motor		kW	15
Oil Tank		Lt	250
Length		mm	3750
Width		mm	1780
Height		mm	2680
Installed Width		mm	2130
Throat Depth		mm	300
Table Height		mm	825
Table Width		mm	90
Weight (kg)		kg	8050

Length   mm   3750
Width   mm   1780
Height   mm   2680
Installed Width mm   2130
Throat Depth   mm   300
Table Height   mm   825
Table Width   mm   90
Weight (kg)   kg   8050

Crowning

Manual Crowning: 1,250

Automatic Crowning: 3,550

Extra Axis

R Axis (AC Normal Motor): 2,300

Safety

DSP + MCS Front Laser: 3,050

DSP Single Beam Front Laser (Non-CE Safety): 1,400

European Tooling

PS.135.85.R08 (One Piece Is Segmented With Horns): 340

M460.R 4V Die (One Piece Is Segmented): 465

Other Options

Sliding Front Support Arms: 700

Oil Coolant: 2,900

Oil Heater: 2,900

Tool Cabinet: 2,500

Extra Backgauge

Finger: 870

Second Foot Pedal: 870

Central Lubrication (Mot.): 2,500

Special Color: 870
