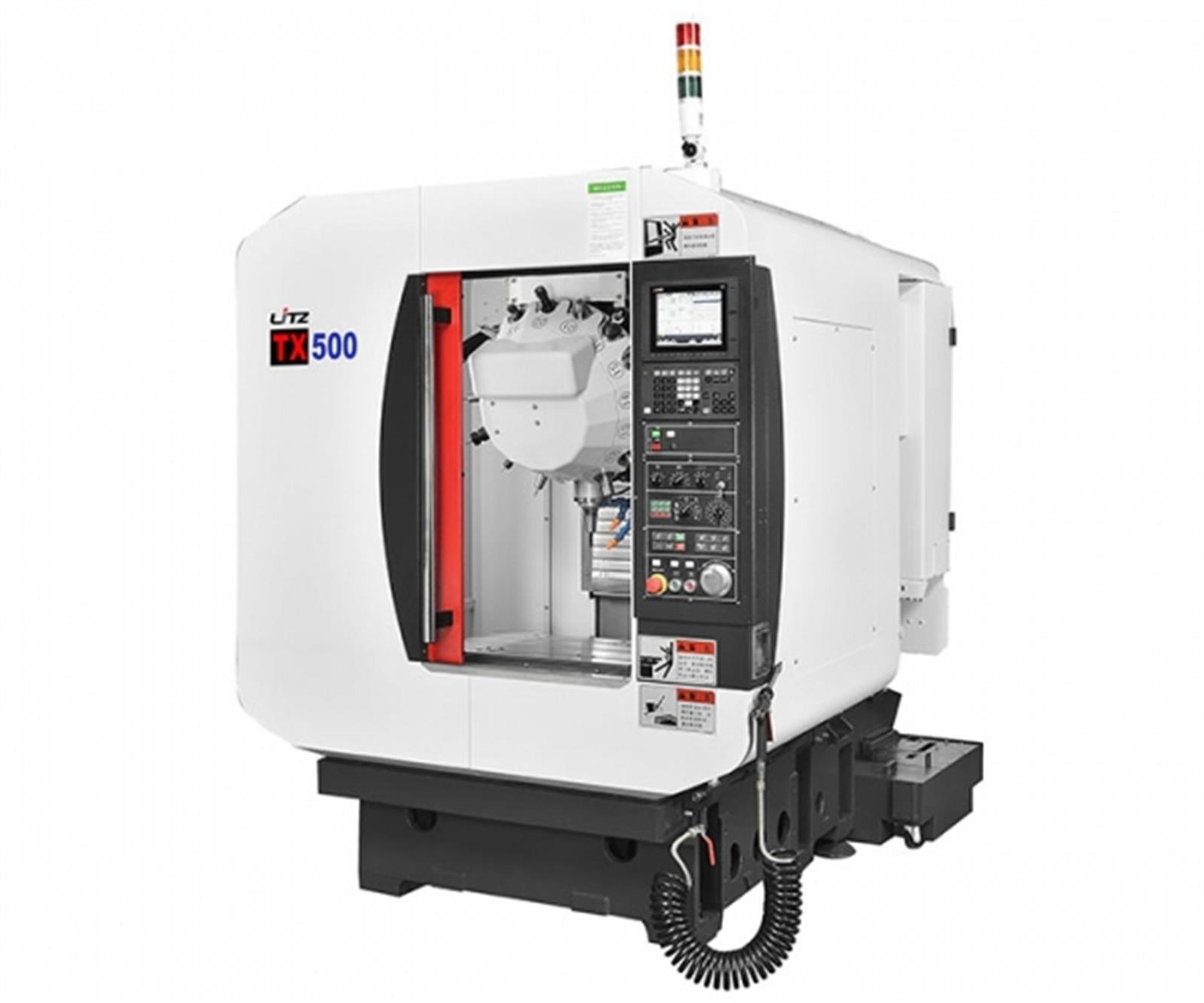

Litz TX-500 Compact Tapping Center (High Speed Model) (TX-500)

Brand : Litz

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InChina

Min. Order Qty.1 Pcs.

Warranty1 Year

Tapping Centers

Compact Tapping Center (High Speed Model)

Spindle
Spindle Speed 12000RPM	Standard
Spindle Air Blow Device	Standard
Rigid Tapping	Standard
Controller
Mitsubishi M80	Standard
Cooling System
Coolant Cooling System	Standard
Spindle External Programmable Air Blow System	Standard
Chip Removal
Cutting Fluid System	Standard
Cleaning Water Gun	Standard
Cleaning Wind Gun	Standard
Full Enclosure Cover (Panel)	Standard
Slideway Protection Cover X / Y / Z	Standard
Lubrication System
Central Lubrication System	Standard
Automatic Lubricating Oil Lubrication	Standard
ATC Tool Changing
ATC Magazine Tool Number 21T	Standard
Tool Specifications BT-30	Standard
Automatic Tool Change System	Standard
Electrical
Front Door Safety Door Device	Standard
Worklight	Standard
Alarm Light	Standard
Heat Exchanger	Standard
M30 Automatic Power Off System	Standard
Miscellaneous
Base Bolts And Pads	Standard
Tool Box	Standard

Spindle
Spindle Speed 24000RPM	Options
Spindle Oil Cooler	Options
Coolant Through Spindle	Options
Controller
Mitsubishi M830S	Options
FANUC 0iMD	Options
Chip Removal
Top Hood Protection Cover	Options
Side Punching Device	Options
Fixture Cleaning Device	Options
Measuring System
Infrared Tool Breakage Detection	Options
Workpiece Measurement System	Options
Tool Length Measurement System	Options
Oil/Coolant Separator
Disc Type Oil/Coolant Separator	Options
Lubrication System
Manual Grease Lubrication	Options
Automatic Grease Lubrication	Options
ATC Tool Changing
ATC Magazine Tool Number 16T	Options
Tool Specifications CAT Or Others	Options
Servo Magazine	Options
Electrical
Transformer Unit	Options
Front LED Light	Options
Miscellaneous
DDR Embedded Motor (4th Axis)	Options
4th Axis (Rotating Table)	Options
Tooling	Options
CE Specifications	Options
Raised Column 100 mm	Options
Raised Column 200 mm	Options
Automatic Door	Options
Oil Mist Collector	Upon Request
Tailstock Support	Upon Request
Shock Absorption Foot Pads	Options

Travel For 3-Axes
X-Axis Travel	mm	500
Y-Axis Travel	mm	400
Z-Axis Travel	mm	330
Spindle Nose To Workable Surface	mm	170 - 500
Spindle
Spindle Speed	rpm	12000
Automatic Tool Changing System
Number Of Tools	one of a pair	21
Max. Tool Diameter ( No Adjacent Knife )	mm	60 / 80
Max. Tool Length	mm	250
Max. Tool Weight	kg	3
Tool Changing Method		Disc Type
Tool Specifications		BT-30
Motor
Spindle Motor (Continuous/30min. Rated)	kw ( HP )	3.5 / 5.5
Motors On X/Y/Z-Axis	kw	1.5 / 1.5 / 2.2
Worktable
Worktable Area	mm	650 x 400
Worktable Max. Load Capacity	kg	250
T-Slot (Number X Width X Distance From The Center)	mm	3 x 14 x 125
Rapid Speed
X-Axis Rapid Speed	M/min	48
Y-Axis Rapid Speed	M/min	48
Z-Axis Rapid Speed	M/min	48
Cutting Feed Rate	mm/min	1 - 20000
Controller
Mitsubishi		M80
Miscellaneous
Machine Weight	kg	3000
Power Consumption	KVA	15
Coolant Tank Capacity	L	200
Compressed Air Source	kg/cm2	6
