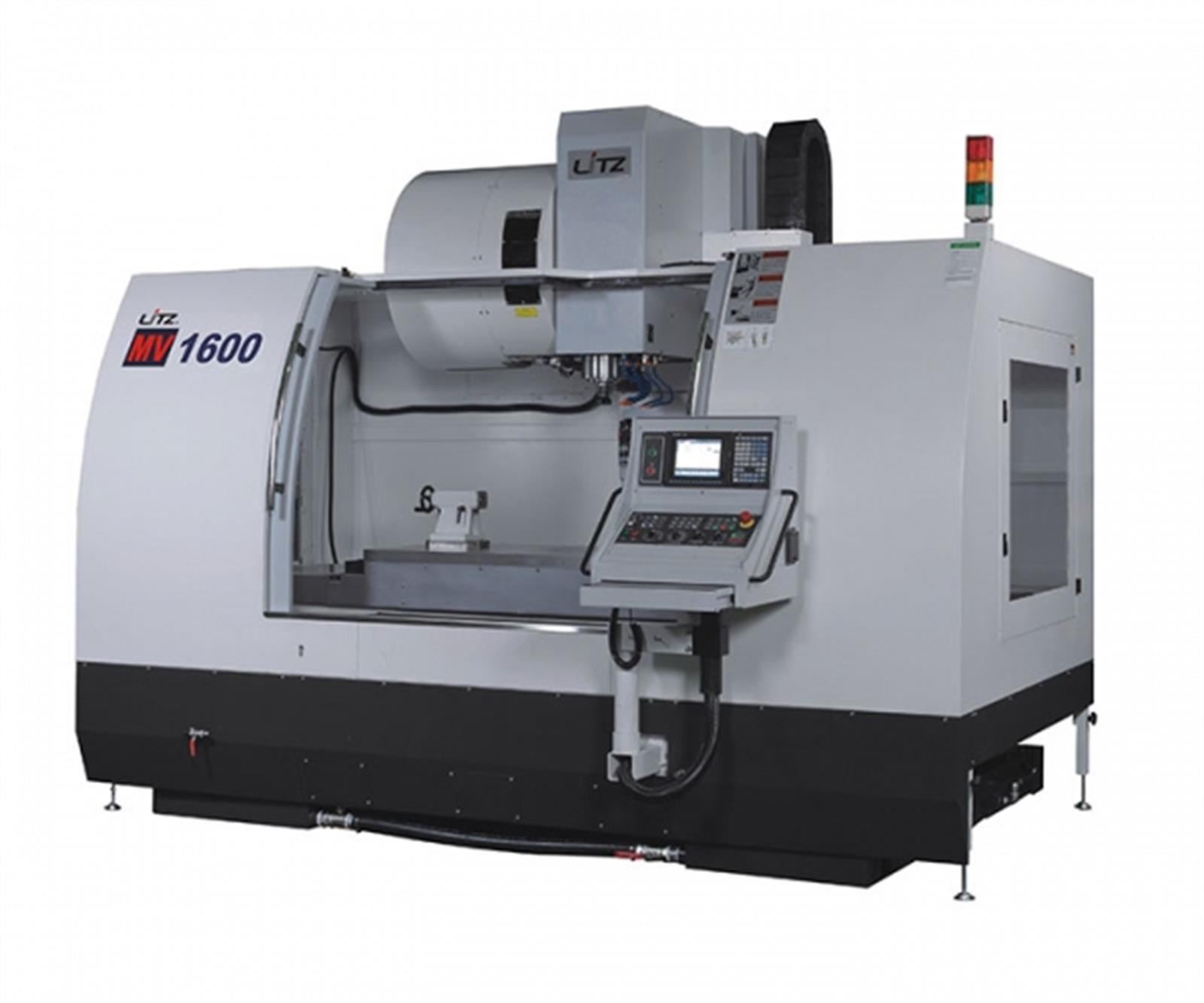

Litz MV-1600A Vertical Machining Center (MV-1600A)

Brand : Litz

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InChina

Min. Order Qty.1 Pcs.

Warranty1 Year

Machining Centers

Vertical Machining Centers

Spindle
Spindle Speed 8000RPM	Standard
Spindle Air Seal System	Standard
Spindle Head Coolant Cooling System	Standard
Cooling System
Spindle External Programmable Air Blow System	Standard
Chip Removal
Chip Auger Inside The Machine	Standard
Chip Cart	Standard
Water Gun	Standard
Air Gun	Standard
Worktable Cover (Half Cover)	Standard
Oil/Coolant Separator
Machine Oil/Coolant Separation System	Standard
ATC System
Automatic Tool Changer Mechanism (ATC)	Standard
Taper BT-40	Standard
Arm Type Tool Magazine 30T	Standard
3 Axes Transmission
Z Axis Motor System W/ Brake	Standard
Z-Axis Counterweight + Central Guiding System	Standard
Electrical
Work Light	Standard
Alarm Light	Standard
M30 Automatic Power Off System	Standard
Heat Exchanger	Standard
Front Door Safety System	Standard

Spindle
Spindle Speed 10000RPM	Optional
Spindle Speed 12000RPM	Optional
Spindle Oil Cooler	Optional
Coolant Through Spindle (CTS)	Optional
Cooling System
Stop Block For Oil Feed Tool Holder	Optional
Programmable Coolant Nozzle	Optional
Splash Ring (Arm Type Only)	Optional
Coolant Cooling System	Optional
Chip Removal
Chip Conveyor	Optional
Wash Down Device	Optional
Full Enclosure	Optional
Measuring System
Infrared Tool Breakage Detection	Optional
Tool Length Measurement System	Optional
Workpiece Measurement System	Optional
Oil/Coolant Separator
Disc Type Oil/Coolant Separator	Optional
ATC System
Other Specifications ( NBT.BBT.CAT... )	Optional
Arm Type Tool Magazine 24T	Optional
3 Axes Transmission
3-Axes Coolant Thru Ballscrew (CTB)	Optional
3 Axes Roller Type Linear Guideways	Optional
3 Axes Linear Scales	Optional
Electrical
Air Conditioner	Optional
Miscellaneous
ZF Gearbox	Optional
4h Axis (Rotating Table)	Optional

Travel For 3-Axes
X-Axis Travel	mm	1600
Y-Axis Travel	mm	800
Z-Axis Travel	mm	740
Spindle Nose To Workable Surface	mm	100 - 840
Spindle
Spindle Speed	rpm	8000
Automatic Tool Changing System
Number of Tools	one of a pair	30
Max. Tool Diameter (With Adjacent Tool / Without Adjacent Tool)	mm	80 / 125
Max. Tool Length	mm	300
Max. Tool Weight	kg	7
Tool Changing Method		Arm
Tool Specifications		BT-40
Motor
Spindle Motor (Continuous/30min. Rated)	kw ( HP )	15 / 18.5 ( 20 / 25 )
Motors On X/Y/Z-Axis	kw	3.5 / 3.5 / 3.5
Worktable
Worktable Area	mm	1700 x 800
Worktable Max. Load Capacity	kg	1600
T-Slot (Number X Width X Distance From The Center)	mm	7 x 18 x 100
Rapid Speed
X-Axis Rapid Speed	M/min	20
Y-Axis Rapid Speed	M/min	20
Z-Axis Rapid Speed	M/min	18
Cutting Feed Rate	mm/min	1 - 8000
Controller
Mitsubishi		M80
Miscellaneous
Machine Weight	kg	14500
Power Consumption	KVA	40
Coolant Tank Capacity	L	500
Compressed Air Source	kg/cm²	6
