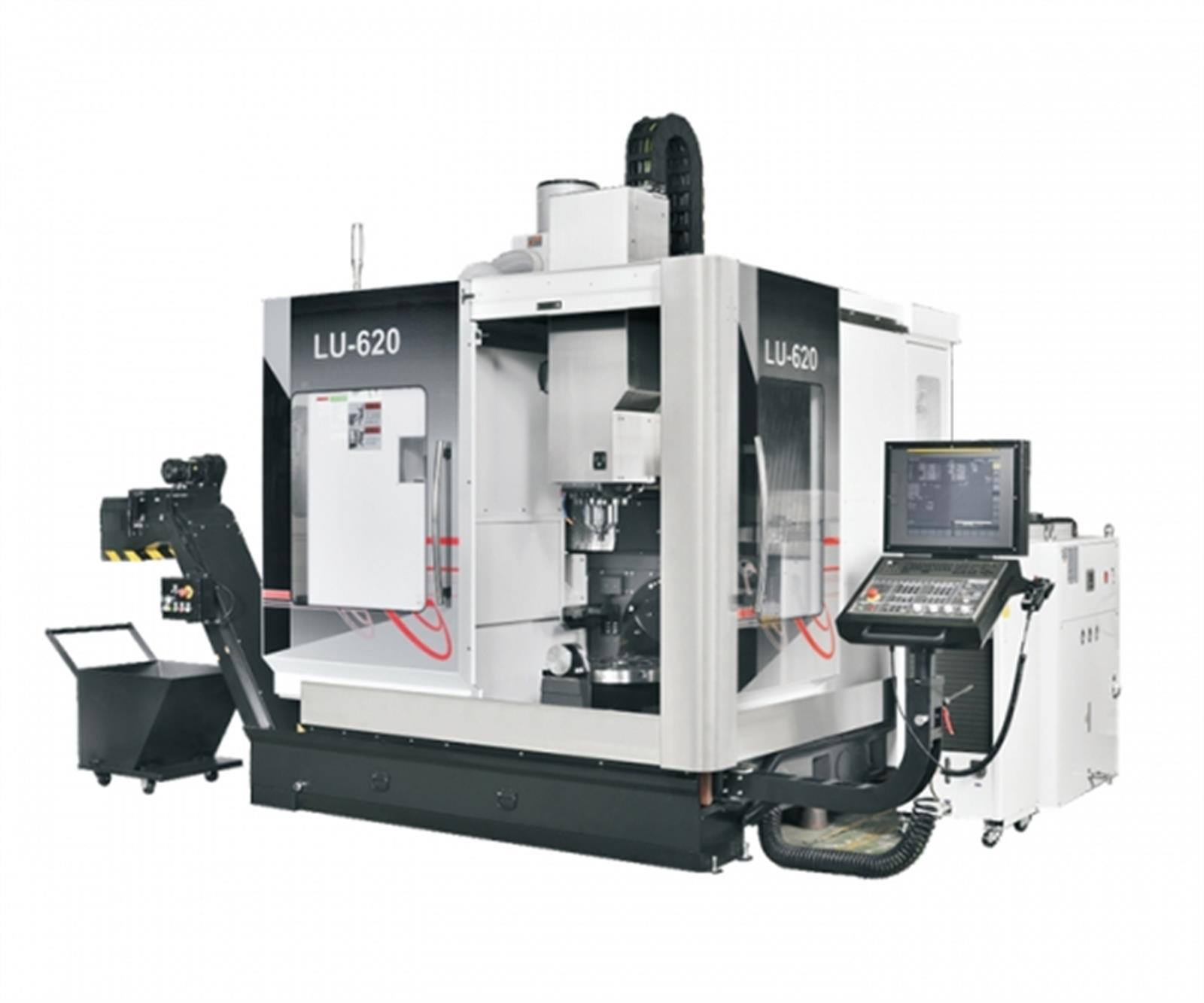

Litz LU-620 5-Axes Machining Centers (LU-620)

Brand : Litz

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InTaiwan

Min. Order Qty.1 Pcs.

Warranty1 Year

Machining Centers

5-Axes Machining Centers

Spindle
Direct Drive Spindle Speed 12000RPM	Standard
Spindle Oil Cooler	Standard
Spindle Motor Plate Cooling System	Standard
Spindle Air Seal System	Standard
Cooling System
Spindle Programmable Air Blow	Standard
Spindle Splash Ring	Standard
Chip Removal
Chain Type Chip Conveyor	Standard
Chip Cart	Standard
Water Gun	Standard
Air Gun	Standard
Full Enclosure	Standard
Worktable Unit
Worktable Tailstock Support	Standard
Large Table Ø 650 m / m	Standard
Safety System
Front Door/Side Door Safety Switch	Standard
Coolant Oil Separator
Disc Type Coolant Oil Separator	Standard
Lubricating System
XYZ Axes LUBE Lubricating	Standard
ATC
Automatic Tool Changer (ATC)	Standard
Tool Specifications HSK 63A	Standard
Tool Capacity 32	Standard
3 Axes Transmission
3 Axes Roller Type Linear Guideways	Standard
B Axis Linear Scale	Standard
C Axis Linear Scale	Standard
Z Axis Motor System W/ Brake	Standard
Electrical
Worklight	Standard
Alarm Light	Standard
M30 Auto Shut Off	Standard
Heat Exchanger	Standard
Control
Heidenhain TNC-640 (5 Axes Simultaneous)	Standard

Spindle
Direct Drive Spindle Speed 15000RPM	Optional
Coolant Through Spindle	Optional
Cooling System
Coolant Cooling System	Optional
Chip Removal
Flush Device	Optional
Top Enclosure	Optional
Measurement System
Laser Tool Length Measurement	Upon Request
Touch Type Tool Length Measurement TT140	Optional
Wireless Workpiece Measurement TS640	Optional
Worktable Unit
Air Outlet For Fixture	Upon Request
Safety System
CE	Optional
ATC
Tool Capacity 48	Optional
Tool Capacity 60	Optional
3 Axes Transmission
3 Axes Linear Scales	Optional
Electrical
Air Conditioner	Optional
Control
(5 Axes/4-Interactive)	Optional
Siemens 840Dsl (5 Axes Simultaneous)	Optional
Transformer	Upon Request
Anti Collision Software	Upon Request
Center Calibration Function	Upon Request
Miscellaneous
Oil Mist Collector	Optional
Rotary Window	Optional

Travel
X / Y / Z Axes Travel	mm	620 / 520 / 460
B Axis Tilting Range	degree	- 50° ~ + 110°
C Rotating Range	degree	360°
Spindle Nose To Table Surface	mm	150 ~ 610
Spindle
Spindle Transmission Type		Direct Drive
Tool Shank		ISO 40
Spindle Speed	rpm	12000
ATC
Magazine Capacity	T	32
Taper		HSK 63A
Max. Tool Length	mm	250
Max. Tool Diameter (No Adjacent Tool)	mm	Ø 75 ( Ø 127 )
Motor
Spindle Motor (Cont./30 Mins)	KW	18 / 21(Siemens)
X / Y / Z Axes Motor Power	KW	6.5/4.5/6.5( Heidenhain)
B/C Axes Motor	KW	8.6/4.5( Heidenhain)
B/C Axes
Worktable Size (External/Inner)	mm	Ø 650
Center Hole Size	mm	Ø 55H7 x 12 In Depth
T Slot Type	mm	T18 Radial Type 8 Slots
Max. Workpiece Size	mm	Ø 580 x(50+R438) L
Max. Worktable Loading	kg	300
Rapid Travel
X / Y / Z Axes Rapid Travel	M / min	36 / 36 / 36
B / C Axes Rapid Travel	rpm	25
Cutting Feedrate	mm / min	1 - 20000
Control
Type		HEIDENHAIN TNC640
Miscellaneous
Machine Weight	kg	8800
Coolant Tank	L	240
Dimension (LWH)	mm	2260 x 2590 x 3060
Power Requirement	KVA	25
Air Source	kg / cm² ( l / min )	6 ( 1600 )
