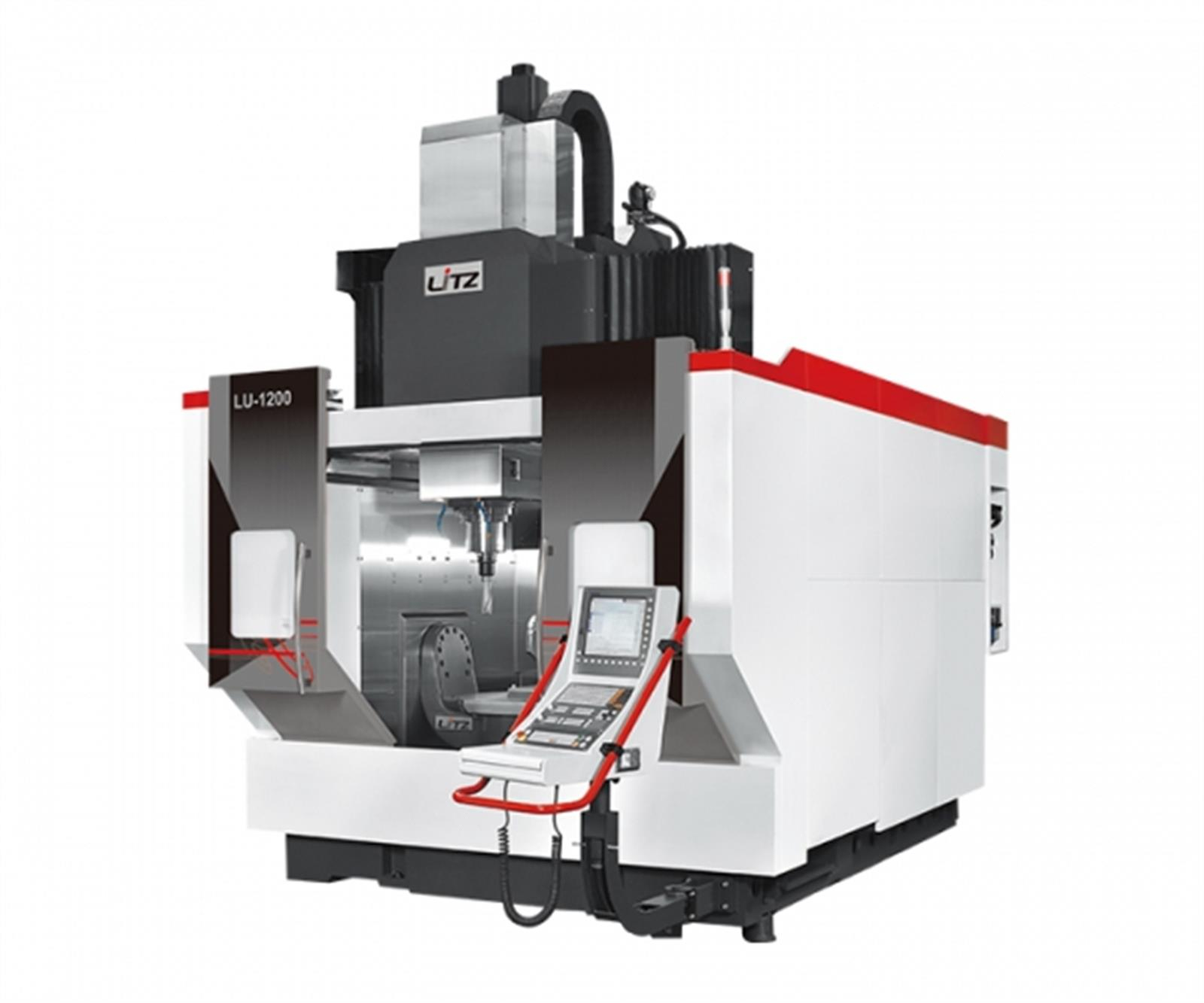

Litz LU-1200 Vertical Machining Center (LU-1200)

Brand : Litz

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InTaiwan

Min. Order Qty.1 Pcs.

Warranty1 Year

Machining Centers

Vertical Machining Centers

Spindle
Direct Drive Spindle Speed 8000 RPM	Standard
Spindle Oil Cooler	Standard
Spindle Motor Cooling System	Standard
Spindle Air Seal System	Standard
Cooling System
Spindle Programmable Air Blow System	Standard
Circle Injection System	Standard
Chip Conveying System
Chain-Type Chip Conveyor	Standard
Chip Collector	Standard
Water Gun	Standard
Air Gun	Standard
Programmable Top Cover	Standard
Full Enclosure	Standard
Safety System
Front Door/Safety Switch	Standard
ATC Unit
Auto Tool Change Mechanism	Standard
Tool Spec. BBT-50	Standard
Tool Magazine Capacity 24T	Standard
3-Axis Transmission System
3-Axis Roller Type Linear Guideways	Standard
3-Axis Linear Scale	Standard
A-Axis Linear Scale	Standard
C-Axis Linear Scale	Standard
Z-Axis Motor System With Brake	Standard
Electrical Components
Work Light( LED )	Standard
Alarm Light( LED )	Standard
M30 Automatic Shutdown System	Standard
Air Conditioner	Standard
Controller
Heidenhain Tnc – 640 (5-Axis/5-Interactive)	Standard

Spindle
Coolant Through Spindle	Optional
Cooling System
Worktable Washing System	Optional
Oil Path Tool Handle Stopper	Optional
Coolant Cooling System	Optional
Chip Conveying System
Scraper-Type Chip Conveyor	Optional
Measuring System
Laser Tool Length Measuring	Upon Request
Wireless Workpiece Measuring	Optional
Worktable Unit
Worktable Clamp Air Hydraulic Source	Upon Request
Safety System
Ce Safety Specification	Optional
ATC Unit
Tool Magazine Capacity 24 + 24T	Optional
Controller
Siemens 840 D (5-Axis/5-Interactive)	Optional
Transformer Unit (For 220 V)	Upon Request
Anit-Collision Software (For Itnc – 530 Only)	Upon Request
Centering Calibration Function	Upon Request
Others
Oil Demister System	Optional
Rotary Window	Upon Request

Travel
X-Axis Travel	mm	1100
Y-Axis Travel	mm	1370 + 380
Z-Axis Travel	mm	800
Distance From Spindle Nose To Table Surface	mm	150 - 950
Worktable Dimension	mm	Ø 1150
Worktable Load	kg	2000
Feed System
Rapid Feed ( X / Y / Z )	m / min	48 / 48 / 48
Cutting Feed( X / Y / Z )	m / min	0.001 - 20
Rotary Axis
A-Axis Rotation Angle	degree	± 120 ﾟ
C-Axis Rotation Angle	degree	360 ﾟ
A-Axis Max. Speed	rpm	26
C-Axis Max. Speed	rpm	50
Spindle System
Spindle Transmission Type		Direct Drive (Standard) / Built-In (Op)
Spindle Speed ( max. )	rpm	8000
Spindle Power (Continuous / 30 Min.)	kw ( HP )	27 / 63 kw
Max. Torque	Nm	400
Tool Handle Spec.		# 50 BBT / CAT / DIN
Atc System
Magazine Capacity	set	24 T (Standard)
Tool Change Method		DRUM
Max. Tool Dis./ With Adjacent Tool	mm	Ø 125 / Ø 200
Max. Tool Length	mm	400
Max. Tool Weight	kg	15
Control System
Controller		TNC - 640
Chips Conveyer		Chanin-Type
Machine Occupancy (L X W X H)	mm	5600 x 2980 x 4196
Machine Weight	kg	32000
