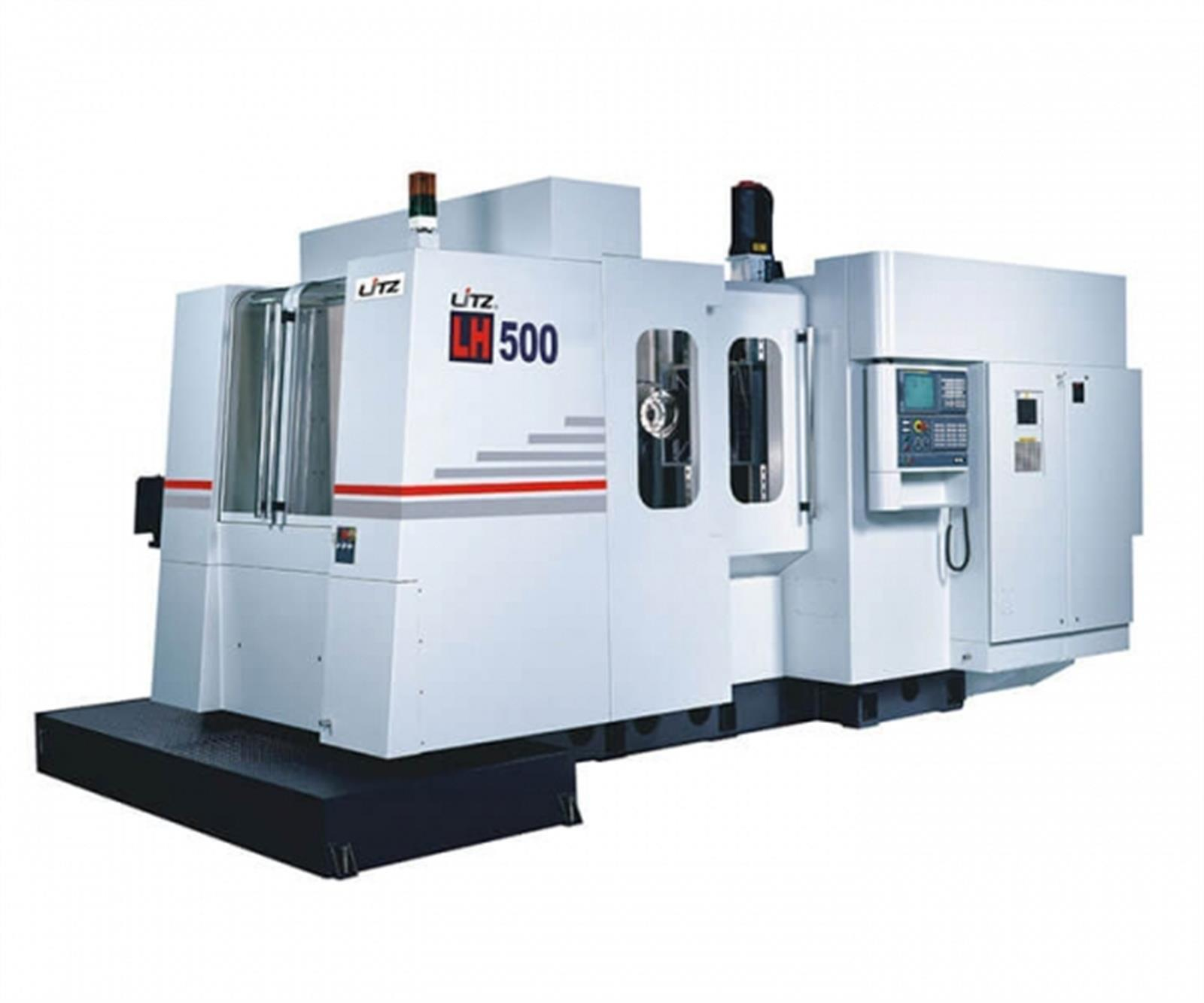

Litz LH-500B Horizontal Machining Center (LH-500B)

Brand : Litz

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InChina

Min. Order Qty.1 Pcs.

Warranty1 Year

Machining Centers

Horizontal Machining Center

Spindle
Spindle Rpm 6000RPM	Standard
Spindle Oil Cooling System	Standard
Spindle Air Seal System	Standard
Spindle Direct Transmission	Standard
3-Axis Transmission System
3-Axis Roller Linear Rail	Standard
3-Axis Hollow Ballscrew Cooling System	Standard
Pallet Unit
Pallet 1 ˚division	Standard
Pallet M16 Fixing Holes	Standard
Cooling System
Splash Ring	Standard
Chip Removal System
Track Type Chip Conveyer System	Standard
Chip Cart	Standard
Indoor Chip Auger	Standard
Mechanical Oil-Coolant Separator	Standard
Overhead Chip Wash-Down System	Standard
Disc-Type Coolant Separator	Standard
Safety System
Front Door / Side Door Safety Switch	Standard
ATC And Magazine System
Tool Storage Capacity 40T	Standard
Tool Specification BBT	Standard
Tool Specification NO.50	Standard
Electrical
M30 Automatic Power-Off System	Standard
Working Light (Lighting)	Standard
Warming Light	Standard
Electrical Cabin Heat Exchange System	Standard
Controller
FANUC 0iMF	Standard

Spindle
Spindle Rpm 8000RPM	Optional
3-Axis Transmission System
3-Axis Linear Scale System	Optional
4th Axis Encoder	Optional
Pallet Unit
Pallet 0.001 ˚ Division	Optional
Pallet T-Slot	Optional
Cooling System
Spindle Air Blow System	Optional
Coolant Through Spindle (CTS)	Optional
Safety System
CE Safety Specifications	Optional
Measuring System
Tool Length Measuring System NC - 4S	Optional
Workpiece Measuring System RMP - 60	Optional
Tool Breakage Detection (Magazine)	Upon Request
ATC And Magazine System
Tool Storage Capacity 60T	Optional
Tool Specification CAT	Optional
Electrical
Electrical Cabin Air-Condition System	Optional
Controller
FANUC 31i	Optional
Others
Oil Mist Collector Unit	Optional
Rotary Window	Optional

Travel
Travel, X/Y/Z	mm	700 / 650 / 650
Spindle Center To Pallet Face	mm	50-700
Spindle Nose To Pallet Center	mm	150 - 800
Pallet
Pallet Size	mm	500 x 500
Maximum Workpiece	mm	Ø 700
Maximum Pallet Load	kg	500
Maximum Workpiece Height	mm	800
Pallet Surface Configuration	mm	24-M16 Pitch 100
Pallet Indexing		1°
Spindle
Spindle Max. Speed	RPM	6000
Low/Hight Gear Variation	RPM	-
Spindle Max. Torque ( Standard )	N-m	120
Spindle Taper		7/24 Taper , N0.50
Spindle Bearing Id	mm	100
Spindle Transmission		Direct
Feed Rate
Max. X/Y/Z Rapid Speed	mm/min	36000
Cutting Feed Rate	mm/min	1-10000
Job Feed Rate	mm/min	1260
Automatic Tool Change (ATC)
Type Of Tool Shank		ISO 50 or BBT-50
Tool Capacity	one of a pair	40
Max. Tool Diameter (Without Adjacent Tool)	mm	120 ( 230 )
Max. Tool Length	mm	380
Max. Tool Weight	kg	20
ATC Changing Time ( T to T )	sec.	5
Tool Selection Method		Fixed Address
Automatic Pallet Changer (APC)
Number of Pallets	one of a pair	2
Pallet Changing Type		Rotary Type
Time For APC	sec.	18
Controller System
FANUC		0i-MF
Motor
Spindle Motor, Power	KW	15 / 18.5
Spindle Motor	N.m	120
X/Y/Z/B Axis Motor	KW	7 / 7/ 4 / 1.6
Motor, Hydraulic System	KW	2.2
Motor, Coolant Pump System	KW	1.6
Power Supply
Power Requirement	KVA	42
Capacity Of Oil/Coolant Tank
Capacity, Hydraulic System	L	60
Capacity, Lubrication System	L	4
Capacity, Coolant System	L	760
Mechanical Specifications
Height	mm	2980
Floor Area	mm	5000 x 3200
Weight	kg	15000
