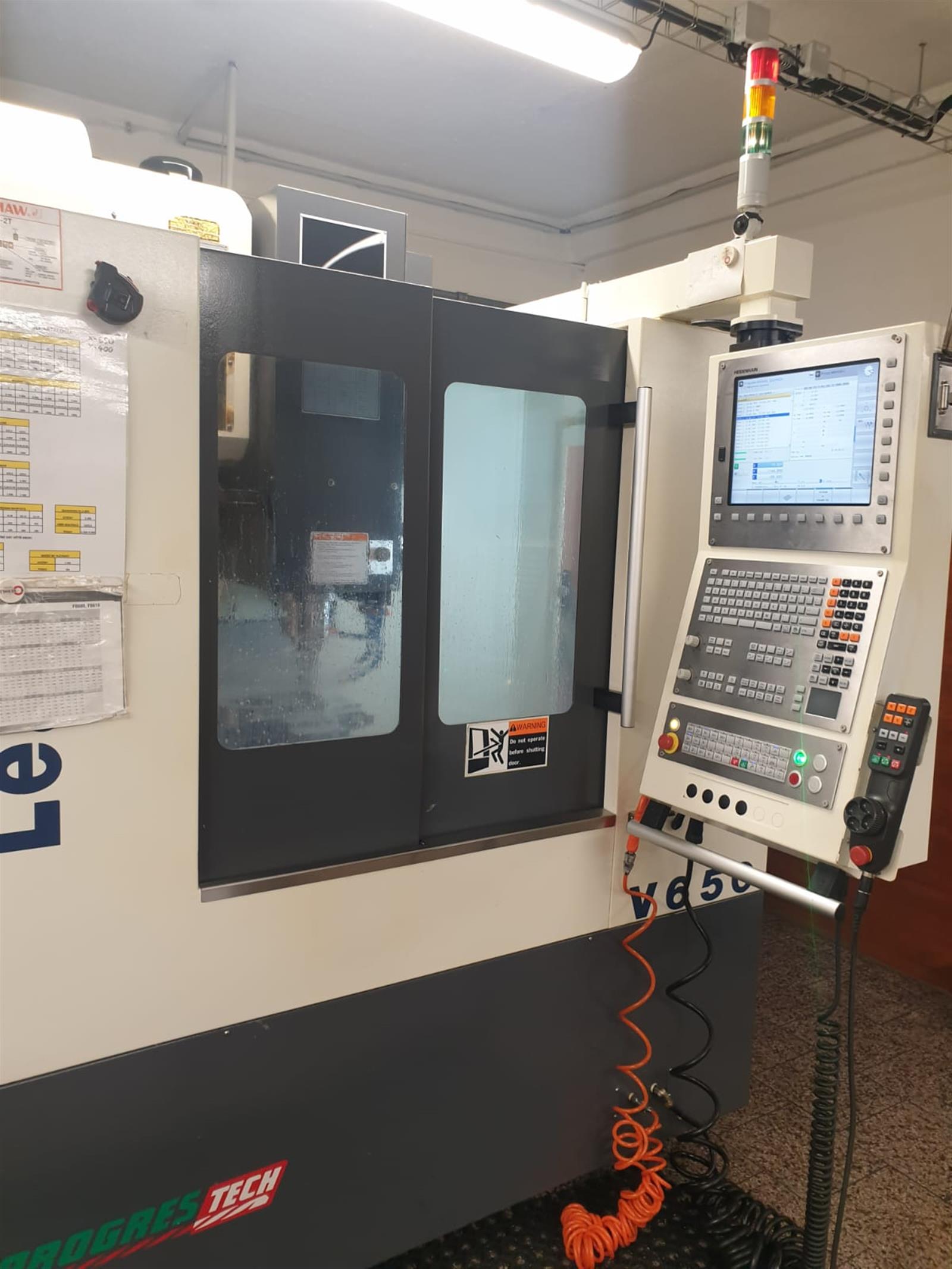

Leaderway V 650 Machining center - vertical (Leaderway V 650 Machining center - vertical)

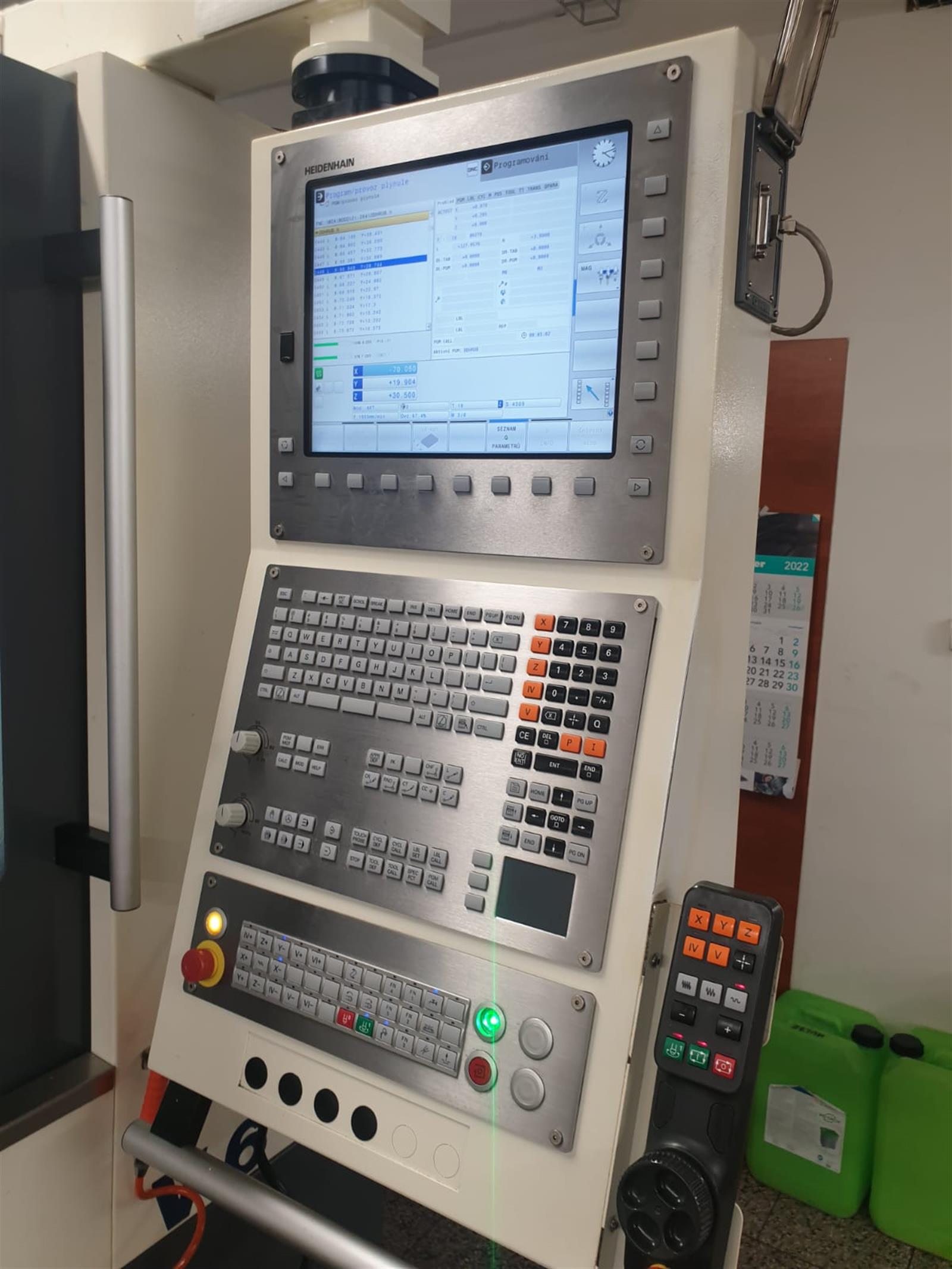

The machine is in good technical condition, control system Heidenhain TNC 620.

Tool and workpiece probe.

Travel in the X axis 650 mm
Travel in the Y axis 410 mm
Travel in the Z axis 500 mm
Table
Table height 950 mm
Max. table load 300 kg
Table size 770x400 mm
Max. tool weight 7 kg
Max. tool diameter (without adjacent) 125 mm
Spindle
Spindle speed 10000 rpm
Spindle taper #40
Weight 4000 kg

Axis X	650 mm
Axis Y	410 mm
Axis Z	500 mm
Rotary table (4th axis)	no
Type of CNC	Heidenhain TNC 620
Table length	770 mm
Table width	400 mm
Max. part weight	300 kg
Spindle taper	40
Max. spindle speed	10000 rpm
-------------------
Weight	4000 kg
Worked hours
Hours under power
State	good
At local norms	yes
Status	visible
