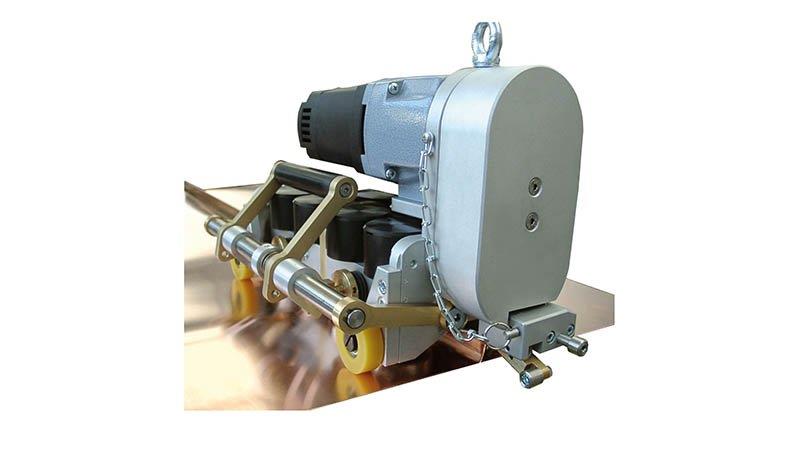

Adjustable for seam heights from 25 to 60mm Clean transition at cross seams Barrel curved roofs can be seamed to the minimum radius 1.2m Can be used or removed in the middle of a seam (preliminary hand-seaming required) Winter heating device for outer temperatures lower than 10°C ref. SER-05SETHIVER (option) Remote control with 12m cable ref. SER-05TELECDE for a rational and safe using in facade (option)
Weight (kg)
22
Minimum radius for curved roofing (mm)
Variable speed (m/min)
from 5,5 to 13
230V single-phased
Capacity Steel / Zinc / Copper / Aluminium (mm)
0,8
Capacity Stainless Steel (mm)
Minimum assembly length (mm)
Minimum operating temperature
10°C (without winter set)
Set of cutting rollers
Included
Automatic stop switch at the end of the tray

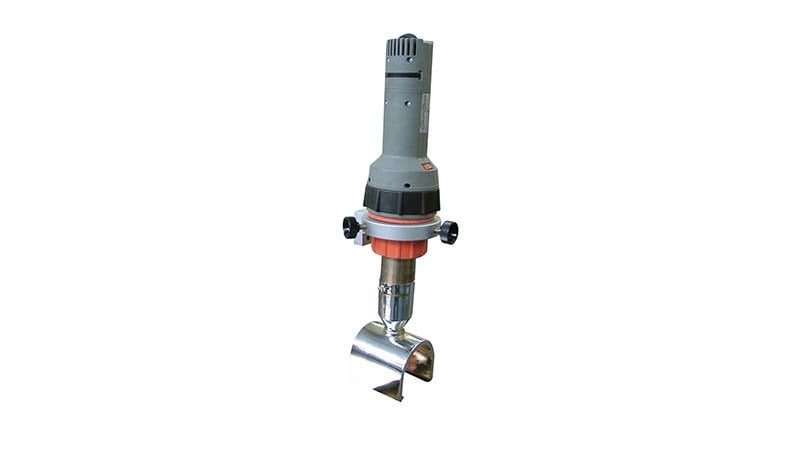

Winter heating device, reference SER-05SETHIVER, for seamer SER100A-05. This kit is used to heat the standing seam in front of the seamer in case of outer temperatures lower than 10°C. It will heat the material before passage of the seamer for optimum closing of the seam. Warning: the air coming out of the winter heating device can reach a temperature of 650°C, we recommend to wear protection gloves when using this equipment

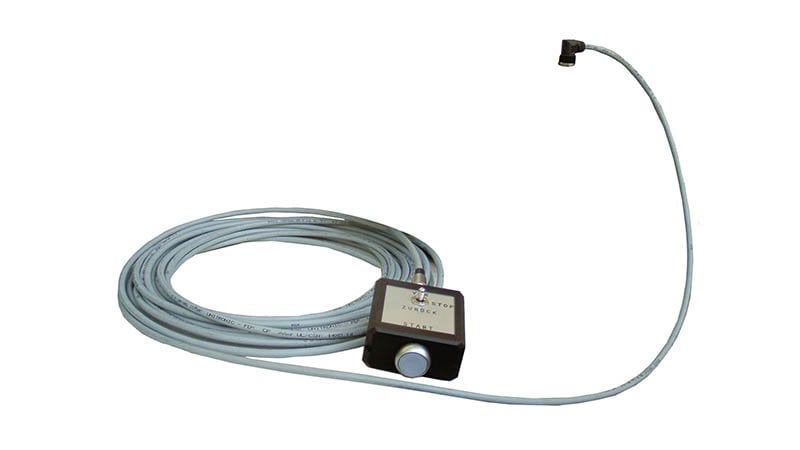

Remote control with 12m cable reference SER-05TELECDE for SER100A-05 and SER100A-05WAD electric seamers
