Jouanel SB5E2V2S-PLUS SB5E2V2S Swaging Machine With 6 Set Of Rolls (3 - 4 - 5 - 22-22 - 24 - 26)

Jouanel SB5E2V2S-PLUS SB5E2V2S Swaging Machine With 6 Set Of Rolls (3 - 4 - 5 - 22-22 - 24 - 26) (Jouanel SB5E2V2S-PLUS)

Brand : Jouanel

Price : 0,00 EURO

Stock Amount : 0

Note: The prices shown here are retail sales prices. SPECIAL DISCOUNT MAY APPLY FOR BULK PURCHASES . Additionally, discounted prices offered to dealers may differ.

Import duties, customs charges, and value-added taxes for products originating outside of Turkey are not included in the listed prices. This is applicable to customers purchasing from within Turkey.

The prices mentioned here do not include door-to-door delivery. Buyers purchasing from other countries are responsible for customs duties and any other taxes applicable under their local commercial laws.

For orders under 13,000 Euros, if the product value is below this, the total order value must either reach 13,000 Euros or a 150 Euro customs fee will be added to your final invoice value.

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Artır Azalt

Delivery Time 45-60 Days After O.C.

Shipment Place Turkiye

Payment Terms % 50 T/T On O.C., % 50 T/T B.S.

Made In France

Min. Order Qty. 1 Pcs.

Warranty1 Year

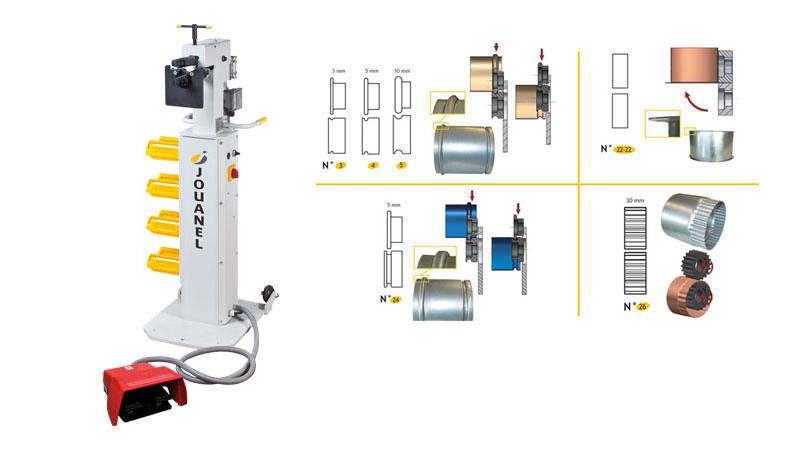

Electric swaging-beading machine for workshop, reference SB5E2V2S-PLUS, 1.2mm steel capacity, 200mm working depth, variable speed by button and double pedal forward/reverse control, welded-metal frame. Swaging machine equipped with 6 sets of rolls (No. 3,4,5,22/22,24 and 26)

Large choice of rolls for all applications
Large working depth (200mm)
Double pedal for quick change of direction without lifting the heel
Switch box integrated into the base
Quick adjustment of the lower shaft by roll
Support stop plate of high hardness and long lifetime (58HRC steel)
Base with castors for mobility and stabillity

Single-piece base with castors and handling arm
4 PVC storage bins for rolls
Variable speed by button (potentiometer)
Double control pedal for forward-backward rotation
Integrated emergency stop system on the pedal

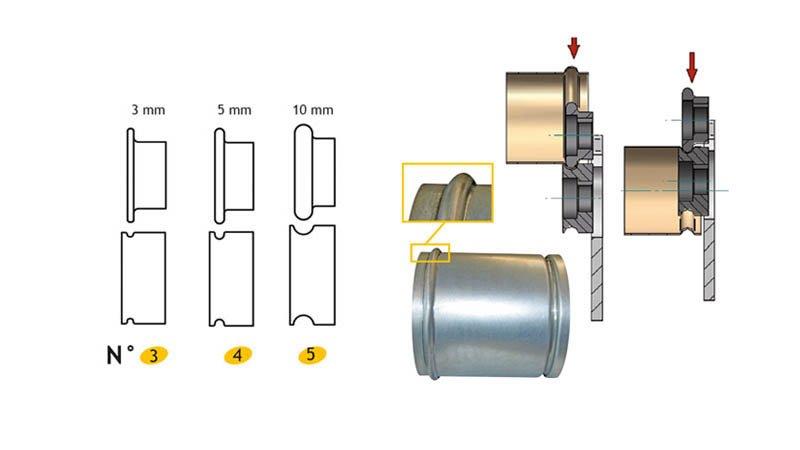

6 sets of rolls included (no. 3, 4, 5, 22-22, 24, 26)

*Capacity Stainless Steel / Aluminium (mm)**	0,8 / 1,5
*Capacity Steel S235JR (mm)**	1,2
Upper shaft horizontal adjustment	yes
Ø rolls (mm)	58
Ø bore of rolls (mm)	24
Throat depth (mm)	200
Weight (kg)	72
Power supply**	220V 1-ph
Rotation speed	Variable**
Foot-operated control	Double
Back-forward control	Pedal
Base	Included
Double apron	Optional
Rolls	Included: Rolls N° 3, 4, 5, 22-22, 24 and 26 Optional: Rolls N°1, 13, 6, 7, 23, 25, 26-50, 28, 32, 36
* The maximum capacities indicated for the use of our swaging-beading machines depend on the material and the choice of rolls sets used, these are given for information only. For further information, please do not hesitate to contact us.
** Voltage choice to signal at the order.

Double stop plate for SB5 swaging machine

Double stop plate with columns, reference SB5-TAB2 for manual or electric swaging-beading machines models SB5. NB: Using the double stop plate reduces the working height

Set of rolls n°1 for SB5 swaging machine

Set of rolls no.1, reference SB5MOL1, for manual swaging-beading machines SB5

Set of rolls n°6 for SB5 swaging machine

Set of rolls no.6, reference SB5MOL6, offsetting rolls for manual swaging-beading machines SB5

Set of rolls n°7 for SB5 swaging machine

Set of rolls no.7, reference SB5MOL7, rolls 45° for manual swaging-beading machines SB5

Set of rolls n°13 for SB5 swaging machine

Set of rolls no.13, reference SB5MOL13, 8mm beading for manual swaging-beading machines SB5

Set of rolls n°23 for SB5 swaging machine

Set of rolls no.23, reference SB5MOL23, rolls to shear for manual swaging-beading machines SB5

Set of rolls n°25 for SB5 swaging machine

Set of rolls no.25, reference SB5MOL25, 7mm square rolls for manual swaging-beading machines SB5

Set of rolls n°26-50, 50-mm necking, for SB5 swaging machines

Set of rolls no.26-50, reference SB5MOL26-50, reducing rolls 50mm for swaging-beading machines SB5

Set of rolls n°28 for SB5 swaging machine

Set of rolls no.28, reference SB5MOL28, for manual swaging-beading machines SB5

Set of rolls n°32 for perforation, for SB5 swaging machines

Set of rolls no.32, reference SB5MOL32, rolls for implementation of longitudinal holes for manual or electric swaging-beading machines SB5

Set of rolls n°36, necking and 6-mm bead, for SB5 swaging machine

Set of rolls no.36, reference SB5MOL36. Combined rolls to reduce and bead 6mm for manual or electric swaging-beading machines SB5
