2 100
Capacity steel 400N/mm² (mm) with folding beam 25mm
4.0
Capacity steel 400N/mm² (mm) with folding beam 15mm
2.0
Capacity 1050-H44 aluminum (mm) with folding beam 25mm
5.0
Capacity 1050-H44 aluminum (mm) with folding beam 15mm
3.0
Table height (mm)
830
20°
130
Power supply (V)*
400 V three-ph + neutral + earth
Total power (kW)
9
Dimensions without back gauge (mm)
3 600 x 1005 x 1 900
Dimensions with electric back gauge and CNC options (mm)
3 600 x 2 100 x 1 900
3 300
* Electrical voltage to be specified upon order
90° bending capacities / Minimum fold width: 15 times the thickness
Clamp flattening = 1/3 of max. thickness capacity

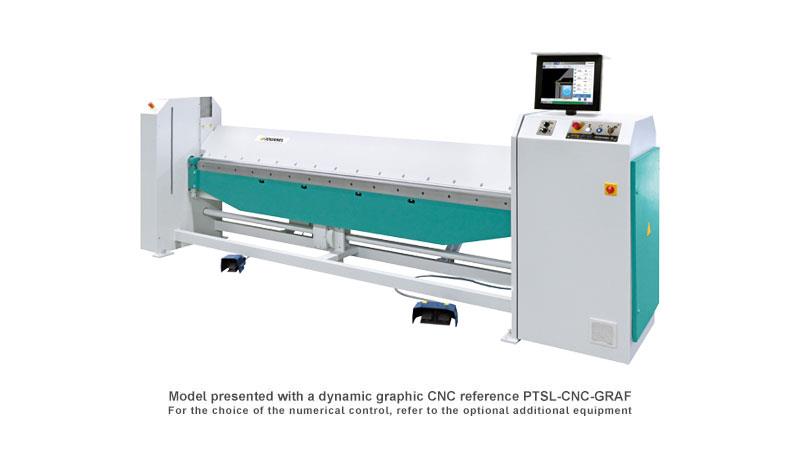

Dynamic graphic numerical control, reference PTSL-CNC-GRAF, 3 axes, with large 17" color touch screen and electric back gauge
Automatic angle controller, reference PTSL-CORANG-GRAF, maximum using capacity 1.0mm (option to be ordered with the numerical control)
2-axis numerical control, reference PTSL-CNC-SIEMPRO, with 15'' color touch screen
Automatic angle controller, reference PTSL-CORANG-SIEMPRO, maximum using capacity 1.0mm (option to be ordered with the numerical control)
Safety light curtains at the front, quicker clamping, for electric folding machine, reference PTSL-SPEED-Z. This active optoelectronic safety device detects the presence of an object or person in their detection field. The light curtain offers optimal safety for the operator and thus increases the clamping speed of the clamping beam for even more productivity.
Control console on swivel arm for electric folding machine, reference PTSL-CNC-POT. This articulated swivel arm supports the control consol and allows the operator to position the screen in front of him during the bending process. It can thus more easily follow the indications of the numerical control for the various folding operations (sheet positioning, inversions, reversals...)
Fully retractable back gauge fingers, pneumatic device, référence PTSL-DP2. This option automatically lowers all back gauge fingers to the table level. This will allow a large sheet to be loaded from the rear without any obstacles.
Electrically-operated back gauge, reference PTSL-BAE2-750, from 10 to 750mm, gauge managed by the numerical control of the folding machine. The gauge includes the back table to support large-sized metal sheets and 6 gauge fingers. NB: option to be planned with the order of the folding machine.
Electrically-operated back gauge, reference PTSL-BAE2-1000, from 10 to 1000mm, gauge managed by the numerical control of the folding machine. The gauge includes the back table to support large-sized metal sheets and 6 gauge fingers. NB: option to be planned with the order of the folding machine

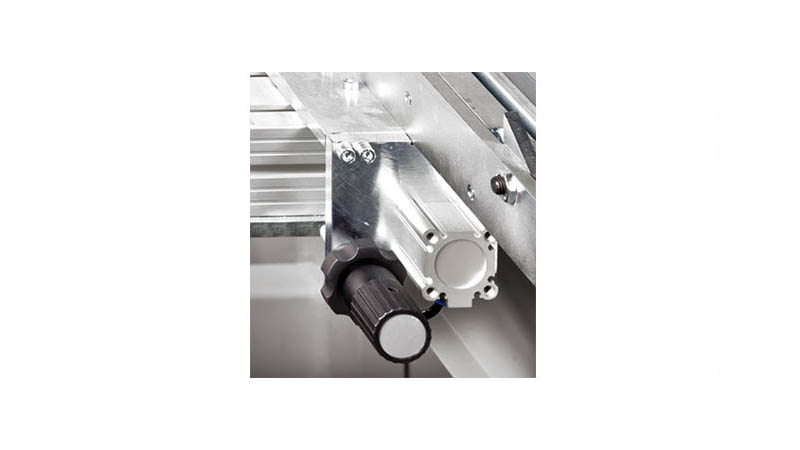

Additional equipment reference PTS-BAE3-PC, for pneumatic conical folding, manual adjustment, for 750mm electrically-operated back gauge
Additional equipment reference PTS-BAE3-1M-PC, for pneumatic conical folding, manual adjustment, for 1000mm electrically-operated back gauge

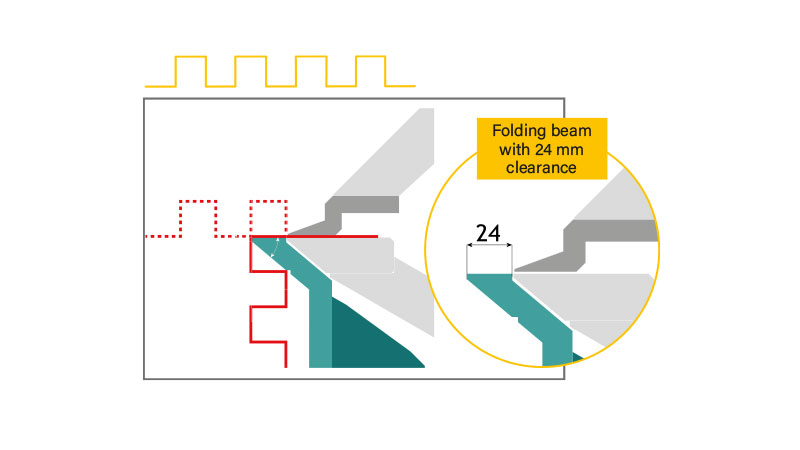

Special folding beam reference PTSL-TDI2, for 2m universal electric folding machine PTS with clearance. This new geometry provides more clearance for bending, making it easier to produce complex parts such as crenellations or omegas. 10 and 24mm folding tools are included. Note: this option must be specified when ordering the bending machine.
Folding beam tool, thickness 8 mm, reference PTSL-RT8-2
Folding beam tool, 10mm, for 2m PTS and PTL folding machines
Folding beam tool, thickness 10 mm, reference PTSL-RT8-2
Folding beam tool, 12mm, for 2m PTS and PTL folding machines
Folding beam tool, thickness 12 mm, reference PTSL-RT8-2
