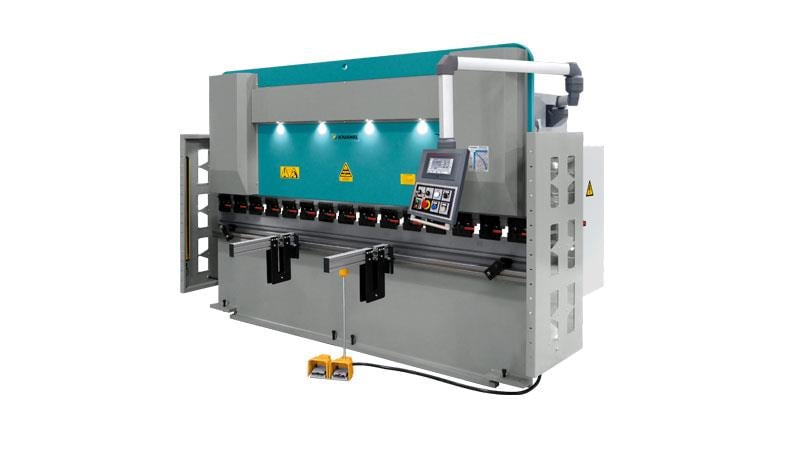

Jouanel PPS4120 Hydraulic Press Brake - 4.1 m - 120 Tons With Tools (Jouanel PPS4120)

• Large-sized anti-torsion rod providing a correct parallel position of the movable sliding block while lowering in pressure
• Collapsible and adjustable rectifying working table for high accuracy and durability
• Hydraulic power unit with double safety and adjustable pressure
• Quick and easy die turning
• Immaterial safety barriers: before class 4

• Manually-operated quick clamping system for punches to make easy the change of tools
• Front metal sheet support 500mm, adjustable for work comfort
• Back gauge fixed on a slide for small-width pieces. It is manually height-adjustable and depth-adjustable with micrometric screw ensuring high accuracy. The gauge fingers are retractable.
• Numerical control with touchscreen to control axis X and Y (several thousand programs, 80 folds each), possible to save and create programs, which can also be uploaded by usb stick.
• Various dies depending on models (see detail)
• Punches 86° radius 0.6 mm, length 550 and/or 800 mm acc. to models
• Control by pedal
• Power supply 400V three-phased + neutral

Extra front support for folding machines PPS Front metal sheet support arm 500mm, reference PPS-ST-SUP for press brakes from 1 to 4 meters		Electric adjustment of the back gauge height Electric adjustment, reference PPS-BRE1 for 1-meter press brakes. For accurate adjustment of the back gauge height by a control system located at the front of the machine
Punch 86° R 0.6 mm short 800 mm Punch of 86°, reference POIN-S86-0.6L for press brakes from 1 to 4 meters. Long punch 800mm, 0.6mm radius		Segmented punch 86° R 0.6 mm, 805 mm   Punch of 86°, reference POIN-S86-0.6F for press brakes from 1 to 4 meters. Split punch with horns 800mm, 0.6mm radius

Punch 24° R 0.5 mm long 800 mm Punch of 24°, reference POIN-S24-0.5L for press brakes from 1 to 4 meters. Long punch 800mm, 0.5mm radius		Segmented punch 24°, r 0.5 mm, 800 mm Punch of 24°, reference POIN-S24-0.5F for press brakes from 1 to 4 meters. Split punch with horns 800mm, 0.5mm radius
Punch 24° R 0.5 mm short 550 mm Punch of 24°, reference POIN-S24-0.5C for press brakes from 1 to 4 meters. Short punch 550mm, 0.5mm radius		Adaptable table for dies, height 25 mm, width 85/60, length 2,100 mm Working table, reference PPS-T2100B60 for 2-meter press brakes. Suitable for 60mm wide self-centered dies

Manual table crowning device with position-marker, length 2m (including the adaptable table)

Manual table crowning adjustment, with scale identification, reference PPS-BM2 for 2-meter press brakes. Including the table for self-centered dies
