Back Gauges
Reference
Manual adjustment of the back gauge height
Electric adjustment of the back gauge height
Additional front metal sheet support arm 500mm-length
For other needs, please contact us.
Clamps For Quick Clamping Of Tools
Manual locking
CN 2 AXES ESA-625
This multilingual numerical control offers a completely flexible and user-friendly configuration, including axis control for the slide and back gauge.
7" touch screen
Simple and intuitive operations
Storage of thousands of part programs
Backgauge control with reverse function
Angle correction possible depending on the sheet metal
Parts counter
Programming of tools
Manual, semi-automatic and automatic work function

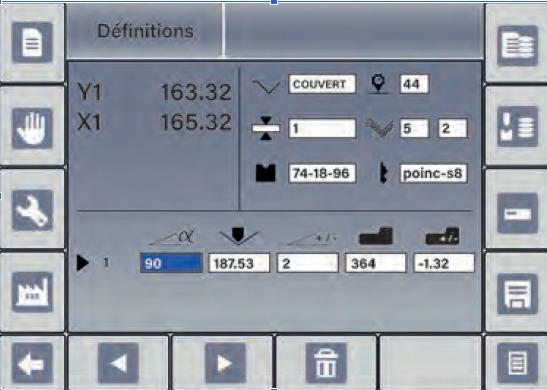

HOME SCREEN
Overview of the current role. Production of a single fold with data entered beforehand.

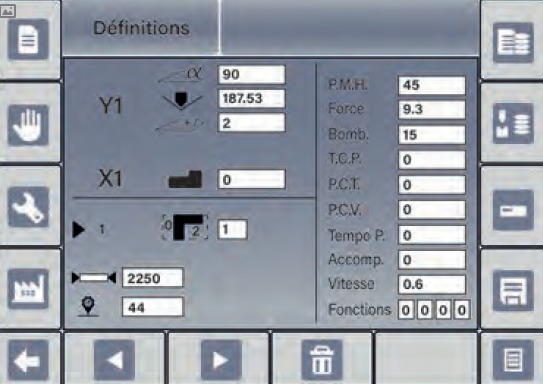

MORE INFORMATION
Second home screen with more precise characteristics.
TOOL PROGRAMMING
Addition of punches and dies. Recording the characteristics of the added tools.
REALISATION OF SEVERAL FOLDS
Fold the programmed folds in the order indicate on the screen.
Front metal sheet support arm 500mm, reference PPS-ST-SUP for press brakes from 1 to 4 meters

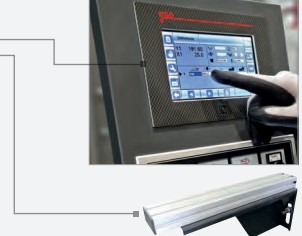

Electric adjustment, reference PPS-BRE1 for 1-meter press brakes. For accurate adjustment of the back gauge height by a control system located at the front of the machine
Punch of 86°, reference POIN-S86-0.6L for press brakes from 1 to 4 meters. Long punch 800mm, 0.6mm radius
Punch of 86°, reference POIN-S86-0.6F for press brakes from 1 to 4 meters. Split punch with horns 800mm, 0.6mm radius
Punch of 24°, reference POIN-S24-0.5L for press brakes from 1 to 4 meters. Long punch 800mm, 0.5mm radius
Punch of 24°, reference POIN-S24-0.5F for press brakes from 1 to 4 meters. Split punch with horns 800mm, 0.5mm radius
Punch of 24°, reference POIN-S24-0.5C for press brakes from 1 to 4 meters. Short punch 550mm, 0.5mm radius

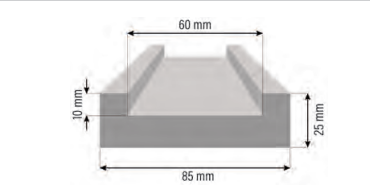

Working table, reference PPS-T1100B60 for 1-meter press brakes. Suitable for 60mm wide self-centered dies
