Plasma source power (A)
Steel S235JR cutting thickness (min.-max.) (mm)
Stainless steel cutting thickness ( min. max.) (mm)
Stainless steel drilling thickness (max.) (mm)
Aluminium cutting thickness (min.-max.) (mm)
Working area (LxW) (mm)
Working height (mm)
Overall dimensions (LxWxH) (mm)
3850x1800x1100
Weight of the machine (kg)
Power supply (V)*
Power (kW)
Compressed air
Dry air, humidity 10% max, filtered, 6 bars, 185 liters/mn
Suction (by the client) (m3/hour)
Duct section at the machine exit (mm)
400x200

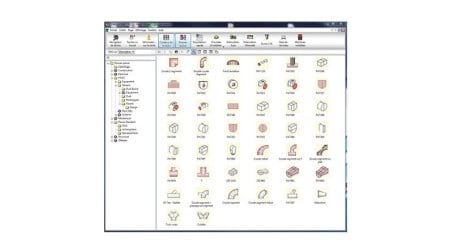

Software for plasma and laser cutting tables, reference JYL-BASIC+, soft LIBELLULA.WIZARD3 with CAD 2D drawing software, dxf and dwg file importing, library of pieces, automatic interlacing, automatic and manual cutting start.
Software for plasma and laser cutting tables, reference JYL-BASIC+HVAC, soft LIBELLULA.WIZARD3 special for ventilation, CAD 2D drawing software, dxf and dwg file importing, scribing software and library of HVAC pieces, automatic interlacing, automatic and manual cutting start.
Plasma / laser cutting tables - JYL SOFTWARES
SSoftware for plasma and laser cutting tables, reference JYL-CUT+HVAC, soft LIBELLULA.CUT for boilermaking and metal works, specific ventilation module, CAD 2D drawing software, dxf and dwg file importing, scribing software with libraries of simple pieces and HVAC, automatic or manual interlacing, automatic, manual and customized cutting start.
1-year subscription to the CAMDUCT software, reference CAMDUCT1, dxf and dwg file importing software, automatic interlacing, extensive 3D library of special pieces for insulation and ventilation. This software is edited by Autodesk®, specific
3-year subscription to the CAMDUCT software, reference CAMDUCT3, dxf and dwg file importing software, automatic interlacing, extensive 3D library of special pieces for insulation and ventilation. This software is edited by Autodesk®, specific documentation upon request.
Straightening, feeding selector, reference SA1V, useful working width 1,50m, capacity 1.2mm, 1 way, equipped with 1 decoiler of 5 tons, with coil selector, wired control. To feed the plasma or laser cutting table from one coil. The coil selector is to let all coils engaged permanently in the decoiler.
Straightening, feeding selector, reference SA2V, useful working width 1,50m, capacity 1.2mm, 2 ways, equipped with 2 decoilers of 5 tons, with coil selector, wired control. To feed the plasma or laser cutting table from one coil. The coil selector is to let all coils engaged permanently in the decoiler.
Straightening, feeding selector, reference SA3V, useful working width 1,50m, capacity 1.2mm, 3 ways, equipped with 3 decoilers of 5 tons, with coil selector, wired control. To feed the plasma or laser cutting table from one coil. The coil selector is to let all coils engaged permanently in the decoiler.
Straightening, feeding selector, reference SA4V, useful working width 1,50m, capacity 1.2mm, 4 ways, equipped with 4 decoilers of 5 tons, with coil selector, wired control. To feed the plasma or laser cutting table from one coil. The coil selector is to let all coils engaged permanently in the decoiler.
