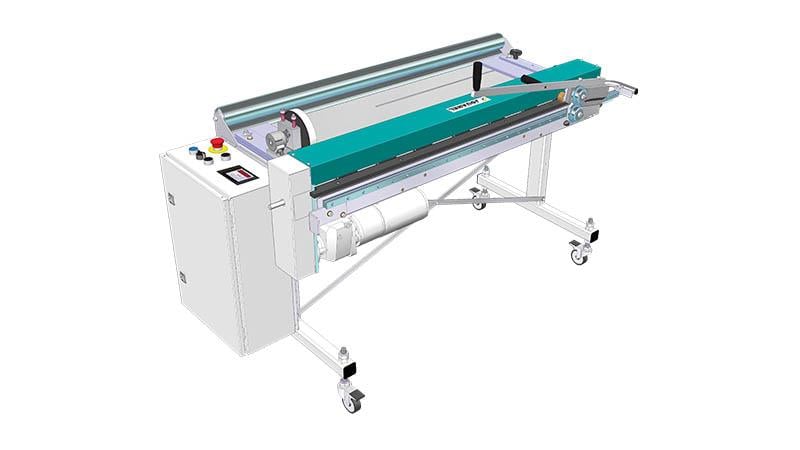

Jouanel CLD-AE Cutting Unit 1.25M x 0.7 mm Electric Uncoiling Manual Cutting

Jouanel CLD-AE Cutting Unit 1.25M x 0.7 mm Electric Uncoiling Manual Cutting (Jouanel CLD-AE)

Brand : Jouanel

Price : 0,00 EURO

Stock Amount : 0

Note: The prices shown here are retail sales prices. SPECIAL DISCOUNT MAY APPLY FOR BULK PURCHASES . Additionally, discounted prices offered to dealers may differ.

Import duties, customs charges, and value-added taxes for products originating outside of Turkey are not included in the listed prices. This is applicable to customers purchasing from within Turkey.

The prices mentioned here do not include door-to-door delivery. Buyers purchasing from other countries are responsible for customs duties and any other taxes applicable under their local commercial laws.

For orders under 13,000 Euros, if the product value is below this, the total order value must either reach 13,000 Euros or a 150 Euro customs fee will be added to your final invoice value.

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Artır Azalt

Delivery Time 45-60 Days After O.C.

Shipment Place Turkiye

Payment Terms % 50 T/T On O.C., % 50 T/T B.S.

Made In France

Min. Order Qty. 1 Pcs.

Warranty1 Year

Light semi-electric cutting line, reference CLD-AE, useful cutting width 1.25m, 0.7mm steel capacity, electric uncoiling, length measurement, manual cut by integrated roller shear

For fast cuttitng capacity of material acc. to the needs
Electric uncoiling
Length counter
Easily movable in workshop
Does not mark the metal sheet
Reverse-lock device of the coil
Easy cut without effort

Electric uncoiling
Speed 9m / mn
Electronic length programmer, accuracy +/- 15 mm
Drive by rubber rollers
Adjustable entry guides from 500 to 1250mm, on slides and locking handles
Mount adapts to coils with a minimum width of 250 mm
Guiding of the metal sheet on ball bearings
Free roller at the entrance to guide the metal sheet in height
Entry table with nylon protection
Sheet clamping system with reverse-lock device of the coil
4 caster wheels with brakes

Maximum cutting capacity
Soft Steel capacity (mm)	0,7
Capacity Zinc, Copper, 1050-H44 Aluminum (mm)	0,8
Capacity Stainless Steel (mm)	0,5
Uncoiling
Minimum width of the coil (mm)	250
Maximum width of the coil (mm)	1 250
Power supply (V)*	220V single
Power (kW)	0,18
Dimensions
Operating dimensions (mm)	1 800 x 800 x 1 110
Sheet overhead clearance (mm)	825 (adjustable +/- 15mm)
Transport dimensions (mm)	2 000 x 1 100 x 1 300
Net weight (kg)	140
Gross weight (kg)	210
* Voltage choice to signal at the order

Decoilers on wheels DVS

Decoiler on wheels, reference DVS1250, for 1250mm wide coils, maximum load 1000kg. Equipped with hub for manual mandrel expansion, from 285 to 540mm diameter, with brake.

Building site light decoilers DVM / DVD

Portable decoiler, reference DVM500, for 500 to 1250mm wide coils, maximum load 500kg. Light and multi-purpose, easy to transport and specially fitted for works on building site

Building site light decoilers DVM / DVD

Two-wheeled decoiler, reference DVD1000, for 1000mm wide coils, maximum load 200kg. For handling and uncoiling of coils

Mobile exit table

Exit table, reference CLD-TAB-1M for cutting lines CLD. Equipped with an adaptator for coupling of several tables. Dimensions: length 1m, width 1.25m, working height 0.74m (adjustment +/- 15 mm)

Decoilers on wheels DVS

Decoiler on wheels, reference DVS1000, for 1000mm wide coils, maximum load 1200kg. Equipped with hub for manual mandrel expansion, from 285 to 540mm diameter, with brake.
