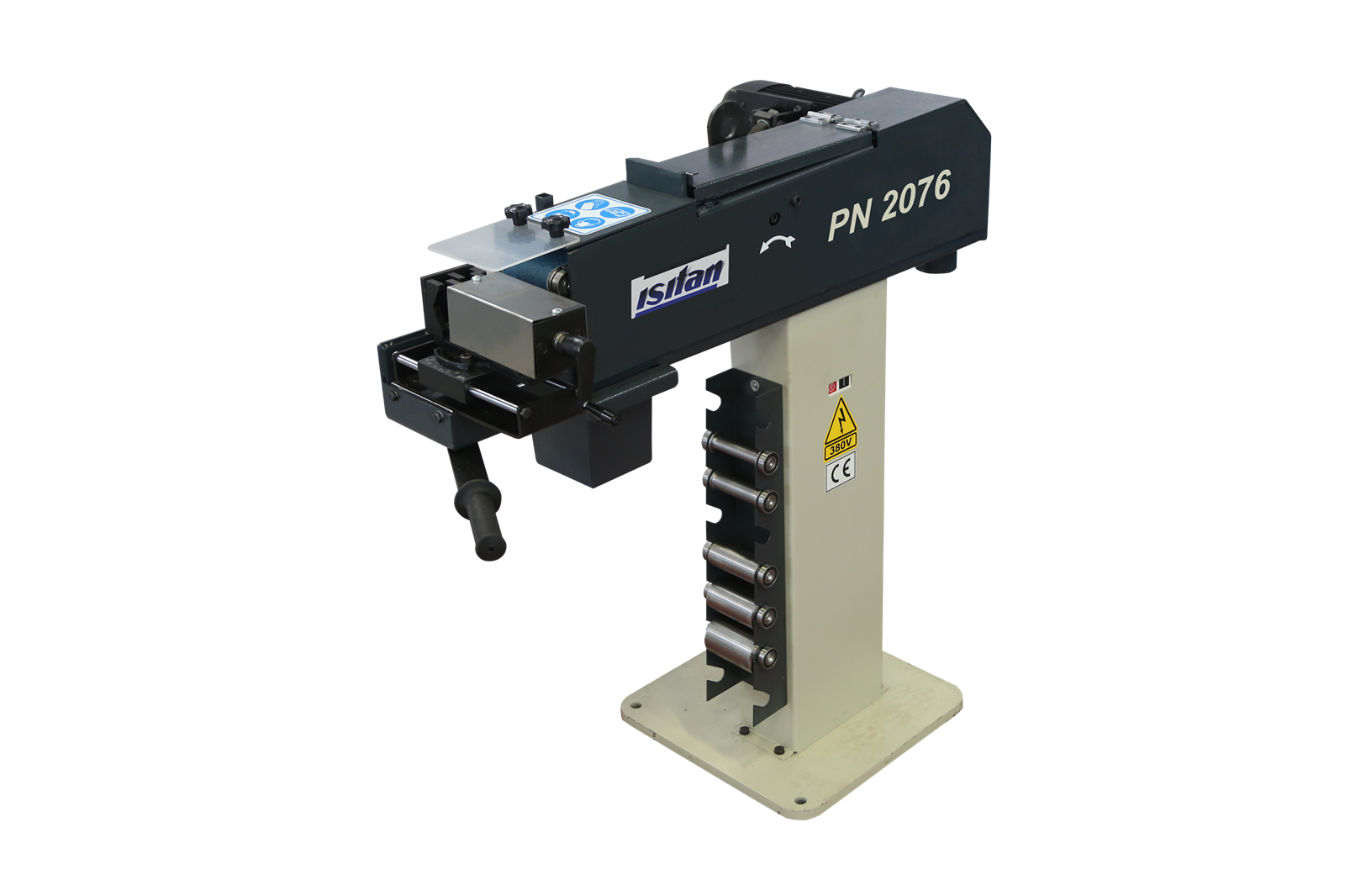

Isitan PN-76 20/76 Pipe Notcher Pipe Processing (PN-76 20/76)

Built according to EC Safety Directives and has CE Mark
Charge to easily ability to open suitable dovetails according to the pipe and tube diameters with the help of processing drum.
Ability to tighten and loosen the parts quickly as a result of moving clamp.
Ability of clamp to move right and left sideways
With movable clamp, notching up to 50° degrees angle
Welding to 4” sized pipes possibility. (PN 17/90)

Pneumatic clamping system
Special dovetails for different sizes
All kind of special tools can be produced according to customer’s request

MODEL	PN-76 20/76
Notching capacity	20 - 76	Ø mm
Motor power	2,2	kw
Length	1350	mm
Width	700	mm
Height	1200	mm
Weight	130	kg
