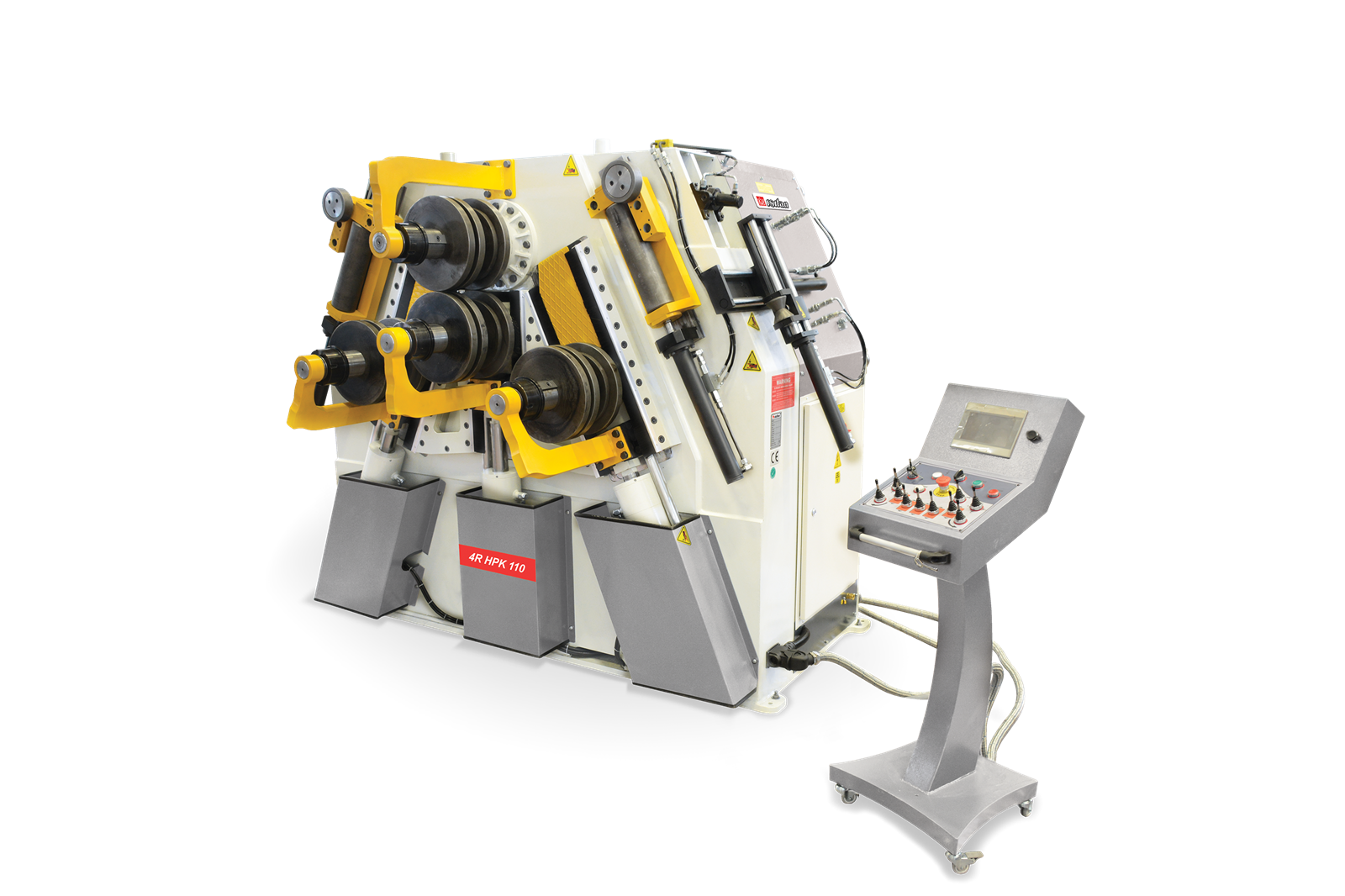

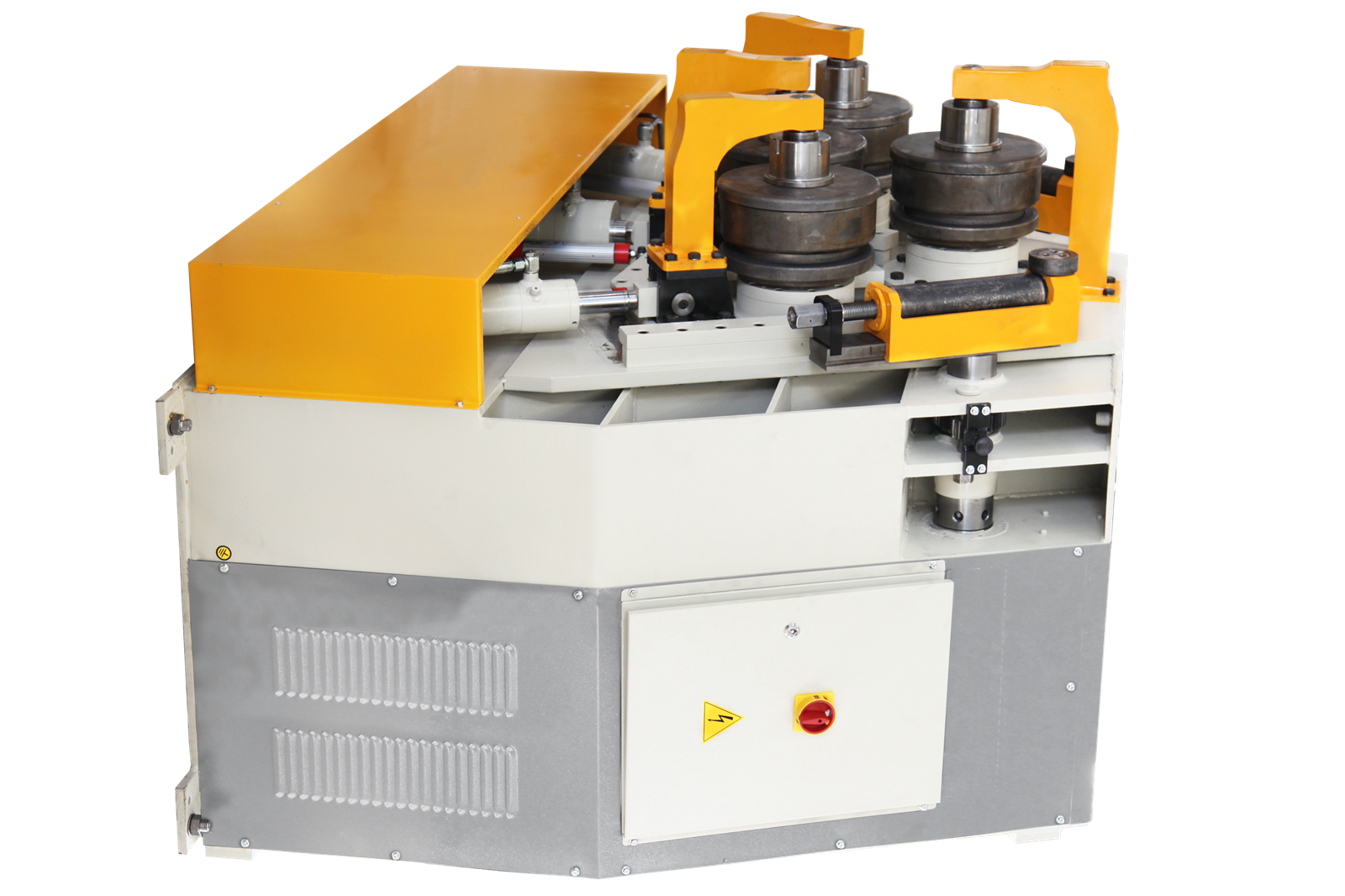

Isitan 4R HPK 110 Hydraulic 4 Roll Profile And Pipe Bending Machine (4R HPK 110)

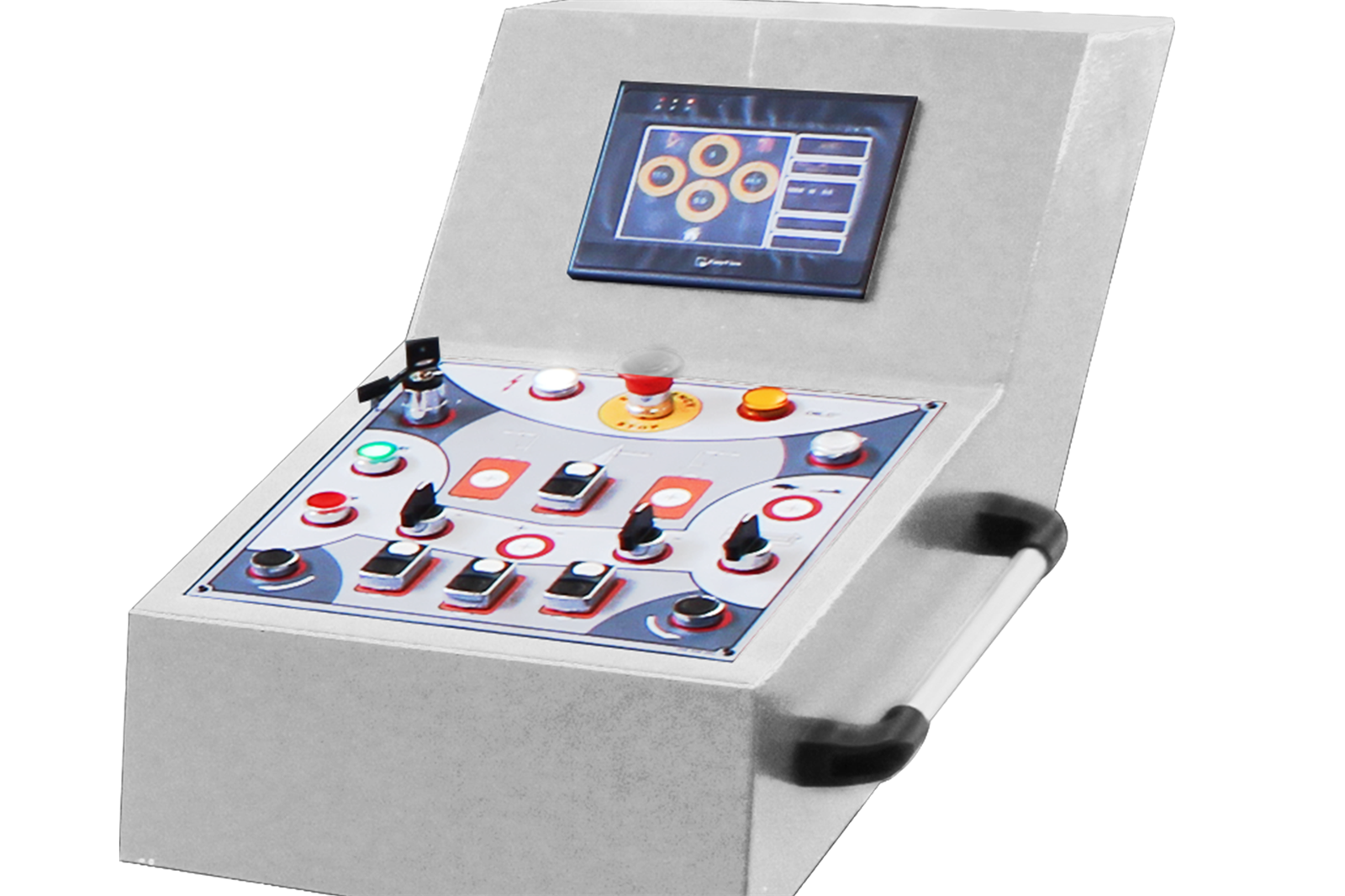

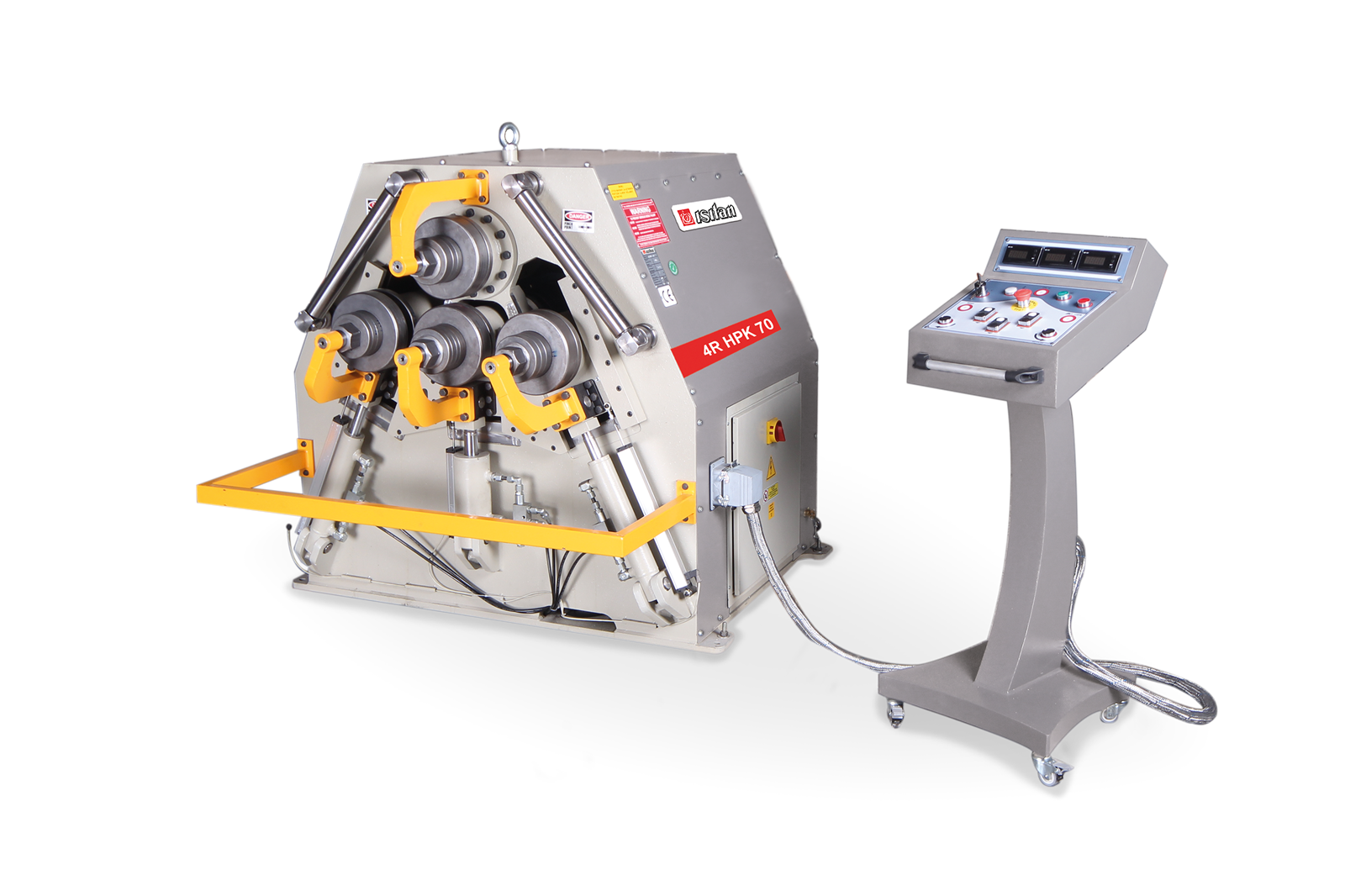

Easy operation with mobile control panel with push buttons
Welded steel frames
Built according to EC Safety Directives and has CE Mark
4 Rolls Machine
On 90 and 110mm Shaft Models 3 Rolls are driven by hydromotor + planetary reducers , on 70mm Shaft Model 2 Rolls are driven
Hardened and ground shafts made of high tensile special steel

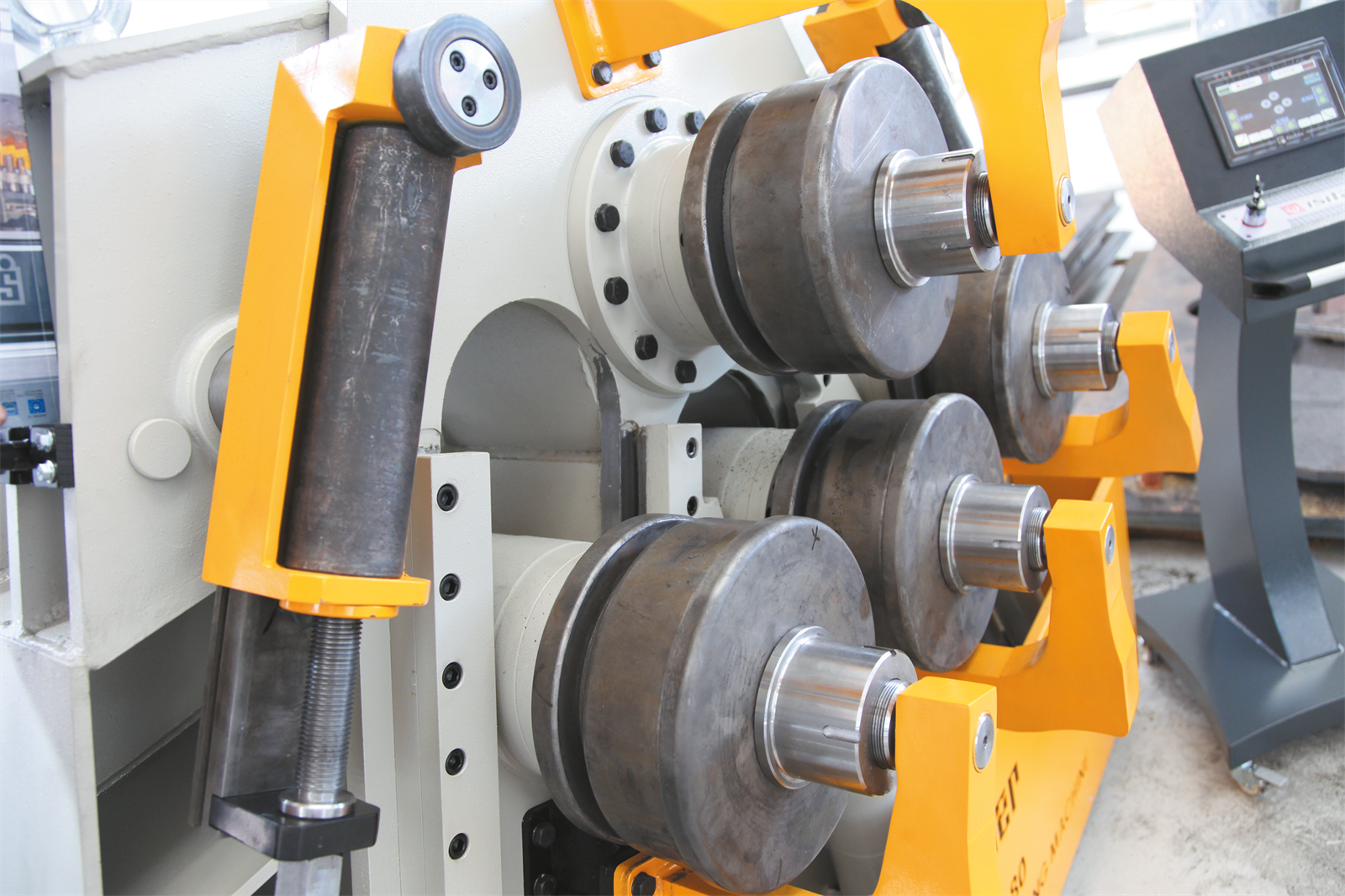

Standard Rolls (1 Set with 4 Rolls)
Rolls are hardened and ground in the hole
Bottom and lateral rolls hydraulik movable up-down
Horizontal and Vertical Working Position

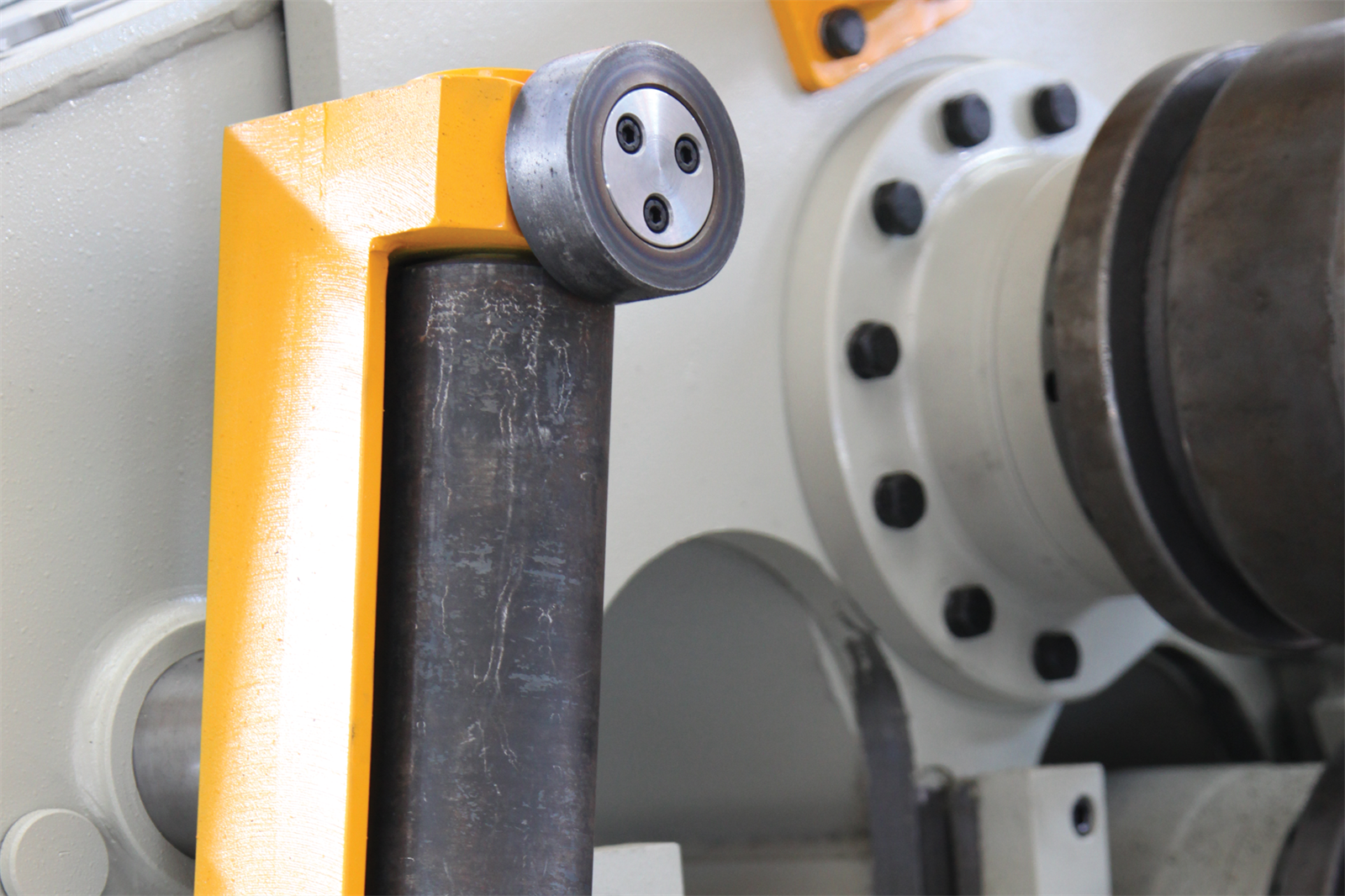

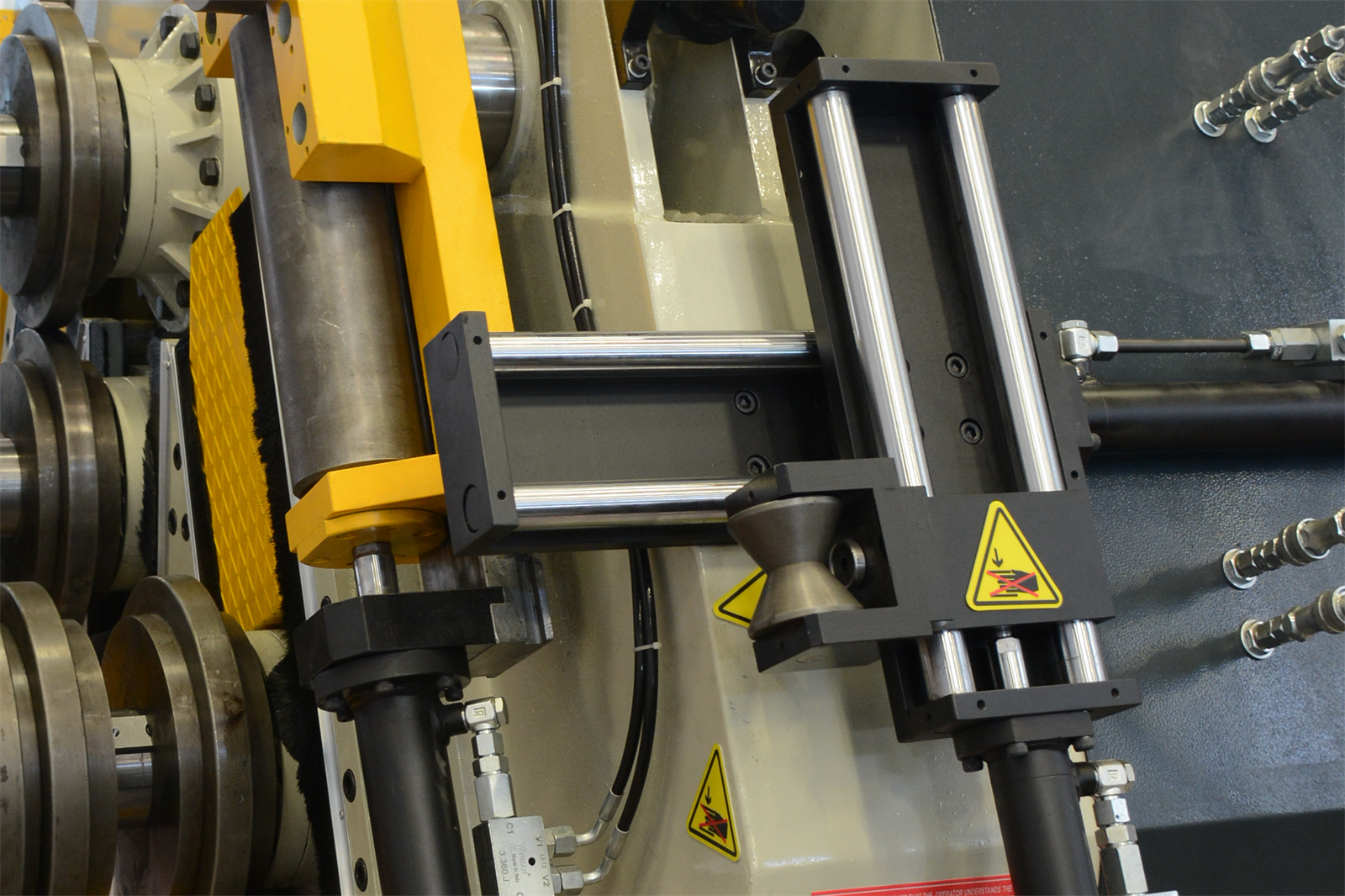

On 70mm Shaft model 1+1 axis Guide Rolls
On 90 and 110mm Shaft models 3+3 axis Guide rolls
User’s Manual with EC Certification

Automation with NC Control

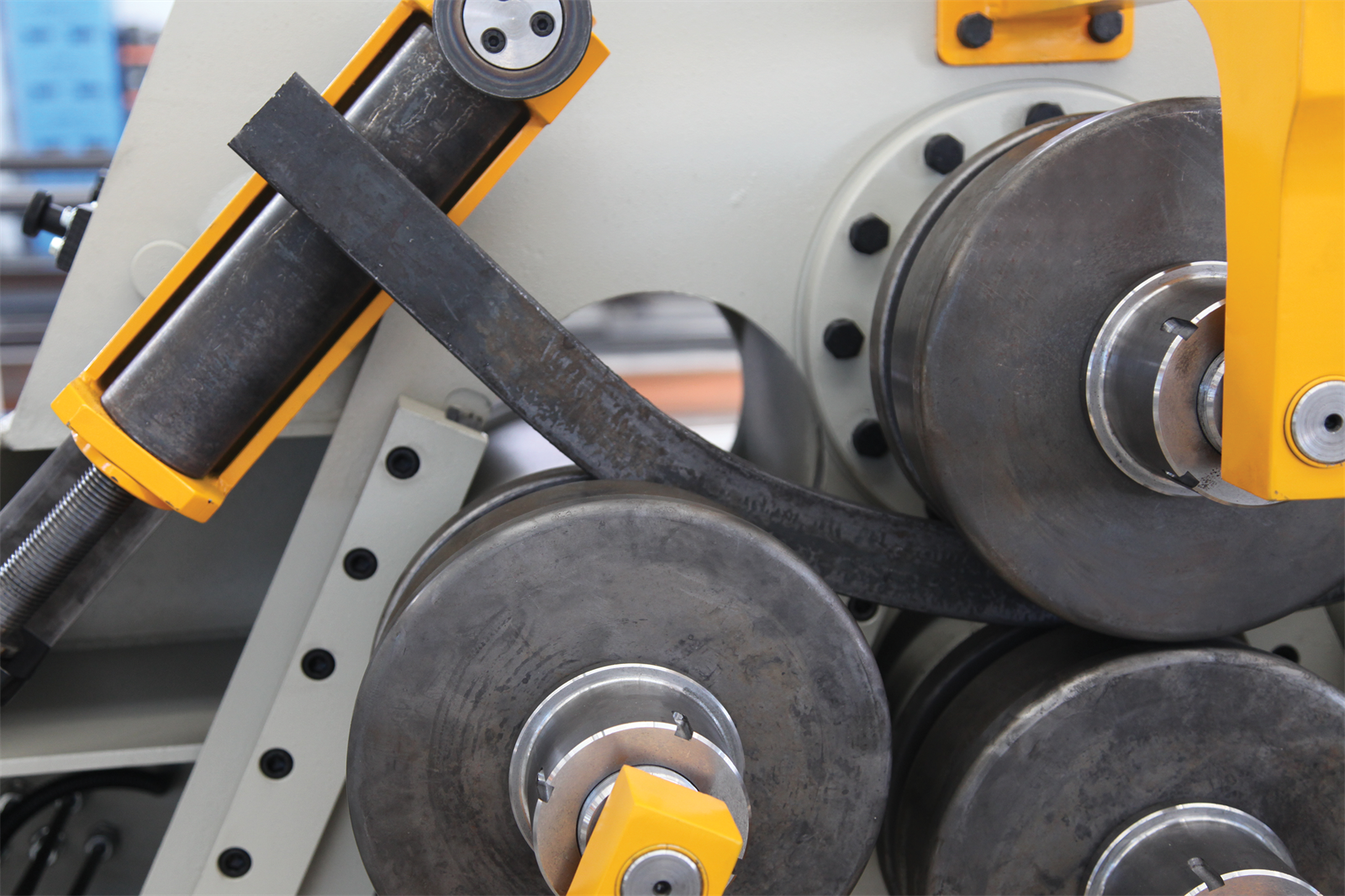

Optional Profile-Flat Bar Bending Rolls
Special Roll Sets

MODEL	4R HPK 110
Shaft Diameter	110	mm
Rolls Diameter	320	mm
Shaft Lenght	200	mm
Bending Speed	5	d / dk rpm
N° of motorized rolls	3	adet pcs
N° of side rolls axes	3	adet pcs
Motor Power	7,5	kw
Machine weight, without optionals	4500	kg
Machine Dimensions	2000x1700x1250	mm
