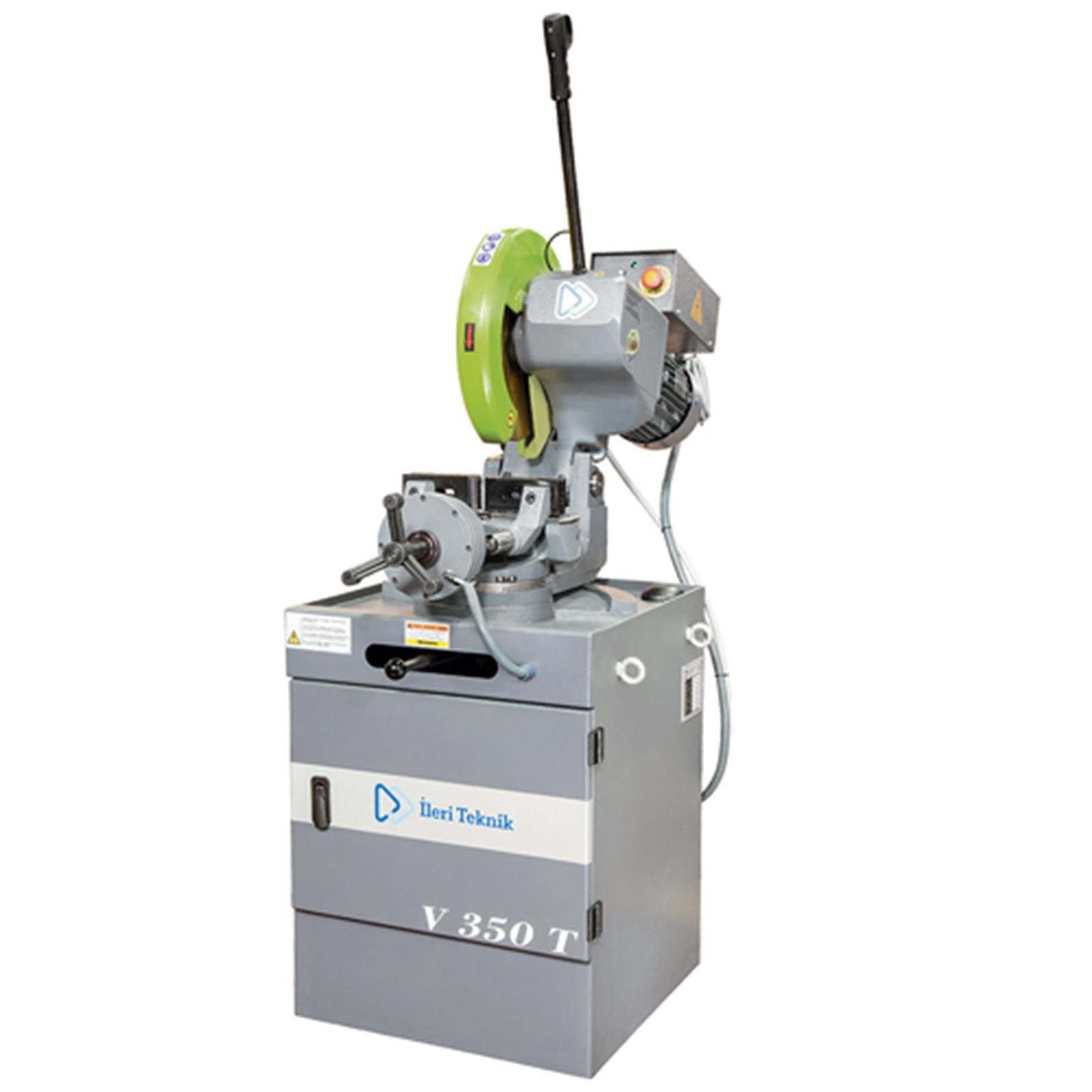

Compact, pull down manual circular saw with powered material clamping and operated by a hand lever, offer easy mitre cutting for the workshop or toolroom
- Air-operated clamp for material vice
- Low voltage start/stop trigger switch within the pull down hand grip
- Miter capabilities 45 degrees left and 45 degrees right
- Double split vice to grip material on both sides of the material
- Self centering of vice optimizes cutting position
- Two cutting speeds
Cutting Capacity
| Maximum Saw Diameter |
350 mm |
| Saw Angle |
90° +/- 45° |
| Round Material Diameter (max.) |
115 mm 110 mm |
| Square Material (max.) |
100 x 100 mm 90 x 90 mm |
| Rectangular Material (Max.) |
120 x 80 mm 90 x 90 mm |
| Main Voltage |
400 V |
| Control Voltage |
24 V |
| Installed Power |
4,7 kW |
| Current |
1, 85 A |
| Saw Engine |
1,3 - 1,8 kW |
| Boron Oil Pump |
0,06 kW |
| Saw Speed |
45 / 80Dev. / Dak. |
| Angle Rotation |
90° / +/- 45° |
| Saw Diameter |
350 mm |
| Saw Bore Diameter |
32 mm |
| Pin Holes |
2 x Çap 11 |
| TiN Coating |
Medium Hard Steel |
| TiCn Coating |
High Stiffness Steel |
| TiAIN Coating |
Stainless steel |
| Most |
600 mm |
| Size |
1000 mm |
| Height |
1400 mm |
| Net weight |
220 Kg |
| Gross weight |
240 Kg |
