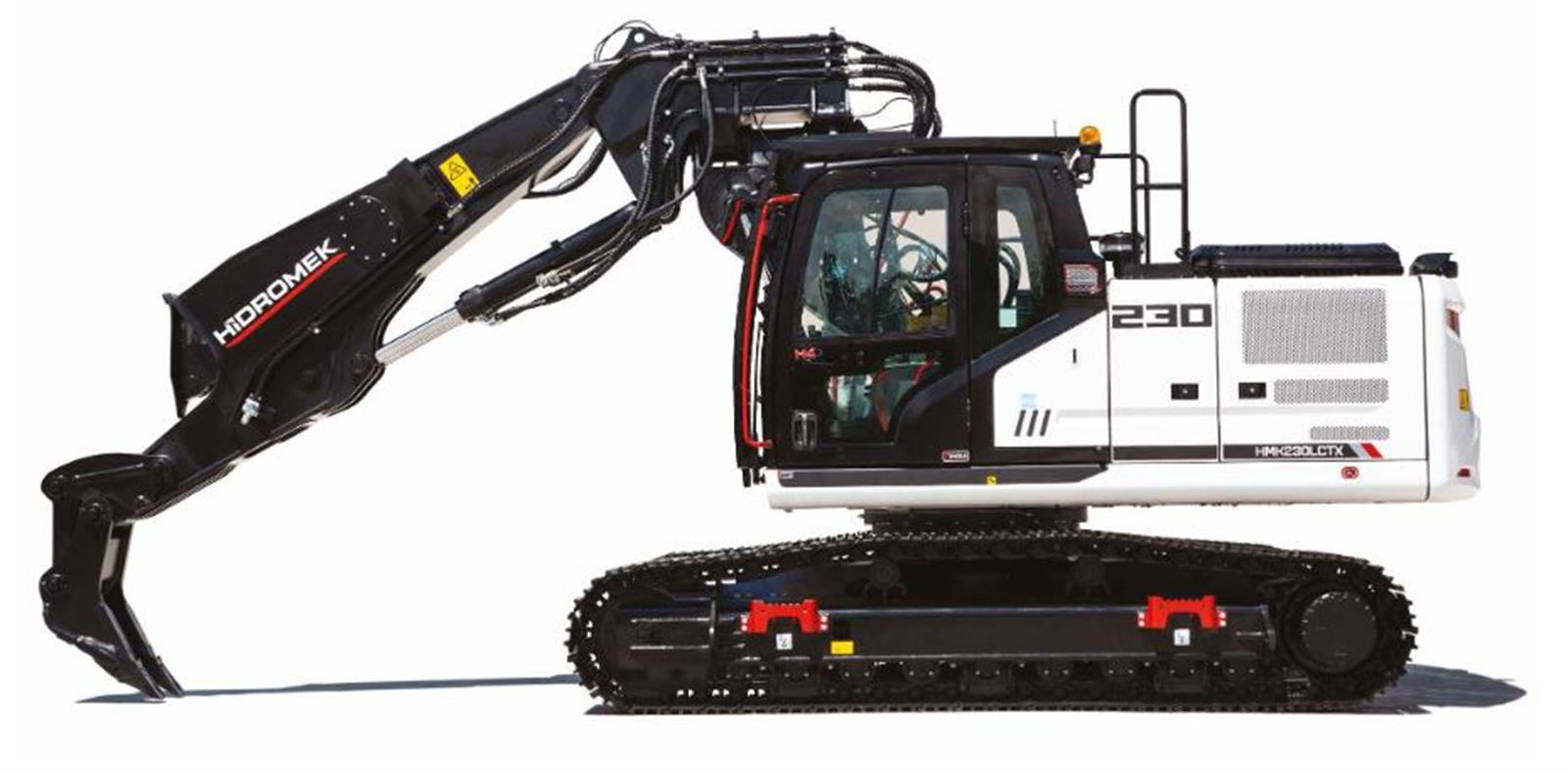

Hidromek HMK 230 LC TX Special Purpose Excavators (Hidromek HMK 230 LC TX)

Being produced with developed hydraulic system design, HİDROMEK’s new H4 Series excavators offer an outstanding performance by working faster, more productively and more efficiently. H4 Series excavators produce more work with less fuel; hence, they are more profitable for their users than ever.

Boom Dimension 2.700 mm
Arm Dimension 3.890 mm
- Overall length 9.980 mm B
- Overall height (to top of boom) 3.390 mm
- Overall width 2.990 mm
- Idler distance 3.640 mm
- Tail swing radius 2.800 mm
- Upperstructure ground clearence 2.810 mm
- Crawler height 1.060 mm G - Min. ground clearence 935 mm
- Track gauge 465 mm
- Shoe width 2.390 mm
- Overall length of crawler 600 mm
- Length over ground 4.460 mm
- Overall height (to top of cab) 2.995 mm
- Upperstructure width 2.740 mm
- Max. Reach Distance 7.410 mm
- Vertical reach at 5.5 m 5.180 mm
- Maximum Digging Height 8.150 mm
- Max. digging height 2.800 mm
- Boom swing angle 44°
- Maximum working width 7.040 mm
- Attachment swing Radius 3.610 mm
