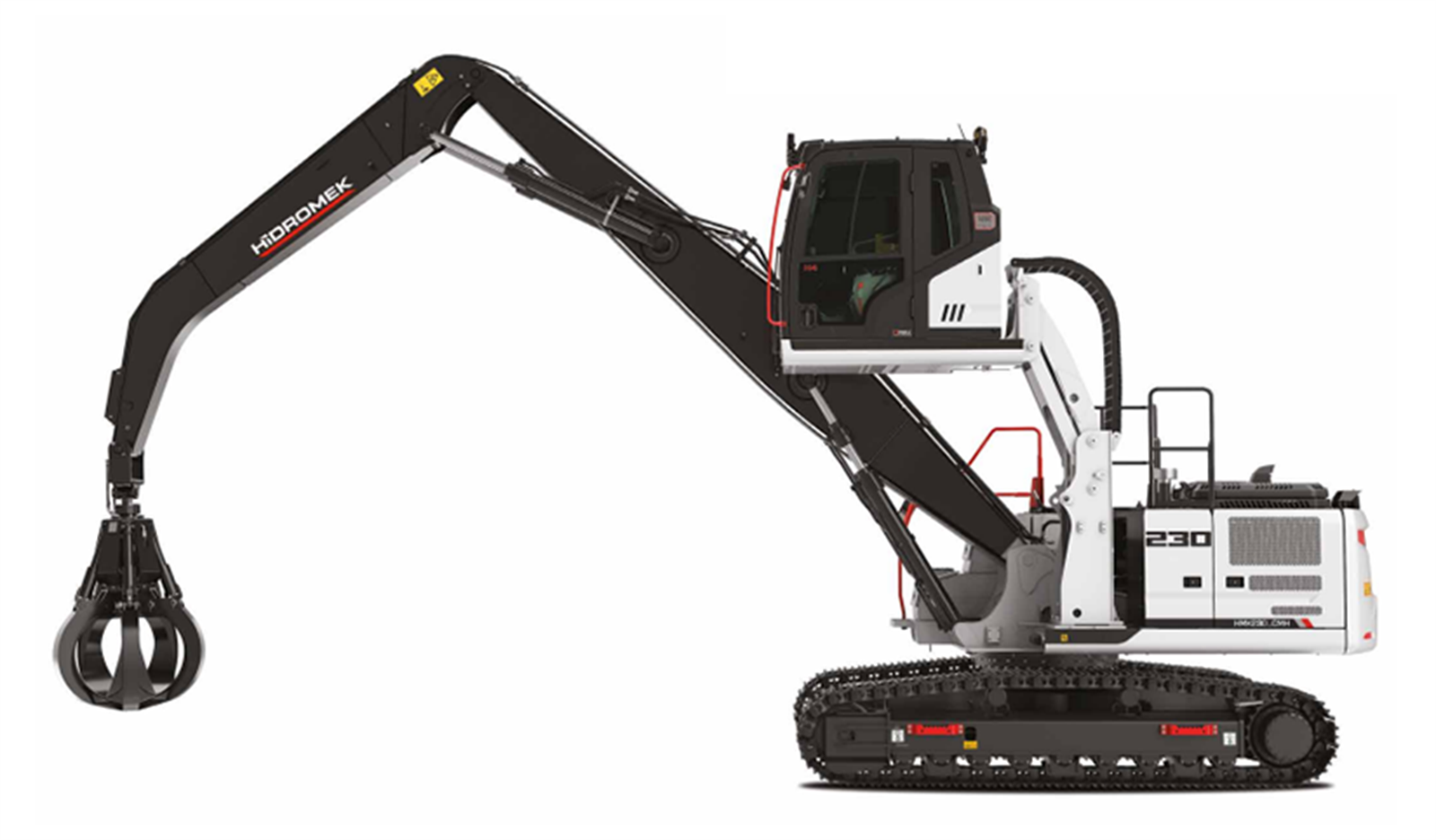

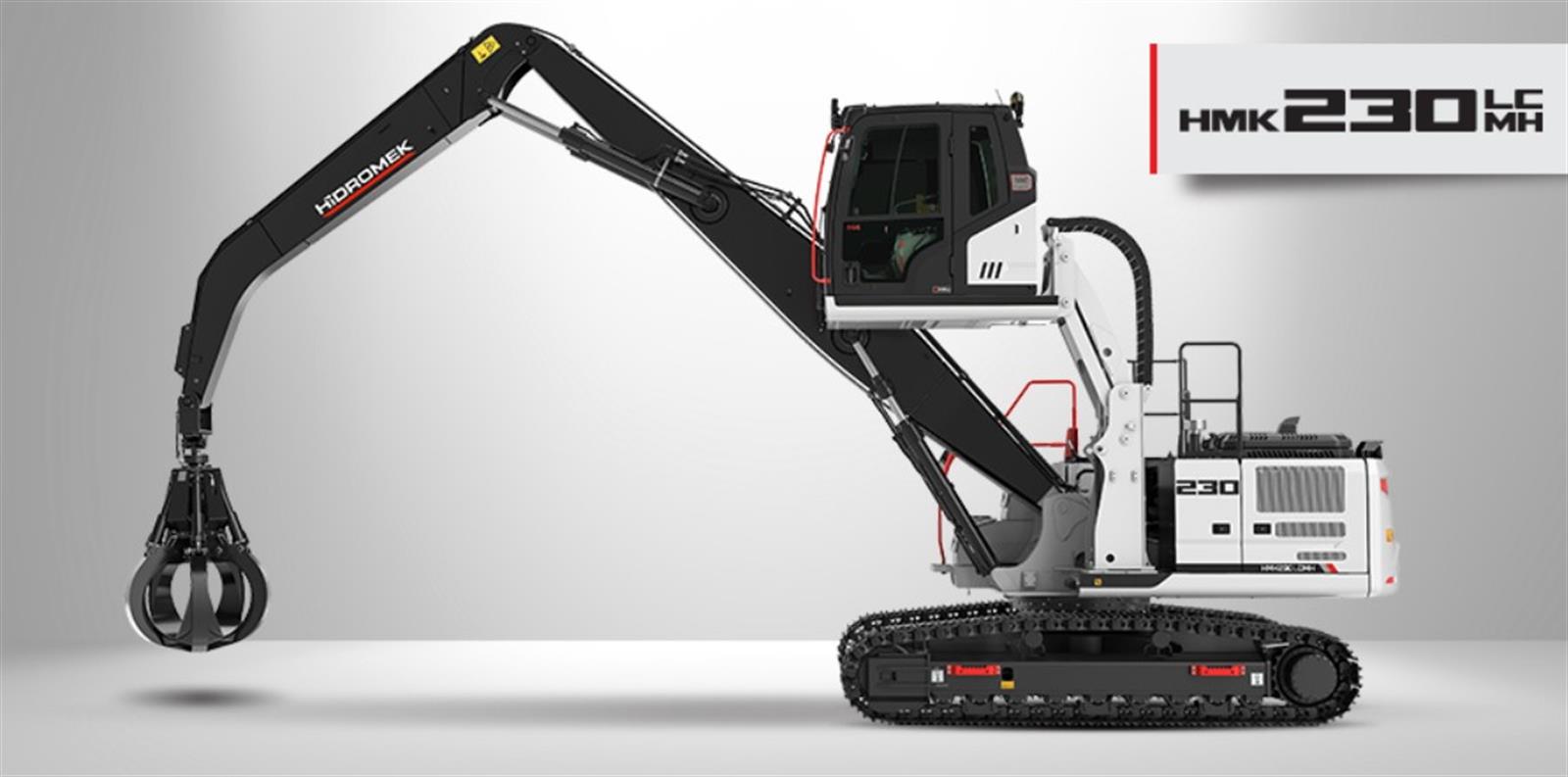

Hidromek HMK 230 LC MH Special Purpose Excavators (Hidromek HMK 230 LC MH)

Boom Dimension 6.60 mm
Arm Dimension (Dropnose/Arm) 4.60 mm
- Overall Length 9.760 mm
- Boom Height (Travel) 3.680 mm
- Lower Frame Width 2.990 mm
- Track Base Length 3.640 mm
- Counterweight Distance 2.840 mm
- Counterweight Turning Radius 2.850 mm
- Counterweight Clearance 1.065 mm
- Crawler (Track) Height 935 mm
- Ground Clearance 465 mm
- Cab Rising Distance 2.400 mm
- Total Cab Height 5.380 mm
- Track Gauge 2.390 mm
- Shoe Width 600 mm
- Lower Chasis Length 4.460 mm
- Cab Height 3.010 mm
- Upper Frame Width 2.740 mm
- Maximum Reach Distance 11.020 mm
- Maximum Reach at Ground Leve 10.860 mm
- Maximum Depth 4.100 mm
- Maximum Digging Height 12.410 mm
- Grapple 2.350 mm
