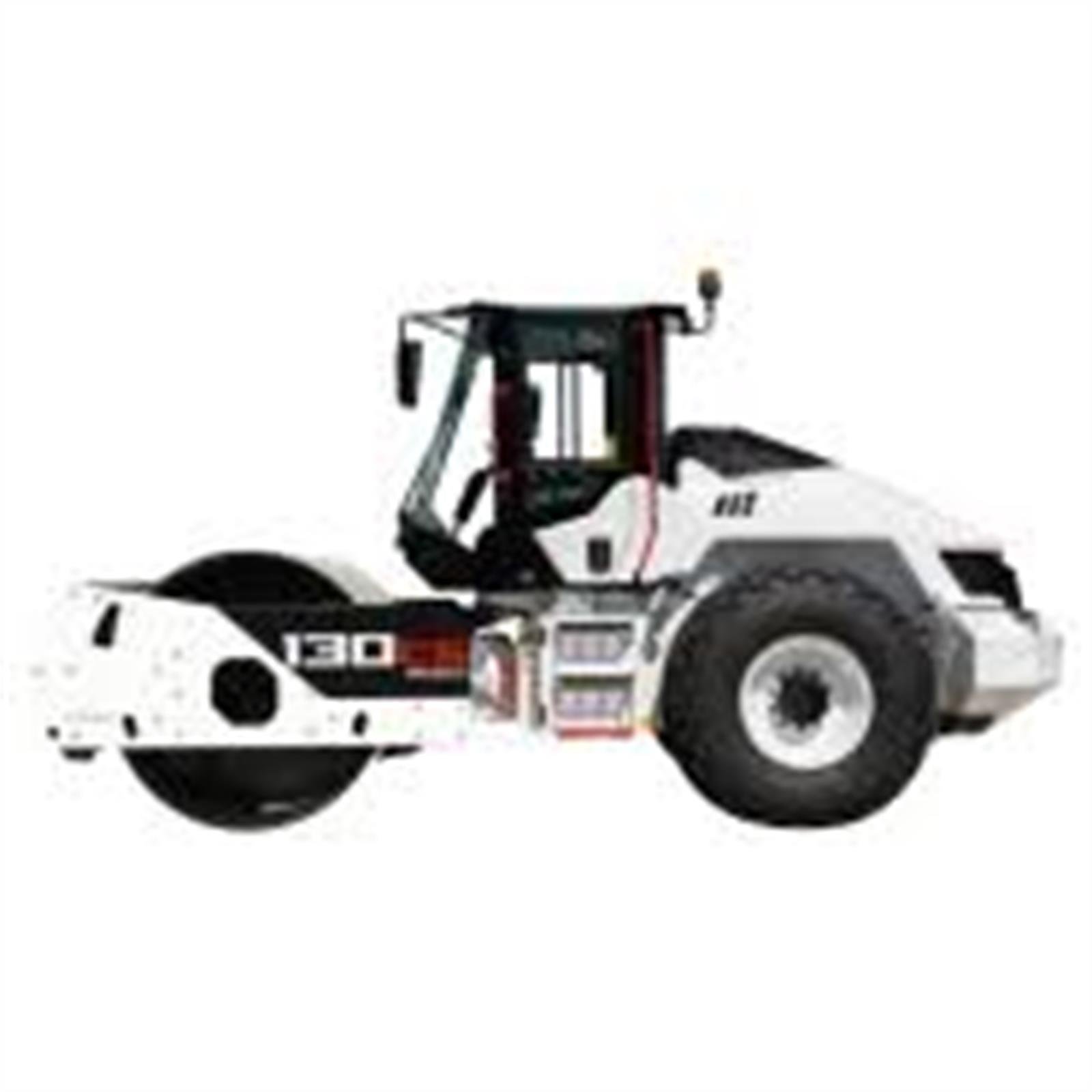

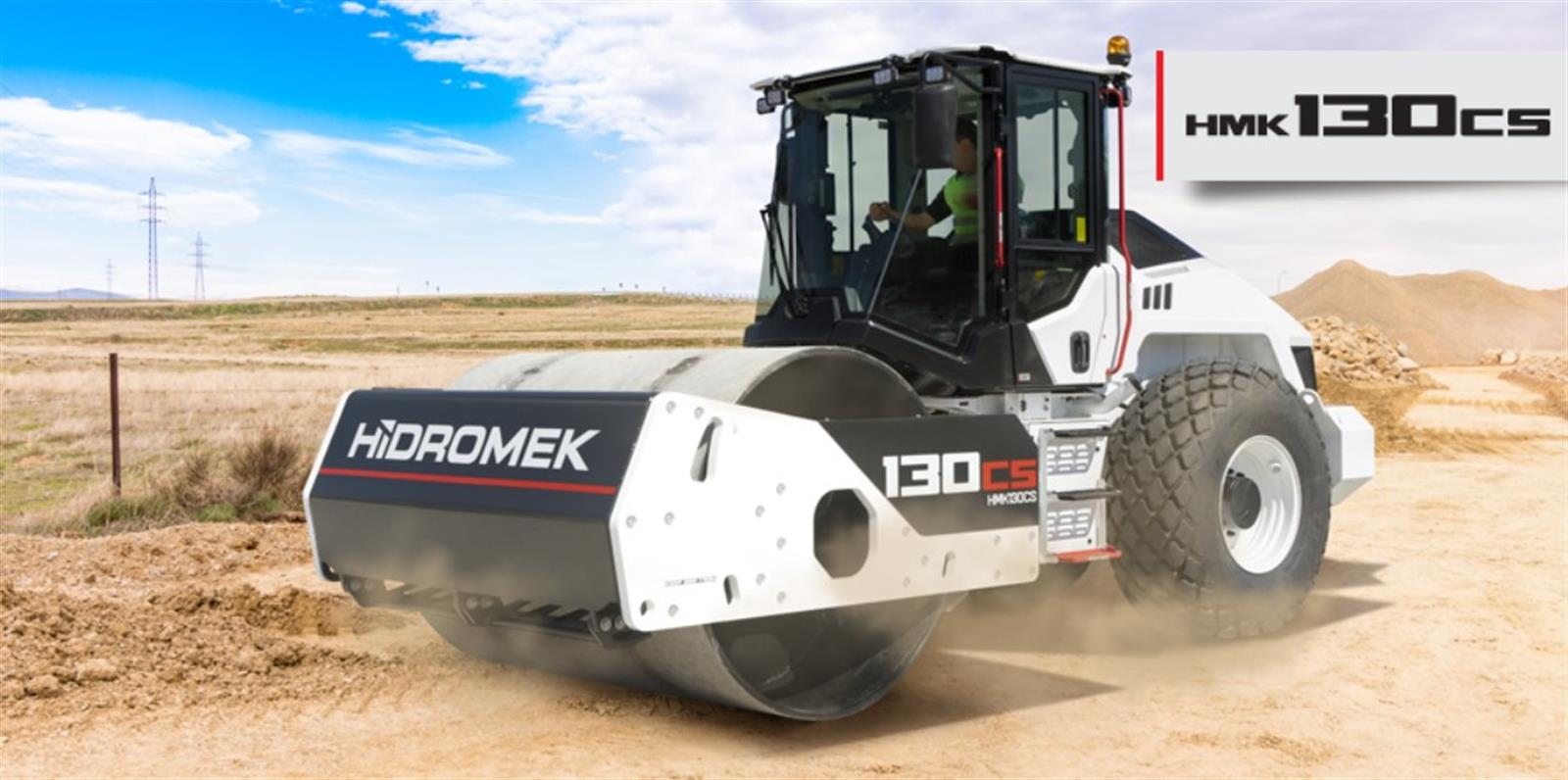

Hidromek HMK 130 CS Soil Compactors (Hidromek HMK 130 CS)

• Smooth drum
• Double front and rear steel scraper
• HVAC
• FOPS level-2 and ROPS cabin
• Automatic vibration
• Tactile 8” color display (with cabin)
• Audio center with mp3/Usb/aux
• Speed indication in display
• Service interval check in Display
• Tablet PC and phone holder
• Glass holder
• LED interior light
• Sun-visors
• 12 V auxiliary socket
• Swivel and sliding seat
• Seat warning sensor
• Seat with safety belt
• Storage pockets
• Working lights (halogen)
• Rotary beacon (halogen)
• Tilt and Adjustable steering column
• Storage boxes for operator
• Pool type mat
• Monoblock Engine hood with electric actuator
• 4 travelling
• Limited-slip axle
• 2 vibration ranges
• Reverse alarm & 2 warning horns
• Easy accessable Hyd. test ports
• Tools kit
• One key system

• Plastic Scrapers
• Rear camera
• İnclinometer
• Compactimeter
• Smartlink
• Circulation lighting (Rear)
• Padfoot

Engine
Brand, Model	DEUTZ, TCD 2012 L04 2V Dizel Engine
Number of Cylinders	4
Bore & Stroke	101 mm x 126 mm
Displacement	4.038 cc
Maximum Power	169 HP (115 kW) @2200 rpm
Maximum Torque	699 Nm @1500 rpm



Steering System
Oscillation angle	± 12˚
Articulation angle	± 35˚



Driving Speed
1st gear	5 km/h
2nd gear	6 km/h
3rd gear	7 km/h
4th gear	12 km/h



Dimension
Length (standard equipment), Max	5.855 mm
Height (with ROPS cabin), Max	2.970 mm
Height without cabin (expedition)	2.280 mm
Width, drum	2.130 mm
Diameter, drum	1.500 mm



Capacity
Fuel tank	350 L
Hydraulic tank	105 L



Weight
Operating weight, CECE, ROPS Cabin	13.250 kg
