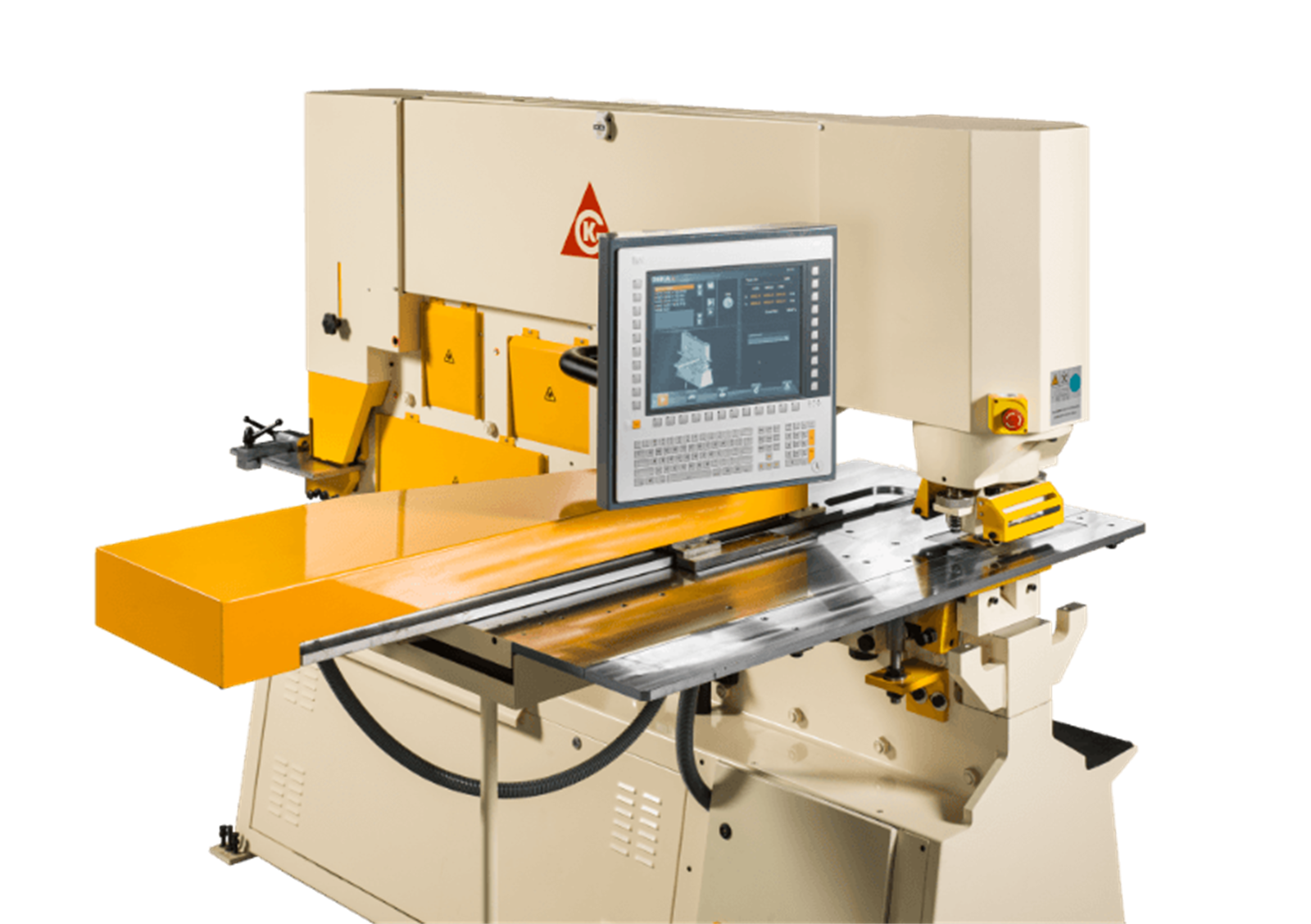

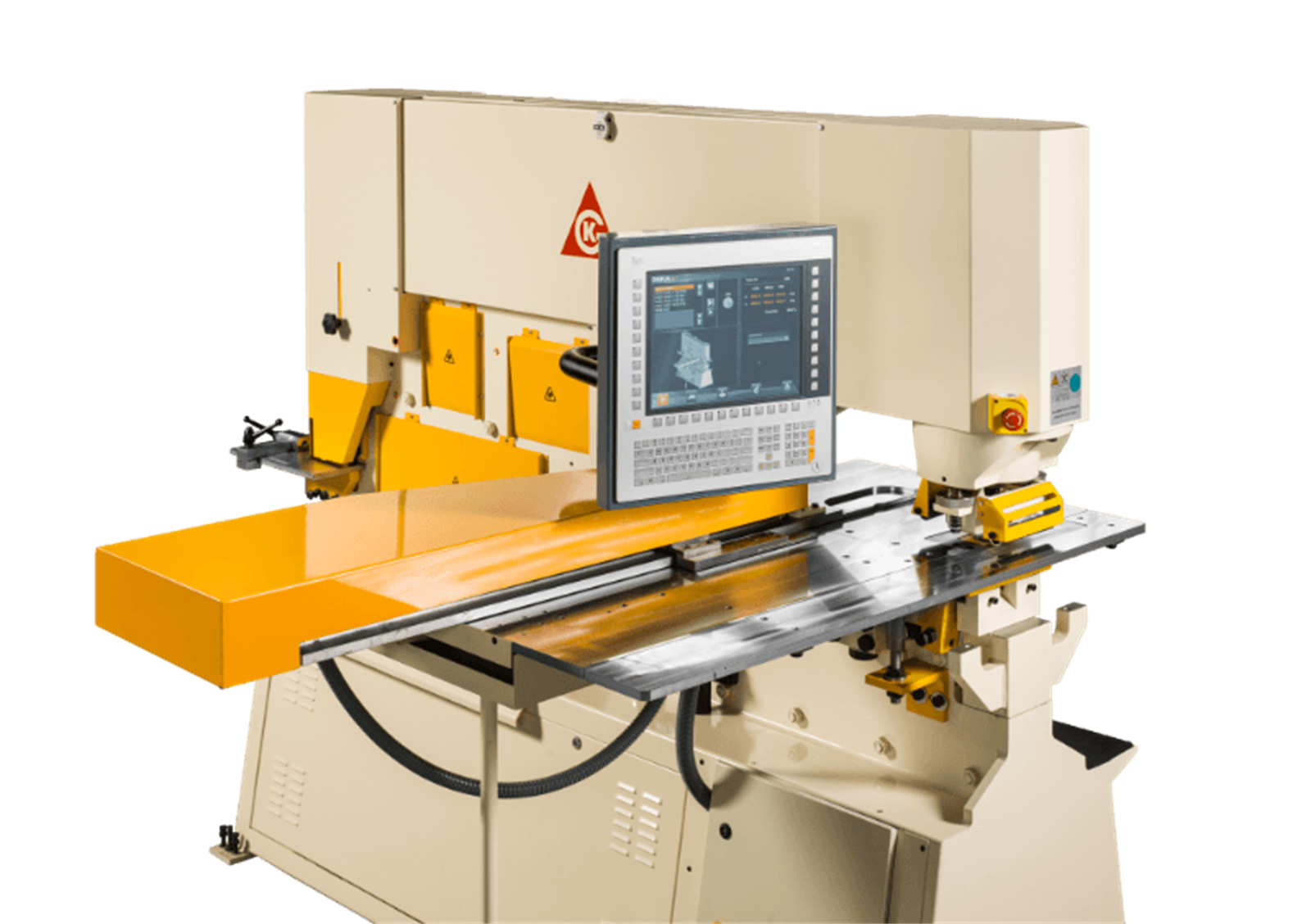

Semi- Paxy is a semi-automatic CNC control solution for material positioning in punching station. Table with X and Y axis control with programmable stops. This CNC control material positioner is valid for the Hydracrop´s two-cylinder ironworker machines or Geka´s Puma series with a minimum throat of 500 mm.

Semi-Paxy versions

This CNC control solution has two versions available that differ in the maximum length of the material.

X 1000: Positions material with a maximum length of 1000 mm.
X Plus: Accommodates extension devices for longer material: 2000, 3000, 4000, 5000 and 6000 mm for Flat Bar and Angle.

Additionally, an optional integrated ball table may be added to this CNC control positioner. It transfers the material along the table for the easier positioning of it.

The capacities of this CNC controller can be observed in the following table:

FEATURES	Semi-Paxy
Rate of Motion (X-Axis)	0-12 m/min
Rate of Motion (Y-Axis)	0-12 m/min
Repeatability	+/- 0,1 mm

Capacities based on a material resistance of 45 Kg/mm2.
GEKA may change technical specifications, equipment and photographs of models, as well as any other information contained herein.
Technical characteristics valid except for typographical errors or omissions.

Optional Integrated Ball Transfers along table for easier positioning of material

Modules length of 2000, 3000, 4000, 5000 and 6000 mm for Flat Bar and Angle.

Triple Punching Head

Three on-demand with CNC selectable punches.

Diameters up to 40 mm.

Available in 31-31-31 and 31-40-31 versions.

CNC Control.

15» standard, Color Touch Screen Monitor and Keyboard.

User-friendly graphic interfaces and programming.

Importing of .dxf and .dstv format files is possible.

This CNC controller is one of Geka´s positioners and feeders. Other positioners and feeders that can be found within this category of products are:

ALRS CNC feeder

ALRS is a feeder made by Geka Hydracrop Ironworkers except for Hydracrop 55, the CNC feeder is a flat bar positioner that works with the Hydracrop series. It automates the shearing station’s duties that are typically performed manually.

Pax positioner

The PAX CNC feeder is the feeder you will need if you want to automate the process of punching lines and holes.
