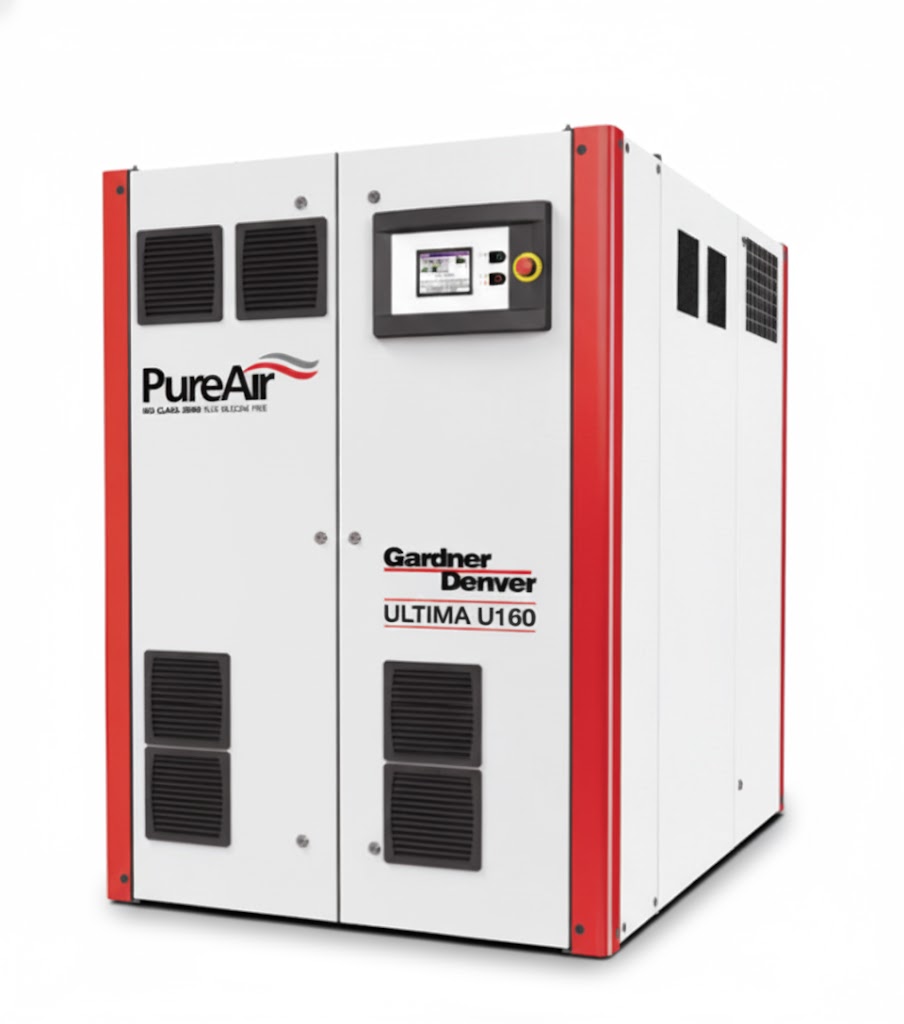

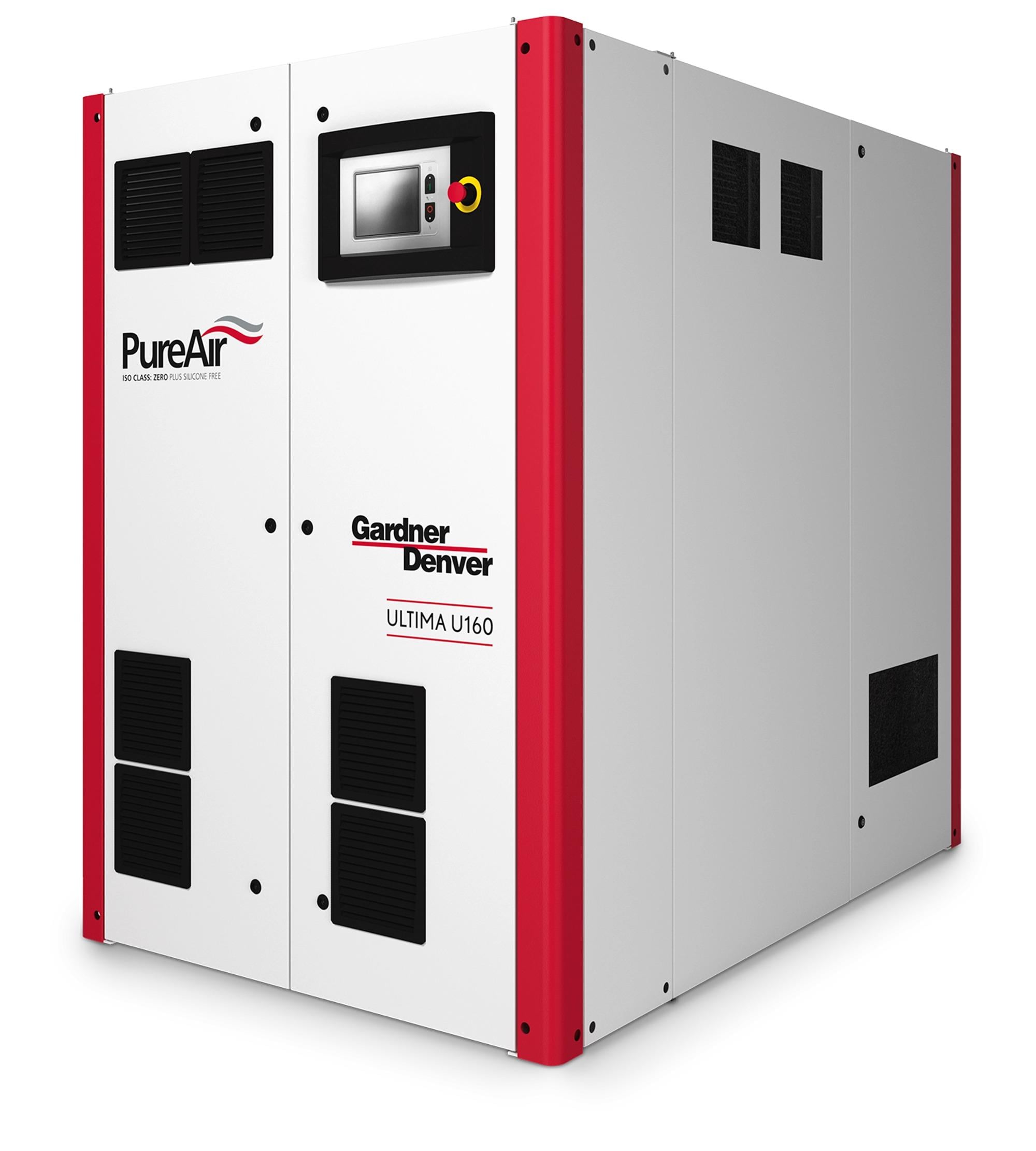

Gardner Denver U75 Ultima U Series Oil-Free Screw Air Compressor 75-160 kW (100-215 hp)

Gardner Denver U75 Ultima U Series Oil-Free Screw Air Compressor 75-160 kW (100-215 hp) (Gardner Denver U75 )

Brand : Gardner Denver

Price : 0,00 EURO

Stock Amount : 0

Note: The prices shown here are retail sales prices. SPECIAL DISCOUNT MAY APPLY FOR BULK PURCHASES . Additionally, discounted prices offered to dealers may differ.

Import duties, customs charges, and value-added taxes for products originating outside of Turkey are not included in the listed prices. This is applicable to customers purchasing from within Turkey.

The prices mentioned here do not include door-to-door delivery. Buyers purchasing from other countries are responsible for customs duties and any other taxes applicable under their local commercial laws.

For orders under 13,000 Euros, if the product value is below this, the total order value must either reach 13,000 Euros or a 150 Euro customs fee will be added to your final invoice value.

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Artır Azalt

Delivery Time 45-60 Days After O.C.

Shipment Place Turkiye

Payment Terms % 50 T/T On O.C., % 50 T/T B.S.

Made In USA

Min. Order Qty. 1 Pcs.

Warranty1 Year

The Ultima oil-free screw air compressor series utilizes high efficiency low/high pressure dry screw airends. Each airend is individually driven by a motor that operates at 97% efficiency. The Ultima provides up to 70% turndown, delivers low off-load power consumption, maintains a 63-69 dBA noise performance and provides superior heat recovery.

100% Oil-Free
13% Higher Efficiency
Lowest Unloaded Power
>97% motor efficiency
Up to 70% Turndown
Ultra Quiet: 63 dBA
47% Smaller Footprint
98% Heat Recovery
Easy Installation

Why oil-free? Don't compromise on quality

The Ultima Series oil-free screw air compressors by Gardner Denver deliver uncompromising air quality standards, essential for industries where air purity is critical to avoid issues like product spoilage, production downtime, and equipment damage, which can subsequently tarnish brand reputation. Engineered to provide 100% oil-free air and superior energy efficiency, the Ultima Series is designed to fulfill the stringent requirements across various sectors, ensuring high-quality output without compromise.

Ultima: A Revolution in Dry Screw Compressor Technology

Link: https://vimeo.com/249638362/a0813aaeba

The Ultima oil-free screw compressor sets the standard as an ultra efficient two-stage dry screw compressor, distinguished by its use of independent low and high-pressure dry scree airends. Each airend is directly driven by its own variable-speed, water-cooled, permanent-magnet motor, achieving a remarkable 97% efficiency rate which exceeds IE4 standards. This design enables a substantial turn down range of up to 70%, minimizing energy waste by precisely aligning compressed air production with demand.

100% oil-free operation: Eliminates the risk of contamination
Enhanced Energy Efficiency: Delivers exceptional efficiency with airend optimization and motors that operate at 97% efficiency, leading to significant energy cost savings.
Flexible Energy Consumption: Up to a 70% turndown range allows for energy use that adapts to varying demand.
Durable Airends: Precision-engineered airends with protective coating ensure lasting efficiency and performance.
Efficient Heat Utilization: Recovers 98% of the heat generated, offering energy reclamation for other uses.
Compact Footprint: Its compact design saves valuable floor space, allowing for more efficient use of your facility.
Quiet Technology: Ultra-quiet operation as low as 63 dBA enhances the workplace environment.
Ease of Installation: No complex ducting required, facilitating a straightforward installation.

Ultima™ delivers on every level

Ultima is a groundbreaking oil-free PureAir compressor. The unique design of this all new compressor range from Gardner Denver, utilises a low pressure and high pressure dry screw airend - each airend is individually driven by a variable speed, permanent magnet synchronous motor, offering exceptional levels of efficiency versus traditional oil-free technology. Considering that the highest cost in the lifecycle of a compressor is the energy to run it, the unique design of Ultima has allowed us to combine the ultimate performance with the ultimate efficiency, and still deliver a footprint 37% smaller than a conventional two-stage oil-free compressor.

100% oil and silicone-free for clean air critical applications The Ultima compressors are 100% oil and siliconefree and meet ISO 8573-1 Class Zero (2010), making them the ideal choice for stringent oil-free applications within food and beverage, pharmaceutical, electronic and the automotive industries.

The unique patented design delivers numerous benefits to compressed air users:

Highest efficiency levels

- Up to 13% savings compared to industry standard

Optimal performance at any load

- LP & HP airends individually driven

- No gearbox required

Best-in-class footprint

- Up to 37% smaller than industry standard

The quietest compressor in its class

- Max 69 db(A) (water cooled) and 70 db (A) (air-cooled)

- Easy installation at point of use

Full upgradability between 75kW and 160kW

- If your demand increases Ultima can be upgraded

- Immediately available, no delivery time, no downtime for installation

- Much cheaper than an investment in a new/additional compressor

Minimum power consumption in idle load

- Up to

-45% compared to industry standard

Very efficient heat recovery

- 100% recovery of all heat generated by the compressor

- The first air-cooled oil-free compressor that can be used for process heat recovery

Oil and silicone free

- Highest level of air quality

- Class 0 certified

Easy installation

- No ducting required

- Fits through almost every door

Multiple further options to meet individual demands

- Outdoor variant, HOC connection, U-Cooler and many more…

iConn industry 4.0 solution

- Pro-active maintenance

- Avoid unplanned outages

- Free of charge

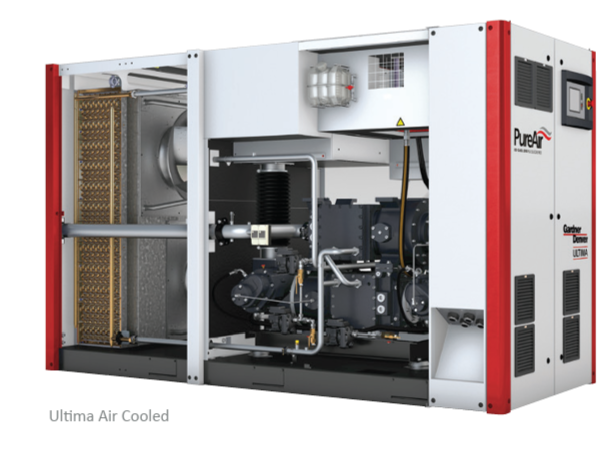

The unique drive design

Traditional oil-free compressors are driven by a single motor using a gearbox which in turn, drives both the low and high pressure airends. Gearboxes require oil and create friction which equates to energy loss. Ultima uses ultra high efficiency motors which replace the gearbox and the single motor which optimise performance throughout the complete volume range, as the airends can be driven at different speeds dependant on the demand. With a single motor driving both airends together this is not possible. This is where Ultima is hard to beat. The Ultima design utilises an intelligent "digital gearbox" design which continuously monitors and independently adjust the speeds of each airend, ensuring maximum efficiency and pressure ratios at all times.

*based on average running hours and conditions.

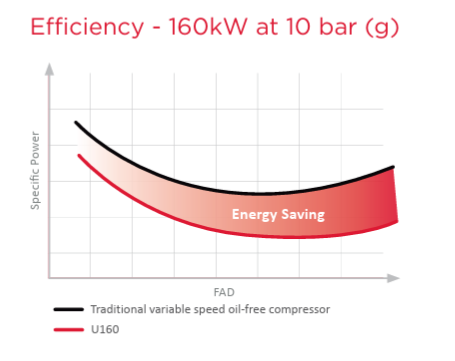

Even greater efficiency

Specific Power Energy Saving FAD Traditional variable speed oil-free compressor U160 When any regulated speed compressor gets to the minimum speed, it goes into idle run. For any compressor, this is wasted energy. Ultima uses 45% less energy in idle run than a conventional two-stage compressor and a 160kW compressor uses less than 8kW in idle run.

Premium efficiency airends

Where the majority of oil-free airends on the market quickly succumb to performance deterioration, Ultima utilises German engineered and manufactured airends incorporating a special coating to ensure life-long protection of the compressor and maximum efficiency.

Highest efficiency levels throughout the life of the compressor.”

Lowest noise levels

Ultima is extremely quiet. Even the 160 kW models, do not exceed a noise level of 69 dB(A) (water-cooled) and 70 dB(A) (air-cooled). This is by far quieter than any comparable oil-free compressor on the market and a great benefit for customers who would like to operate the compressor at point of use.

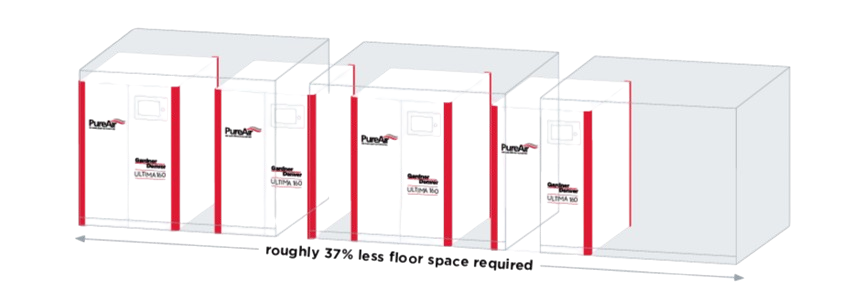

Best-in-Class Footprint

Ultima requires on average, 3.4 m³ less space (or up to 37% less floor space) than a conventional two-stage oilfree compressor. This allows easy installation in the smallest possible space - not only a benefit where space is limited - it also translates into property cost saving.

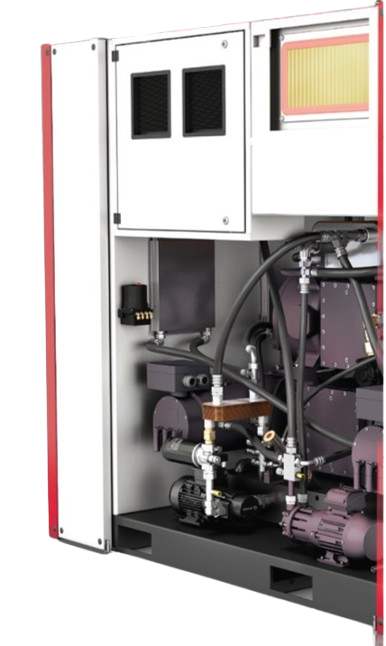

Unique Cooling

Ultima’s innovative and patented closed package cooling system allows for the collection and recovery of up to 98% of the heat that is generated during the compression process. This energy can be harnessed to provide process water heating, reaching usable water temperatures of up to 85°C. In fact, Ultima is the first and only air-cooled, oilfree air compressor on the market, capable of utilising heat recovery for process water heating. Ultima has the added benefit of “hybrid cooling mode” operation. Depending upon the most economic cooling method at the time (eg in the case of seasonally changing availability of cooling water) Ultima can operate in either air-cooled or watercooled mode or a combination of both concurrently. By utilising the superior design of the closed loop water system, Ultima requires no air for internal cooling. Ultima processes cooling air within the compressor and utilising a heat exchanger, cools the internal air, then recirculates it via the base frame around the compressor. This also ensures that no dust or particulate can enter the inside of the compressor. As a result, installation is made easy with no requirement for ducting, compressor rooms can be kept to the minimum size, noise levels are greatly reduced and machines can be easily installed at point of use.

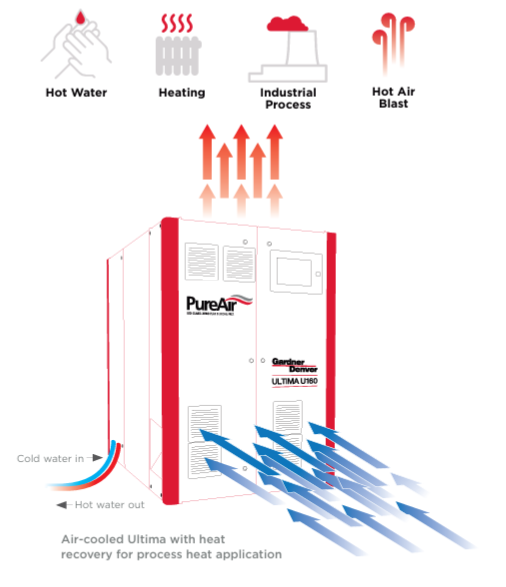

Integrated Heat Recovery

Significant energy and costs savings can be achieved with Gardner Denver’s efficient integrated heat recovery system. It can be either factory fitted or supplied as retrofit kit including all necessary pipe-work and fittings.

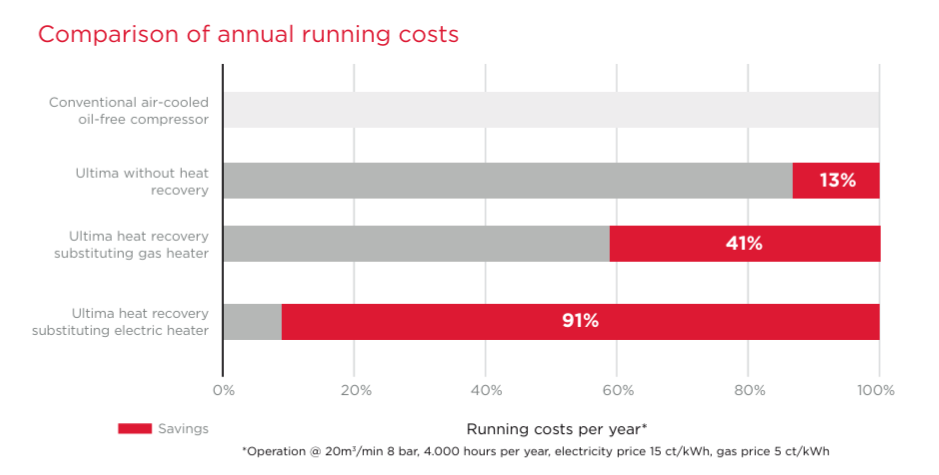

Heat Recovery

• Almost 100% of the energy spent can be recovered

• Heat Recovery allows up to 91% savings of running costs

• Ultima is the only air-cooled oil-free compressor that allows heat recovery for process heat

• Even without heat recovery, savings compared to industry standard are up to 13%

Features

• HOC connection

• Canopy stand still heater up to -10°C

• U-Cooler (External cooling module including pump station)

• Outdoor option - weatherproof marine paint C5M, protetcive gratings at air inlet/ outlet, roof with 300mm overlap on each side special controller incl. weather protected control panel

• Heat Recovery for air-cooled models Integrated heat exchanegr for heat recovery including control of the requested temperature level

• Heat Recovery for water-cooled models Integrated control of cooling water outlet temperature (throttle valve with electric actuator and a compact controller for setting the desired temperature)

• Various controller options

Gardner Denver in Action…

Gardner Denver helps Thermo Fisher Scientific meet air purity standards with new Ultima compressor

Global life sciences company, Thermo Fisher Scientific, has invested in a range of new oil-free compressor solutions from Gardner Denver, delivering increased energy efficiencies of more than 30 per cent and predicted cost savings of £12,000 a year.

The company was seeking compressed air solutions that could help meet its demanding air quality requirements for one of its healthcare manufacturing sites. The new compressor technology has been supplied and installed by distributor Pneumatic Solutions Ltd to Thermo Fisher Scientific’s manufacturing facility in Newport, South East Wales.

Nick Weed, Sales Director at Pneumatic Solutions Ltd, adds: “Not only were we able to demonstrate the energy efficiency that Ultima offers, but also how flexible the system is. Product lines in the pharmaceutical industry site can vary, which means compressed air demands will not always be constant. The fact that Ultima can quickly adapt to these variations to achieve the highest possible efficiency levels, and low running costs, is a testament to the compressor’s capabilities.

“Product lines in the pharmaceutical industry site can vary, which means compressed air demands will not always be constant. Ultima can quickly adapt to these variations.”

Nick Weed, Sales Director at Pneumatic Solutions Ltd

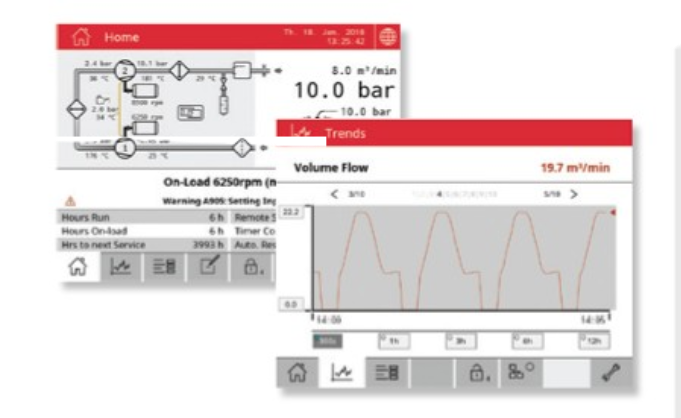

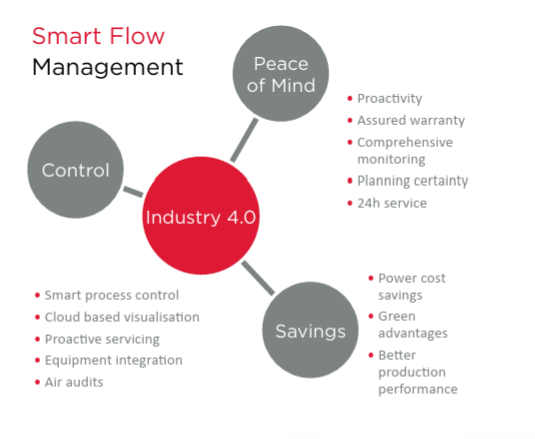

iConn Industry 4.0 Solution

Ultima, through the controller, is iConn-ready. iConn is the all new and smart, proactive realt ime monitoring service that delivers in-depth and real-time knowledge on the system to our compressed air users. It enables accurate production planning and total peace-of-mind protection, generating insight and statistics that keep users informed on performance, at the same time highlighting potential issues before they become a problem

Model		U75
Cooling Method		Air	Water
Working Pressure	bar g	4-10	4-10
Drive Motor	kW	75
FAD at 8 bar* min - max	m³/min	6.7 - 11.9
FAD at 10 bar* min - max	m³/min	7.7 - 9.9
Noise Level* at 100% Load	dB(A)	64
Dimensions L x W x H	mm	3244 x 1394 x 1992
Weight	kg	3360	2750

Unplanned downtime and interruptions in your production can greatly affect your business. That is why having a proper maintenance schedule for your compressed air operation is critical. By choosing one of Gardner Denver's service offerings or warranty programs, your business will have peace of mind that you will get the best reliability out of your equipment.

Platinum Guard Service Offering

Platinum Guard is a preventative maintenance agreement serviced by Gardner Denver Authorized Distributors using genuine OEM parts and lubricants. Guard your investment with a service plan that keeps your compressor (and operations) running with few interruptions.

Platinum Trust Service Offering

The multi-year Platinum Trust service agreement offers peace of mind with extended coverage beyond the major components—the entire compressor package is included. Protect your equipment against unforeseen events with this service offering and guarantee consistent, reliable coverage from partners you trust.
