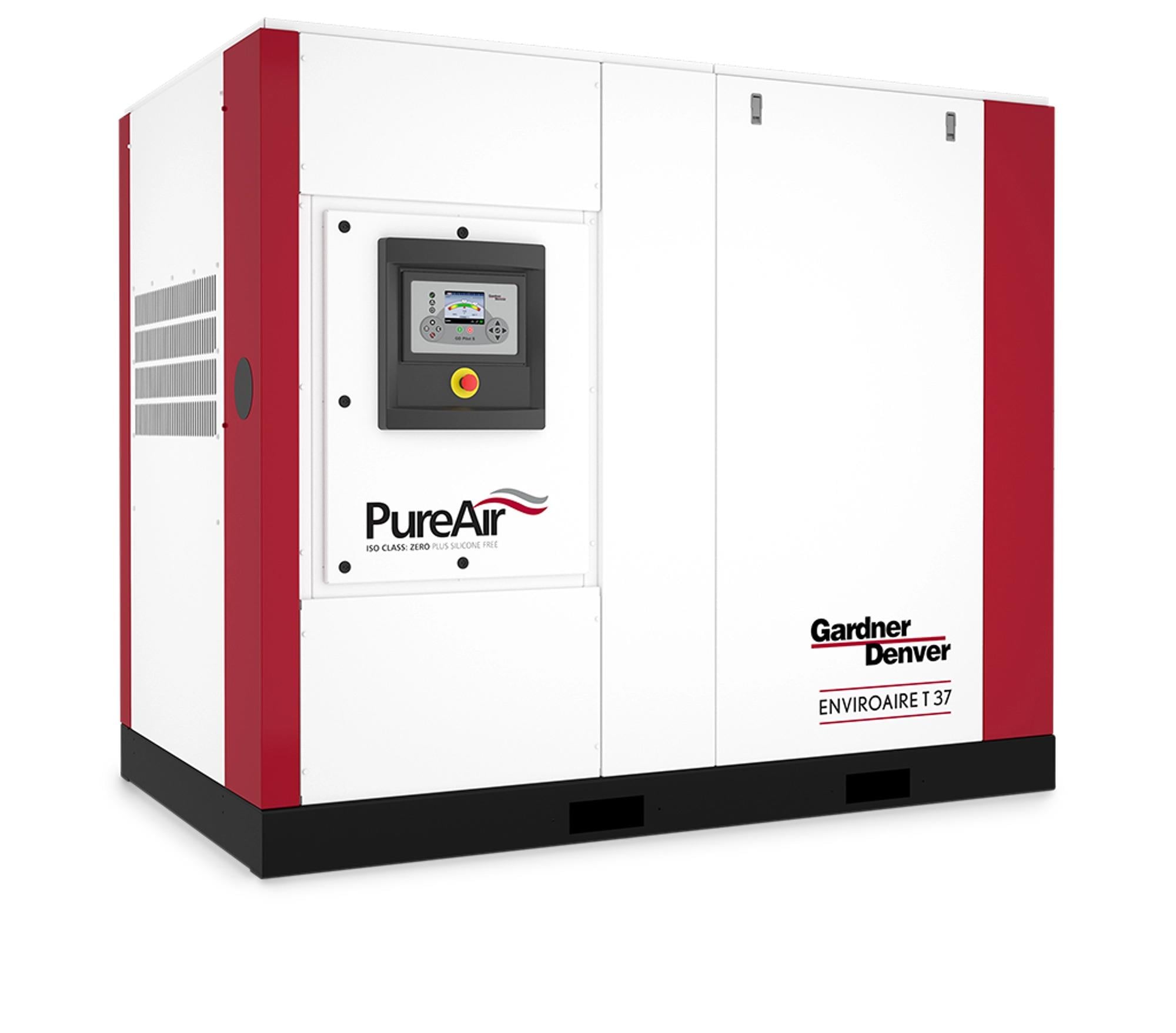

The EnviroAire T & TVS series oil-free screw air compressors are designed to take the punishment of 24/7/365 usage under the most adverse conditions. For applications where demand is relatively constant and a variable speed compressor is not needed, EnviroAire T is the perfect fit. For applications with varying demand, EnviroAire TVS compressors can provide a reliable compressed air supply while adjusting speed to provide lower flows when demand is light and higher flows when demand is greatest.
Discover the exceptional advantages of the Class 0 100% Oil-Free air compressor, a solution designed not just to meet but exceed your air purity and efficiency needs. Benefits at a glance include:
The EnviroAire T/TVS 37/45/55/74 Series compressors are designed to take the punishment of 24/7/365 usage under the most adverse conditions. Here are a few of the many standard features that ensure 100% reliable operation:
■ Class 0 100% Oil Free – Zero Risk of Contamination
■ RotorArmor™ airend rotor and housing coating – improves efficiency and extends airend longevity
■ Stainless steel 2nd stage airend rotors – extends airend longevity
■ Stainless steel discharge air piping (1st and 2nd stage) – improves corrosion resistance
■ Auto restart after power failure – reduces downtime
■ TEFC cooling fan – prevents dirt and water ingress
■ Quiet enclosure – reduces sound levels
■ GD Pilot S Controller – precision control and monitoring provides peace of mind
■ Up to 115°F operation – built for the harshest environments
■ Compact footprint – reduces floor space requirement

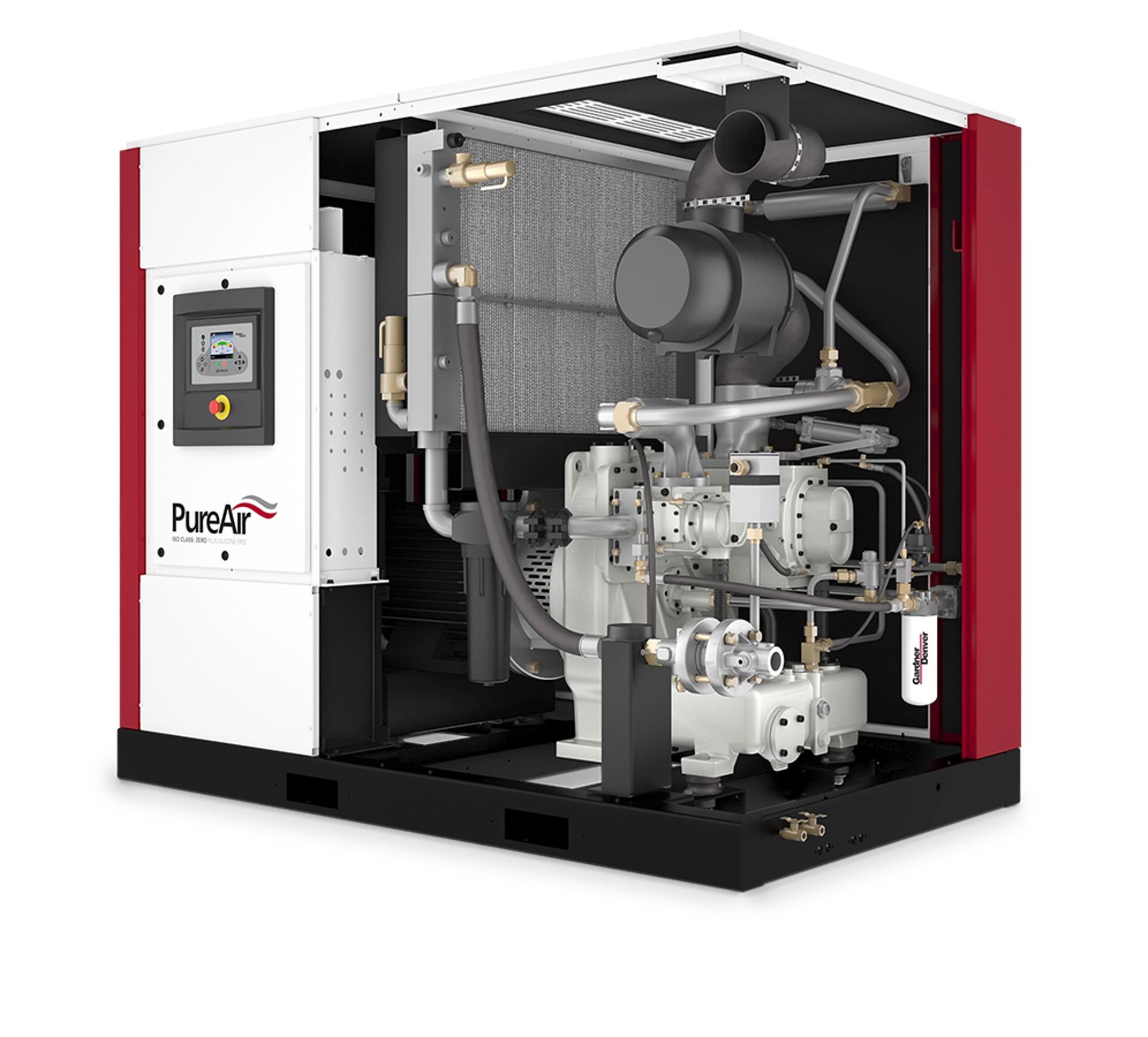

1 Inlet Valve
– Low pressure drop butterfly valve
– Heavy duty hydraulic cylinder actuator
– Rugged blow down valve
– Reliable mechanically linked inlet and blow down valves
2 99.5% efficient 3 micron heavy duty air filter element
3 Robust poppet style non-return valve
4 Long life oil filter
5 Flexible cooler connections eliminate failures
6 Condensate separator with auto drain
7 GD Pilot S compressor controller
Not all applications have a constant demand level for compressed air. For those varying type demands, an EnviroAire TVS Series compressor can provide a reliable compressed air supply while adjusting its speed to provide lower flows when demand is light and higher flows when demand is greatest. The ability to vary the speed to match the demand is what makes the EnviroAire TVS Series the perfect energy efficient fit for these applications.
■ Hybrid permanent magnet ODP motor
– Higher efficiency
– reduces energy costs up to 28% versus standard inverter duty motor
– Cooler operation
– increases longevity and reliability
– Increased torque
– reduces motor fatigue
– Simple design
– no motor bearings or seals to wear out
– No motor coupling
– increases reliability and reduces service requirement
– Smaller size
– saves space and weight
– Unity power factor
– reduces energy loss typical of standard inverter duty motors
– 100% maintenance free
– no lubrication or service required
■ Modular VFD drive includes power module with integral DC choke
■ Available pressure variants: 100 psig, 125 psig, 150 psig
Production facilities come in all shapes and sizes and so do their air demands. Gardner Denver offers compressors to meet whatever your requirements might be. Some plants have a relatively constant demand for compressed air day-in and day-out while other plants may have both high and low demand throughout each and every day.
Constant Demand Application Fixed speed compressor (T Series) provides:
■ Highest energy efficiency in a constand demand application
■ Lowest purchase cost
Fluctuating Demand Application Variable speed compressor (TVS Series) provides
■ Highest energy efficiency in a f luctuating demand application
■ Reduced compressor wear and tear
■ Less compressor cycling
The choice of fixed or variable speed is only one of many system considerations for providing quality compressed air. When it comes to selecting the right type and size of oil-free compressor, experience matters. Gardner Denver distributors are your go-to-experts for all your compressed air needs and can help you select the best compressor as well as downstream equipment to handle your specific application.
All Airend Coatings Are Not the Same
■ Dry screw airend housings and rotors are coated to:
– Prevent corrosion
– Maximize efficiency
– Provide optimum protection against rotor wear
■ Not all coatings are the same! GD RotorArmor™ creates both a chemical and mechanical bond to the rotor and housing to ensure maximum efficiency and protection under extreme conditions
■ Other manufacturers use a two-part process with a soft second layer Teflon-Graphite coating which ensures good sealing on day one, but rapidly wears, reducing performance by 10% or more
■ EnviroAire: Guaranteed maximum efficiency throughout the compressor life
■ Both the fixed and VSD airends have these standard features:
– Stainless steel 2nd stage rotor offers maximum corrosion protection
– GD RotorArmor™ is a high performance rotor and housing coating designed to improve airend performance and extend airend life
– Integral oil pump is driven by airend jackshaft eliminating the need for a separate motor driven pump
– Oil cooled airends eliminate the need for a separate water pump and closed loop cooling system
Gardner Denver EnviroAire T/TVS Series compressors utilize state-of-the-art design and manufacturing to ensure very tight tolerances thereby reducing loss. In addition, the rotors and housing are covered with GD RotorArmor™ which ensures longlasting performance. This combination results in little or no performance decay even after 40,000 hours of operation, saving thousands in utility expenses.
$10,000 SAVINGS PER YEAR
The EnviroAire T/TVS Series can offer a 20% or more reduction on operating costs, when compared to a competitive dry screw compressor. For example, for a 100 HP compressor, that could amount to $10k or more in electricity savings per year!
The GD Pilot S with its 5.7" high resolution color display is intuitive and easy to navigate. All functions are clearly structured into 8 main menu tabs across the top of the display, selectable by using the cursor controls on the bottom right of the controller.
The multilingual GD Pilot S control system ensures reliable operation and protects your investment by continuously monitoring the operational parameters of the compressor, essential for reducing your operating costs.
With the ability to display detailed system analysis in the form of trend graphs, operating parameters can be precisely set to maximize the efficiency of the compressor.
■ 3 LED status indicators – provides immediate visual compressor status
■ Tabbed page layout – makes navigation faster and easier
■ Graphing of more than 30 parameters – improves system optimization
■ Convenient maintenance timers – ensure timely service reminders
■ Auto restart after power failure
■ Remote pressure input
■ Remote start/stop
■ Remote load/unload
■ Consumable monitoring– Lubricant filter– Inlet air filter– Bearing oil level monitoring
■ ModBus RS-485 interface – enables connection to building management system
■ Ethernet port – allows web enabled control via tablet, laptop or mobile device
■ USB service port – field service tool access
■ Data collection via SD card – up to 30 days
The engineering philosophy of Gardner Denver ensures long-lasting, reliable equipment. Our simple, but bold warranty programs demonstrate our belief in the quality found in Gardner Denver compressors.
Our standard 1-year warranty ensures that you have peace of mind when it comes to your system's operation. Contact your local authorized Gardner Denver distributor for more details on the available warranty program.
By leveraging the extensive network of Gardner Denver factory-trained authorized local distributors, your sales, service, and technical support needs can be handled quickly and easily.
