Class 0: 100% oil-free air
RotorArmor™ airend coating
Stainless steel 2nd stage airend rotors
Stainless steel discharge air piping
TEFC cooling fan
Quiet enclosure
GD Governor™ Controller
Operates up to 131°F
Compact footprint
Embrace the pinnacle of air compression with Gardner Denver's PureAir Series T & TVS rotary screw air compressors—where pure air production meets unparalleled efficiency. Our compressors deliver 100% oil-free air, guaranteeing the safety and quality of your end products. With RotorArmor™ coated airends and stainless steel components, these machines not only offer industry-leading efficiency but also promise exceptional longevity and resilience to harsh environments. The series' space-efficient design, coupled with advanced controls, quiet operation, and optional energy recovery, makes it a superior choice for businesses looking to enhance performance while prioritizing environmental sustainability.

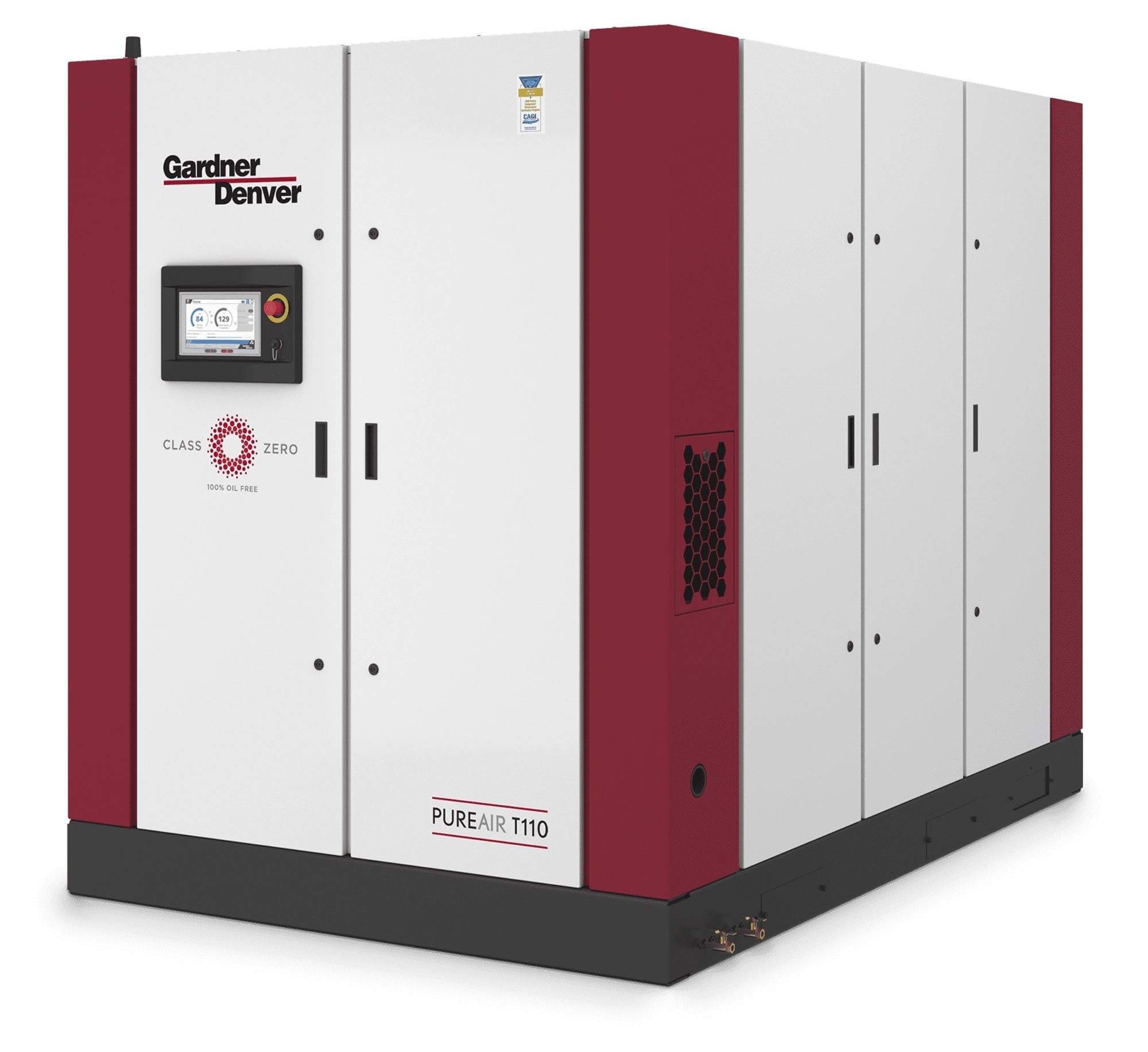

Introducing the PureAir Series Oil-Free Compressors by Gardner Denver
Founded in 1859, Gardner Denver has been meeting the demand for compressed air equipment for more than 160 years. Ingrained in our DNA is the desire to push the limits of technology by designing and manufacturing the most advanced, reliable and energy-efficient products available in the market place today. Today’s Gardner Denver compressors run quieter, are more efficient and last longer than ever before. The new PureAir T/TVS 90355 kW Series of oil-free compressors is a continuation in our long heritage of compressed air products. Utilizing state-of-the-art design and simulation software, combined with decades of experience in oil-free compression, Gardner Denver has once again delivered on our promise to offer the most efficient and reliable oil-free compressors available.
Standard Features
1 99.5% efficient 3 micron heavy-duty air filter element increases efficiency
2 Robust poppet-style non-return valve increases reliability
3 Long life oil filter reduces waste
4 Flexible cooler connections eliminate failures
5 Condensate separator with reliable timed drain
6 Pre-cooler reduces fatigue from temperature spikes
7 Pressure & temperature sensors remote-mounted to reduce vibration-induced failures
8 Best-in-class airend design provides exceptional reliability and performance. Rotors coated with GD RotorArmor™
PureAir T90–160 Fixed Speed, Air-Cooled Model
■ Outdoor installation, NEMA 4
■ Low ambient to -10°F (-12°C)
■ High ambient to +131°F (+55°C) except 160 & 355 kW
■ Soft start
■ Engineered custom design for special requirements
■ 90/110/132/160/185/220/260/300/355 kW sizes
■ 110, 125, 155 psig max working pressure
■ Air-cooled and water-cooled Pu
2 Integrated drive for variable flow output
3 Wide turndown range
4 Long life oil filter reduces waste
5 Flexible cooler connections eliminate failures
6 Condensate separator with reliable timed drain
7 Pre-cooler reduces fatigue from temperature spikes
8 Pressure & temperature sensors remote-mounted to reduce vibration-induced failures
9 Best-in-class airend design provides exceptional reliability and performance. Rotors coated with GD RotorArmor™
PureAir TVS90–160 Variable Speed, Air-Cooled Model
■ Remote sensing kit
■ Dry contacts
■ No loss drain
■ 90/110/132/160/200/250/315/355 kW sizes
■ Air-cooled and water-cooled
PureAir TVS200–355 Variable Speed, Water-Cooled Model
State-of-the-Art
Gardner Denver completes its industry-leading oil-free compressor packages with a state-of-theart touchscreen controller: the GD Governor™. Featuring cutting edge graphics that provide necessary compressor data and full-color schematics in seconds, the GD Governor™ is standard on all PureAir oil-free compressor models.
■ User-friendly navigation with state-of-the-art graphics and design
■ Machine status available on a 10 inch, full-color touchscreen display
■ Detailed schematics at your fingertips
■ Advanced machine monitoring & diagnostics
■ Data logging and iConn remote monitoring connection
■ Sequencing of up to 4 compressors
■ Web server to allow access to the GD Governor™ from your desktop
■ Available with optional energy monitoring
Not All Airend Coatings Are the Same
■ Dry screw airend housings and rotors are coated to:
– Prevent corrosion
– Maximize efficiency
– Provide optimum protection against rotor wear
■ Not all coatings are the same! GD RotorArmor™ creates both a chemical and mechanical bond to the rotor and housing to ensure maximum efficiency and protection under extreme conditions
■ Other manufacturers use a two-part process with a soft second layer PTFE-graphite coating which ensures good sealing on day one, but rapidly wears, reducing performance by 10% or more
■ PureAir: Guaranteed maximum efficiency throughout the compressor life
■ Both the fixed and variable speed airends have these standard features:
– Stainless steel 2nd stage rotor offers maximum corrosion protection
– GD RotorArmor™ is a high-performance rotor and housing coating designed to improve airend performance and extend airend life
– Motor-driven oil pump provides lubrication prior to airend rotation and maintains oil pressure until the airend comes to a complete stop ensuring full lubrication whenever the airend is rotating
– Motor driven closed-loop cooling provides optimum airend efficiency and performance by circulating water/glycol through the airend jackets. Water-in-jacket cooling provides 3% better efficiency than oil-in-jacket cooling
Fitted with the GD Governor™ touch screen controller, PureAir models provide the ability to monitor the installation's operational parameters. This is accomplished through a multilingual and user-friendly control system, which is essential for protecting your investment and lowering running costs. The controller in turn allows connection to iConn—the real-time monitoring service providing in-depth and accurate information about the system. This proactive, smart technology provides total peace-of-mind, ensuring production planning is protected by precise statistics and insight generated by the controller. This data keeps users informed about performance and highlights any cause for concern before a problem arises.
The Gardner Denver iConn platform mitigates risk and allows you to continuously monitor your compressed air equipment.
Total System Protection
Since 1859, Gardner Denver has been supporting the compressed air industry with high-quality, long-lasting compressor and air treatment solutions. Carrying on that legacy, our robust line of parts, lubricants and downstream accessories ensure your system stays healthy. The focus on total system protection by Gardner Denver not only includes OEM parts and fluid solutions, but a commitment to the longevity of your equipment through our industry-leading warranty programs.
Protect your investment.
To complement your PureAir T/TVS compressor, Gardner Denver has a full suite of air treatment solutions to meet your air quality needs. Whether you need a refrigerated air dryer, desiccant dryer or a nitrogen generator—reach out to your local distributor for application assistance.
REFRIGERATED DRYERS
RGD Series
Non-Cycling
■ 2.5–1,200 CFM
RPC Series
Energy Saving
■ 75–2,000 CFM
XGNC Series
■ 7–1,200 CFM ■ 1,800–12,000 CFM Modular
XGCY Series
Cycling Dryer
■ 10–1,200 CFM
■ 1,800–24,000 CFM Modular
DESICCANT DRYERS
DGH Series
Heatless
■ 3–5,400 CFM
DHP Series
Externally Heated
■ 100–4,000 CFM
DPB Series
Heated Blower Purge
■ 100–4,300 CFM 16
XGHL Series
■ 90–5,000 CFM
XGHP Series
■ 150–8,000 CFM
XGHB Series
* Data measured and stated in accordance with ISO1217 4th Edition Annex C and E at the following conditions: Air Intake Pressure: 1 bar a/14.5 psi, Air Intake Temperature: 20°C/68°F, Humidity: 0% (dry) **Measured in free field conditions in accordance with the ISO 2151, tolerance ±3 dB(A)
The engineering philosophy of Gardner Denver ensures long-lasting, reliable equipment. Our simple, but bold warranty programs demonstrate our belief in the quality found in Gardner Denver compressors.
Our standard warranty ensures that you have peace of mind when it comes to your system's operation. Contact your local, authorized Gardner Denver distributor for more details on the available warranty program.
By leveraging the extensive network of Gardner Denver factory-trained authorized local distributors, your sales, service, and technical support needs can be handled quickly and easily.
An Extensive Network
By leveraging the extensive network of authorized Gardner Denver factory-trained local distributors, your sales, service, and technical support needs can be handled quickly and easily.
