EnviroAire S series oil-free scroll compressors offer many standard features as well as optional features designed to meet your requirements and exceed your expectations.
•5 Micron industrial grade intake filters
•ASME coded receiver
•Premium efficient TEFC motor
•Integral air end cooling fan
•Air-cooled aftercooler
•Automatic moisture drain
•Moisture separator
•Deluxe HMI Controller (optional)
•50/60 Hz
•3-10 HP per pump (3-40 HP total package)
•116 or 140 PSI
•100% Oil-Less, 100% Duty Cycle
•Simplex base mount or tank mount

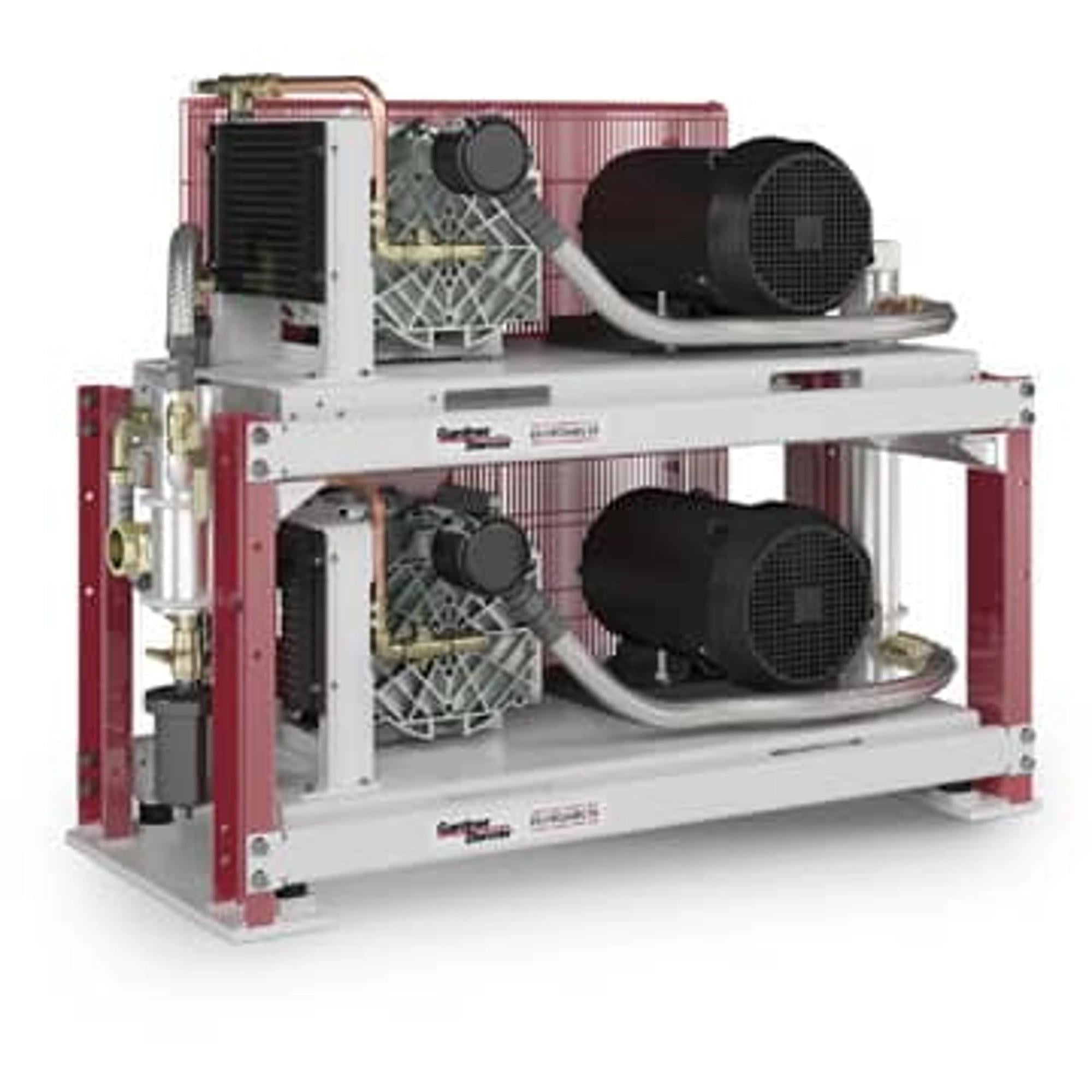

•Duplex, Triplex, Quadraplex base mount stacked frames

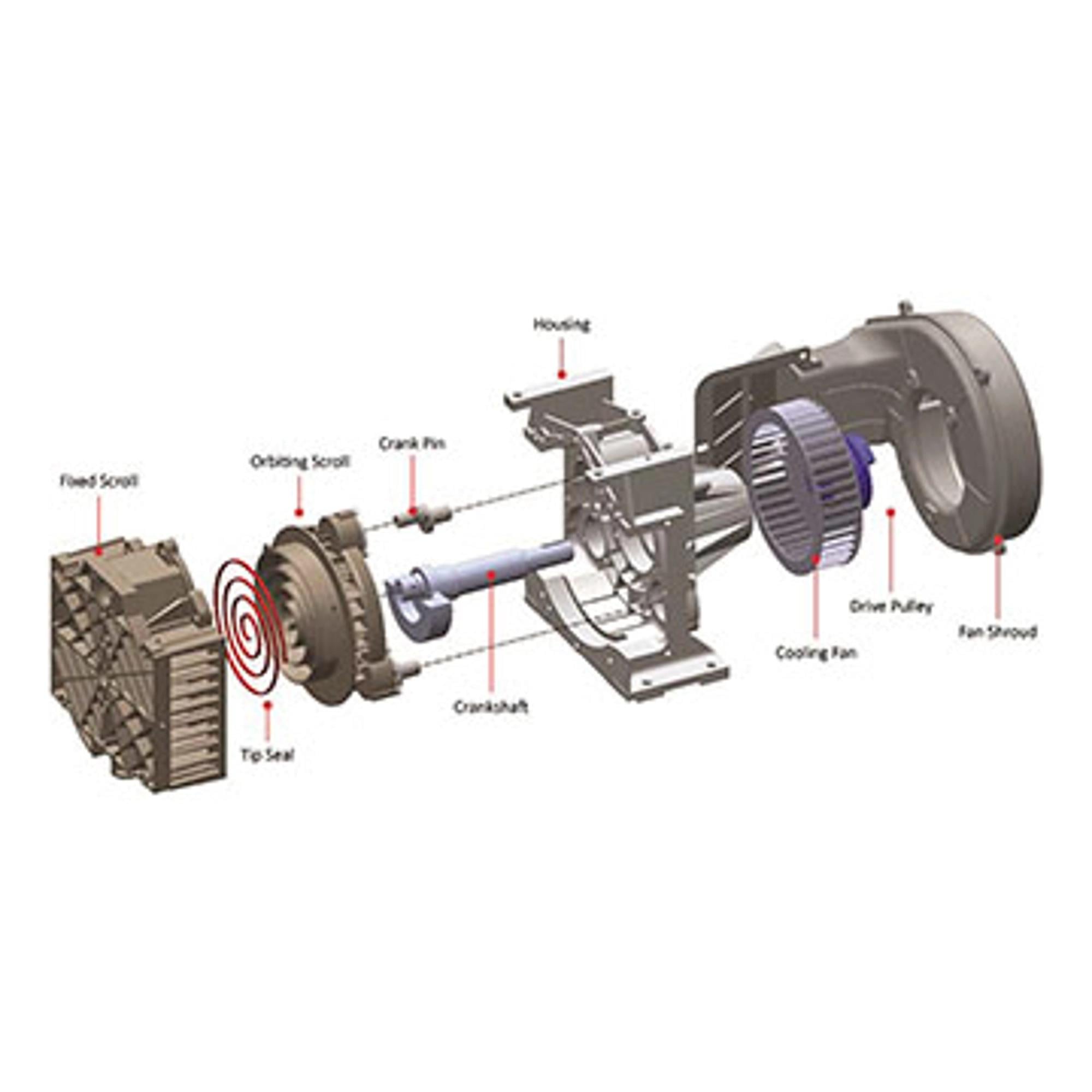

Scroll Compression Explained
An orbiting (rotating) scroll and fixed scroll housing are mated to create the compression chambers The continual movement of the orbiting scroll moves atmospheric air from the intake toward the centre, compressing the air into progressively smaller areasThe compressed air is directed to the centre discharge port of the compressor
Discharge pressure is accomplished during multiple stages of compression, resulting in a continuous intake suction and discharge
Why oil-free? Don't compromise on quality
The EnviroAire S Series oil-free scroll air compressors from Gardner Denver sets the standards for air purity. These oil-free scroll compressors are ISO 8573-1 Class O compliant. Offering not only 100% oil-free air but also improved energy efficiency, these compressors are made to meet the precise needs of a diverse range of industries.
Why Oil-Free Scroll Systems?
Rotary scroll compressor technology is popular because of the minimal preventative maintenance required, moderate time periods between the maintenance intervals, and fewer moving parts that other technologies like reciprocating or screw. All maintenance procedures can be performed in the field at a very economical cost to your customer.
Gardner Denver designed the EnviroAire S scroll compressor package to meet the strict requirements for contaminant free, oil-free, clean air applications. The scroll compressor range starts with simplex units at 4, 6 and 8 kW and the Duplex units with 7, 11 and 15 kW. The compressor design features a very clean, simple and serviceable layout.
Benefits at a Glance
•Oil-Free/Contaminant Free Air
•Continuous Operation, 100% Duty Cycle
•Low Sound Levels
•Low Vibration
•Compact Footprint
•Fewer Moving Parts
•High Efficiency

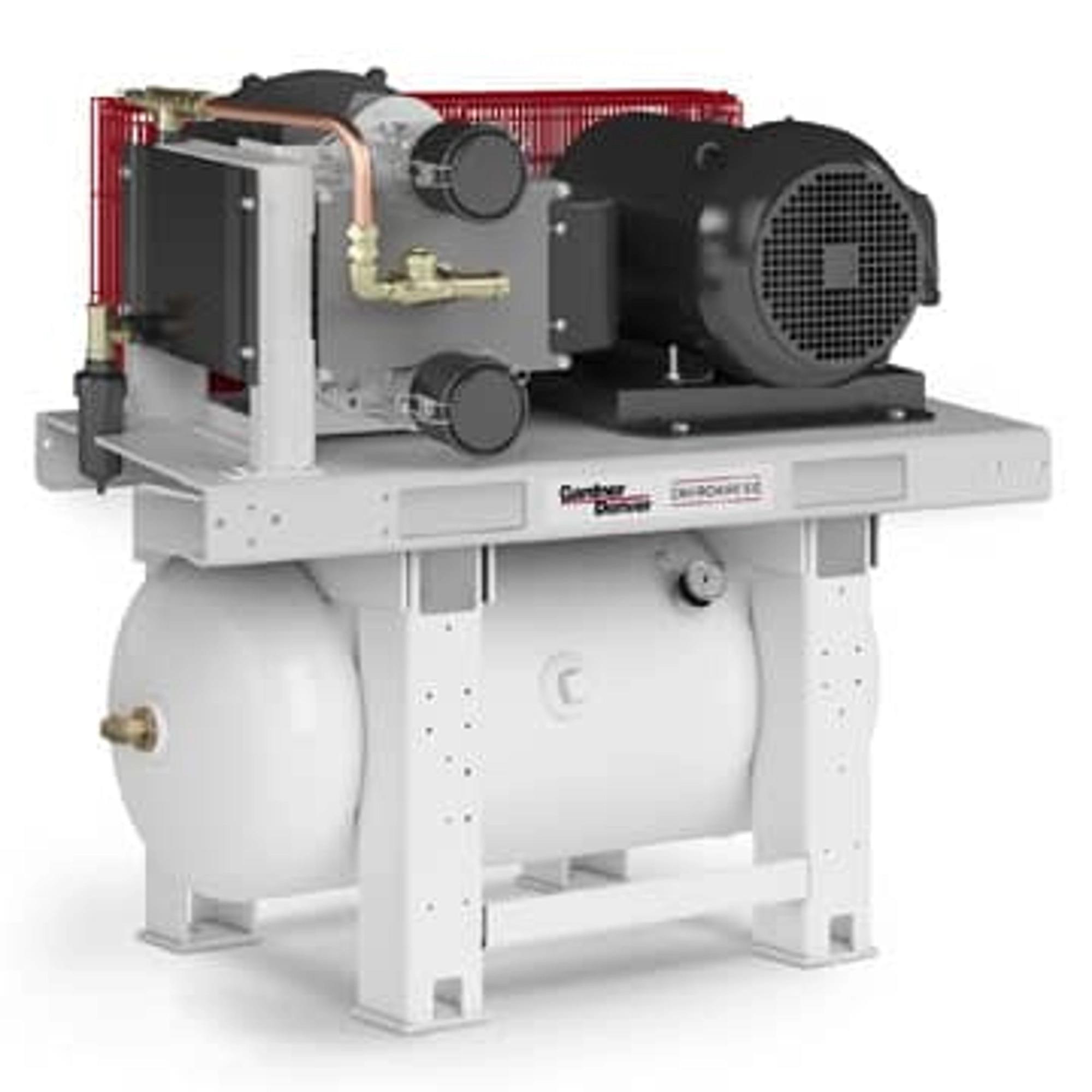

EnviroAire S3
Gardner Denver EnviroAire compressors provide the reliable, high quality compressed air that you’ve come to expect from Gardner Denver. EnviroAire compressors offer a wide selection of configurations and top-quality available options. Gardner Denver designed this series specifically for industrial and laboratory applications that require 100% oil-less air. Experience proven results with Gardner Denver—the leader in durability, reliability and efficiency.
■ Continuous operation, 100% duty cycle
■ 5 Micron industrial grade intake air filter
■ ASME coded receiver
■ Premium efficient TEFC motor
■ Unique tip seal design
■ Low sound levels and vibration
■ Re-greasable bearings
■ Integral cooling fan
■ Easy accessibility for maintenance
■ 1-Year package warranty
■ 1-Year airend warranty
■ Tank Sizes—30, 80 or 120 gallon– Galvanized receiver– Vinyl (epoxy) lined receiver
■ Electronic tank drain
■ Mass. code fittings
■ Starter
■ High temp switch
■ Dryer options– Refrigerated dryer– Desiccant dryer

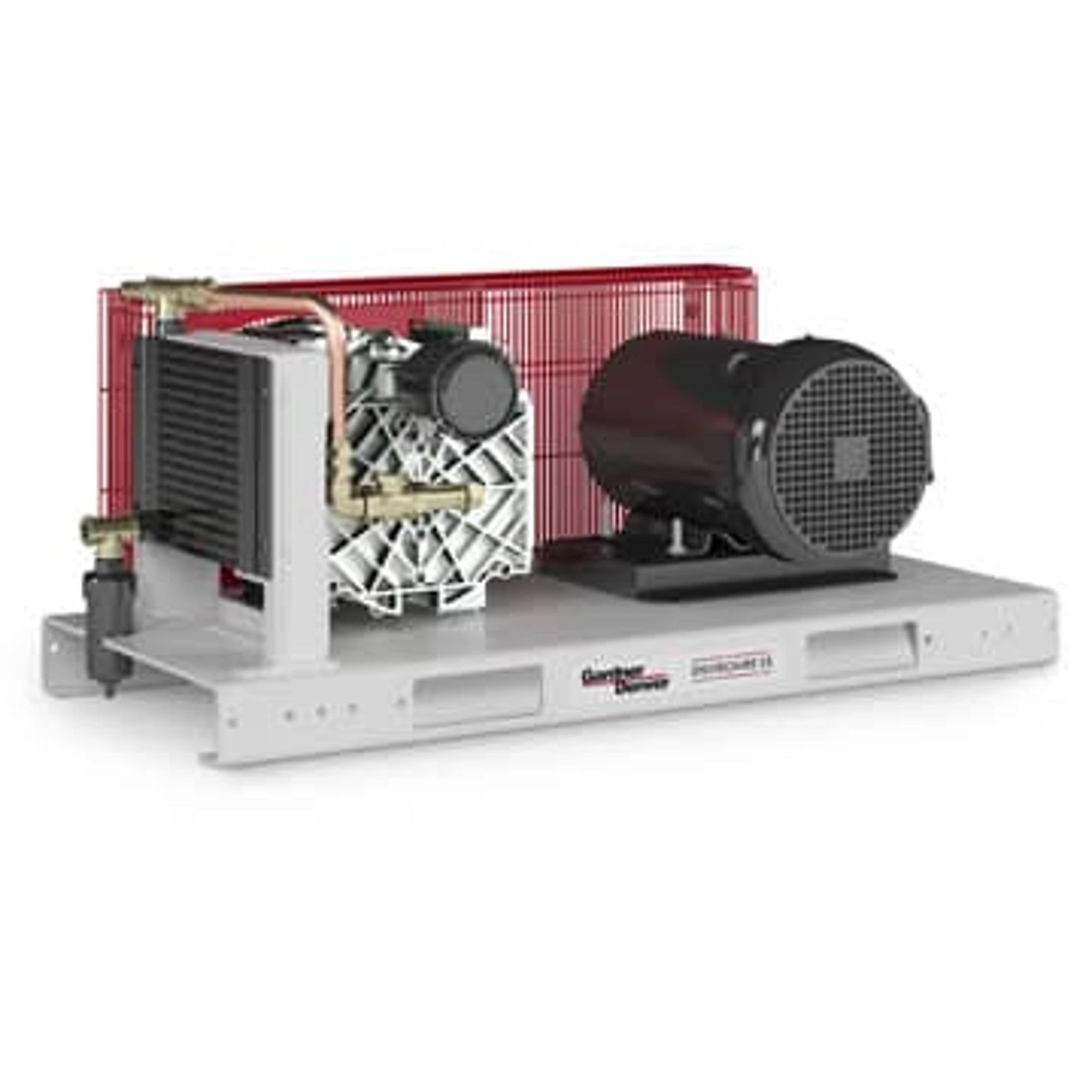

BARE AIREND
SIMPLEX
The engineering philosophy of Gardner Denver ensures long-lasting, reliable equipment. Our simple, but bold warranty programs demonstrate our belief in the quality found in Gardner Denver compressors.
Our standard warranty ensures that you have peace of mind when it comes to your system's operation. Contact your local, authorized Gardner Denver distributor for more details on the available warranty program.
An Extensive Network
By leveraging the extensive network of Gardner Denver factory-trained authorized local distributors, your sales, service, and technical support needs can be handled quickly and easily.
