Gardner Denver RVA0002 Rotary Vane Air Compressors on Tripod (Gardner Denver RVA0002)

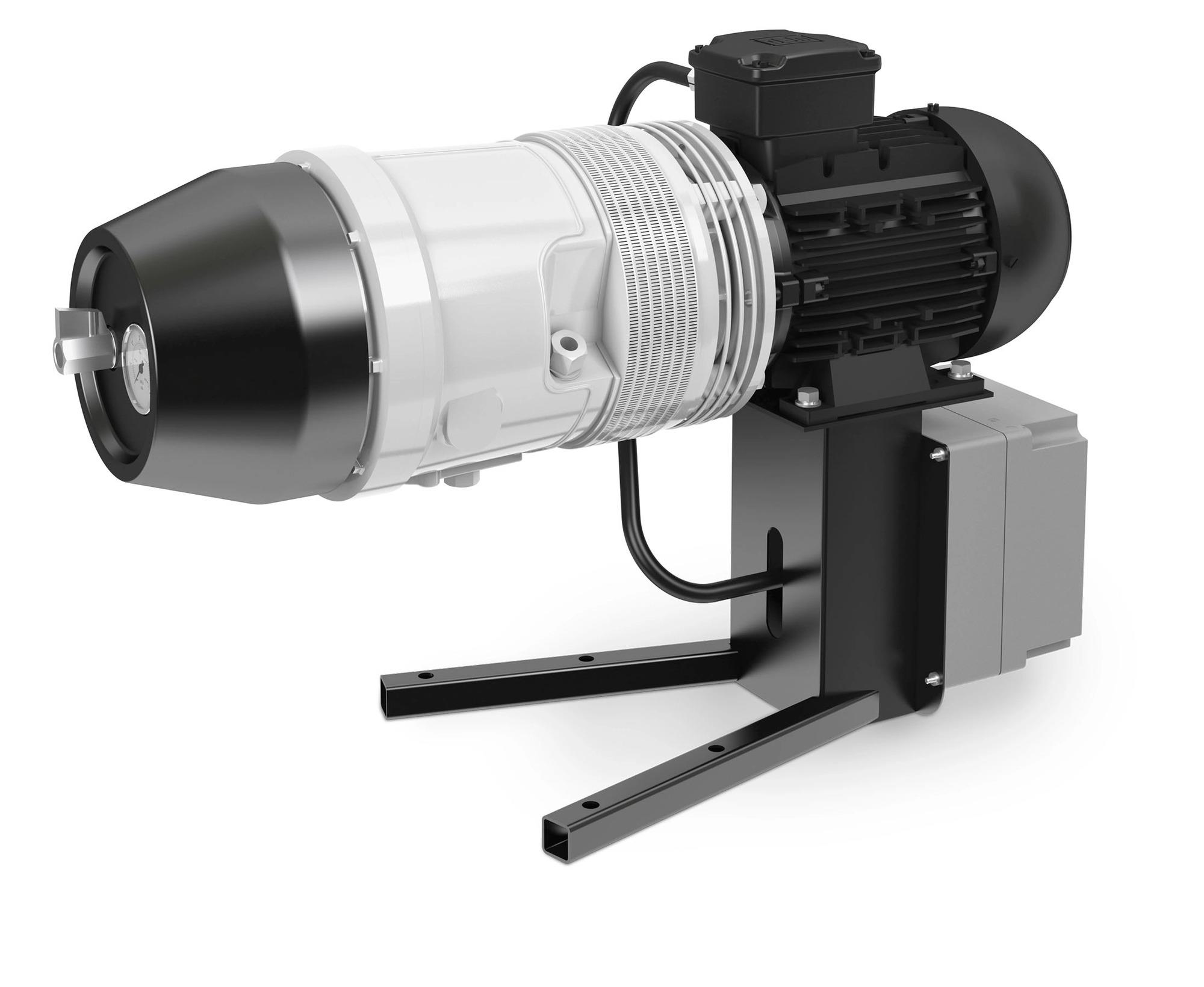

The Hydrovane V/VR Tripod mounted Rotary Vane Air Compressors are available with 2 HP, 100-150 psi and up to 6.3 cfm. These units are made up of a compressor and a TEFC motor mounted on a tripod stand. The V/VR Series is engineered to meet the most stringent of specifications. Their compact, simple, robust and integrated design allows them to be fitted anywhere undercover. They are easy to install and maintain as well as extremely quiet.

• 2 HP
• Compressor & TEFC motor on tripod stand
• 100-150 psi
• Up to 6.3 cfm

• Slow Speed Reliability
• Configuration Flexibility
• Low Noise: as low as 65 dBA
• Cost effective and low energy costs
• Ideal for 100% Duty Cycle Applications

The performance of Hydrovane improves overtime once parts are bedded within the rotary stator unit, reducing power and energy costs. Allowing up to 100,000+ operating hours with no expensive airend change.

Slow Speed Reliability

■ 1760 rpm direct drive (60 Hz)

■ 5–15 hp

Configuration Flexibility

■ Airend only

■ Compressor and TEFC motor combination

■ Tank mounted (simplex/duplex)

■ hypac total systems (compressor + tank + dryer)

Low Noise

■ As low as 65 dBA

Simple Start/Stop Controls

■ Hour meter and test off auto-switch included

■ No microprocessor

Easy-to-Service

■ Minimized consumable parts

■ Large oil capacity & generously-sized filtration provide extended service intervals

■ Spin-on/off oil filter & separator

■ Easy-access air filter

■ Less than 3 ppm oil carryover

Efficient Air Generation

■ Cost effective compressor

■ Low energy costs

Ideal for 100% Duty Cycle Applications Backed by Industry-Leading Warranty

■ Standard 2-year warranty

■ Industry-leading Platinum 10-year Warranty available

Long Life & Reliability

■ Fewer moving parts

■ Allowing up to 100,000+ operating hours with no expensive airend change or refurbishment

OUR COMPRESSOR TECHNOLOGY WEARS IN—NOT OUT!

The performance of a hydrovane improves over time once parts are bedded within the rotor stator unit, reducing power and energy costs.



The V and VR Series compressors are engineered to meet the most stringent of specifications. Their compact, simple, robust and integrated design allows them to be fitted anywhere undercover. These units are available in airend only, compressor plus motor, tank mounted (simplex/duplex), or hypac configurations (airend, motor, tank and dryer). They are easy to install and maintain as well as extremely quiet. They are designed for a wide variety of applications including automobile, body shops, wood working, dentistry, laundry, packaging and machine tools.

hypac

■ 5–15 hp

■ Tank-mounted compressor & motor with refrigerated dryer

■ The total system solution

■ 100–150 psi

■ Up to 50.2 cfm







































Airend or Compressor/Motor ■ 5–10 hp ■ Compressor and/or TEFC motor ■ 100–150 psi ■ Up to 36.4 cfm
Tripod ■ 2 hp ■ Compressor & TEFC motor on tripod stand ■ 100–150 psi ■ Up to 6.3 cfm Simplex ■ 5–10 hp ■ Tank-mounted compressor & TEFC motor ■ 100–150 psi ■ Up to 36.4 cfm		Duplex ■ 5–10 hp ■ 2 compressors/motors & tank ■ Lead/Lag system evenly distributes load between compressors ■ 100–150 psig ■ Up to 72.8 cfm





You can ensure your equipment’s health with Gardner Denver Platinum Series. Platinum Guard is a preventative maintenance agreement serviced by Gardner Denver Authorized Distributors using genuine OEM parts and lubricants. The multi-year Platinum Trust service agreement offers peace of mind with extended coverage beyond the major components—the entire compressor package is included. Learn more about our service offerings and how to register below:

Unplanned downtime and interruptions in your production can greatly affect your business. That is why having a proper maintenance schedule for your compressed air operation is critical. By choosing one of Gardner Denver's service offerings or warranty programs, your business will have peace of mind that you will get the best reliability out of your equipment.

Ensure Your Equipment’s Health with Gardner Denver Platinum Series



Platinum Guard Service Offering Platinum Guard is a preventative maintenance agreement serviced by Gardner Denver Authorized Distributors using genuine OEM parts and lubricants. Guard your investment with a service plan that keeps your compressor (and operations) running with few interruptions.

Platinum Trust Service Offering   The multi-year Platinum Trust service agreement offers peace of mind with extended coverage beyond the major components—the entire compressor package is included. Protect your equipment against unforeseen events with this service offering and guarantee consistent, reliable coverage from partners you trust. How to Register:  The process for registering is simple. Reach out to your local authorized distributor and let them know which service offering you're interested in. They can help you to sign up for the right offering to keep your business up and running smoothly. Contact your distributor for more information and to sign up for compressor coverage and peace of mind.

Reciprocating Warranties: Convenience & Peace of Mind



Standard Warranty

The standard warranty covers parts and labor on the package components for one year and three years on the compressor pump.

The Gardner Denver philosophy ensures long-lasting, reliable equipment. Our warranty program demonstrates our confidence in our products. Each new Gardner Denver assembled unit has a 3 year warranty on the compressor pump against defects in materials of workmanship under normal use and service.

*See standard warranty form BU-50 & BU-51 for complete standard warranty details.

Premium Extended Warranty

Purchase a Premium Warranty Kit at the same time as your new Gardner Denver compressor package to receive extended warranty protection. This offer will double the coverage with an additional 3 years of warranty on the compressor pump (pumps & labor) providing 6 YEARS of worry free coverage. The Premium Extended Warranty also provides an extra 12 months coverage on the package for a total of 24months. See Premium Warranty form BU-60 for complete extended warranty details.

• Premium Warranty kit has all necessary service items (oil & filters) for 6 years of annual maintenance
• Duplex machines require two kits, one for each pump
• The use of approved Gardner Denver lubricants are required to maintain the extended warranty period

How to Register: 

The process for registering is simple. Reach out to your local authorized distributor and let them know which warranty program you're interested in registering for. They can help you to sign up for your desired compressor coverage, providing you peace of mind.
