Gardner Denver ETS-200 Electra TS Series 200-300 HP Rotary Screw Air Compressor

Gardner Denver ETS-200 Electra TS Series 200-300 HP Rotary Screw Air Compressor (Gardner Denver ETS-200)

Brand : Gardner Denver

Price : 0,00 EURO

Stock Amount : 0

Note: The prices shown here are retail sales prices. SPECIAL DISCOUNT MAY APPLY FOR BULK PURCHASES . Additionally, discounted prices offered to dealers may differ.

Import duties, customs charges, and value-added taxes for products originating outside of Turkey are not included in the listed prices. This is applicable to customers purchasing from within Turkey.

The prices mentioned here do not include door-to-door delivery. Buyers purchasing from other countries are responsible for customs duties and any other taxes applicable under their local commercial laws.

For orders under 13,000 Euros, if the product value is below this, the total order value must either reach 13,000 Euros or a 150 Euro customs fee will be added to your final invoice value.

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Artır Azalt

Delivery Time 45-60 Days After O.C.

Shipment Place Turkiye

Payment Terms % 50 T/T On O.C., % 50 T/T B.S.

Made In USA

Min. Order Qty. 1 Pcs.

Warranty1 Year

The engineering ingenuity of Gardner Denver began in 1859. For over 150 years, our compressed air products have been a dependable resource for meeting the world’s most demanding and ever-changing industrial needs. Featuring high performance airends, premium efficiency motors and following the same design philosophy as the Electra Saver G2; we offer the same clean design, service benefits and features in a compact, two stage machine.

Featuring a semi-integrated over/under two stage proven airend with integral cartridge filter makes a compact, lean and easy-to-service package. The Electra TSV utilizes commonality in parts and components with the Electra Saver/SaverII 200–300 HP packages. This truly makes the Gardner Denver Electra series a comprehensive and complete family portfolio. Following our good, better and best philosophy of supporting our customer in ALL applications and market segments.

• 200-300 HP

• Two stage high efficiency airend

• Enclosed or Unenclosed Base Mount on all HP

• Air or Water Cooled

• Standard 1800 rpm TEFC motors

• NEMA 4 Control Enclosure Standard on all Models

• New 10" Governor touchscreen microprocessor controller

• Load/No Load Capacity Control

• Tip-out Air and Oil Cooler

• Stainless Steel Control Lines

Reduced downtime due to service-friendly package design

Integrated cartridge style oil filter
Tip-out cooler

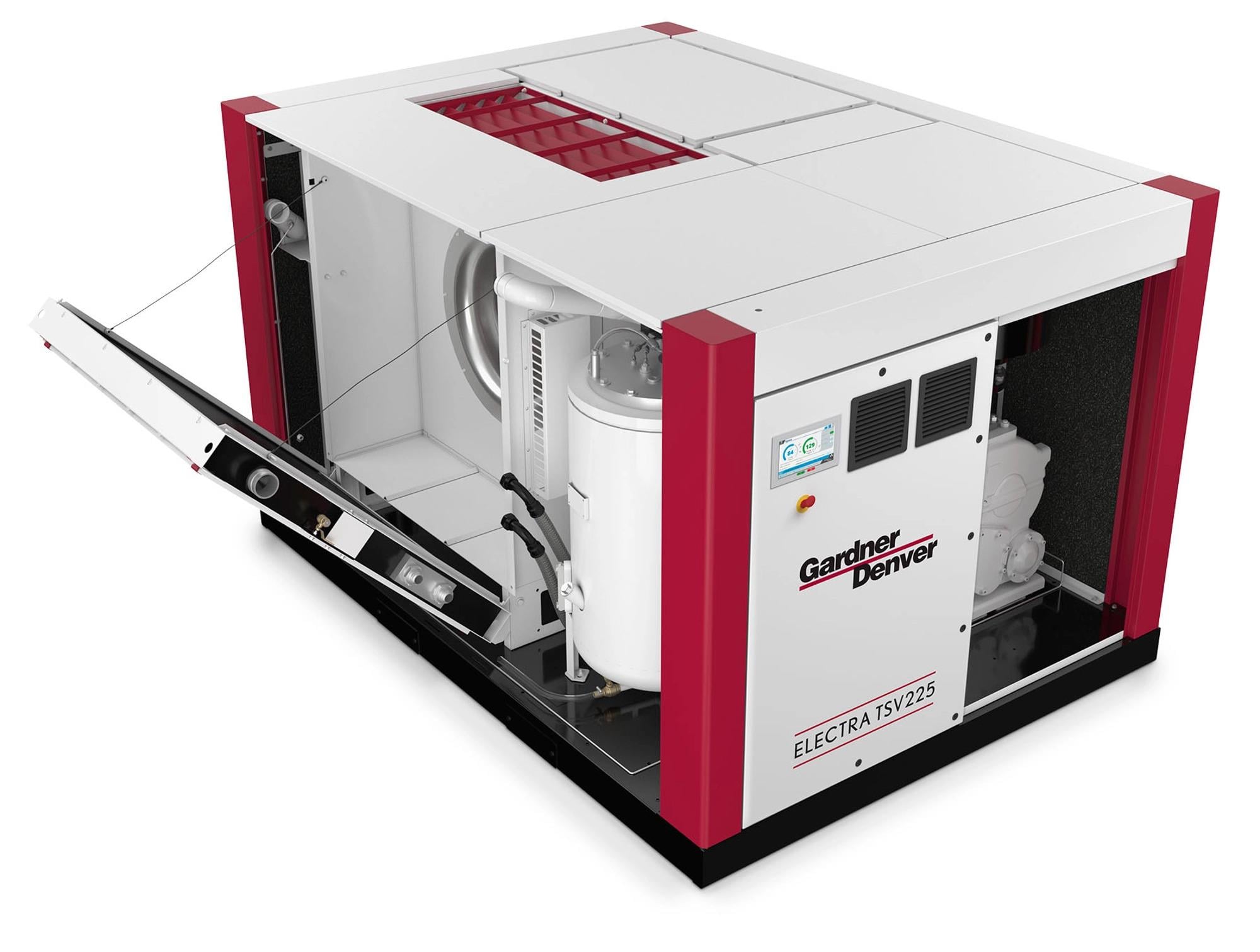

Enclosed package with large access doors allows for quick access to all service items

Slow speed GD10DS airend design ensures reliability and efficiency

1800RPM slow speed airend, maximizes efficiency and increases reliability
New 4 gear VS traditional 3 gear design adds rigidity and reduces bearing load
Integrated cartridge style oil filter reduces risk of leakage and aides in a compact airend design
Integrated interstage cooling improves efficiency and relability of the airend

Governor Controller = Information at your fingertips

Easy to use touchscreen display & navigation
10" Full-Color LCD Screen
Built-in digital gauges
Advanced machine diagnostics
Real-time and historical trending

Featuring a semi-integrated over/under two stage proven airend with integral cartridge filter makes a compact, lean and easy-to-service package. The Electra TS/TSV utilizes commonality in parts and components with the Electra Saver/SaverII 200–300 HP packages. This truly makes the Gardner Denver Electra series a comprehensive and complete family portfolio. Following our good, better and best philosophy of supporting our customer in ALL applications and market segments.

Founded on the same principles as the SAV and SAV II G2 products previously released, the 200–300 HP TS and TSV models deliver similar performance as the VST Series, serviceability improvements, complexity reduction and commonality in parts with the SAV and SAV II G2. The TS and TSV models features the new, state-of-the-art Governor 10" touchscreen controller and each compressor ships from the factory with an iConn module installed in the control panel as standard. Like the SAV/SAVII G2 models, the new Electra TS/TSV 200–300 HP units will also include a new hinged lid-style reservoir and top discharge cooler; preserving design continuity within the entire Electra family of products.

■ Gear driven, fixed speed and direct drive, variable speed, two-stage rotary screw air compressor

■ AEON 9000SP lubricant

■ Air or water-cooled

■ Governor™ 10" touchscreen microprocessor controller

■ Oil cooler/aftercooler: Air-cooled models—heavy duty radiator-type with thermally controlled, totally enclosed fan motor; Water-cooled models—shell and tube heat exchanger

■ cULus listed and CSA approved electronics

■ Quiet enclosed as standard with optional deduct for open frame

■ Variable speed—control system; Fixed speed—load/no load

■ Optional moisture separator/trap

■ Wye-delta starter

■ Variable speed—IP54 rated electrical enclosure; Fixed speed— NEMA4 rated electrical enclosure

■ TEFC main motor

■ ASME/CRN coded oil reservoir

■ Thermostatic oil control mixing valve

■ Sequencing kit available

■ Stainless steel control lines

■ Minimum pressure discharge check valve

■ Optional remote mounted air-cooled cooler

■ Optional seacoast (air-cooled) or salt water (water-cooled) cooler

■ Voltage: 60 Hz: 380V/460V/575V 50 Hz: 380V

MODEL	ETS-200
DRIVE MOTOR HP	200
DRIVE MOTOR kW	150
50 Hz NOMINAL PRESSURE PSIG	100 125 200
50 Hz BAR	6.9 8.6 13.8
50 Hz FAD ACFM	1092 1057 839
50 Hz FAD M³/MIN	30.94 29.93 23.76
60 Hz NOMINAL PRESSURE PSIG	100 125 200
60 Hz BAR	6.9 8.6 13.8
60 Hz FAD ACFM	1159 1102 835
60 Hz FAD M³/MIN	32.81 30.28 23.65
NOİSE LEVEL dB(A) ENCLOSED/UNENCLOSED	80/93
WEIGHT LBS	10924
WEIGHT KG	4955
DIMENSIONS L×W×H (IN / MM)	129×92×76 (3277×2337×1930)

Unplanned downtime and interruptions in your production can greatly affect your business. That is why having a proper maintenance schedule for your compressed air operation is critical. By choosing one of Gardner Denver's service offerings or warranty programs, your business will have peace of mind that you will get the best reliability out of your equipment.

Platinum Guard Service Offering

Platinum Guard is a preventative maintenance agreement serviced by Gardner Denver Authorized Distributors using genuine OEM parts and lubricants. Guard your investment with a service plan that keeps your compressor (and operations) running with few interruptions.

Platinum Trust Service Offering

The multi-year Platinum Trust service agreement offers peace of mind with extended coverage beyond the major components—the entire compressor package is included. Protect your equipment against unforeseen events with this service offering and guarantee consistent, reliable coverage from partners you trust.
