EnviroAire ES series oil-free scroll compressors offer a rich array of standard features as well as optional features designed to meet your requirements and exceed your expectations.
•5 Micron industrial grade intake filters
•ASME coded receiver
•Premium efficient TEFC motor
•Integral air end cooling fan
•High flow package cooling fan
•Air-cooled aftercoolers
•Automatic moisture drain
•Moisture separator
•Deluxe HMI Controller (optional)
Why oil-free? Don't compromise on quality
The EnviroAire S Series oil-free scroll air compressors from Gardner Denver sets the standards for air purity. These oil-free scroll compressors are ISO 8573-1 Class O compliant. Offering not only 100% oil-free air but also improved energy efficiency, these compressors are made to meet the precise needs of a diverse range of industries.
Why Oil-Free Scroll Systems?
Rotary scroll compressor technology is popular because of the minimal preventative maintenance required, moderate time periods between the maintenance intervals, and fewer moving parts that other technologies like reciprocating or screw. All maintenance procedures can be performed in the field at a very economical cost to your customer.
The EnviroAire ES products are fixed speed, single stage, 100% oil-less rotary scroll compressors from 5-10 HP (per pump), packaged in a sound attenuating enclosure. Scroll packages have been designed specifically for industrial, laboratory, and other clean air applications in a variety of configurations. The EnviroAire ES scroll packages provide the low sound level desired by most applications. Systems meet current CSA Standards and are offered in several designated flow designs.
Benefits at a Glance
•Oil-Free/Contaminant Free Air
•Continuous Operation, 100% Duty Cycle
•Low Sound Levels
•Low Vibration
•Compact Footprint
•Less Moving Parts
•High Efficiency
QUADRAPLEX
EnviroAire ES

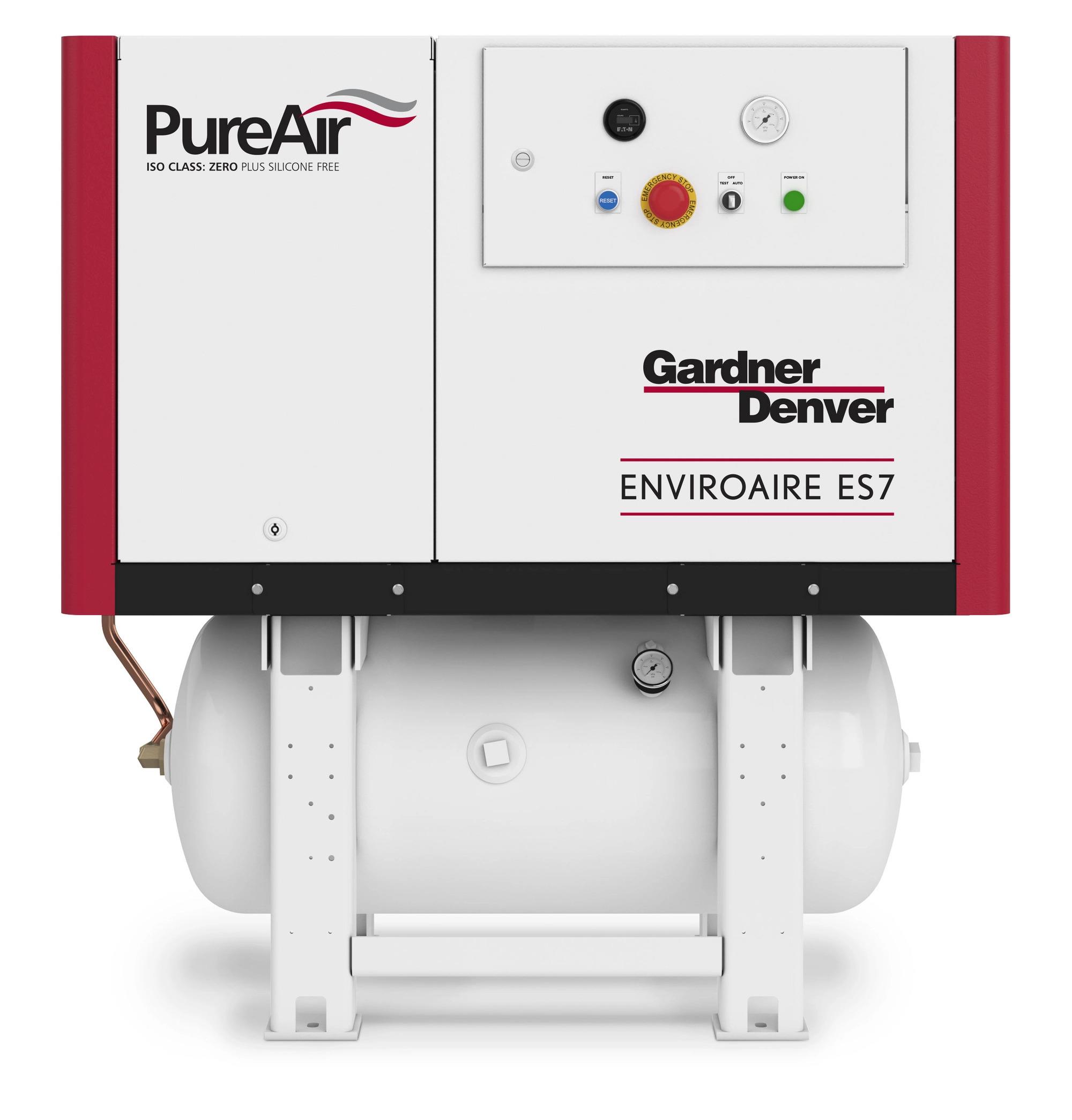

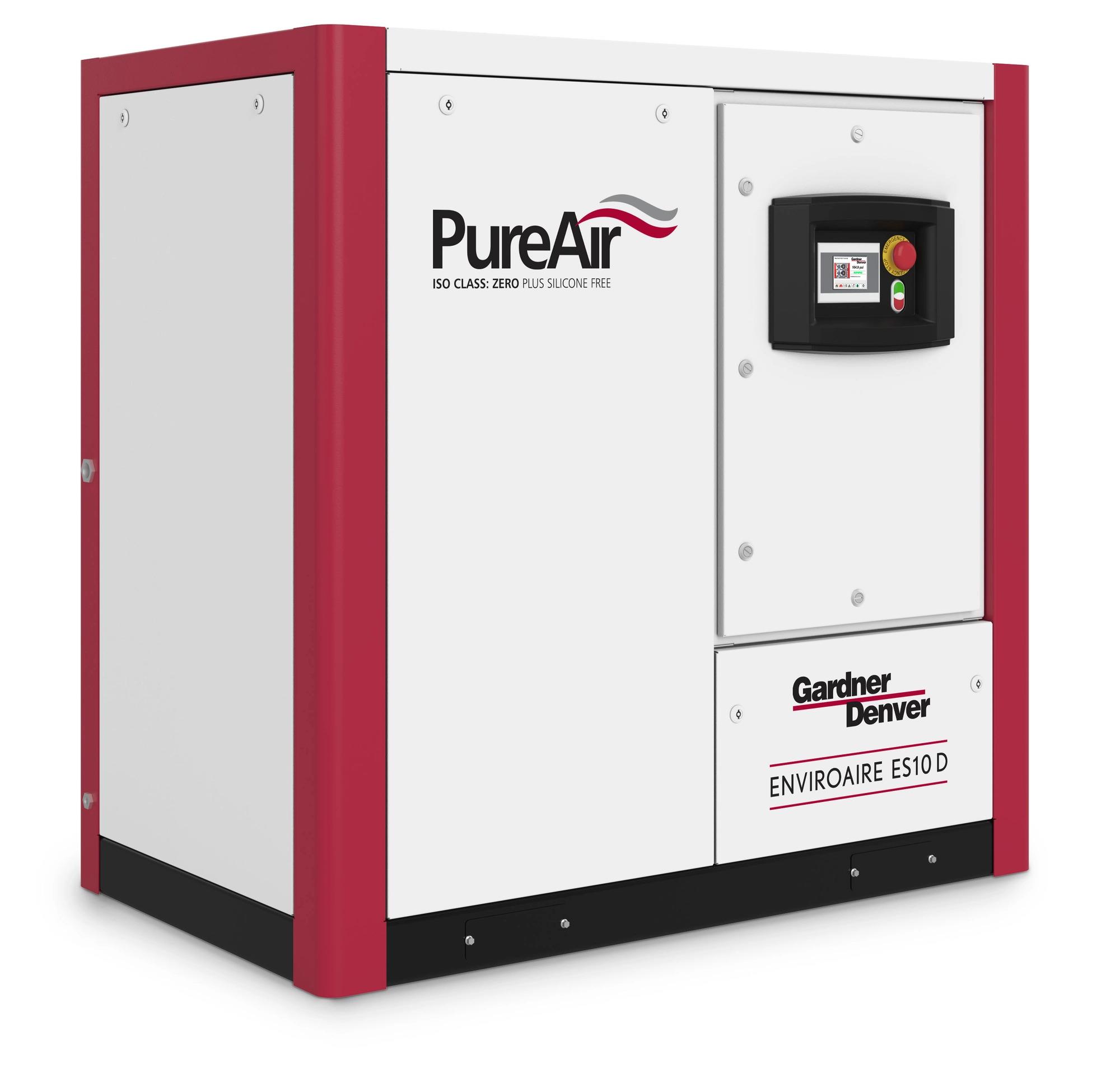

The enclosed scroll product line starts with simplex units at 5, 7.5, and 10 HP, available as base mounted or factory mounted on a 30, 80, or 120 gallon receiver. The EnviroAire ES is the perfect choice for a compact, efficient, and low maintenance option in a wide variety of clean air applications. Base mounted multiplex packages range from 10 to 40 horsepower in configurations of Duplex, Triplex, or Quadraplex in a single sound attenuating enclosure for quiet operation. These units provide peace of mind with the redundancy of additional compression elements, and support energy efficiency by controlling the number of compressor elements in operation to meet current air demand.
1 Automatic Condensate Drain
2 Rigid Framework
3 5 Micron Inlet Filter
4 Fork Slots for Easy Handling
5 Unique Chambered Design - Maximized Cooling and Serviceability
6 Large Industrial Aftercoolers
7 Premium Efficient TEFC Motor
8 High Volume Cooling Fan
9 Sound Attenuating Enclosure
10 Internal Vibration Isolators
■ NEMA 1, UL508A Labeled Panel
■ Magnetic Contactor with Overload Protection
■ 115V Control Circuit Transformer with Fusing
■ Door Mounted TOA Switch
■ Emergency Stop Button
■ Green Power On Light
■ Run Time Meter
■ Pressure Gauge
■ Reset Button
The EnviroAire ES is a 100% Oil-Less design. There is no oil present anywhere in the compressor package, which completely eliminates the risk of product contamination due to oil carryover. The EnviroAire ES meets ISO 8573-1 Class 0, the most stringent class. It is also certified Silicone-Free which is critical for applications such as automotive and pharmaceutical.
Silicone contamination in compressed air systems cause problems across a wide range of industries such as electronics, pharmaceuticals and automotive. Costly product spoilage, re-work and production downtime can result from this contamination. For example, a high quality paint finish is essential to the automotive industry. Blisters, cracks, craters and loss of adhesion are all symptoms of silicone contamination.
■ 100% silicone-free, guaranteed
■ Specifically designed for use in pure-air critical applications such as the automotive, food and beverage, pharmaceutical, laboratory, and medical industries
■ Avoids contamination and provides the highest air quality standards
■ Independently tested and certified
Dryers, Filtration & Downstream Equipment
Compressed air systems require clean dry air with environmentally sound disposal of by-products. That is why Gardner Denver support does not stop at the compressor. Proper removal of contaminates is essential in preventing costly damage to equipment. Gardner Denver provides a broad range of dryers, filters, separators, drains, and other downstream products to ensure total system reliability. Shown below are some typical applications and general product arrangements.
The engineering philosophy of Gardner Denver ensures long-lasting, reliable equipment. Our simple, but bold warranty programs demonstrate our belief in the quality found in Gardner Denver compressors.
Our standard 1-year warranty ensures that you have peace of mind when it comes to your system's operation. Contact your local authorized Gardner Denver distributor for more details on the available warranty program.
By leveraging the extensive network of Gardner Denver factory-trained authorized local distributors, your sales, service, and technical support needs can be handled quickly and easily.
