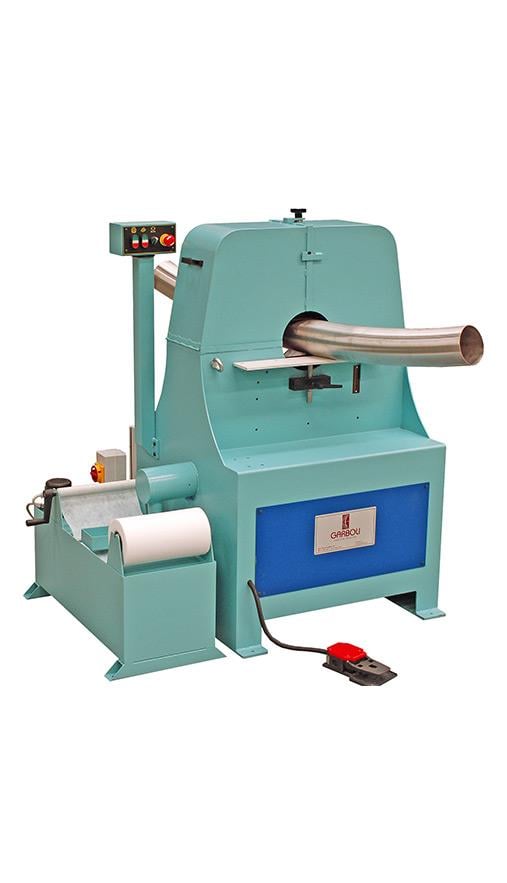

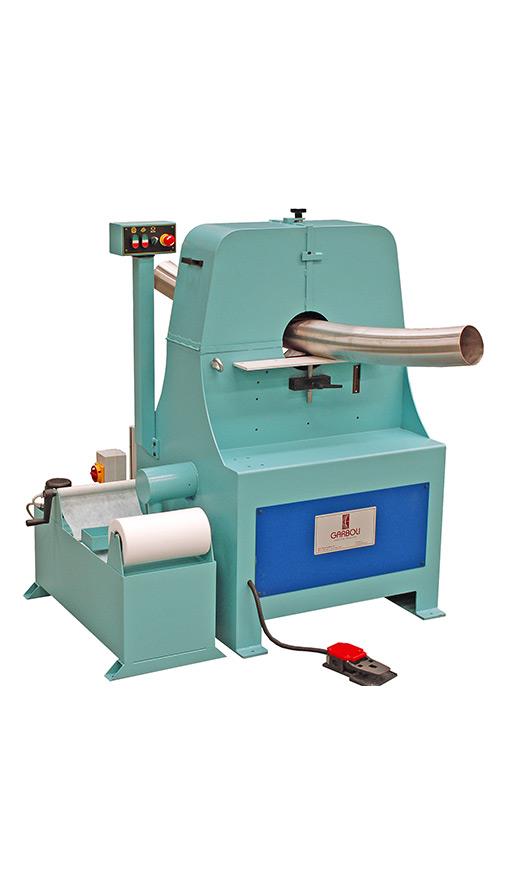

Orbital abrasive belts finishing machine type LPC 500 Wet is featured by a wet process system, that enables to grind, satin finish and polish straight and bent tubes with round, oval, elliptical and irregular section made in stainless steel, iron, aluminum, brass and other metals.
Workpieces are introduced among the abrasive belts with manual or automatic feed. This tube polishing unit is particularly suitable for processing of light alloy, aluminum and titanium components. This machine, extremely sturdy and reliable can also be used for dry polishing process by connecting it to an external dust collection plant. Several special equipment are available on request.
D = 10–203 mm (8" max)
R min. = 225 mm
S = 1500 mm L = 90 mm
2,2 kW 7,5 kW 0,12 kW
Weight: 505 kg
H = 145 cm P = 150 cm L = 120 cm
ADN automatic self centering feed system for straight tubes with 4+4 rollers (Not for taper parts) with adjustable feed trough inverter
ADN automatic self centering feed system for straight tubes with 4+4 rollers (Not for taper parts) with adjustable feed trough inverter (Hinged, for manual feed processing)
ALT SELFCENTERING automatic feed for straight and cylindrical TAPER PARTS and adjustable feed with inverter
AVU "UNIVERSAL" feed for both straight and bent parts with adjustable speed through inverter
Wet cooling system in inox with automatic filtering paper roll-up
Wet cooling system with automatic filtering paper roll-up
AN foot pedal equipment for a easier workpiece insert betwenn the abrasive belts
AN/A equipment for automatic opening and close of the abrasive belts through photoeye and PLC
Abrasive belts speed adjustable (10–30 mt/sec) with inverter and digital display with mt/sec real values
Controls panel with digital display for belts speed and feed system speed adjusting.
Touch-Screen controls panel for working cycles programming, feed rate adjustment
